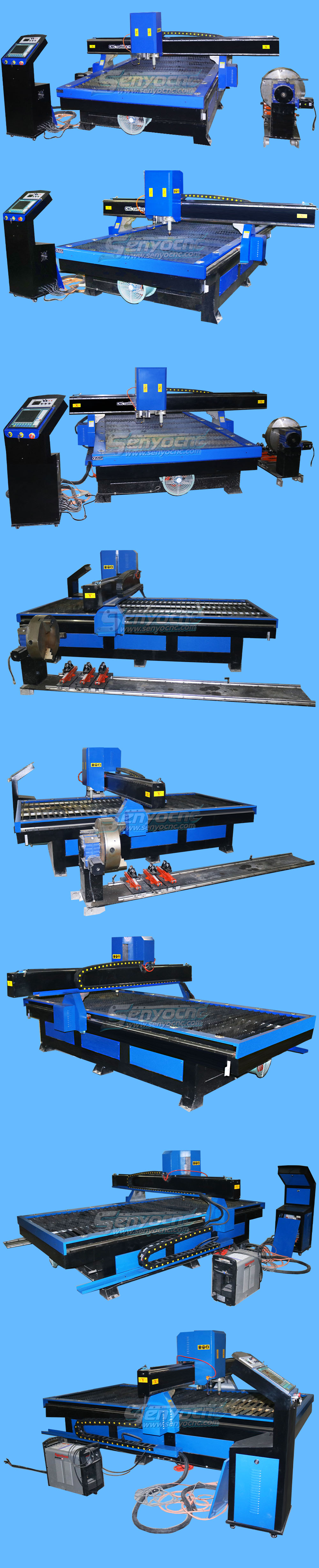

CNC Plasma with Drilling Head and Rotary Machine: A Game Changer in Modern Manufacturing

In today’s fast-paced manufacturing world, efficiency and precision are key to staying competitive. The integration of multiple machining processes into one automated system is a major advancement that boosts productivity, reduces costs, and improves the accuracy of finished products. One such breakthrough is the CNC Plasma with Drilling Head and Rotary Machine. This multi-functional machine combines plasma cutting, drilling, and rotational capabilities, allowing manufacturers to perform several tasks simultaneously on a single unit.

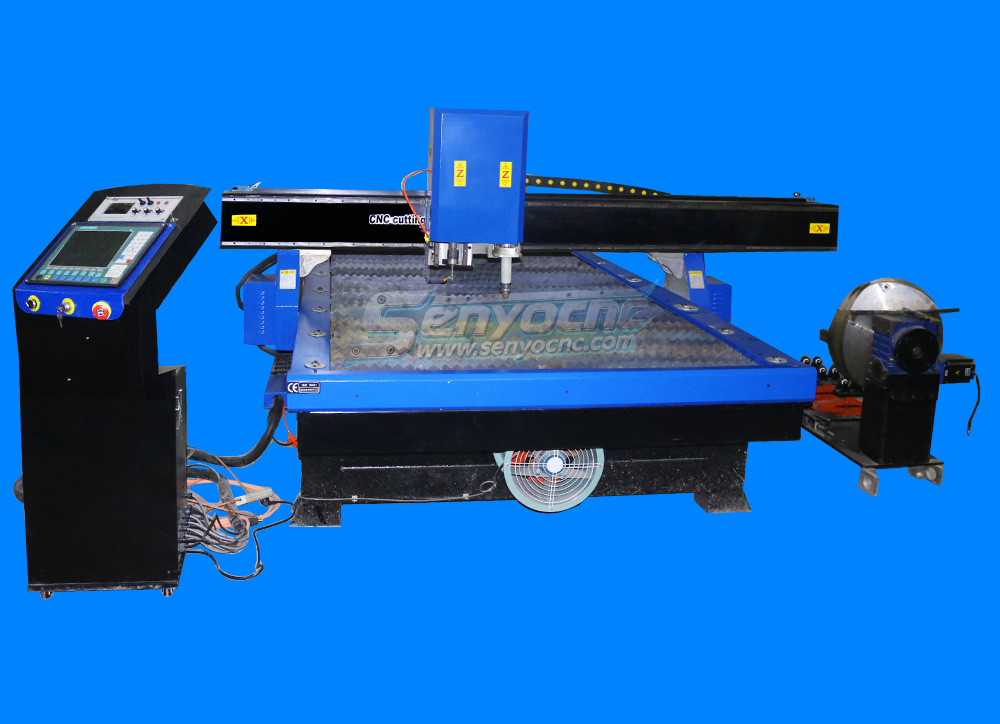

What is a CNC Plasma with Drilling Head and Rotary Machine?

A CNC Plasma with Drilling Head and Rotary Machine is an advanced hybrid machine tool that integrates three major processes:
    1.    Plasma Cutting – The CNC (Computer Numerical Control) plasma cutter uses a high-speed stream of ionized gas (plasma) to cut through electrically conductive materials like steel, aluminum, brass, and copper. It’s known for its speed and precision, making it ideal for sheet metal work and large-scale cutting.
    2.    Drilling – The drilling head attached to the CNC machine allows for precise hole drilling in a wide variety of materials. Drilling heads can handle different types of drills, enabling the machine to drill multiple sizes and depths.
    3.    Rotary Function – The rotary feature rotates the workpiece to allow cutting or drilling at various angles, enabling complex 3D machining operations. It is particularly useful for cylindrical or tubular workpieces, making it ideal for industries like automotive, aerospace, and heavy machinery.

By combining these processes into one machine, manufacturers can eliminate the need for multiple machines, improving both throughput and workflow efficiency.

Key Features and Benefits
    1.    Increased Efficiency and Productivity: Traditional manufacturing processes often require separate machines for cutting, drilling, and rotating, which can lead to delays, setup times, and material handling costs. A CNC plasma with a drilling head and rotary machine reduces downtime and increases production efficiency by consolidating these functions into one platform.
    2.    Space Saving: The ability to perform multiple tasks on a single machine helps reduce the amount of space needed in a production facility. It minimizes the footprint, freeing up room for other operations or tools.
    3.    Precision and Accuracy: With CNC technology controlling every aspect of the machining process, these machines offer extreme precision. Plasma cutting with CNC technology can achieve fine detail and complex geometries, while the drilling head ensures accurate hole placement and depth control. The rotary feature allows for angular and multi-directional operations without compromising quality.
    4.    Flexibility: The combination of plasma cutting, drilling, and rotary functions allows manufacturers to work on a wide range of materials and parts. From simple 2D cutting to more intricate 3D shapes and hole drilling, the machine can tackle a variety of tasks that would otherwise require multiple machines.
    5.    Cost Reduction: By reducing the need for separate machines and operators, manufacturers can cut down on both initial investment and operational costs. Additionally, reducing material waste and increasing throughput lowers the overall cost per part produced.

Applications in Industry
    •    Metalworking: CNC plasma cutters are widely used in metal fabrication for cutting sheets of steel, aluminum, or other metals. With the addition of a drilling head and rotary machine, fabricators can create complex parts, such as brackets, frames, and enclosures, with both drilled holes and intricate cutouts in a single operation.
    •    Aerospace and Automotive: In the aerospace and automotive industries, parts often require both precise cuts and drilled holes. The hybrid CNC plasma machine can quickly create components like engine parts, chassis, or brackets, all while maintaining tight tolerances.
    •    Heavy Equipment: Industries that manufacture heavy equipment often need large metal parts with both holes and cutouts. The ability to handle both operations on a single machine streamlines the production of items like structural beams, frames, and chassis.
    •    Construction: For applications like steel framing or rebar cutting, this machine can quickly cut and drill steel components, reducing the time spent on-site for assembly.

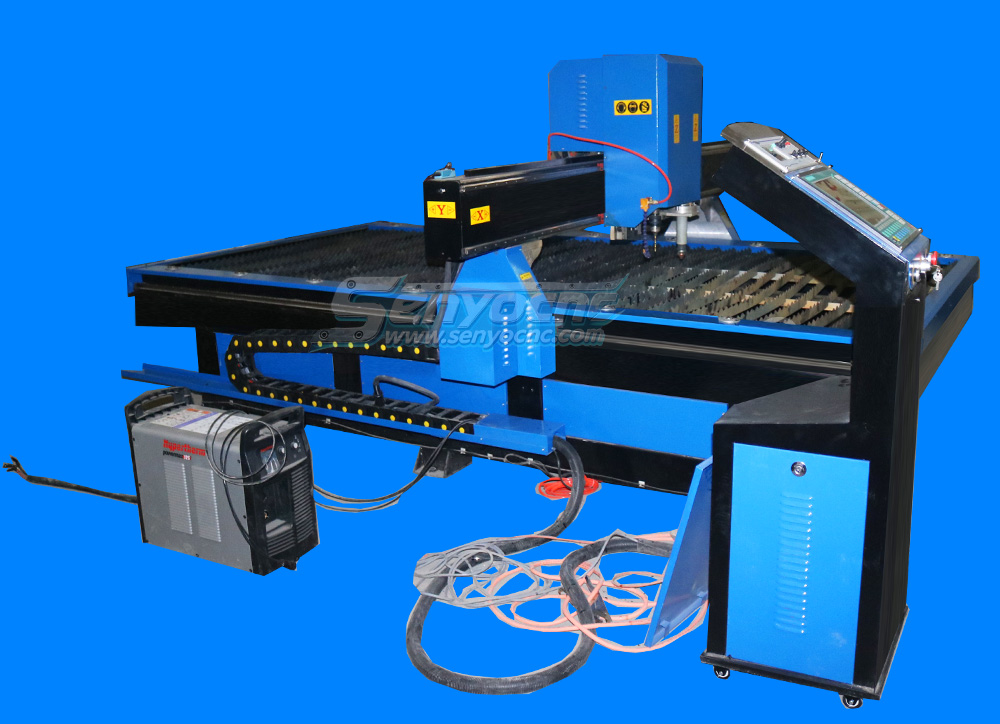

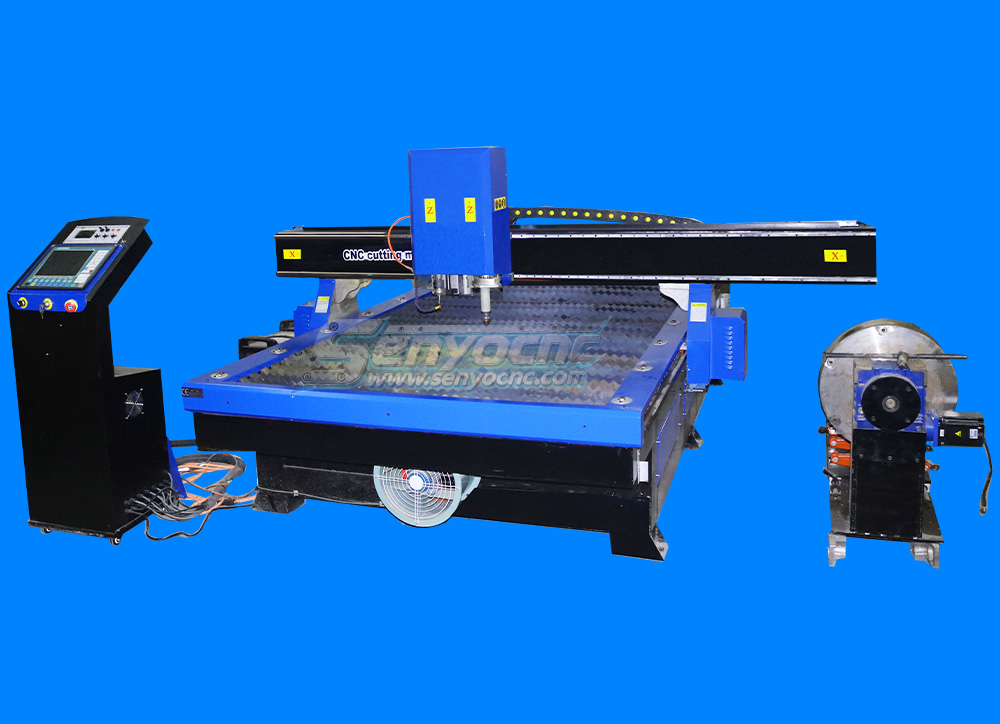

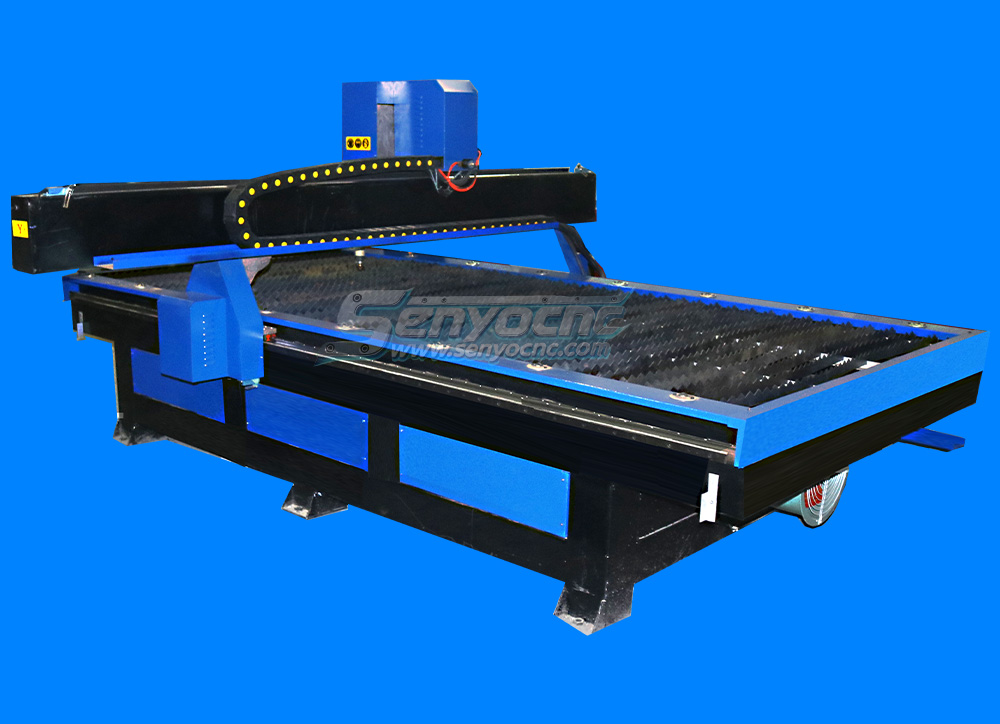

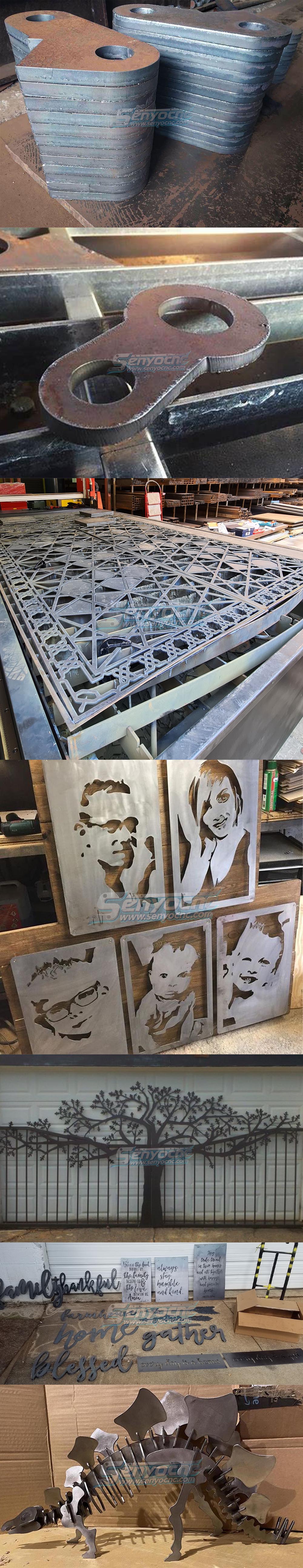

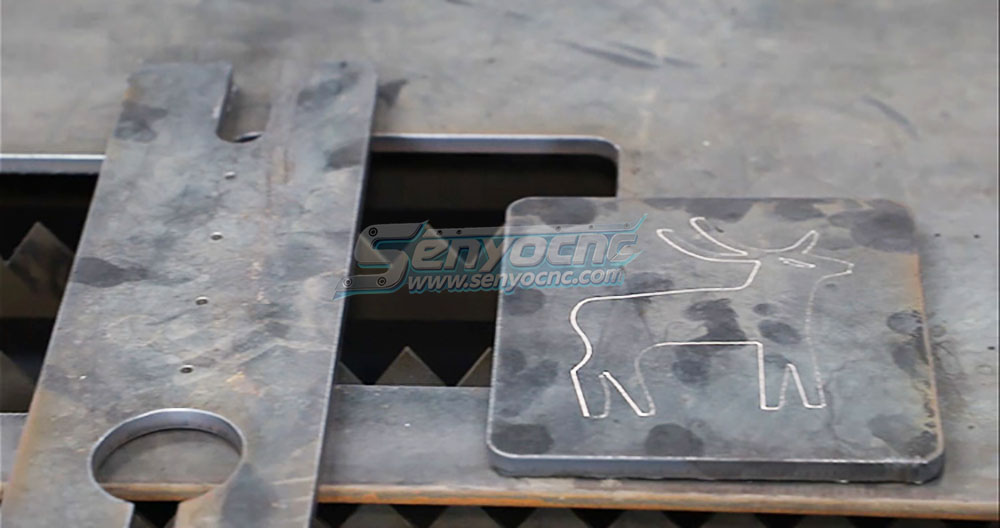

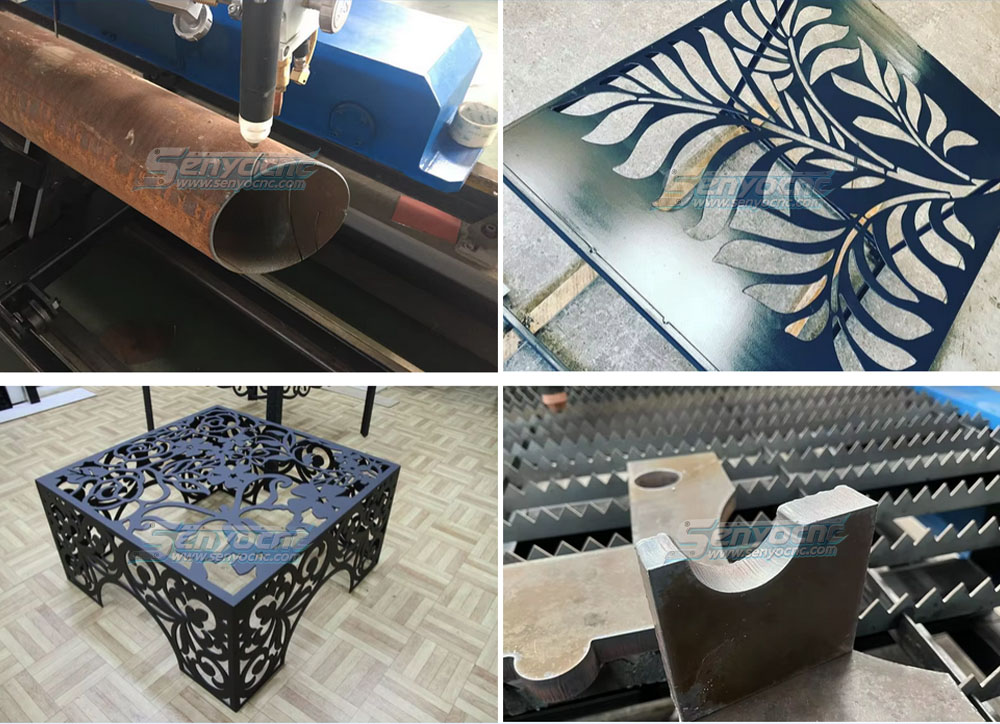

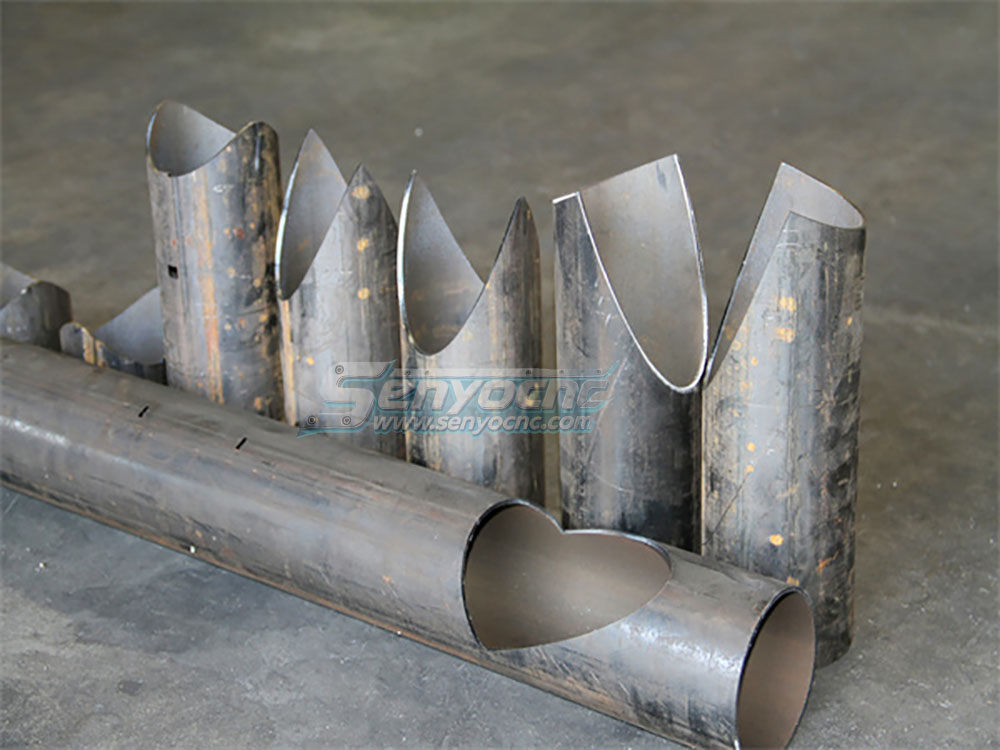

Working Samples & Project

Technology Behind the CNC Plasma with Drilling Head and Rotary Machine

Modern CNC plasma systems use a computer control system to guide the plasma torch along a precise cutting path. The system can be programmed via G-code or a more advanced CAM (Computer-Aided Manufacturing) software, which enables the machine to follow intricate designs with accuracy.

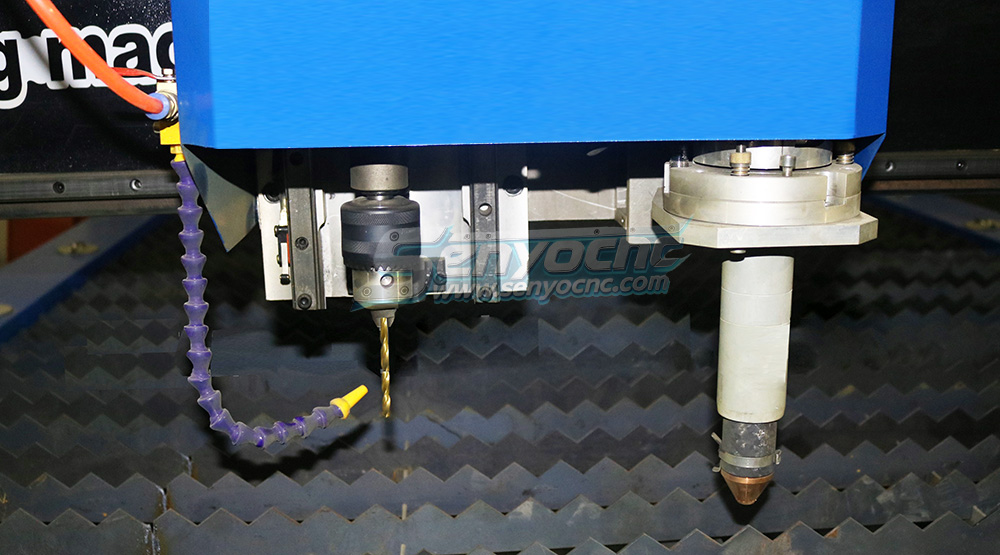

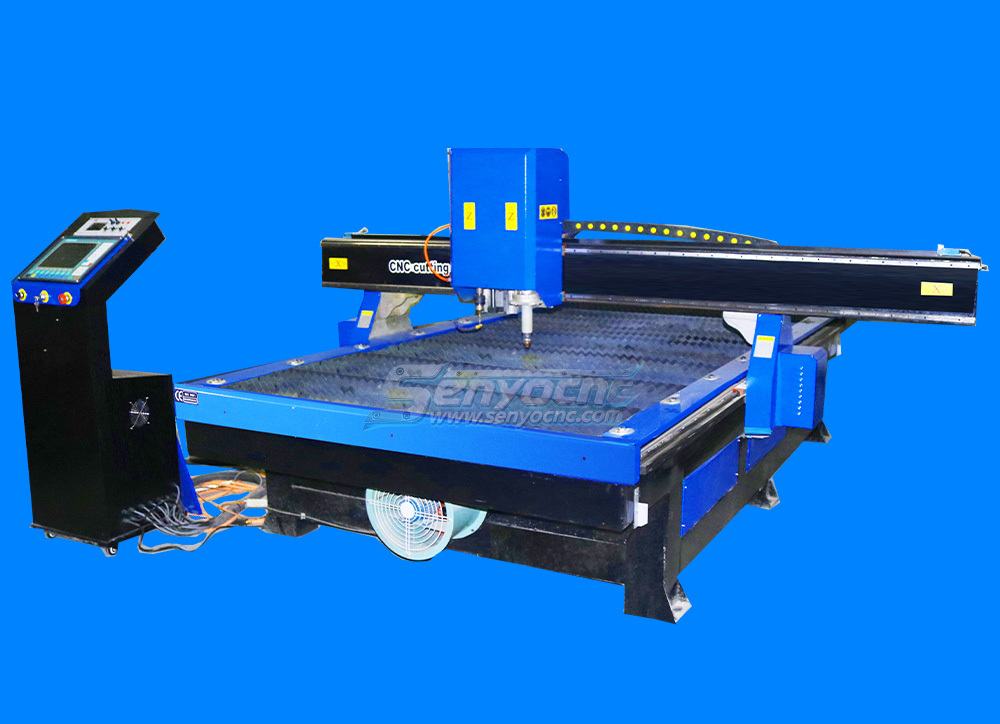

The drilling head is usually integrated into the CNC system via a quick-change mechanism, allowing the operator to easily switch between cutting and drilling operations. Some systems also allow for automatic tool changers, streamlining the process further.

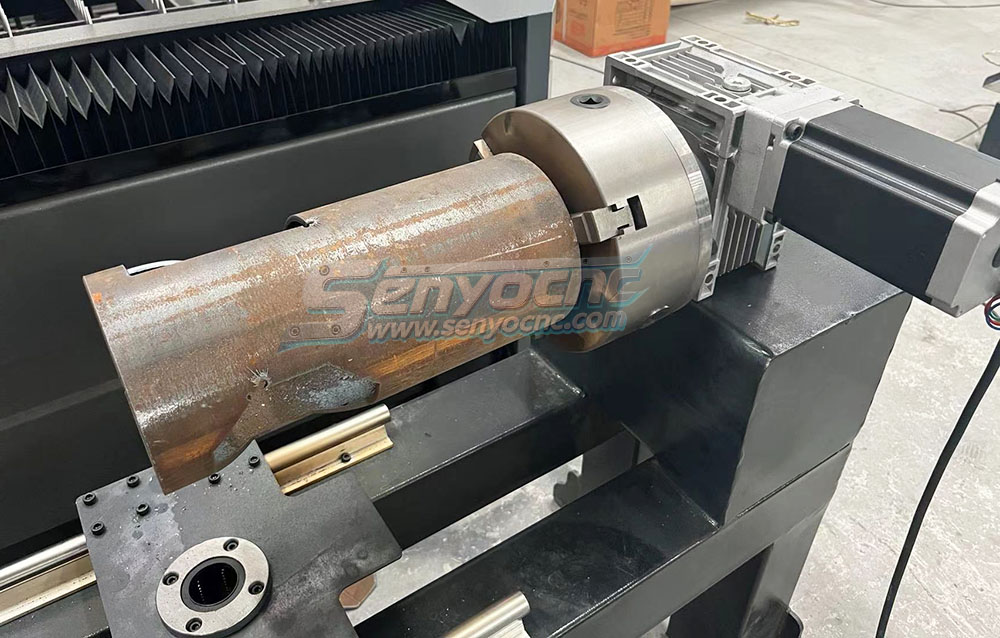

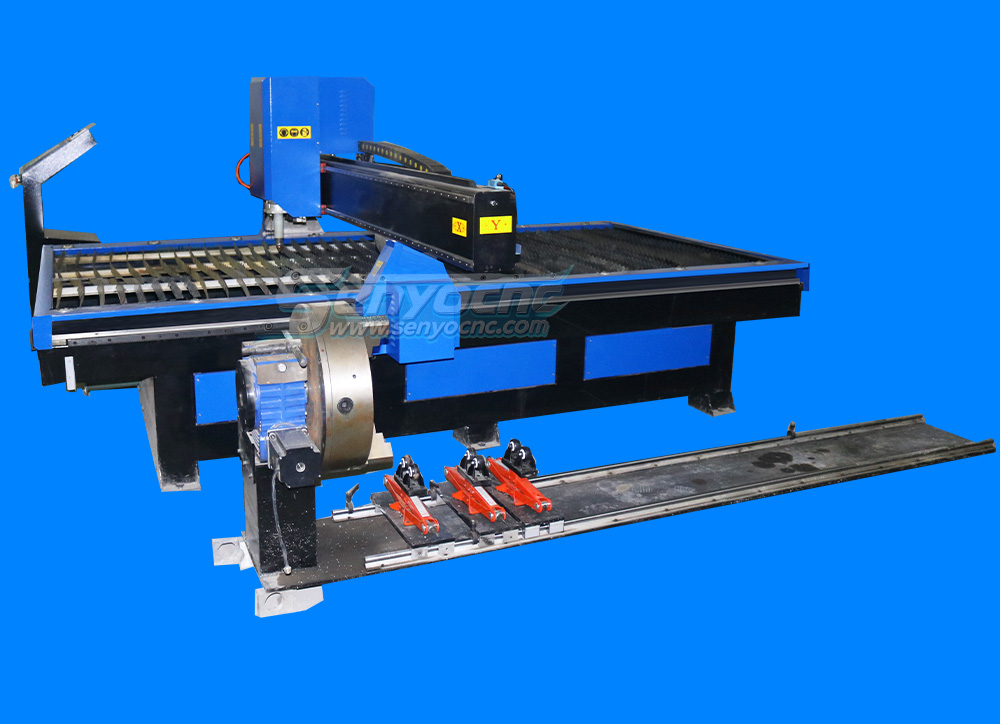

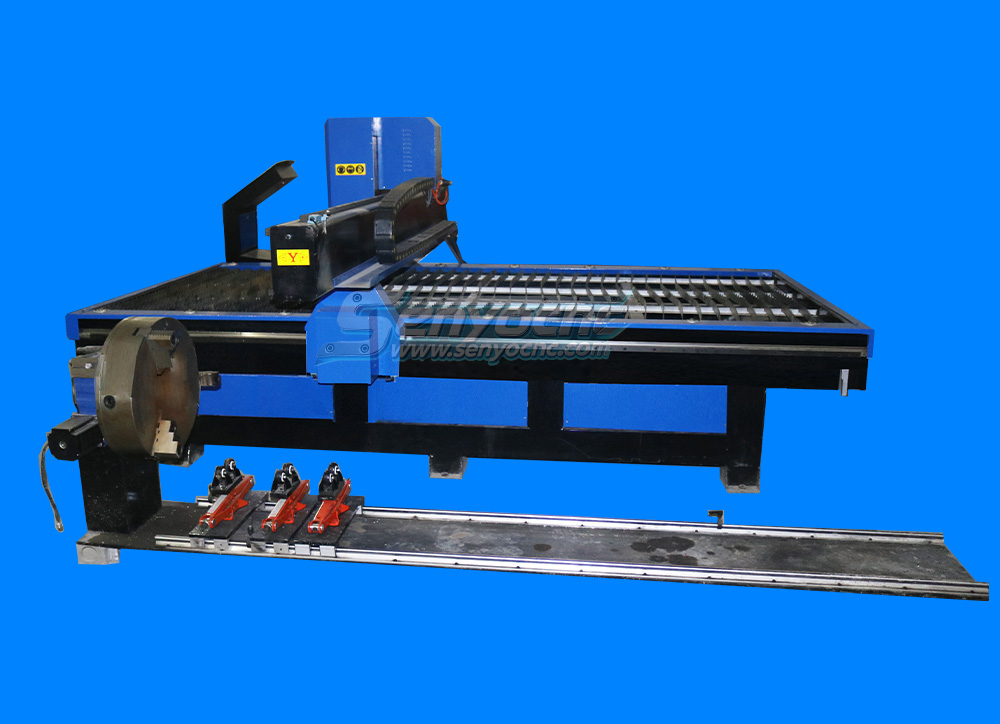

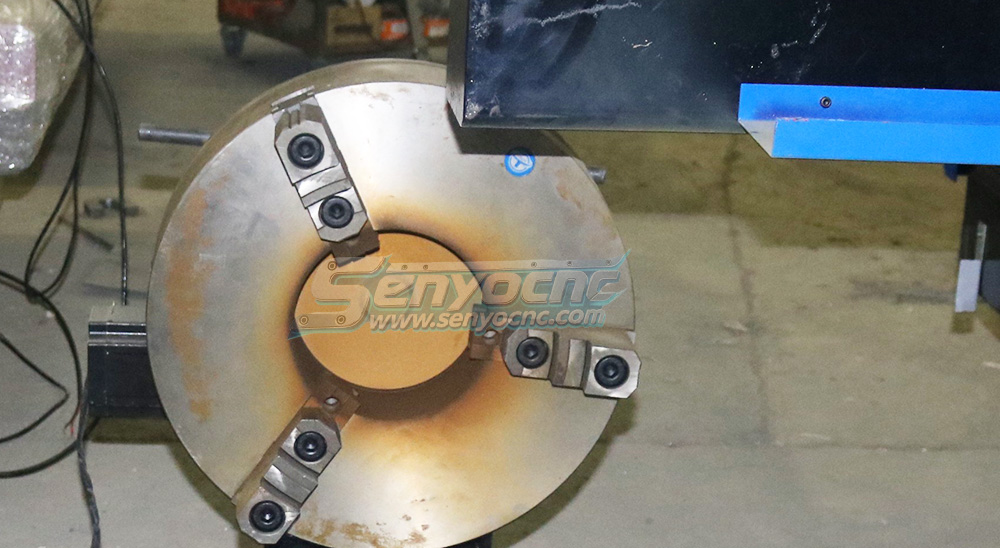

The rotary function relies on a high-torque, precision rotary table that can rotate the workpiece while the cutting or drilling head remains stationary. This function is ideal for working with tubular or cylindrical materials, as it allows for uniform machining across the entire surface.

Conclusion

The CNC Plasma with Drilling Head and Rotary Machine is a powerful tool for manufacturers looking to improve their production capabilities. Its ability to cut, drill, and rotate materials all in one machine makes it an ideal solution for industries requiring high-precision, complex parts. By offering increased efficiency, precision, and versatility, this hybrid machine is helping manufacturers meet the growing demands of modern production environments.

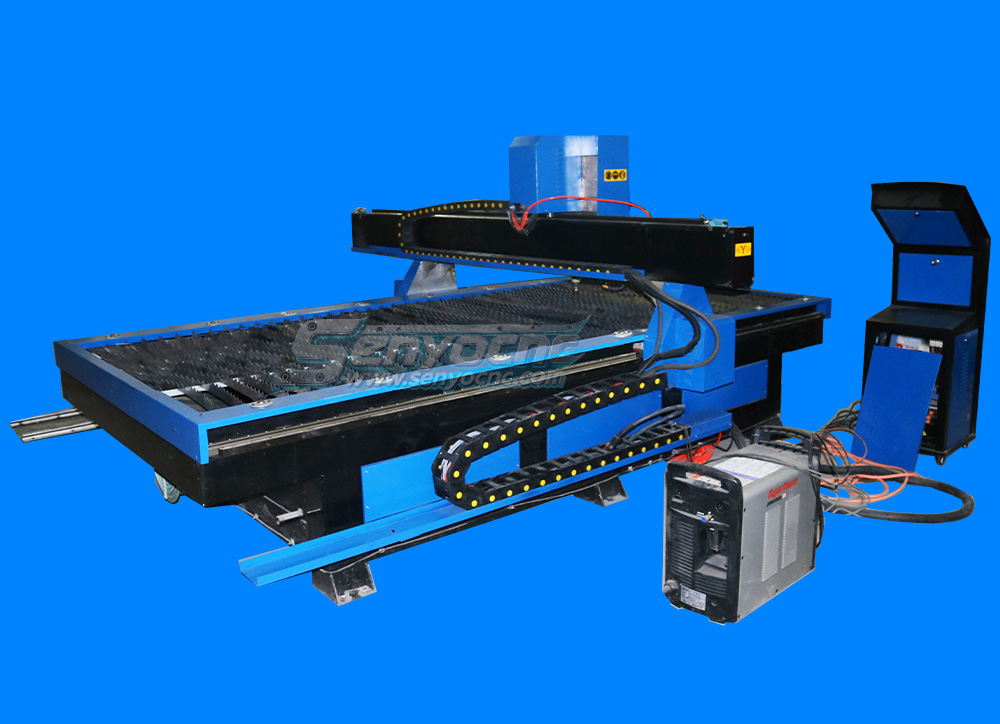

Components of a CNC Plasma Cutting Table

Knowing the components and parts of a CNC plasma cutting table is always a firsthand lesson for any beginner. The primary components are,

1. Plasma Torch

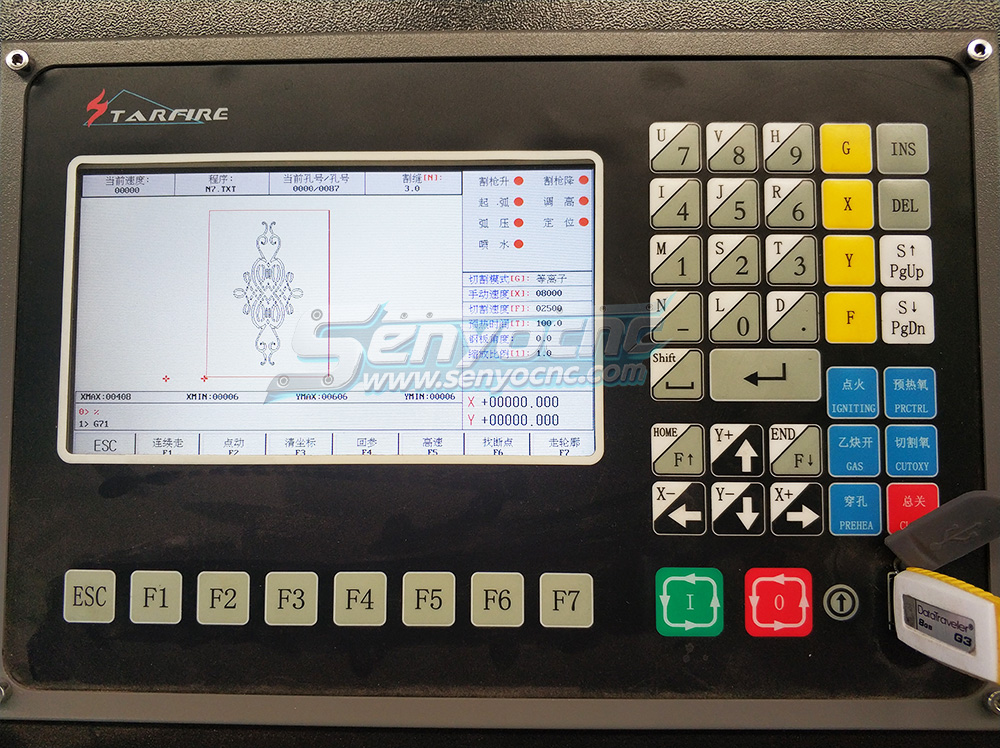

2. CNC Controller

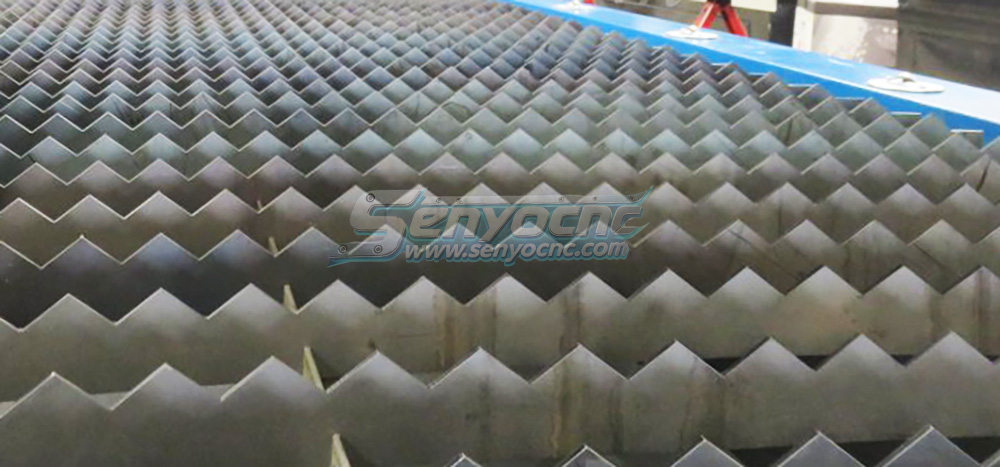

3. Cutting Bed

4. Power Source

5. Software

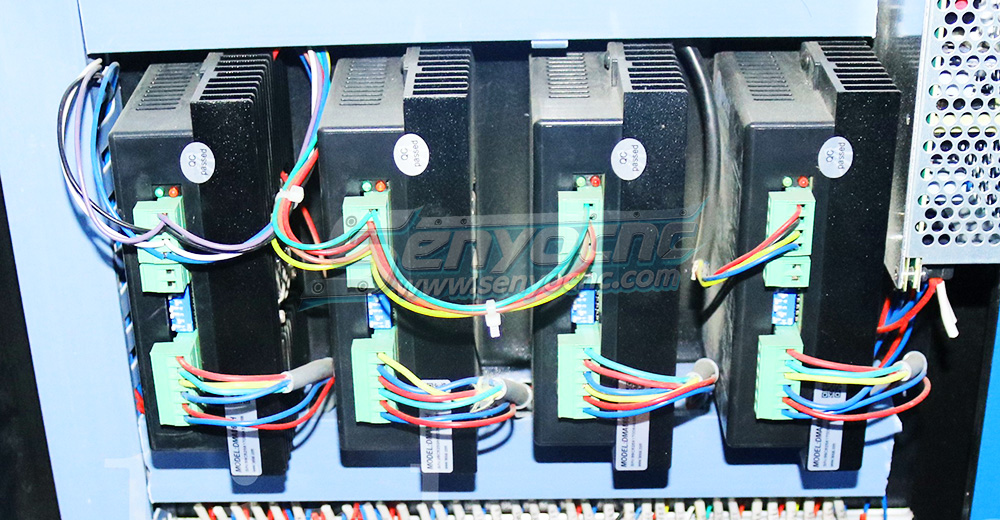

6. Motion Control System

7. Torch Height Control (THC) and

8. Fume Extraction System

Tips for Maximizing Efficiency and Performance

It is important to measure and ensure the maximum efficiency of your cutting table to achieve ultimate profit out of your production.

A few tips can boost your table’s performance in the long run. Additionally, you will find your CNC plasma cutting table a more cost-effective tool in the long run.

⇲ Regular maintenance is a must to ensure all components are in optimal condition.

⇲ Regular calibration is similarly important to maintain accuracy and consistency in cutting.

⇲ Use high-quality consumables such as electrodes, nozzles, and cutting tips.

⇲ Optimize cutting parameters by experimenting with different settings.

⇲ Make sure the material is properly secured before starting the machining.

⇲ Train the operator on nesting software and advanced software features.

⇲ Monitor performance metrics and quality of production routinely

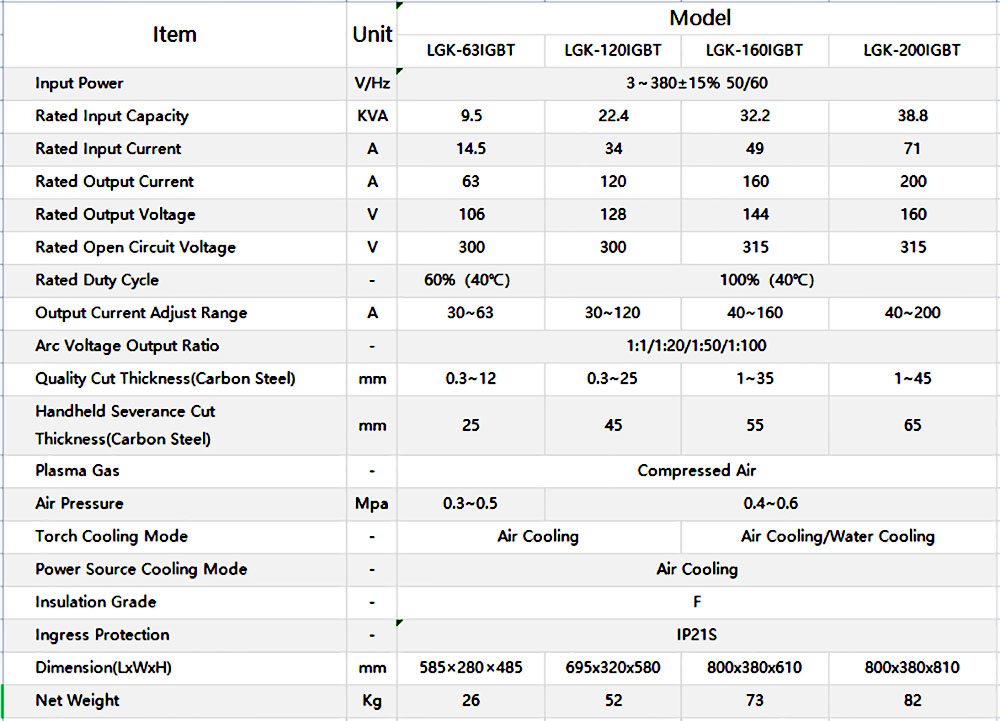

Pros & Advantages

✔ Consumable parts have the longest life in the industry.

✔ Pilot arc circuit increases pilot arc current precisely when needed, significantly reducing nozzle wear.

✔ The Hypertherm quick-disconnect torch assembly provides easy switching between hand torch and machine torch, and it also features a stress-relief design for durability.

✔ Ease of Use - Easy and convenient gas regulation and current regulation.

✔ Very safe to use When the wearing parts are removed, the interlock device will prevent the machine from starting.

✔ With a special voltage fluctuation compensation device, there is no need to worry about the impact of voltage fluctuations on the machine.

✔ All equipment is equipped with a standard CNC/automatic machine interface, enabling automatic control and quick transfer to machine operation.

✔ New "fan on demand" function minimizes dust inhalation.

✔ Torch lead sheath made of AC chemistry resists jet and cut-through capabilities of molten metal.

✔ Accurate fault alarm indicator light makes it easier for you to operate and maintain.

✔ Auto-voltage™ automatic voltage regulation capability, which can automatically adapt to various input power sources of 200V-600V and three-phase.

✔ Coaxial-assist™ technology increases cutting speed.

✔ The Boost Conditioner™ input voltage compensation circuit compensates for fluctuations in the input voltage, which improves the performance of low-voltage lines, motor generators, and input power (fluctuations).

✔ Design for reliability improves downtime and greatly reduces investment.

✔ CNC interface and Easy Torch Removal (ETR™) are versatile for both handheld and machine use.

Cons

✔ Higher price than ordinary plasma power supply.

✔ Compared with the fiber laser cutting machine, the plasma cutting gap is larger, the cutting end surface is rougher and not smooth enough, and the cutting precision is lower.

Safety Considerations

Safety measurements are very important steps while working with plasma cutters. Plasma cutting involves high-temperature electrical currents which come with significant safety hazards. Proper safety measures are a must to avoid any unwanted exploration.

A few probable hazards that can occur due to the lack of safety considerations are,

⇲ Risk of high voltage electric shock

⇲ A densely heated plasma arc can cause fire and eventually potential to burn

⇲ Hazardous gases and fumes can cause severe health issues

⇲ Risk of eye injury from UV radiation

To minimize risk and ensure safe operation several features are added. Such as,

⇲ Thermal overload protection

⇲ Emergency stop button

⇲ Machine Guarding

⇲ Voltage monitoring system and

⇲ Safety interlocks

Proper training and availability of safety equipment including PPI and Glasses are recommended before start using the plasma cutter.

Environmental Impact

Like any industrial process plasma cutting can impact the environment to a great extent. It is necessary to consider the environmental impact of plasma cutting to minimize the chances of affecting our environment badly.

Plasma cutting can result in several environmental changes including,

⇲ Air pollution due to excessive fume, smoke, and bi-product

⇲ Uncontrolled usage will affect excessive power consumption

⇲ Off-cuts and scrap materials can be responsible for polluting the environment directly

⇲ Additional water usage as coolant and the chemical bots mixed within water particles can contaminate it to a greater extent

It is a matter of hope that the advanced technology of the Hypertherm plasma cutter utilizes electricity consumption. Implementing strategies to minimize wastage and emissions can help save the environment from pollution. Optimizing the machine parameters will also make a helpful impact on overall environmental detoxification.

Packaging Details

• Outside package: Standard marine export plywood case.

• Inner package: Stretch film and plastic film for humidity.

We can package according to your requests.

How to Choose the Right CNC Plasma Cutter for Your Business?

Choosing the correct CNC plasma cutter is crucial in ensuring smooth operations and maximum efficiency.

A well-chosen tools can satisfy your company's needs, increase production, and reduce downtime. Here are the most essential factors to consider before making your decision.

Identify Your Needs

Understand the types of metals you’ll be working with and their thickness.

If your projects involve a mix of thin and thick materials, opt for a machine that can handle a wide range of thicknesses effectively.

The right cutter ensures smooth, precise cuts across all material types, avoiding quality issues.

Machine Size and Work Area

Match the machine’s cutting bed size with the size of your metal sheets.

If you frequently work with larger sheets, a bigger machine will save time by reducing the need for repositioning materials.

Make sure the machine fits your workspace without compromising safety or ease of access.

Software Compatibility

Ensure the machine’s software integrates seamlessly with your design tools like CAD or CAM.

A user-friendly interface will minimize errors and help your team quickly adapt to the workflow. Software that supports automation features can further boost productivity.

Check Power Requirements

Verify that your facility’s electrical system can support the plasma cutter.

Machines requiring higher voltage may need special wiring or upgrades to your power supply. Planning for these requirements helps avoid costly installation delays.

Customer Support and Maintenance

Choose a brand with reliable technical support and easy access to spare parts.

This ensures any operational issues are resolved quickly, keeping your production schedule on track. Regular access to maintenance guides and troubleshooting assistance ensures smoother long-term operations.

Maintenance Tips

Proper maintenance keeps your high-definition CNC plasma cutter running efficiently and prevents unexpected breakdowns. Routine care helps extend the machine’s lifespan, ensures consistent performance, and reduces the chance of costly repairs. Follow these essential tips to keep your plasma cutter in top shape.

Keep the Machine Clean

• After every use, clean the machine to remove dust, slag, and metal particles.

• A clean machine operates smoothly and maintains cutting precision over time.

• Regular cleaning prevents buildup that could interfere with the machine’s moving parts and cutting quality.

Inspect Consumable Parts

• Regularly inspect nozzles and electrodes for signs of wear or damage.

• Worn consumables can reduce cut accuracy and disrupt the production process.

• Prompt replacement ensures uninterrupted operation and high-quality results.

Lubricate Moving Parts

• Lubricate rails, bearings, and other moving components to reduce friction.

• Proper lubrication helps prevent wear and tear, extending the machine's lifespan.

• Smooth operation ensures precision cuts and reduces stress on the mechanical system.

Monitor Electrical Connections

• Periodically check that all electrical connections are tight and secure.

• Loose wires can lead to malfunctions or short circuits, damaging internal systems.

• A quick inspection prevents unexpected downtime and costly repairs.

Update Software and Firmware

• Install the latest software and firmware updates from the manufacturer.

• Updates often include performance improvements, bug fixes, and new features.

• Staying current ensures the machine runs efficiently and reliably over time.
