What is CNC Plasma with Flame Cut Head, Rotary, and Drill Head?

A CNC Plasma Cutting Machine is a computer-controlled system that uses plasma arc to cut through conductive materials like steel, aluminum, brass, and copper. This system is highly precise and can achieve intricate designs on both thin and thick metal plates.

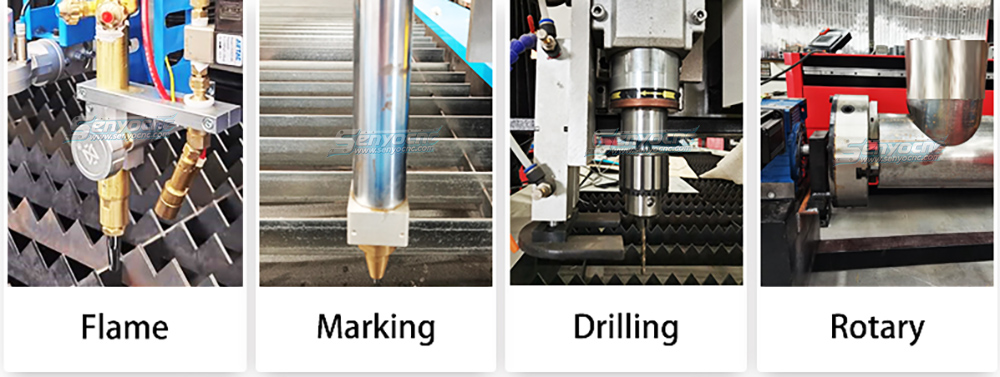

Flame Cut Head

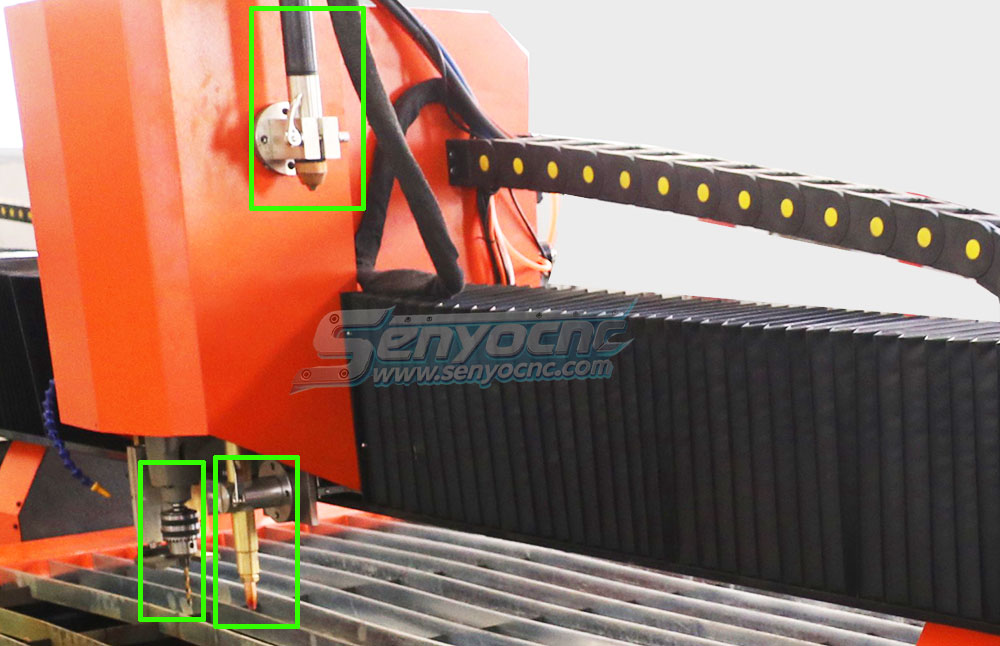

The Flame Cut Head is designed for cutting thick metals, typically with oxy-fuel technology. The flame cutter uses a combination of oxygen and a fuel gas to create a high-temperature flame that can melt and burn through metals with precision. This type of cutting is ideal for materials that are too thick for plasma cutting or when a smoother edge is required.

Rotary Head

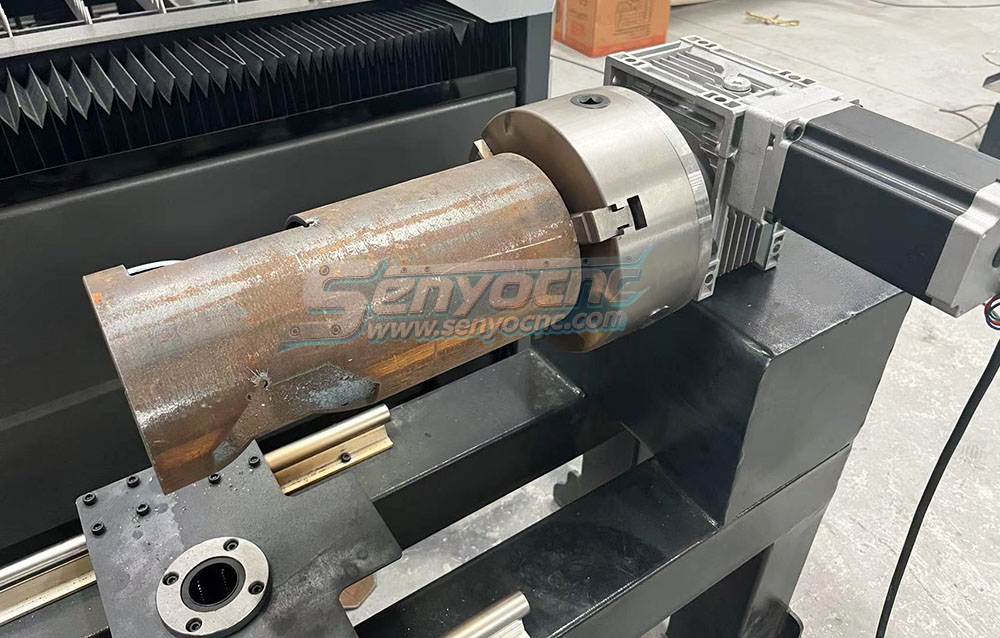

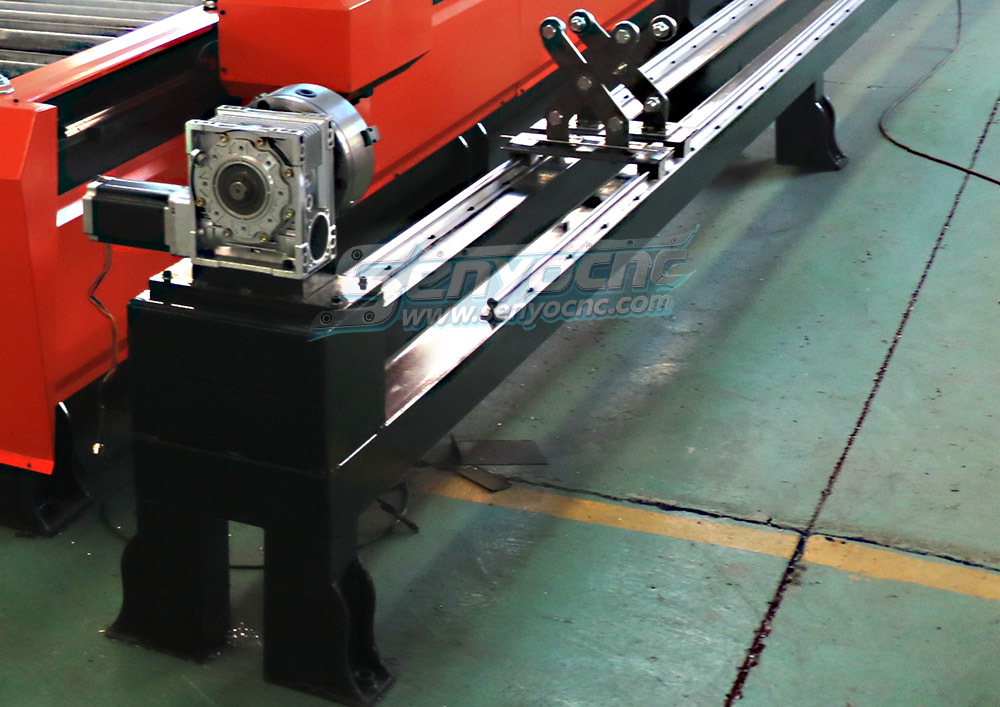

The Rotary Head adds a whole new dimension to the cutting process. This feature allows the CNC machine to perform rotary cutting, which is particularly beneficial for creating curves, circles, or other cylindrical shapes. The rotary motion enables more complex cutting designs, making it a valuable asset for industries like aerospace, automotive, and construction, where intricate designs are often required.

Drill Head

The Drill Head is integrated into the CNC Plasma machine to enable drilling of holes into materials. This function is crucial for manufacturing parts that require precise hole placement and size. The drill head ensures that the machine can handle not only cutting but also additional tasks like drilling bolt holes or creating holes for welding, all within a single setup.

Key Advantages of CNC Plasma with Flame Cut Head, Rotary, and Drill Head

1. Multi-Functionality

Combining plasma, flame cutting, rotary, and drilling into one CNC machine increases versatility. Instead of relying on separate machines for each function, manufacturers can perform multiple tasks in one seamless operation, reducing setup times and improving workflow efficiency.

2. Increased Precision

CNC systems are known for their precision and accuracy. By utilizing advanced CNC controls, plasma cutting with flame cut heads and rotary heads provides a high degree of precision. This ensures that the final product is of the highest quality, with tight tolerances and clean cuts. The drill head further enhances this by providing accurate hole drilling.

3. Cost Efficiency

By incorporating multiple capabilities into one system, businesses can save on equipment costs, space, and maintenance. A machine that can handle plasma cutting, flame cutting, rotary cutting, and drilling eliminates the need for several machines, reducing overhead and operational costs.

4. Faster Production

Combining different cutting technologies in a single operation leads to faster production times. CNC plasma systems with additional cutting and drilling functions can process complex designs in less time compared to using multiple machines for each task. This leads to improved throughput and a faster time to market for products.

5. Reduced Labor Costs

With an integrated system like CNC Plasma with Flame Cut Head, Rotary, and Drill Head, operators require less time to set up and manage multiple machines. Furthermore, automation ensures that the process is streamlined, reducing human error and the need for manual intervention. This leads to significant labor cost savings.

6. Versatility in Materials

The combination of plasma and flame cutting, along with drilling and rotary capabilities, makes this CNC system ideal for a wide range of materials, including steel, aluminum, stainless steel, copper, and even non-ferrous metals. It ensures that manufacturers can handle different material thicknesses and types without compromising on cutting quality.

7. Enhanced Safety Features

CNC Plasma systems typically come with advanced safety features like automatic height control, flame monitoring, and temperature sensors. These features help prevent accidents and ensure the safety of operators. Furthermore, automation reduces human involvement in dangerous cutting operations.

Applications of CNC Plasma with Flame Cut Head, Rotary, and Drill Head

This versatile CNC cutting system can be used in a variety of industries for applications such as:
    •    Metal Fabrication: Ideal for creating custom parts, panels, and components.
    •    Automotive Industry: Used for cutting and drilling car body parts, chassis, and engine components.
    •    Aerospace: Helps in manufacturing intricate and complex aerospace parts with high precision.
    •    Construction: Perfect for cutting structural beams, steel plates, and other building materials.
    •    Shipbuilding: Used for cutting large sheets of metal and drilling holes for welding.
    •    Signage and Art: The rotary head is useful for creating curved or round signs and artistic metal works.

Working Samples Project

Paramaters and Techology

Conclusion

The CNC Plasma with Flame Cut Head, Rotary, and Drill Head is a game-changing solution for industries that demand both precision and versatility in their manufacturing processes. By incorporating plasma cutting, flame cutting, rotary cutting, and drilling into one system, businesses can significantly enhance their production efficiency, reduce costs, and improve product quality. Whether you’re in metal fabrication, aerospace, automotive, or construction, this advanced CNC machine is an investment that can pay off in faster turnaround times, lower labor costs, and more precise results.

Investing in such a machine isn’t just about upgrading equipment—it’s about elevating your entire production process to meet the high standards of today’s competitive manufacturing landscape.

Components of a CNC Plasma Cutting Table

Knowing the components and parts of a CNC plasma cutting table is always a firsthand lesson for any beginner. The primary components are,

1. Plasma Torch

2. CNC Controller

3. Cutting Bed

4. Power Source

5. Software

6. Motion Control System

7. Torch Height Control (THC) and

8. Fume Extraction System

Tips for Maximizing Efficiency and Performance

It is important to measure and ensure the maximum efficiency of your cutting table to achieve ultimate profit out of your production.

A few tips can boost your table’s performance in the long run. Additionally, you will find your CNC plasma cutting table a more cost-effective tool in the long run.

⇲ Regular maintenance is a must to ensure all components are in optimal condition.

⇲ Regular calibration is similarly important to maintain accuracy and consistency in cutting.

⇲ Use high-quality consumables such as electrodes, nozzles, and cutting tips.

⇲ Optimize cutting parameters by experimenting with different settings.

⇲ Make sure the material is properly secured before starting the machining.

⇲ Train the operator on nesting software and advanced software features.

⇲ Monitor performance metrics and quality of production routinely.

Pros & Advantages

✔ Consumable parts have the longest life in the industry.

✔ Pilot arc circuit increases pilot arc current precisely when needed, significantly reducing nozzle wear.

✔ The Hypertherm quick-disconnect torch assembly provides easy switching between hand torch and machine torch, and it also features a stress-relief design for durability.

✔ Ease of Use - Easy and convenient gas regulation and current regulation.

✔ Very safe to use When the wearing parts are removed, the interlock device will prevent the machine from starting.

✔ With a special voltage fluctuation compensation device, there is no need to worry about the impact of voltage fluctuations on the machine.

✔ All equipment is equipped with a standard CNC/automatic machine interface, enabling automatic control and quick transfer to machine operation.

✔ New "fan on demand" function minimizes dust inhalation.

✔ Torch lead sheath made of AC chemistry resists jet and cut-through capabilities of molten metal.

✔ Accurate fault alarm indicator light makes it easier for you to operate and maintain.

✔ Auto-voltage™ automatic voltage regulation capability, which can automatically adapt to various input power sources of 200V-600V and three-phase.

✔ Coaxial-assist™ technology increases cutting speed.

✔ The Boost Conditioner™ input voltage compensation circuit compensates for fluctuations in the input voltage, which improves the performance of low-voltage lines, motor generators, and input power (fluctuations).

✔ Design for reliability improves downtime and greatly reduces investment.

✔ CNC interface and Easy Torch Removal (ETR™) are versatile for both handheld and machine use.

Cons

✔ Higher price than ordinary plasma power supply.

✔ Compared with the fiber laser cutting machine, the plasma cutting gap is larger, the cutting end surface is rougher and not smooth enough, and the cutting precision is lower.

Safety Considerations

Safety measurements are very important steps while working with plasma cutters. Plasma cutting involves high-temperature electrical currents which come with significant safety hazards. Proper safety measures are a must to avoid any unwanted exploration.

A few probable hazards that can occur due to the lack of safety considerations are,

⇲ Risk of high voltage electric shock

⇲ A densely heated plasma arc can cause fire and eventually potential to burn

⇲ Hazardous gases and fumes can cause severe health issues

⇲ Risk of eye injury from UV radiation

Now the 5x19 Hypertherm Plasma Cutter is equipped with various safety features. To minimize risk and ensure safe operation several features are added. Such as,

⇲ Thermal overload protection

⇲ Emergency stop button

⇲ Machine Guarding

⇲ Voltage monitoring system and

⇲ Safety interlocks

Proper training and availability of safety equipment including PPI and Glasses are recommended before start using the plasma cutter.

Environmental Impact

Like any industrial process plasma cutting can impact the environment to a great extent. It is necessary to consider the environmental impact of plasma cutting to minimize the chances of affecting our environment badly.

Plasma cutting can result in several environmental changes including,

⇲ Air pollution due to excessive fume, smoke, and bi-product

⇲ Uncontrolled usage will affect excessive power consumption

⇲ Off-cuts and scrap materials can be responsible for polluting the environment directly

⇲ Additional water usage as coolant and the chemical bots mixed within water particles can contaminate it to a greater extent

It is a matter of hope that the advanced technology of the Hypertherm plasma cutter utilizes electricity consumption. Implementing strategies to minimize wastage and emissions can help save the environment from pollution. Optimizing the machine parameters will also make a helpful impact on overall environmental detoxification.

Packaging Details

• Outside package: Standard marine export plywood case.

• Inner package: Stretch film and plastic film for humidity.

We can package according to your requests.

Warranty And Service

• 24 months whole machine warranty and maintenance for a lifetime.

• Free installation and testing before shipping and free training for operators

• Advice for the best CNC solutions for customer's requirements.

• Free training and sample making.

• 7/24 free service and support.
