How a Mini CNC Plasma Machine Works
    1.    Design and Programming
The first step is to design the desired shape or pattern in CAD software. The design is then converted into G-code, which is a set of instructions that tell the CNC machine how to move, how fast to cut, and when to turn the plasma torch on or off.
    2.    Set Up the Machine
After loading the design into the CNC controller, the operator sets up the machine by securing the workpiece on the cutting bed. The plasma torch is adjusted to the correct height from the material to ensure an optimal cutting distance.
    3.    Cutting Process
When the machine is started, the CNC controller sends signals to the drive motors to move the cutting head along the programmed path. The plasma torch then generates a plasma arc that melts through the metal along the cut lines. The gas or air pressure ensures that the molten material is blown away from the cut, leaving a clean edge.
    4.    Finishing
Once the cutting is complete, the operator may need to finish the edges using a grinder or other tools to remove slag (molten material that solidifies on the cut edge). Depending on the material and plasma settings, the finish might be good enough to avoid additional post-processing.

Advantages of a Mini CNC Plasma Machine
    1.    Compact Size
Mini CNC plasma machines are small and can fit into smaller workshops or home garages. Their compact size makes them an excellent choice for hobbyists, small businesses, or anyone with limited space.
    2.    Cost-Effective
Compared to large, industrial plasma cutting systems, mini CNC plasma machines are far more affordable. While they may not have the same cutting capabilities, they can still deliver high-quality results at a fraction of the cost.
    3.    Precision
These machines provide precise cuts with minimal human intervention, allowing for intricate and detailed designs that would be difficult to achieve by hand. The CNC system ensures accurate movement along multiple axes, allowing for repeatable results.
    4.    Ease of Use
Most mini CNC plasma machines come with user-friendly software and controls, making them accessible to people with minimal experience. The ability to import CAD files and automate the cutting process makes the machine easy to operate for both beginners and professionals.
    5.    Versatility
Mini CNC plasma cutters can cut a variety of metals, including mild steel, stainless steel, aluminum, and copper, as long as the material is within the machine’s cutting capacity. This versatility makes them ideal for a range of applications, from sign-making to automotive repair.
    6.    Reduced Waste
Because the cutting is automated and precise, there’s less material waste compared to traditional cutting methods. This can help reduce costs and increase the efficiency of projects.


Key Components of a Mini CNC Plasma Machine

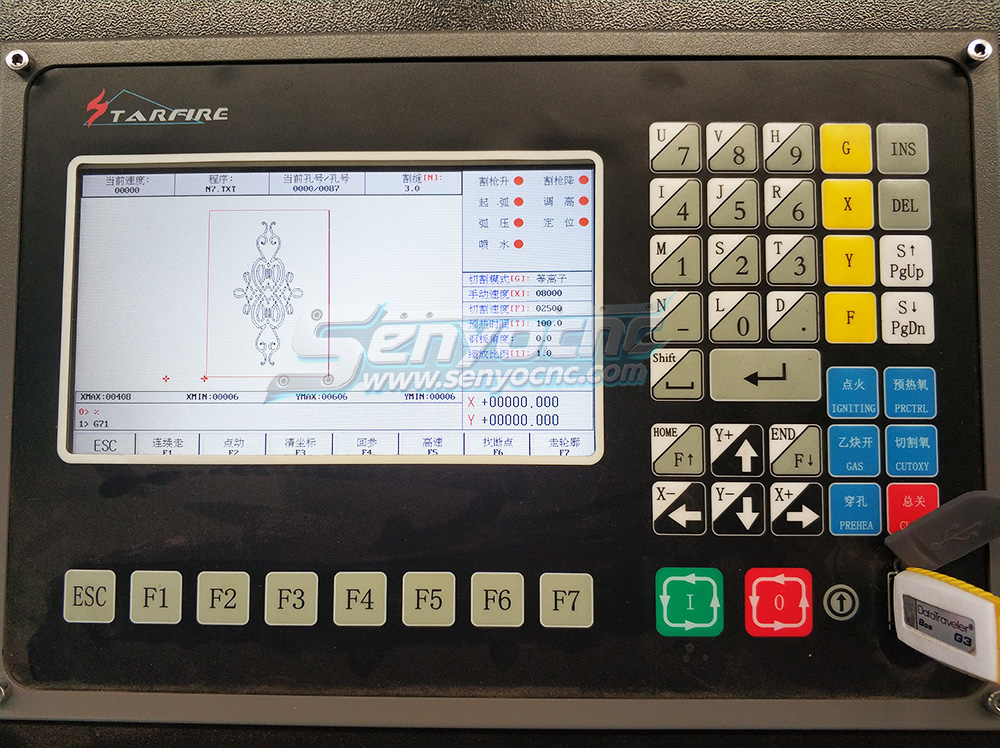

    1.    CNC Control System
The CNC (Computer Numerical Control) system is the brain of the mini plasma cutter. It interprets G-code commands from CAD (Computer-Aided Design) files, translating them into movements and operations that control the cutting head. Some mini CNC plasma machines come with their own proprietary control software, while others may be compatible with third-party software like Mach3, LinuxCNC, or SheetCam.
    2.    Plasma Cutting Torch
The plasma cutting torch is the key component that directs the plasma arc onto the metal surface. A mini CNC plasma machine will typically use a lightweight torch that is designed for high precision. These torches use compressed air or other gases to ionize the air and create the plasma arc.
    3.    Drive Motors and Rails
Mini CNC plasma machines use stepper motors or servo motors to move the cutting head along the X, Y, and sometimes Z axes. These motors are connected to linear rails and guides that ensure smooth and accurate motion. In smaller machines, these drives are often more compact but still offer the precision needed for detailed cutting work.
    4.    Plasma Power Supply
The power supply for the plasma cutter provides the energy required to generate the plasma arc. This power supply converts electrical energy into the necessary high-temperature arc for cutting metal. The size and power of the plasma power supply are typically lower in mini CNC plasma machines compared to industrial machines, but they are still capable of cutting thin sheets of metal with great accuracy.
    5.    Water Table or Downdraft Table
Some mini CNC plasma machines are equipped with a water table or downdraft table to control the fumes and particles created during cutting. This is especially important for preventing the spread of harmful dust and fumes, which can be hazardous to health. A water table helps to cool the metal and reduces the risk of fire, while a downdraft table uses suction to draw smoke and debris into a filtration system.
    6.    Cutting Bed

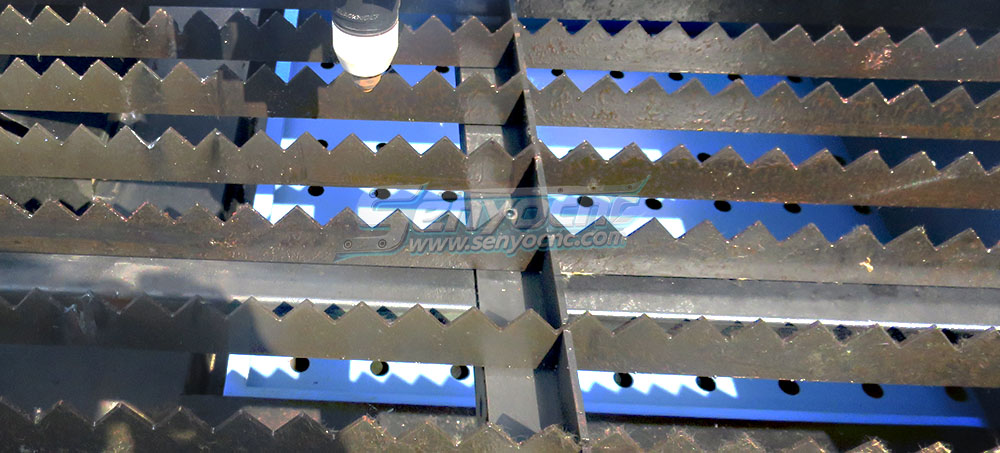

The cutting bed is where the material to be cut is placed. It is typically made of steel and designed to hold the workpiece securely during the cutting process. The size of the bed varies, but in mini CNC plasma machines, the cutting area is usually compact to accommodate smaller sheets of metal.

Applications of Mini CNC Plasma Machines
    •    Signage Production: Ideal for creating custom signs and logos from metal sheets.
    •    Automotive Parts: Used to cut parts for custom or repair work on vehicles.
    •    Art and Sculpture: Artists often use mini plasma cutters for creating intricate metal sculptures.
    •    DIY Projects: Hobbyists can use mini plasma machines for small-scale projects, such as building metal furniture or custom metal decorations.
    •    Small Fabrication Shops: Local metal shops use mini CNC plasma machines for producing small batches of metal parts, prototypes, and custom pieces.

Working Samples & Project

Components of a CNC Plasma Cutting Table

Knowing the components and parts of a CNC plasma cutting table is always a firsthand lesson for any beginner. The primary components are,

1. Plasma Torch

2. CNC Controller

3. Cutting Bed

4. Power Source

5. Software

6. Motion Control System

7. Torch Height Control (THC) and

8. Fume Extraction System

Tips for Maximizing Efficiency and Performance

It is important to measure and ensure the maximum efficiency of your cutting table to achieve ultimate profit out of your production.

A few tips can boost your table’s performance in the long run. Additionally, you will find your CNC plasma cutting table a more cost-effective tool in the long run.

⇲ Regular maintenance is a must to ensure all components are in optimal condition.

⇲ Regular calibration is similarly important to maintain accuracy and consistency in cutting.

⇲ Use high-quality consumables such as electrodes, nozzles, and cutting tips.

⇲ Optimize cutting parameters by experimenting with different settings.

⇲ Make sure the material is properly secured before starting the machining.

⇲ Train the operator on nesting software and advanced software features.

⇲ Monitor performance metrics and quality of production routinely

Pros & Advantages

✔ Consumable parts have the longest life in the industry.

✔ Pilot arc circuit increases pilot arc current precisely when needed, significantly reducing nozzle wear.

✔ The Hypertherm quick-disconnect torch assembly provides easy switching between hand torch and machine torch, and it also features a stress-relief design for durability.

✔ Ease of Use - Easy and convenient gas regulation and current regulation.

✔ Very safe to use When the wearing parts are removed, the interlock device will prevent the machine from starting.

✔ With a special voltage fluctuation compensation device, there is no need to worry about the impact of voltage fluctuations on the machine.

✔ All equipment is equipped with a standard CNC/automatic machine interface, enabling automatic control and quick transfer to machine operation.

✔ New "fan on demand" function minimizes dust inhalation.

✔ Torch lead sheath made of AC chemistry resists jet and cut-through capabilities of molten metal.

✔ Accurate fault alarm indicator light makes it easier for you to operate and maintain.

✔ Auto-voltage™ automatic voltage regulation capability, which can automatically adapt to various input power sources of 200V-600V and three-phase.

✔ Coaxial-assist™ technology increases cutting speed.

✔ The Boost Conditioner™ input voltage compensation circuit compensates for fluctuations in the input voltage, which improves the performance of low-voltage lines, motor generators, and input power (fluctuations).

✔ Design for reliability improves downtime and greatly reduces investment.

✔ CNC interface and Easy Torch Removal (ETR™) are versatile for both handheld and machine use.

Cons

✔ Higher price than ordinary plasma power supply.

✔ Compared with the fiber laser cutting machine, the plasma cutting gap is larger, the cutting end surface is rougher and not smooth enough, and the cutting precision is lower.

Safety Considerations

Safety measurements are very important steps while working with plasma cutters. Plasma cutting involves high-temperature electrical currents which come with significant safety hazards. Proper safety measures are a must to avoid any unwanted exploration.

A few probable hazards that can occur due to the lack of safety considerations are,

⇲ Risk of high voltage electric shock

⇲ A densely heated plasma arc can cause fire and eventually potential to burn

⇲ Hazardous gases and fumes can cause severe health issues

⇲ Risk of eye injury from UV radiation

Now the 5x19 Hypertherm Plasma Cutter is equipped with various safety features. To minimize risk and ensure safe operation several features are added. Such as,

⇲ Thermal overload protection

⇲ Emergency stop button

⇲ Machine Guarding

⇲ Voltage monitoring system and

⇲ Safety interlocks

Proper training and availability of safety equipment including PPI and Glasses are recommended before start using the plasma cutter.

Environmental Impact

Like any industrial process plasma cutting can impact the environment to a great extent. It is necessary to consider the environmental impact of plasma cutting to minimize the chances of affecting our environment badly.

Plasma cutting can result in several environmental changes including,

⇲ Air pollution due to excessive fume, smoke, and bi-product

⇲ Uncontrolled usage will affect excessive power consumption

⇲ Off-cuts and scrap materials can be responsible for polluting the environment directly

⇲ Additional water usage as coolant and the chemical bots mixed within water particles can contaminate it to a greater extent

It is a matter of hope that the advanced technology of the Hypertherm plasma cutter utilizes electricity consumption. Implementing strategies to minimize wastage and emissions can help save the environment from pollution. Optimizing the machine parameters will also make a helpful impact on overall environmental detoxification.

Conclusion

Mini CNC plasma machines combine precision, affordability, and versatility, making them an excellent tool for small-scale metal cutting applications. While they may not replace larger, industrial machines for heavy-duty cutting, they are ideal for hobbyists, small businesses, and workshops that require precision cutting in a compact form. With the right setup and maintenance, a mini CNC plasma machine can provide years of efficient service.
