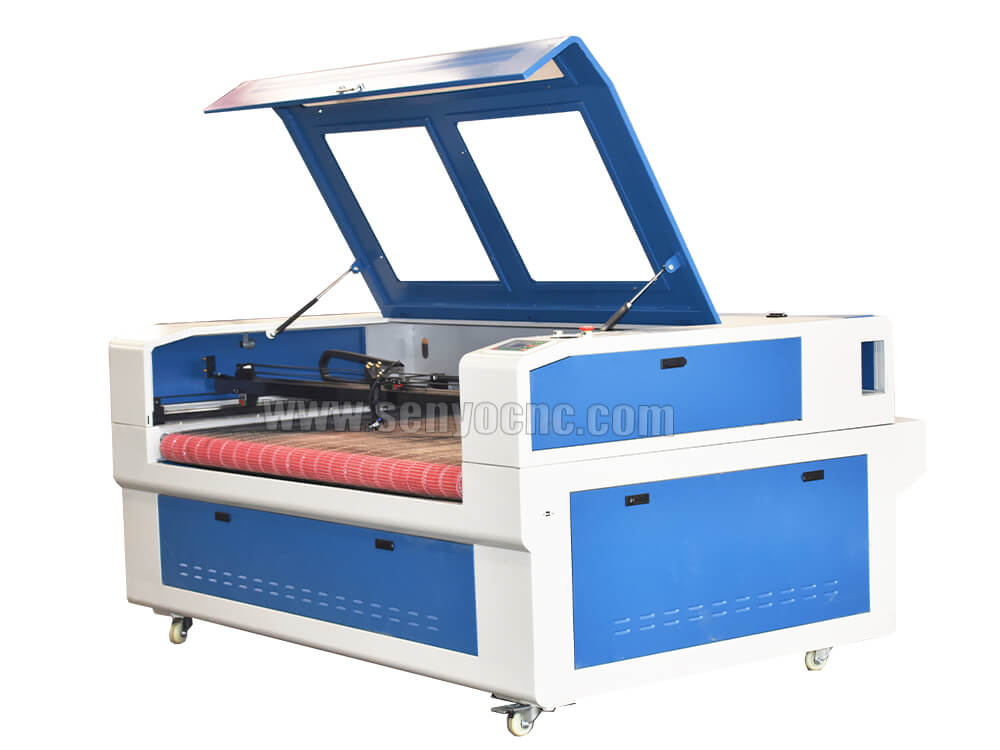

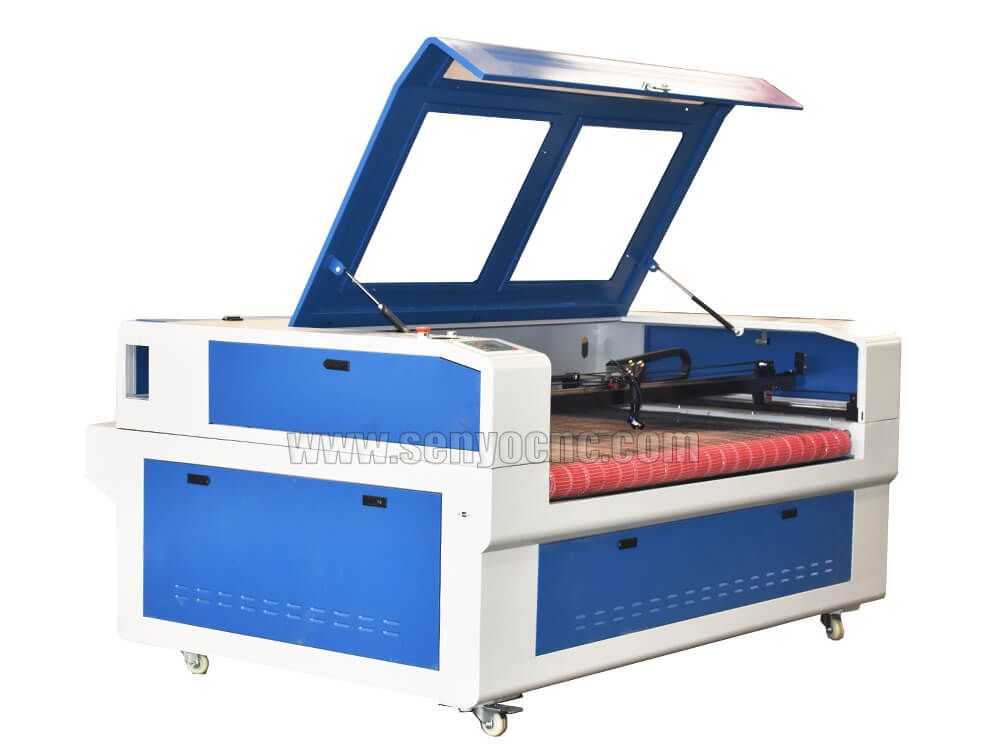

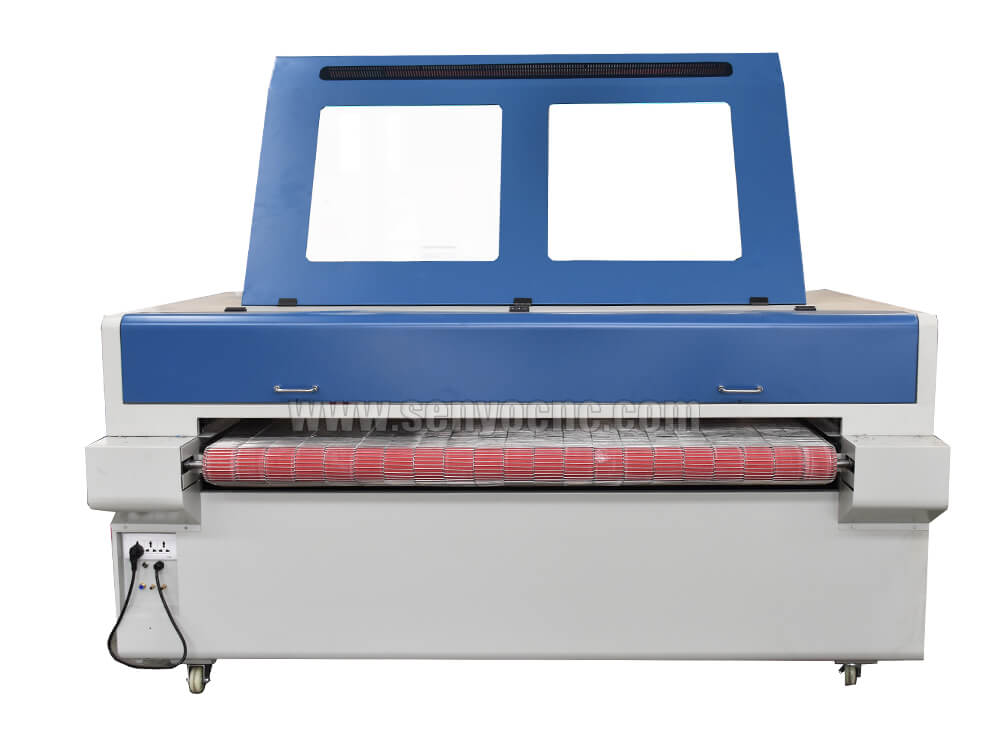

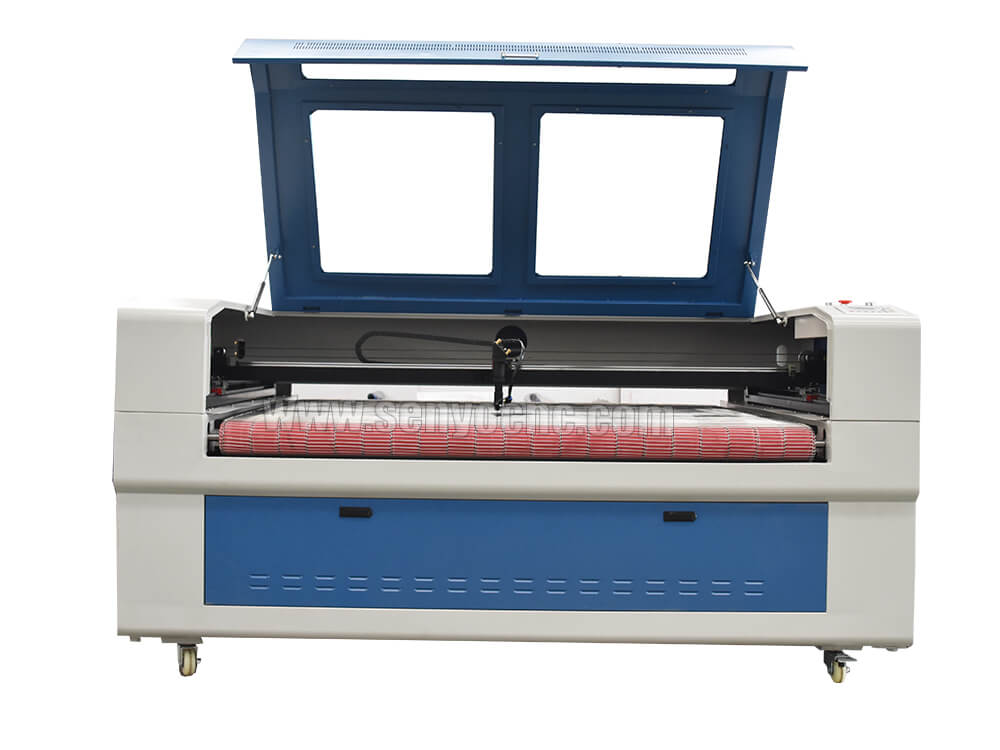

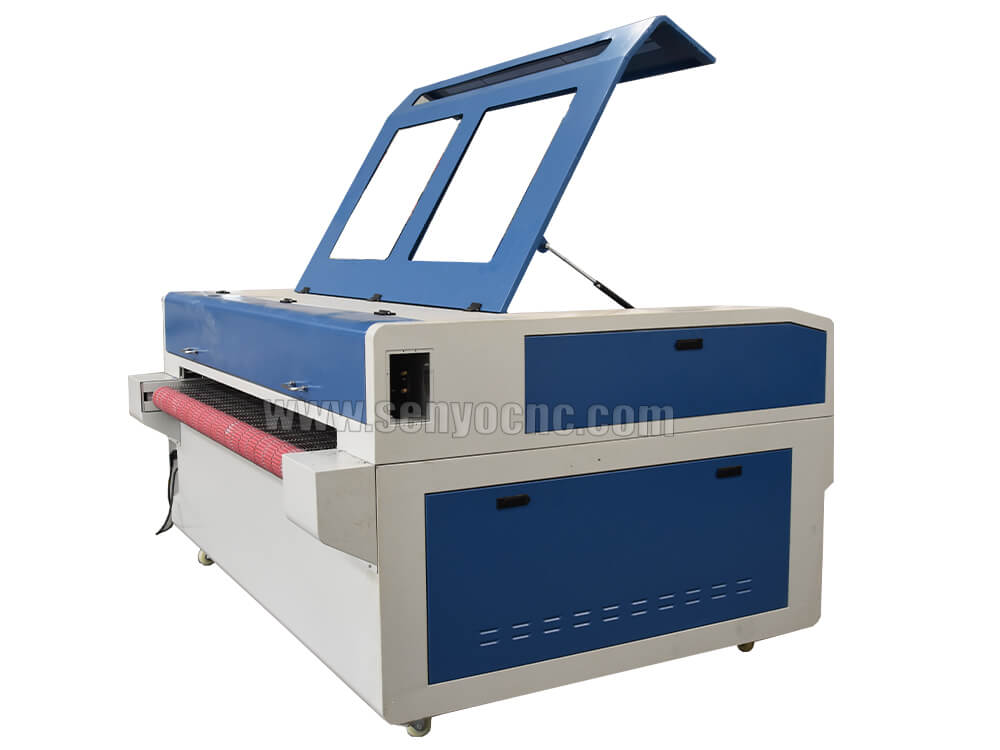

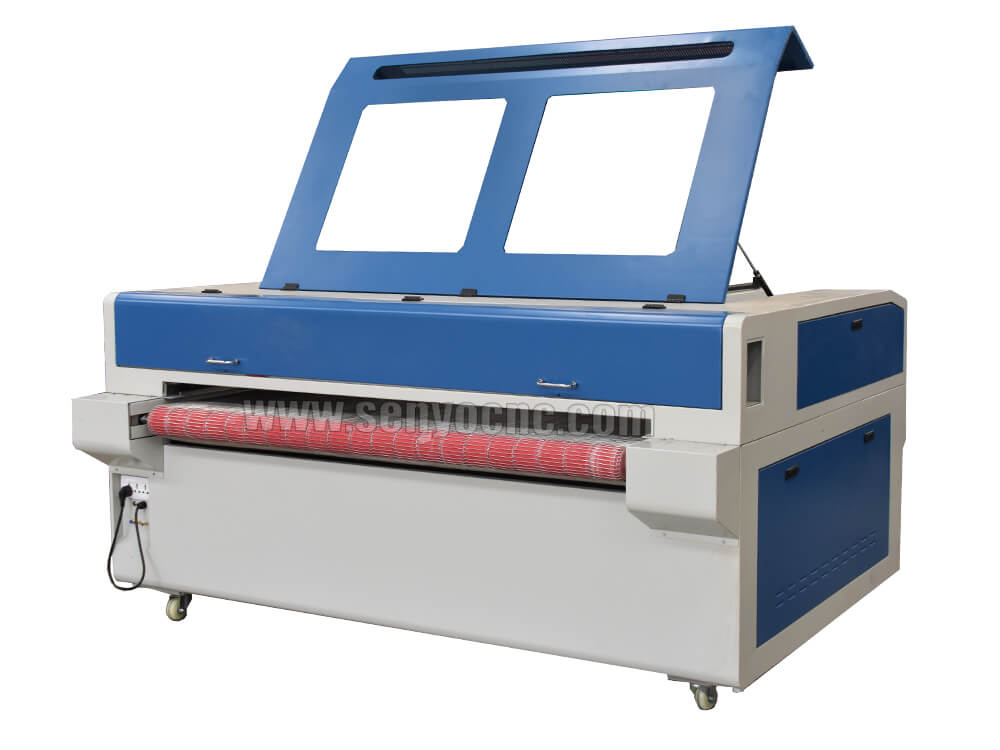

1. Auto feeding laser cutting machine is equipped with two laser cutting heads and auto feeding system, two heads working at the same time. The feeding system can load materials automatically which can save your labor force and cut the cost. This laser cutting systems is especially suitable for the mass processing of textile and garment.
2. To satisfy demands for large-scale cutting, the auto-feeding laser cutting machine incorporates a steady chassis to ensure stability and precision, a precision gear for transmission and liner guide rail to ensure high speed and accuracy, an open stainless meshed work table to ensure convenient operation and wear resistance, and an auto feeding system to lower cost and lift efficiency.
3. The laser light can be adjusted automatically to match speed, ensuring high cutting quality in corner.
4. This laser cutter possesses continuous curve cutting function, which is able to cut curve at a high speed of 24m/min.
Advantage
1.Optional Taiwan imported linear guide rail and high-speed Raiser stepping motor and driver, so that the cutting effect edge is smooth without ripples
2.Adopt integrated frame structure design to make the machine run stably and without noise
3.Simple operation, can cut the engraving sequence and processing level at will, and can realize partial or all one-time output
4.Flexible adjustment of laser power, speed and focal length
5. Open software interface, compatible with various design softwares such as Autocad, Coreldraw and Photoshop
6. Equipped with water-break protector to better protect the laser and prolong the life of the laser
7.Automatic feeding design, continuous cutting and engraving, speeding up the processing progress The mutual-moving double-head laser cutting machine completely solves the disadvantage that the distance between the double laser heads cannot be changed or manually changed. The distance can be automatically controlled by setting it freely in the software; the unique interactive design can realize single and double laser heads. Free switching between laser heads.
Paramaters
Working Area(mm) | 1600*1000mm |
Working Platform | Autofeeding working table |
Controlling System | RDC6445G-DFM-RD large-format panoramic laser cutting and engraving system |
Laser Type | CO2 sealed-glass tube with circulating-water cooling |
Laser Wavelength | 10.6um (1064nm) |
Engraving speed | 0-50000mm/min / 0-1181in/min (according to the effect required) |
Cutting Speed | 0-30000mm/min / 0-1969 in/min |
Power Range | 0--100% can be adjusted in controlling panel or software |
Resetting Positioning Accuracy | ±0.01mm |
Min. Shaping Character | English character 1mm*1mm ; Chinese character 2mm*2mm |
Driving System | DC3.2A 48V 3 phase stepper motor Leadshine or YAKO brand |
Position System | Red dot (as standard machine part) |
Front-rear Channel Feed Function | Channel feed for infinite length material processing |
Laser Tube Power | 80W 100W 130W 150W |
Laser Tube Cooling Mode | Water pump for circulating water cooling |
Graphic Format Supported | Vector format:dxf, ai, plt, dst, dsb…etc. |
Software Supported | CorelDraw, AutoCAD , Photoshop, Adobe illustrator,Tajima |
Computer Interface | Off-line/USB / ETHNET / ROUTER (wifi connecting) |
Gross Power | 2500W |
Power Supply | AC 2 phase 220V/50Hz, 110V/60Hz |
Working Environment | Temperature: 0-45°C |
Detial Parts

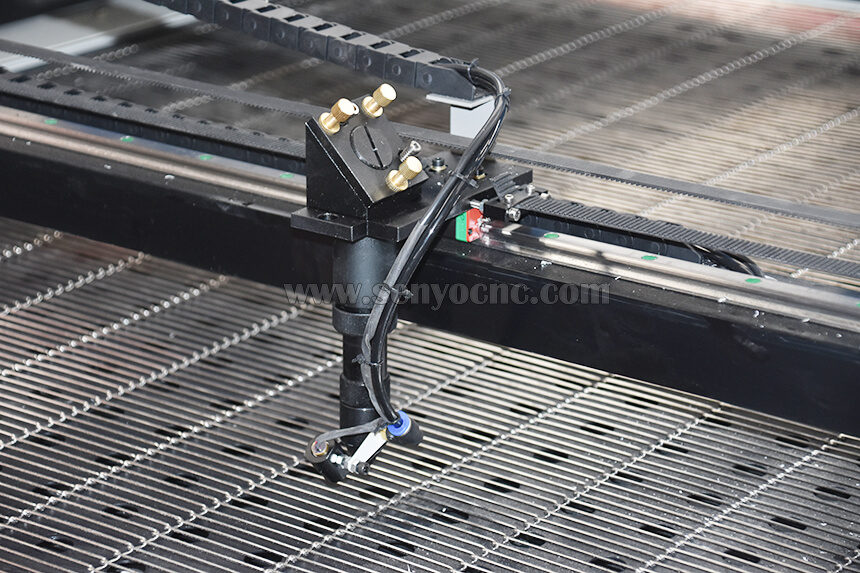

Laser cutting head for nonmetal with high quality, reliable performance and durability, improves the engraving precision and performance.
Laser head with red point.
The aluminum alloy laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head moves.

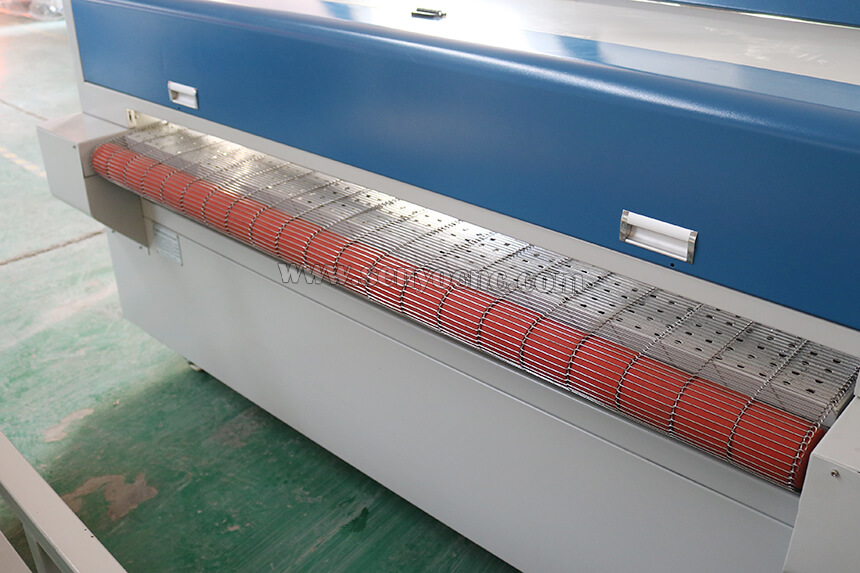

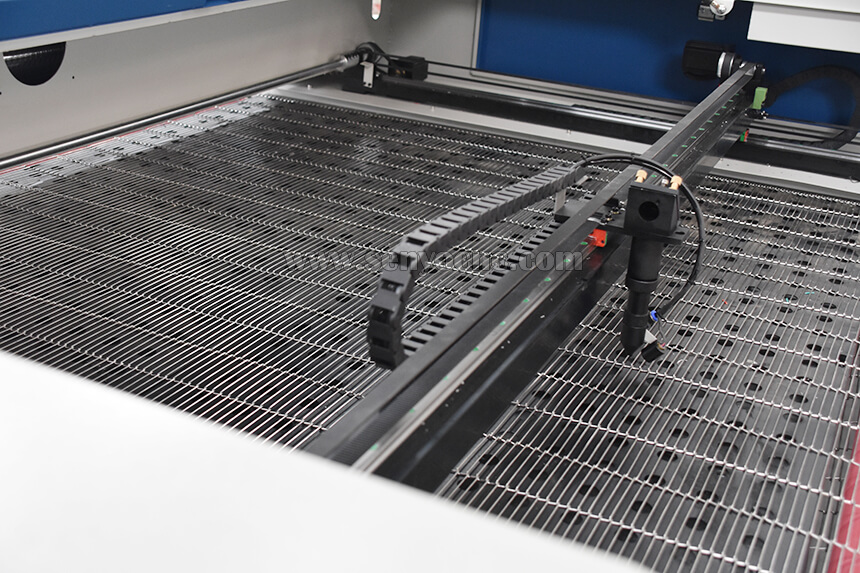

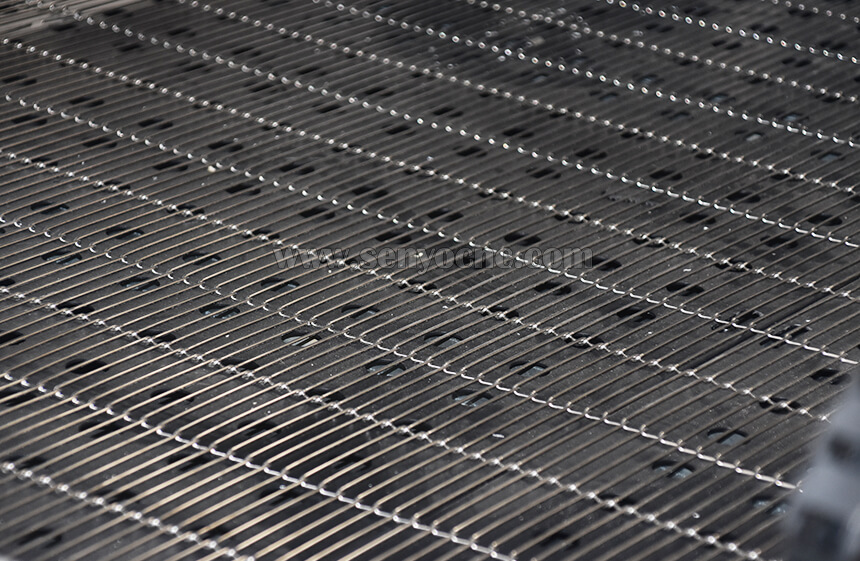

Autofeeding feeding conveyor
Feeding system adopts special words with mesa, pedrail automatic feeding device, convenient processing objects move freely on the surface of the cutting machine
Most professional single layer fabric cutting equipment, is suitable for different kinds of textile, it can do accurate cutting on
different kinds of textile, fabrics in random figure, such as: suit fabric, shirts, cotton cloth, polyester fabric, yarn-dyed
fabric, linen, Sewing embroidering cloth, leather, PU, etc.

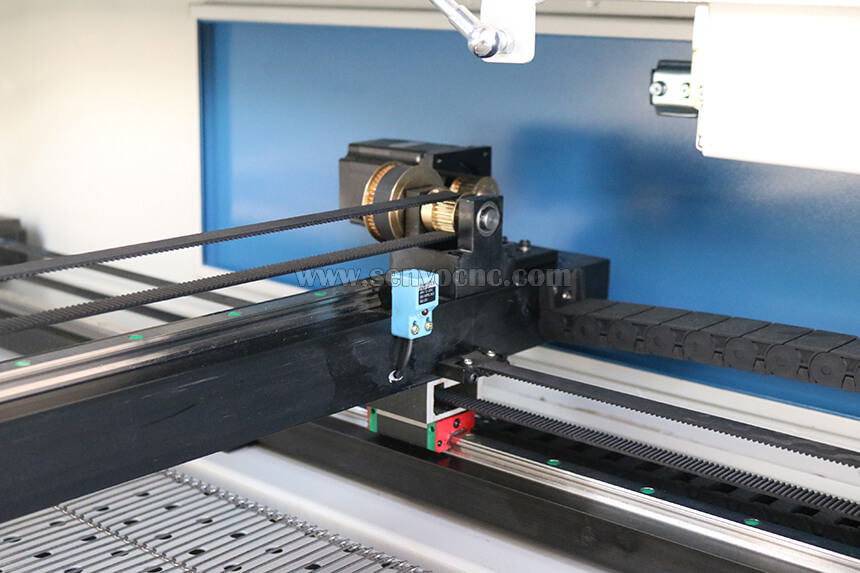

High quality linear guides.
X,Y axis adopted high precision belt transmission, and square guide rail from Taiwan Hiwin, high accuracy, quality and long life time.

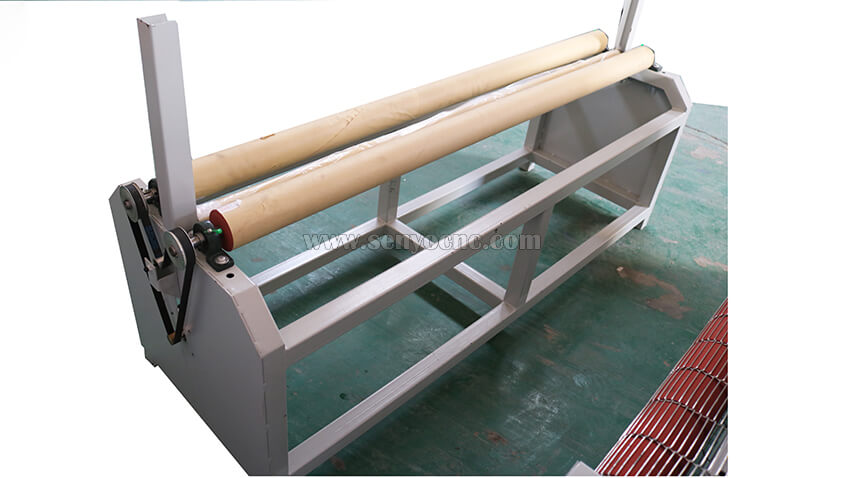

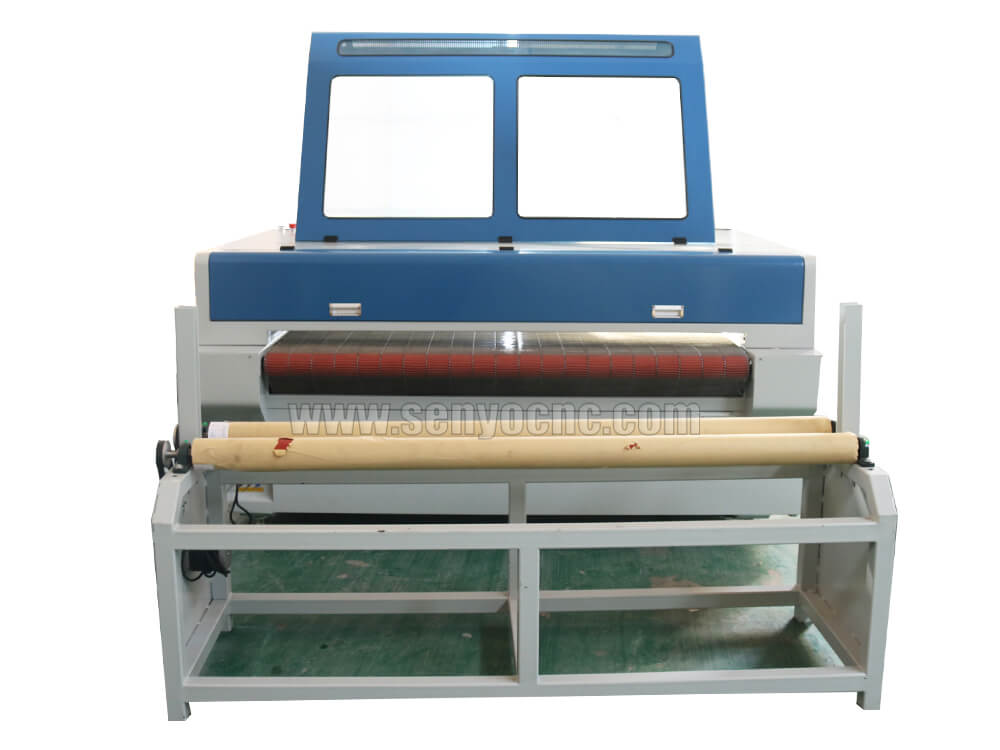

Rear auto uploading
Automatic feeding and discharging, save time, improve work efficiency, it can customize according to customer’s demand level.

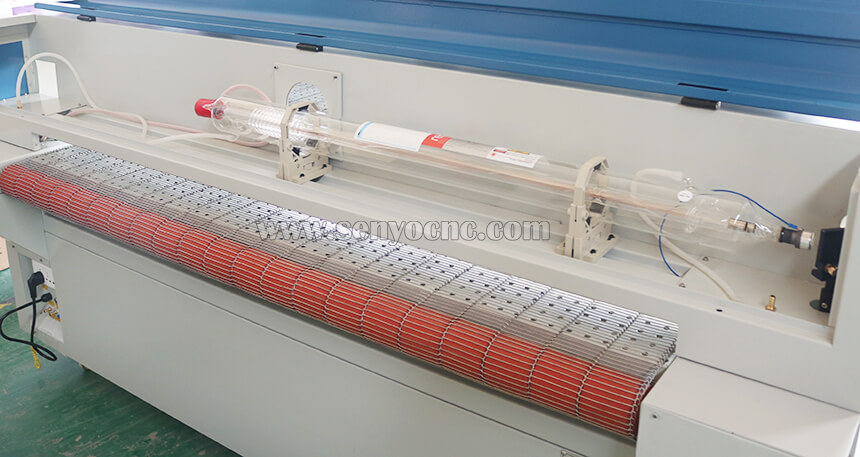

CO2 Glass sealed laser tube China famous brand Beijing Reci W6 with laser power 130-160w (EFR, Yongli, SLW optional), good beam mode stability, service time over 10,000 working hours., strictly select laser tube supplier to ensure stable output and long service life of laser tube.
USB & U-Disk Connectivity
Equipped with a USB port for convenient connection to desktop or laptop. U-disk is also available for direct inserting of the U disk to read and write

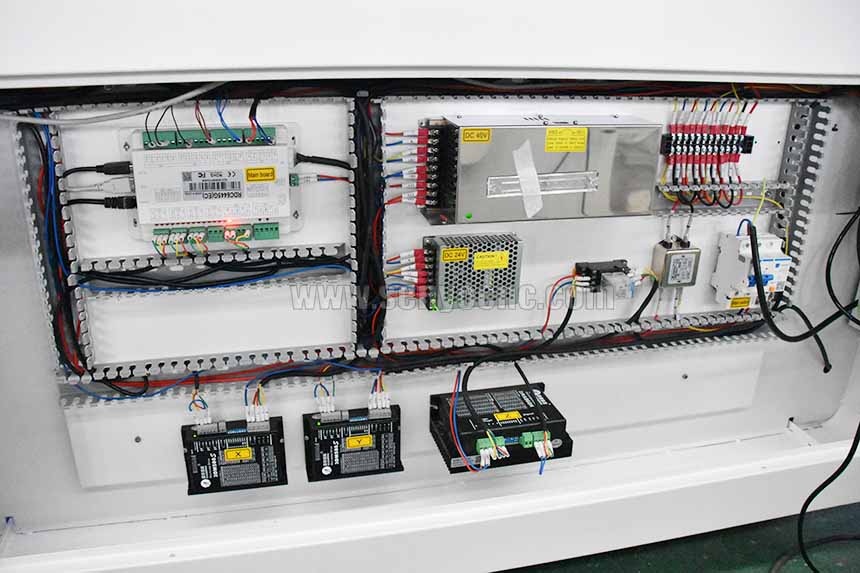

Perfectly tidy power supply system.
The power supply system is strictly in accordance with international standards. And the whole is clean and tidy, avoiding electromagnetic interference.

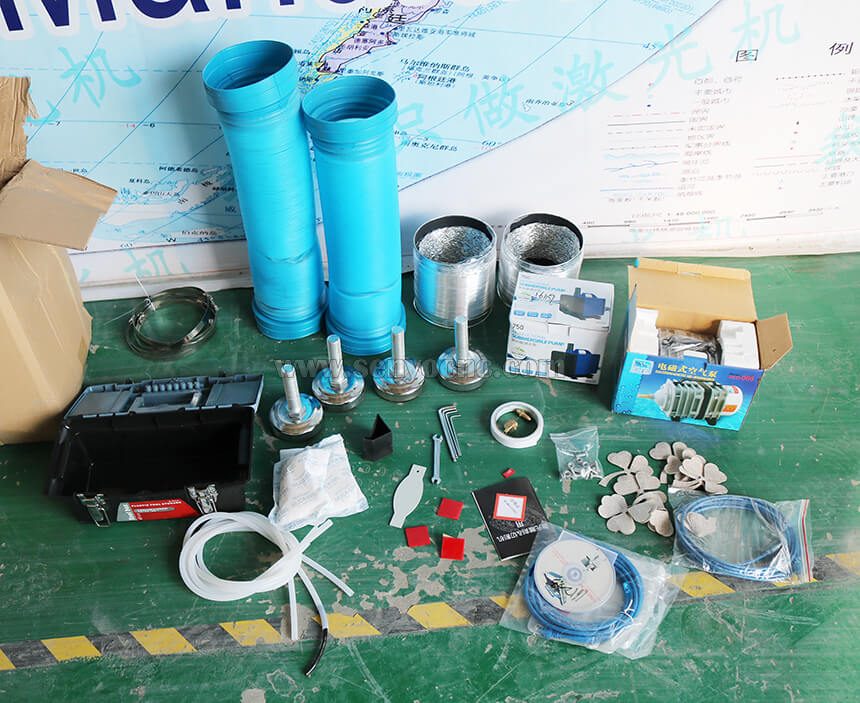

Machine with Complately Opretaion Parts
Water pump
Air pump
power line
Smoke pipe
Water pipe
Air pipe
Inner hexagon spanner
Tools bags
English manual book
Software CD
USB line
Silicone
Focus rular
Double sticky tape paper
Plugs and socket
Application & Industry
Industrial textile | filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, PVC fabic, sponge, insulating material and other industrial flexible materials. |
Non-woven fabrics for health & medical | insulating .material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, craft and gifts,packaging and printing,toys,paper products,clothing,sofa, curtain, table cloth etc.etc |
Home furnishing fabrics | upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, cloth,shoes,sofa,plush toy,car seat,curtain,table cloth.photo has been printed on the fabric,leather,plastic,etcetc |
Garment fabrics | sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc. |
Automotive interiors | car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc. |
Industrial textile: | Filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, PVC fabic, sponge, insulating material and other industrial flexible materials. 2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc. 3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc. 4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc. 5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc. 6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, PTFE, ETFE, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, tents, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc. 7. Fur coat, Fur layer, PU leather, leather, etc. |
Work Project
Package & Shipping
(1) Inner:
plastic stretch film and white foam. Plastic stretch film winding
equipment for MoistureResistance. White Foam filling is used to tighten
the laser.
(2) Middle: small pieces of wood and screws.
(3) Outside: standard export wooden case.
(4) Label the destination country and product number.
International Shipping Around the World
All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
