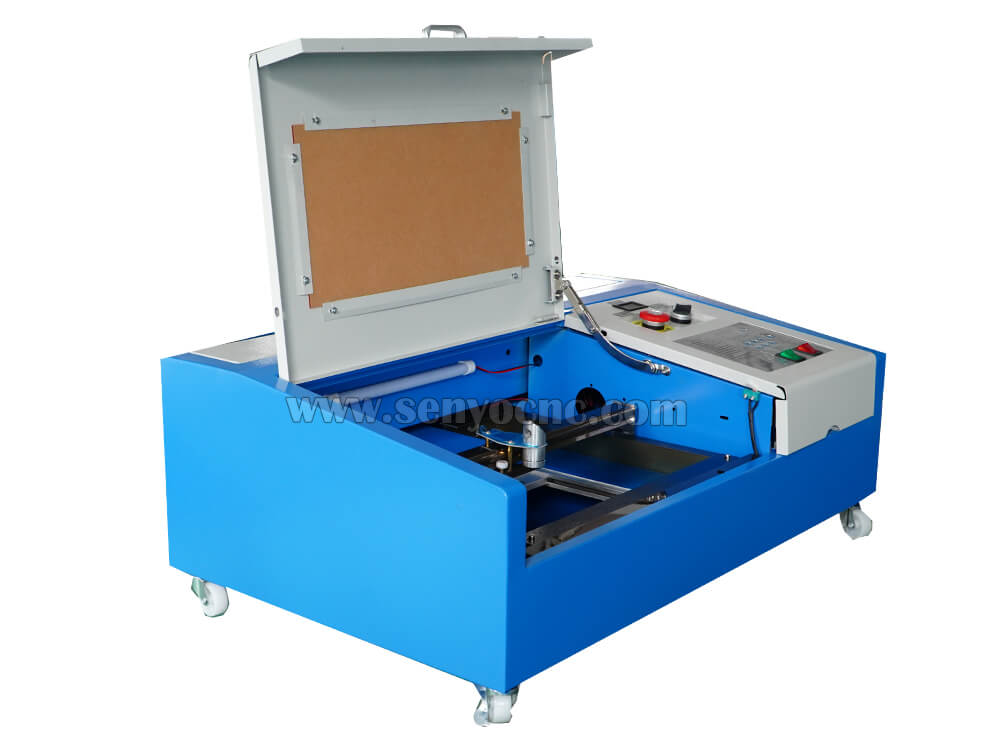

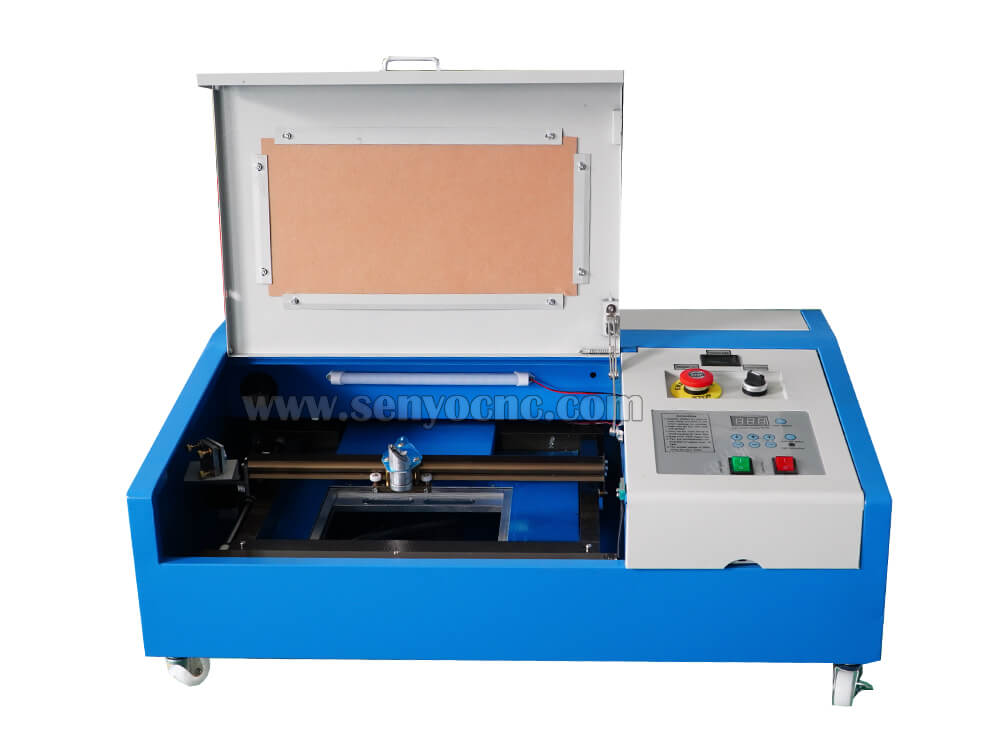

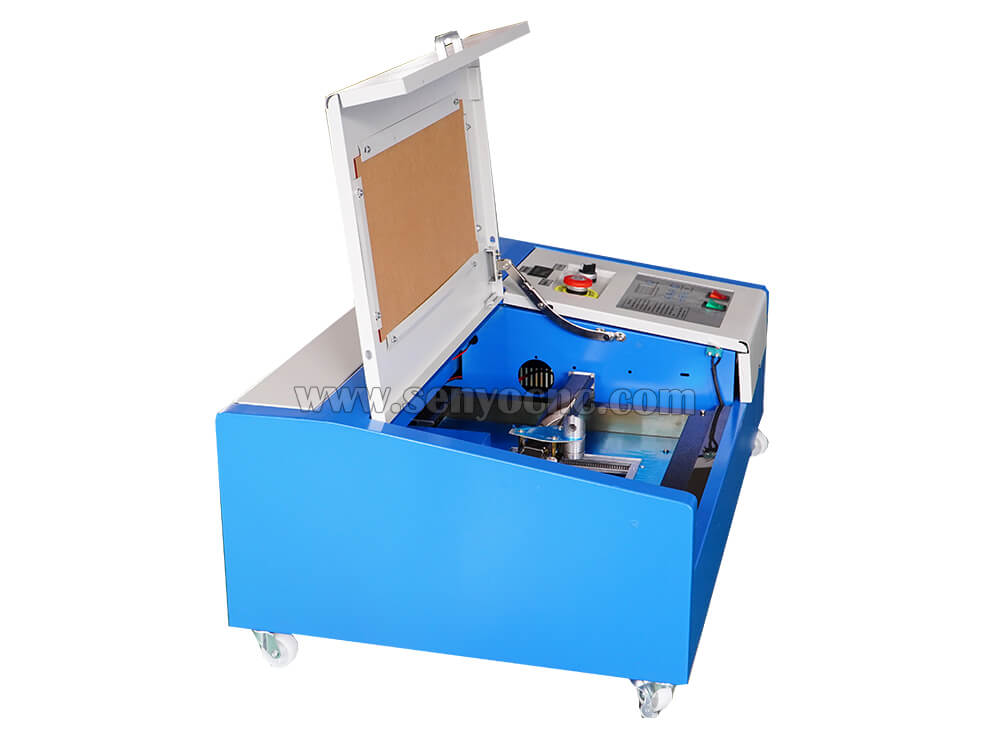

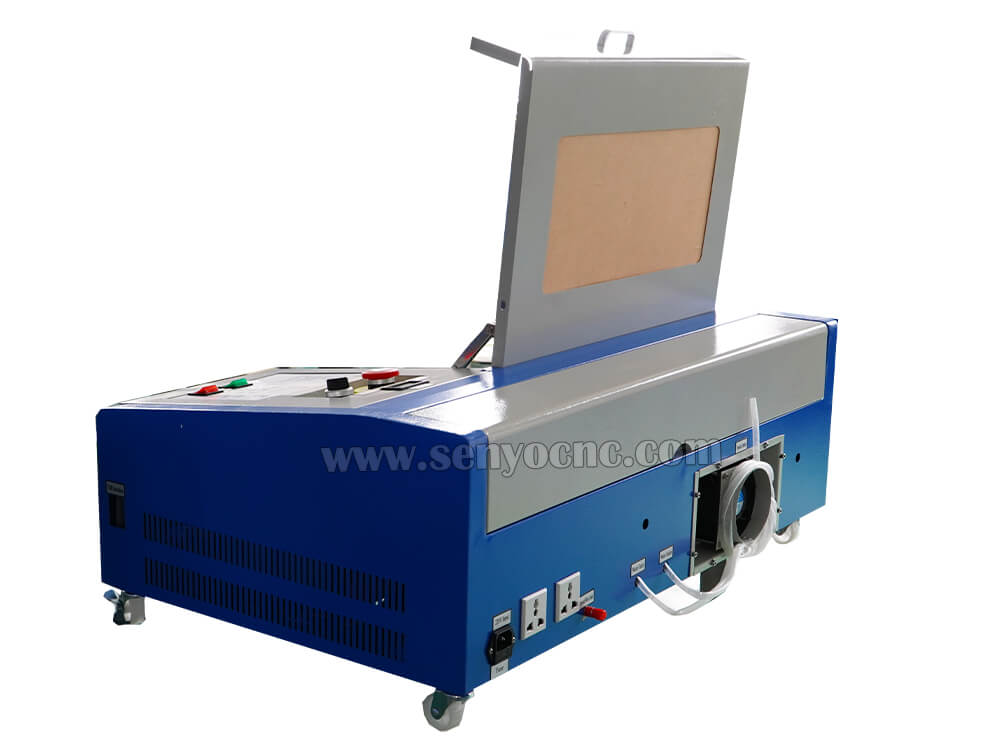

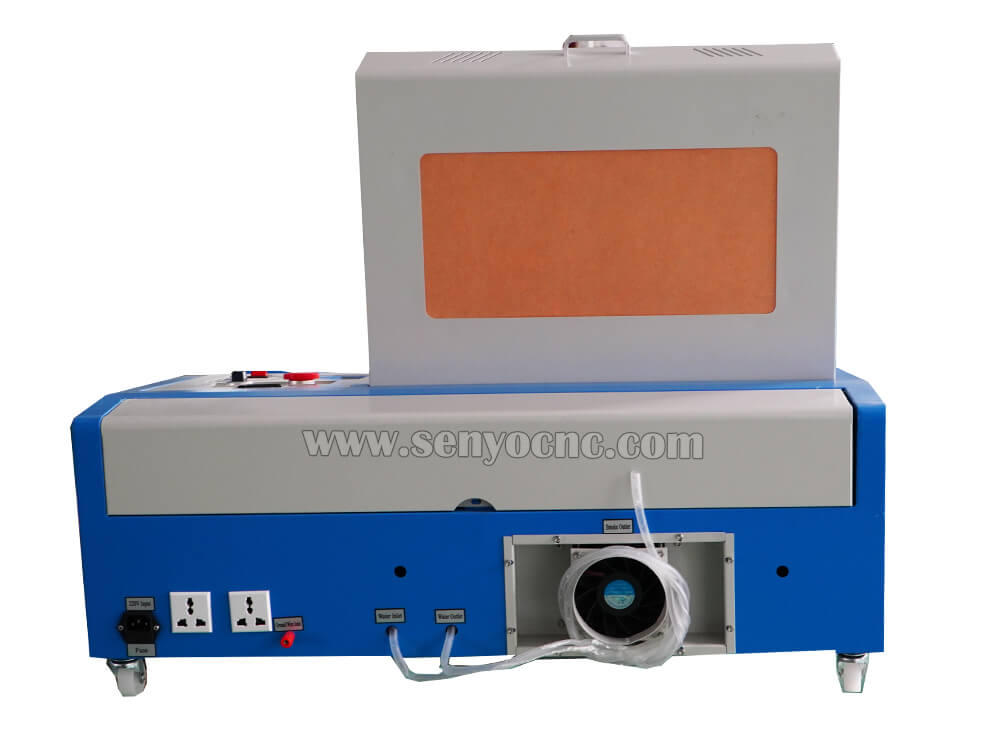

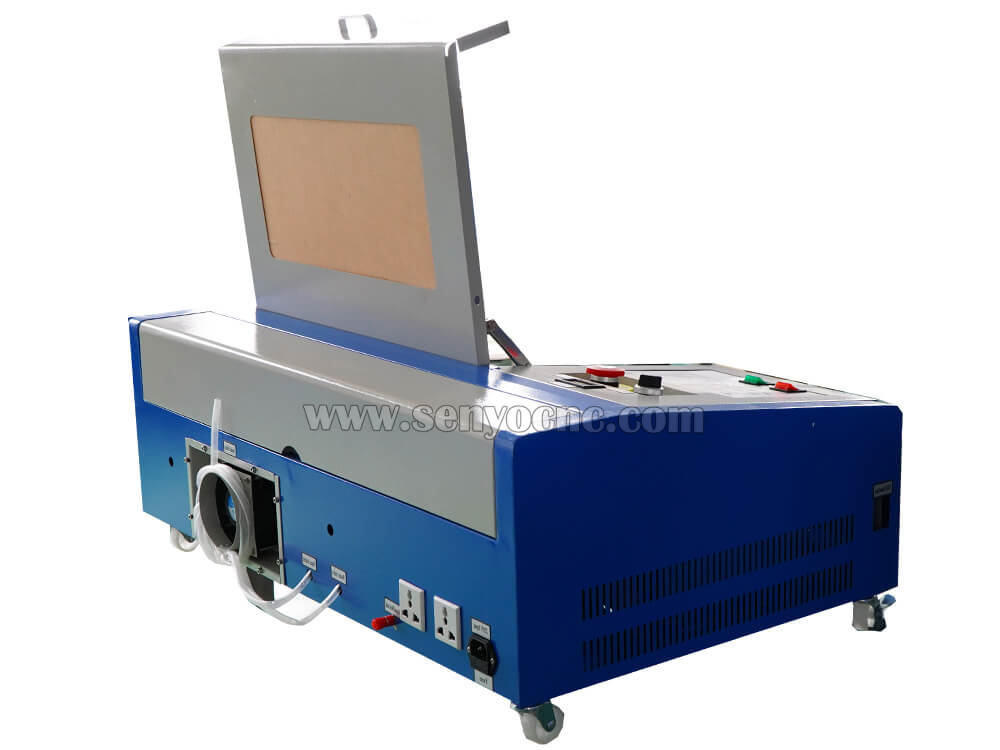

300x200mm working size design A1, blue color with wheels

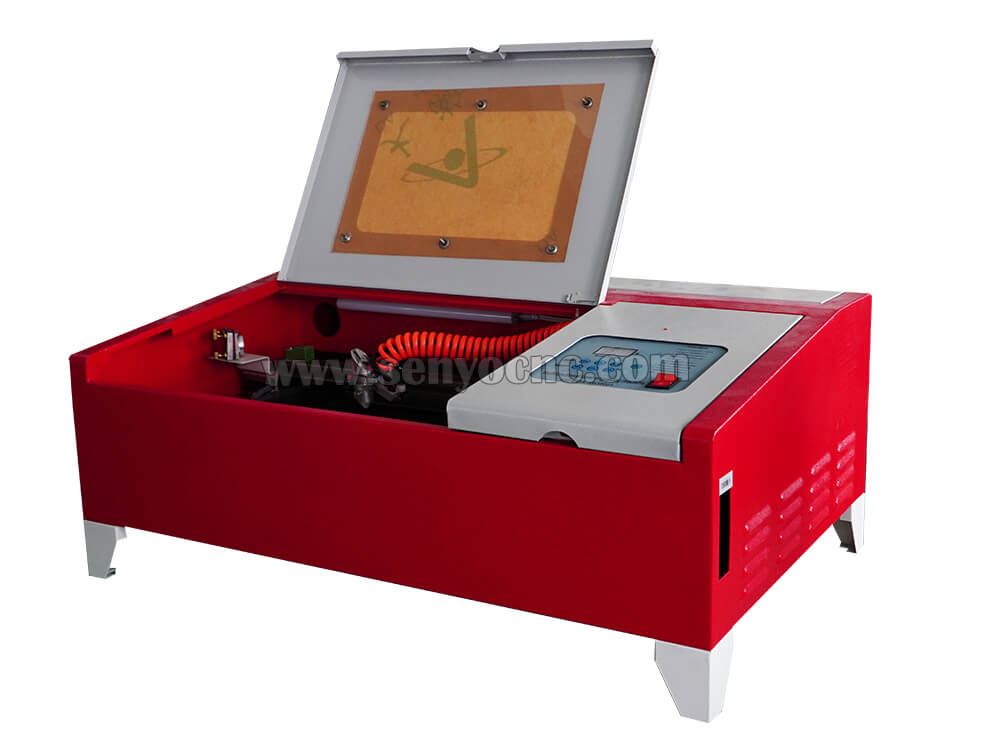

300x200mm working size design A2, red color and use metal tube legs

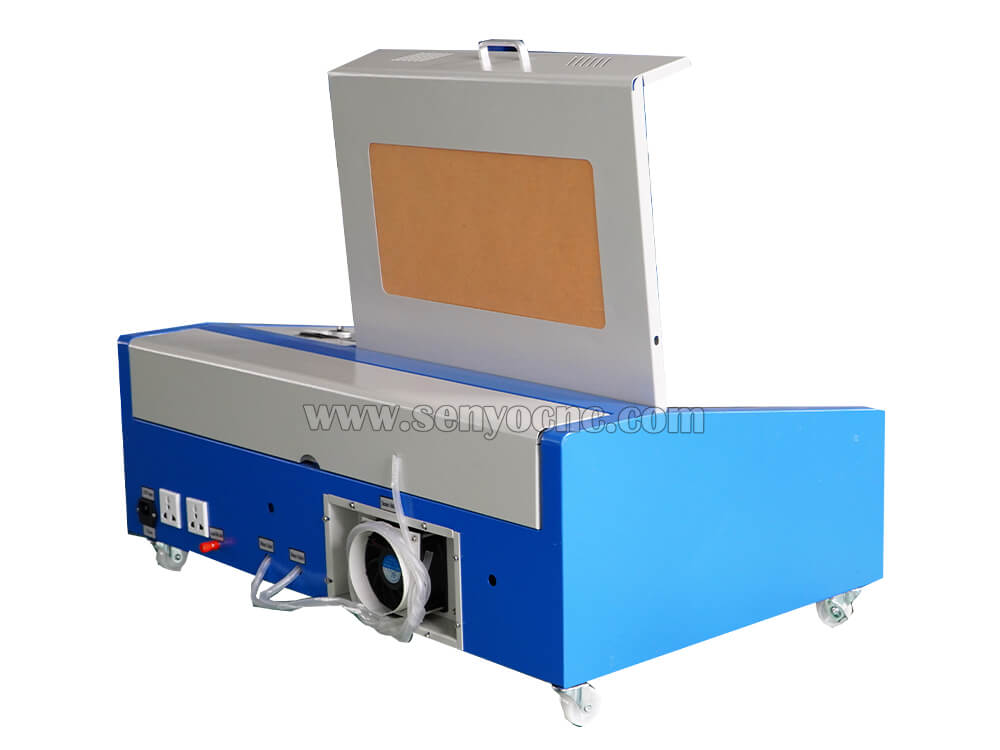

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
Paramater
Model | SYJ3020 Laser engraving and cutting machine |
Working area | 300*200mm |
Working table | Cellular platform/fixture platform |
Laser power | 40W 50W |
Laser type | Sealed CO2 glass laser tube |
Power Supply | 220V/50Hz/60Hz |
Cutting speed | 0-50mm/S |
Engraving speed | 0-500mm/S |
Cutting thickness | 0-20mm |
Min line width | ≤0.15mm |
Positoning accuracy | 0.01mm |
Repositioning accuracy | 0.02mm |
Resolving power | 1000dpi |
Min. Character engraving | Character 2.0mm×2.0mm, English letter 1.0mm×1.0mm |
Guide rail | Hiwin |
Transmission method | Belt Transmission |
Mainboard | M2 (Ruida is available on request) |
Control software | CorelDraw/AutoCAD |
Data transmission | USB2.0 |
Cooling method | Water cooling |
Water break protection | Yes |
Working temperature | 0-45℃ |
Net/gross Weight | 30/40kg |
Parts Detials

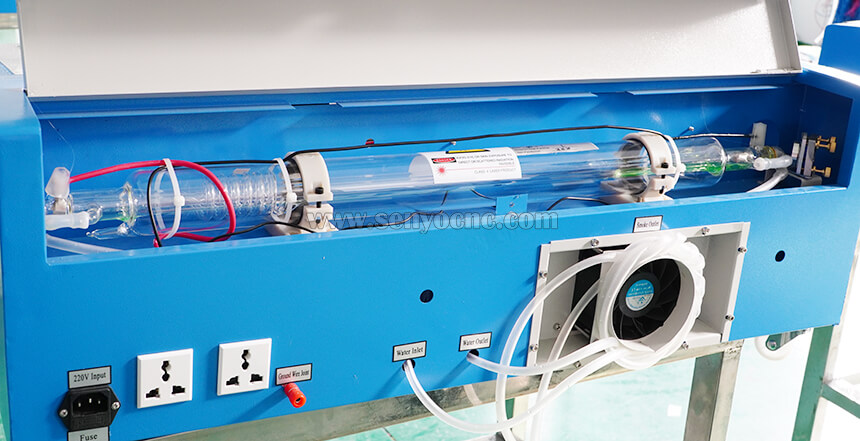

Sealed-off Glass CO2 Laser Tube.Longer service life.
More steady.
Higher efficiency.
High precision.
Adjustable 40W Speed and Power, Smooth and Precise Engraving and Cutting .

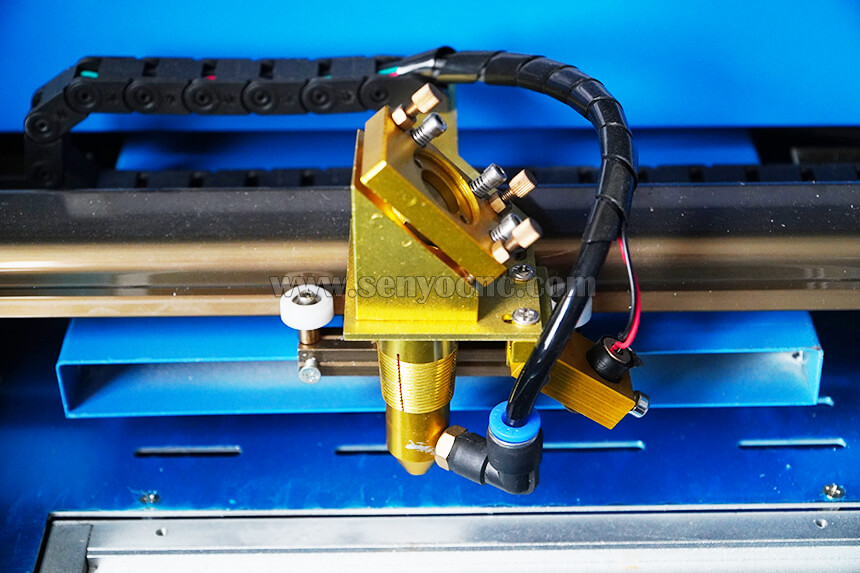

Laser head can stop focus lens from polluting.Laser head will make effect of engraving and cutting better
This machine use stainless steel linear guide rail, has quickly engraving speed and high precision, also has long working life

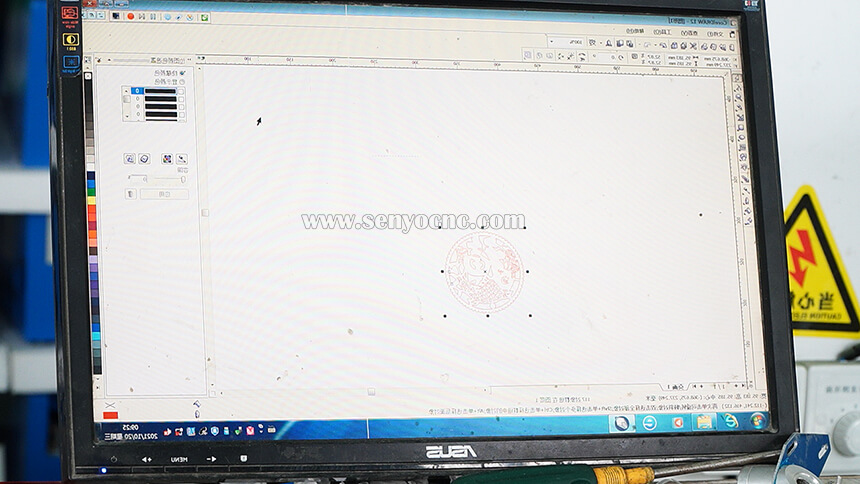

CorelDraw Software Included. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.
Adopt imported mainboard and chip which can control the engraving more precise.

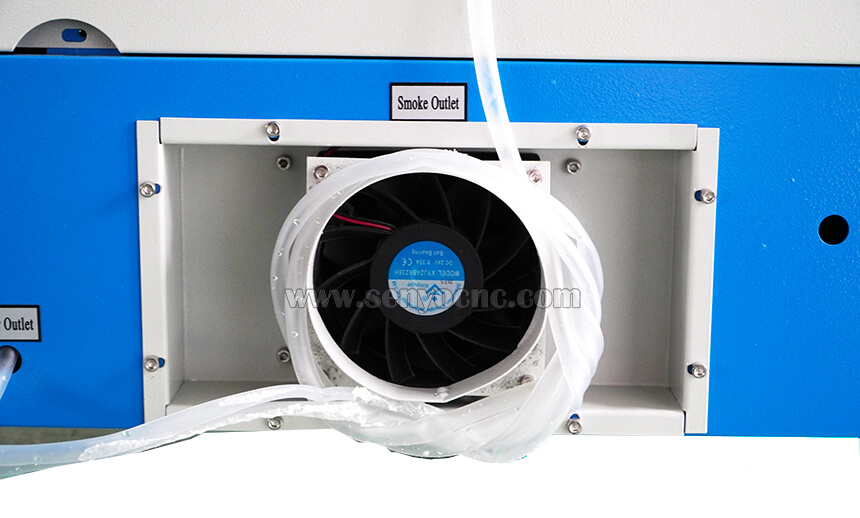

Smoke Outlet with Outlet tube

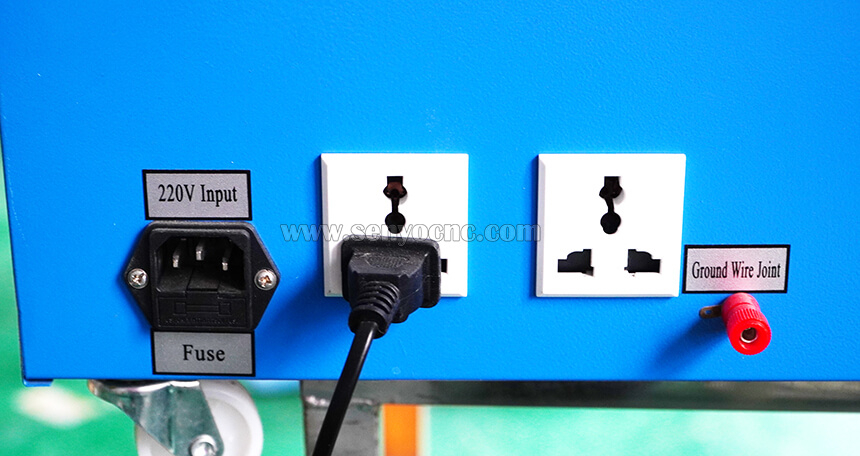

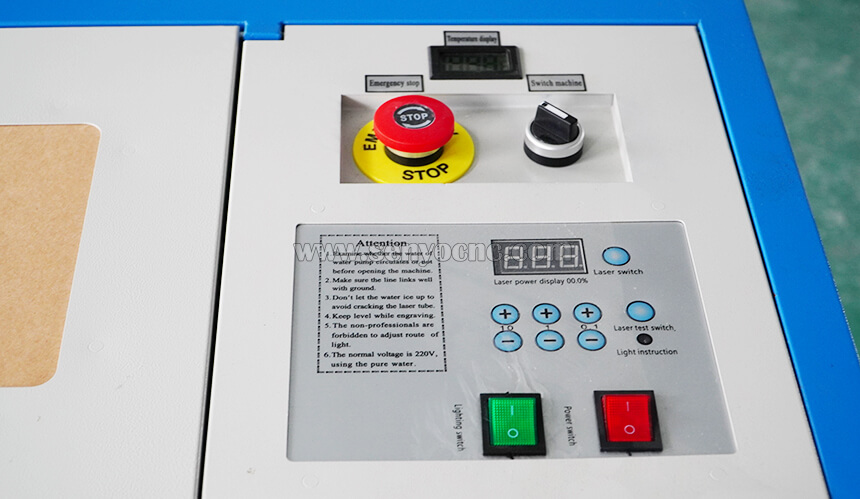

Easy Operation Switch

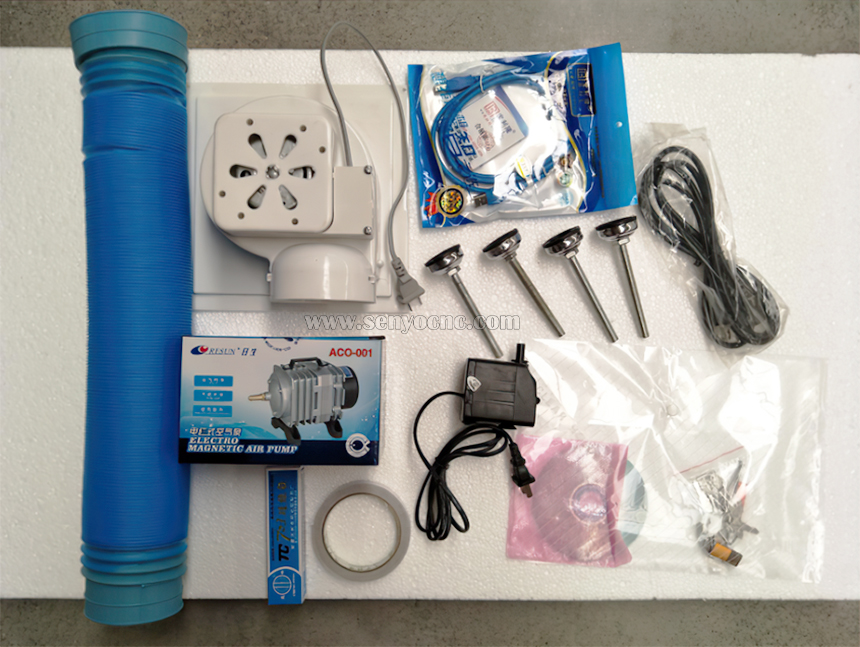

Machine with complately tools for opretaion
Air pump | 1 pc |
Water pump | 1 pc |
Fume extractor | 1 pc |
Venting pipe | 1 pc |
Water box | 1 pc |
Wheel | 4 pcs |
Hexagon spanner | 1 set |
Instruction CD | 1 pc |
Data wire | 1 pc |
Machine 20 set delivery with tool box

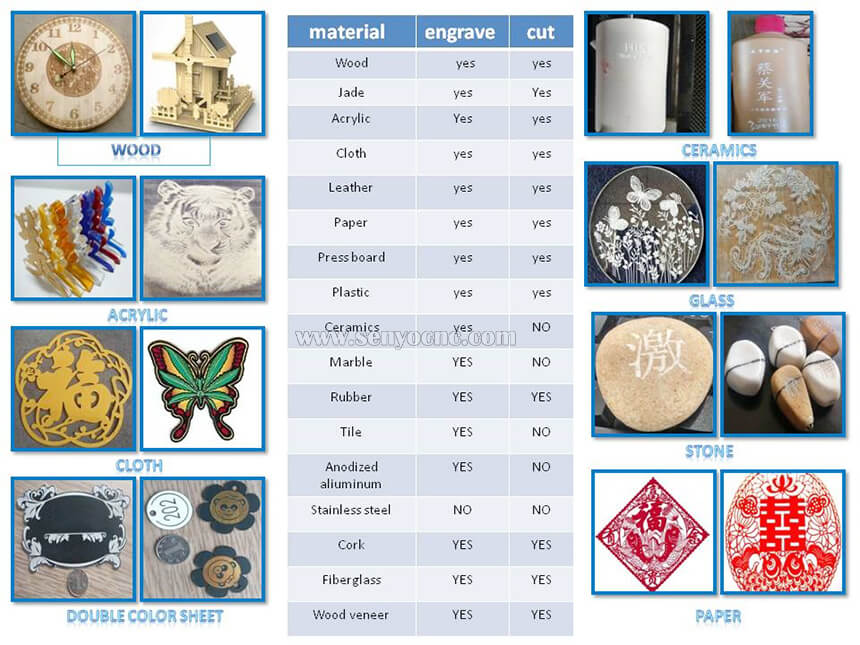

Applicable Material
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
Applicable Industry
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.

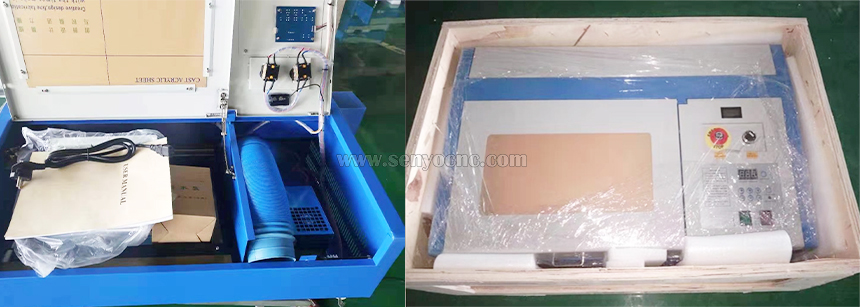

Package & Shipping
1.Whole film packaging machine
2.Anti-collision package edge
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
