Besides working on flat materials, the machine is widely used in carving cubic and column work piece such as wooden table legs the human body,figure of Buddha,the goddess of mercy,sculpture,handicrafts,stair handrail,cylinder Musical Instruments.
Features
1.working length up to 1200 mm , suitable for mostly material working need.
2.cast steel machine structure to make sure the machine working stability .
3.2.2KW constant power water cooling spindle , guarantee the engraving power.
4.8 spindles can work at the same time with high working efficiency .
5.Adopt imported linear square guide,ensure higher positioning accuracy of cnc machinery rotary .
6.Handle controlling, not occupying computer resource, one computer can control several e cnc machinery rotary.
Advantage
The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.
Multiple Liquid Cooilng Spindle
Multipile liquid spindles for batch machining on solid wood, MDF, acrylic, plastic, and more materials.
Rotary Device (Rotary Attachment) It is capable carving & cutting different columns, irregular objects with various diameter.
It suits high volumn production, and one machine’s working capacity is equal to 36 worker's for one day.
Servo Driver & Motor
Motors and drives are digital brushless AC Servo on all axes. These motors require no regular maintenance, therefore, reducing any maintenance cost.
Worktable Is Remove
Specification
working area: flat working | 2100*3000*400 mm |
Rotary axis: cylinders working | diameter 200mm. length 2200mm |
spindle | 2.2kw spindle, 8 pieces |
motor | Servo motors 1.3KW |
driver | Servo drives 1.5KW |
XYZ traveling positioning accuracy | ±0.03/300mm |
Lathe structure | welded square steel tube |
XY Structure | square guide,helical rack and pinion |
Z Structure | square guide,German Ball screw |
table | aluminum T slot / vacuum adsorption |
Max working speed | 0-15000 mm/min |
Spindle speed | 0-24000 rpm |
Working voltage | AC380V/50/60HZ |
Operating system | DSP A18 |
Parts Detials

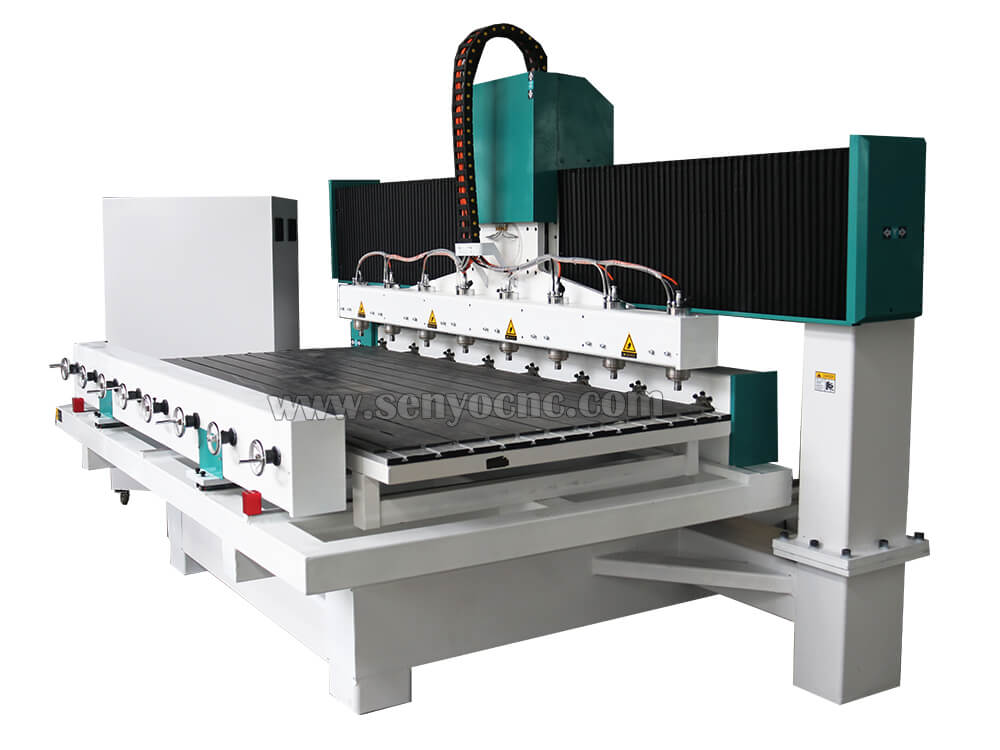

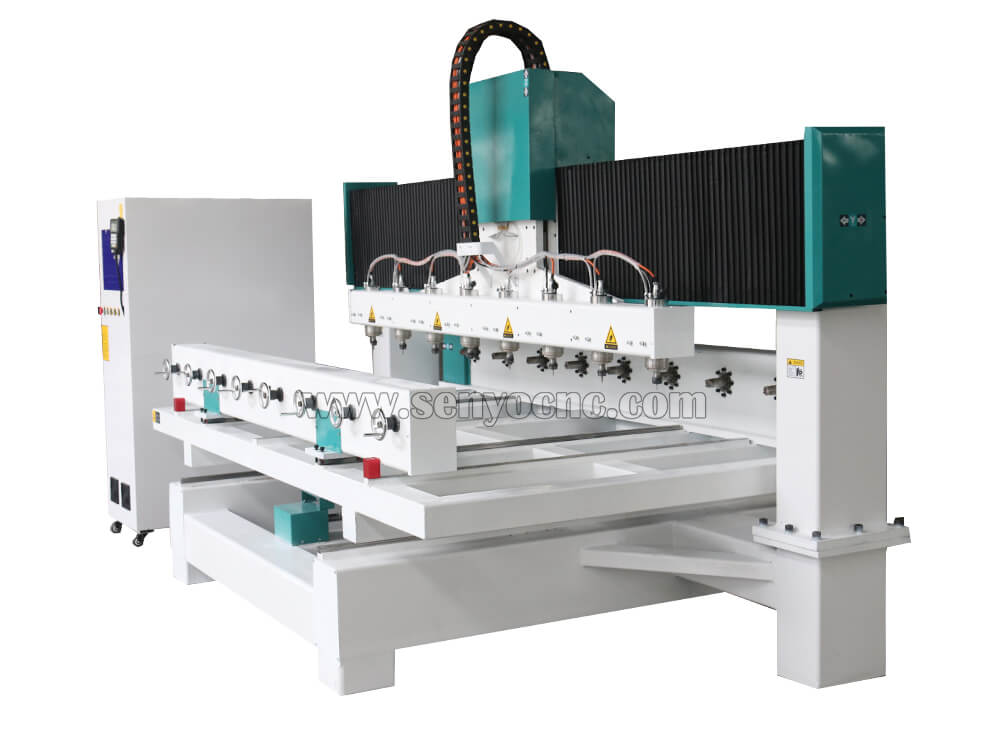

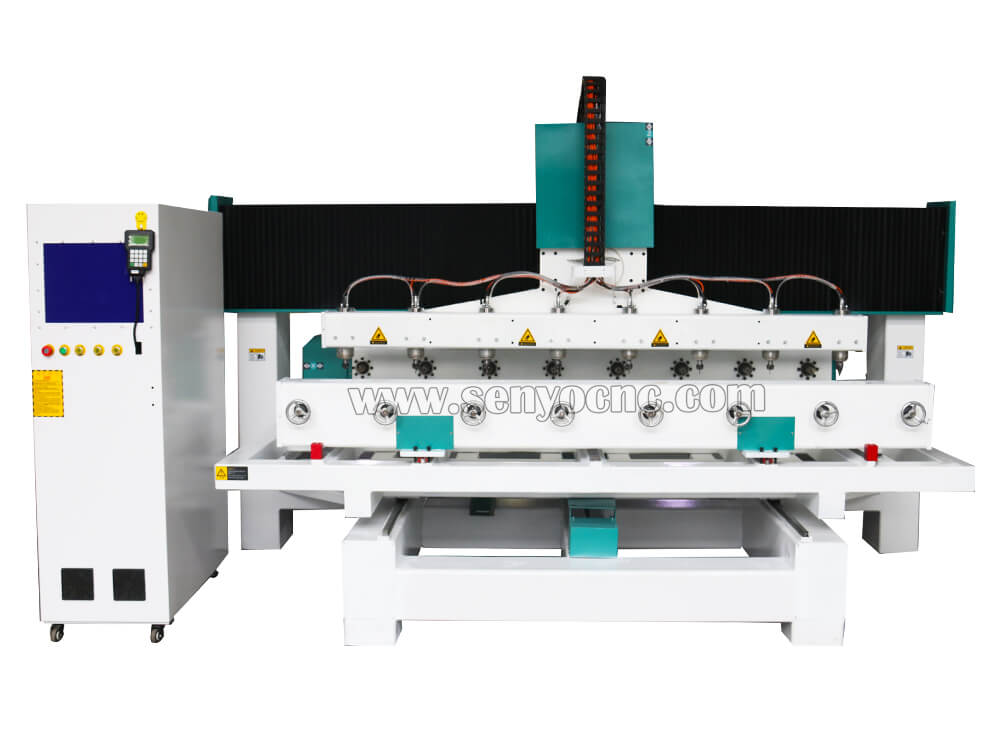

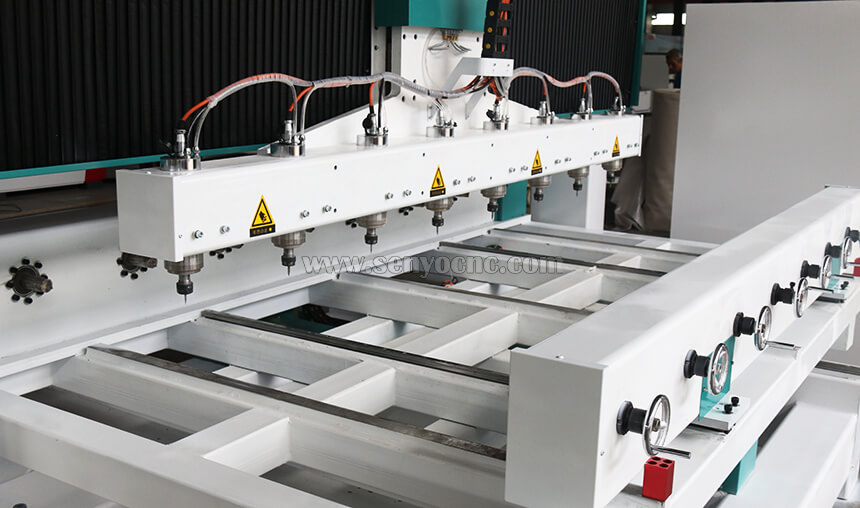

8 spindles, 8 rotary axis, higher working efficiency.

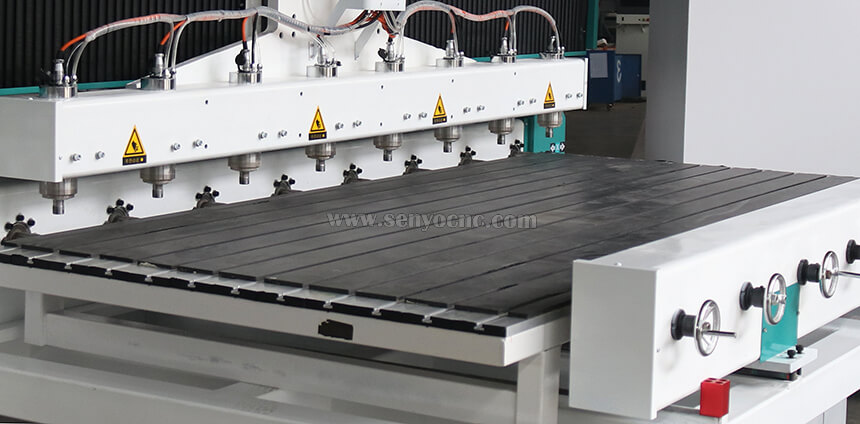

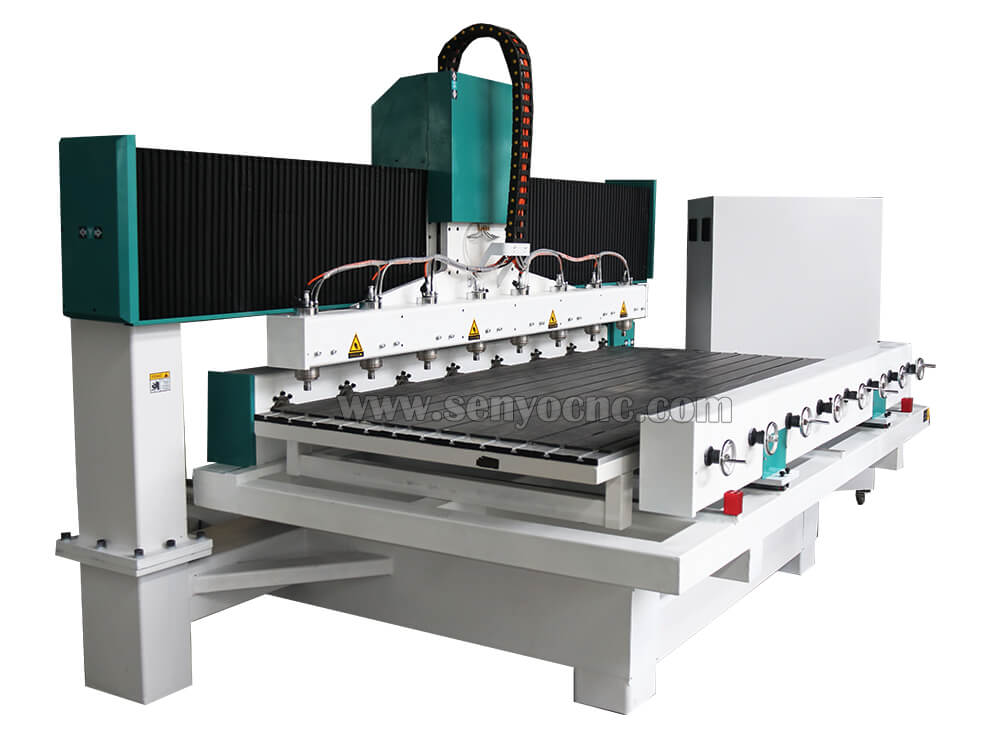

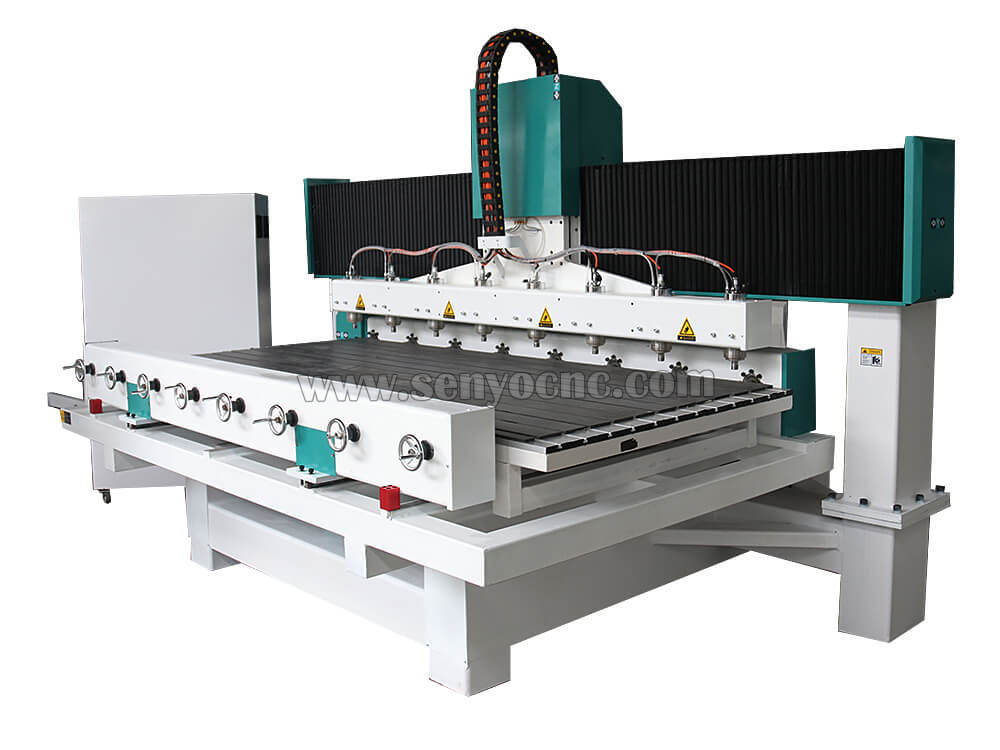

This machine with a movable table, when you produce the panel furniture, you can put the table on.
This saved cost of buying another flat machine with multi head.
This item is very suitable for furniture bulk production, multi heads can work at the same time
Also can work alone, many times increasing efficiency

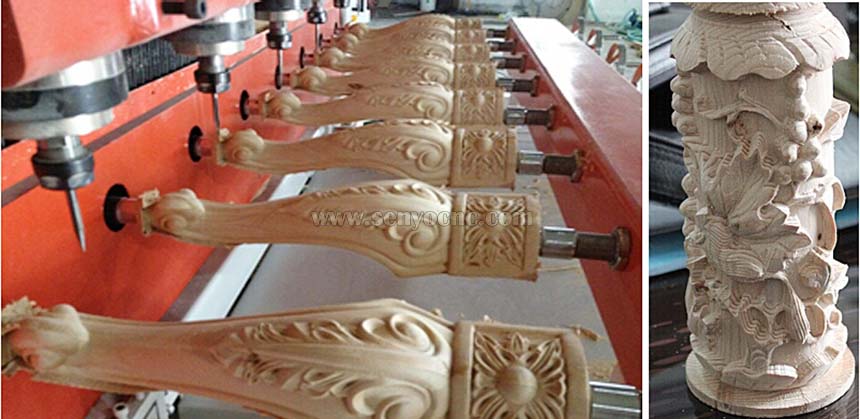

The high-quality rotating shaft can be used to carve cylindrical crafts conveniently
And the quantity can also be customized according to the needs of customers.

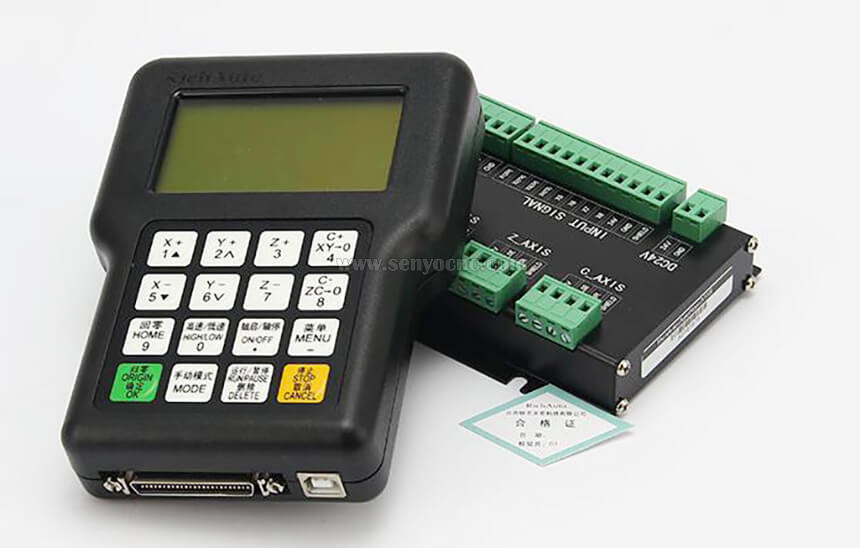

DSP A18 four-axis control system. handle controlled, fast reading speed. Intelligent processing memory
supports power fail to safeguard and breakpoint function.

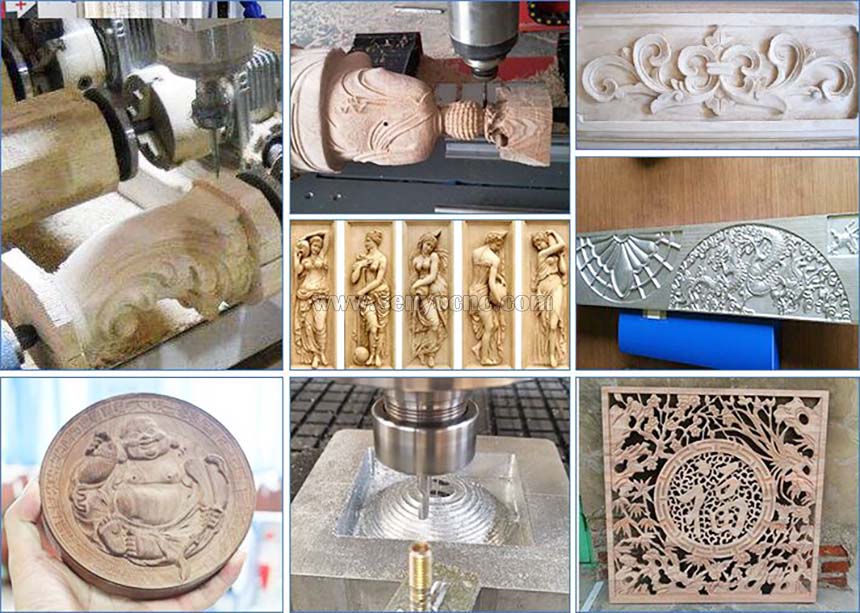

Application
It is used for stereo 3D technology, furniture stereo feet and the cylinder, human body, buddha, goddess of mercy
sculpture, handicrafts, stair handrail, and musical instruments. It can handle 3D machining on wood, stone, and soft metals.
Huge range of machining enables the multi head CNC machine to satisfy the needs for furniture making, decorations,
gifts, arts & crafts manufacturing.
Multi-spindle
CNC Router is used in many fields such as woodworking industry and
other industry such as Carving Series, relieve series and handcraft
industry.
Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates cupboard doors, interior doors, sofa legs, headboards and so on
This mahcine is mainly used for processing Roman column, stair handrails, chair legs,etc.symmetric cylindrical products.
Can be processed cylinder, cone, surface, a complicated shape such as spherical rotary body semi-finished wood products or wood.
Especially suitable for mass production of small and medium wood enterprises, they can always be set flexibly shape,
rapidly
changing processing styles .
Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,
blaster molding, and other advertising materials derivatives making.
Mold Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble
sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Package & Shipping
1. Outside package:Standard plywood package.
2. Inner package:Stretchy film and plastic film .
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements. We will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
