Advantages
1.Integrally cast lathe bed, robust and without distortion.
2.3
axes transmission with imported ball screws ensures stable and smooth
movement of the machine.

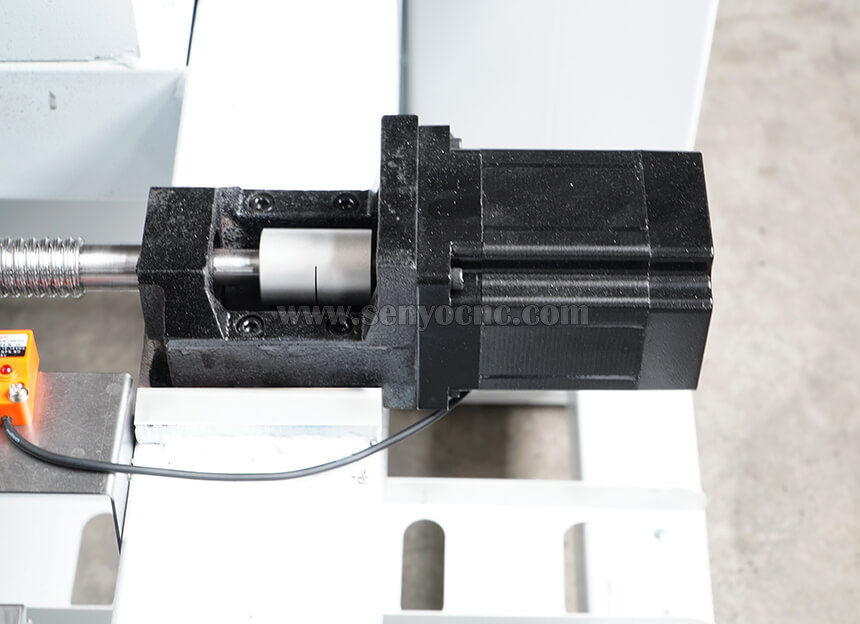

Adopting coupling transmission guarantees the reposition accuracy when work long time.
3.Application of driver with high definition subdivision ensures fast speed and high accuracy.
4.High power spindle, brushless, water cooling, working vigorously with low noise, guarantees long time mass processing.
5.Humanized design enables easy disassembly of the machine for convenient transportation.
6.Water tank is optional, used to engrave glass,etc.
Specification
X stroke | 900mm |
Y stroke | 900mm |
Z stroke | 300mm |
Repeat positioning accuracy | 0.01mm |
Machine size | 1000*1300*1500mm |
Body material | Cast aluminium (bed, beam, column, platform) |
Body bracket | Square steel welding |
Track | Taiwan Hiwin Square Track |
Screw | Taiwan TBI1605 |
Spindle | 3KW water cooling spindle |
Inverter | 3KW Best inverter |
Motion motor | Stepper motor |
Drive | DM860H |
Control system | NC Studio control card |
Cooling system | Pump cold cycle |
Tool | Setting tool device |
Voltage | AC220V/50/60Hz |
Transmission mode | XYZ screw drive |
Parts Detials
CNC lathe bed frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the
foundation remains true and steady over the operational life of the machine.

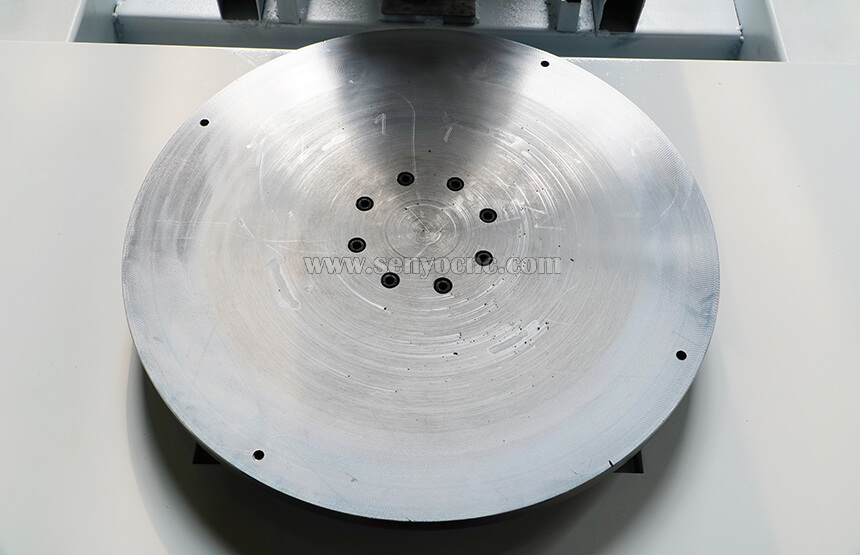

Design with a rotary for multi function, work for both panel and cylinderial ,rotary size from 0-100mm.,0-150mm.,0-300mm for choice

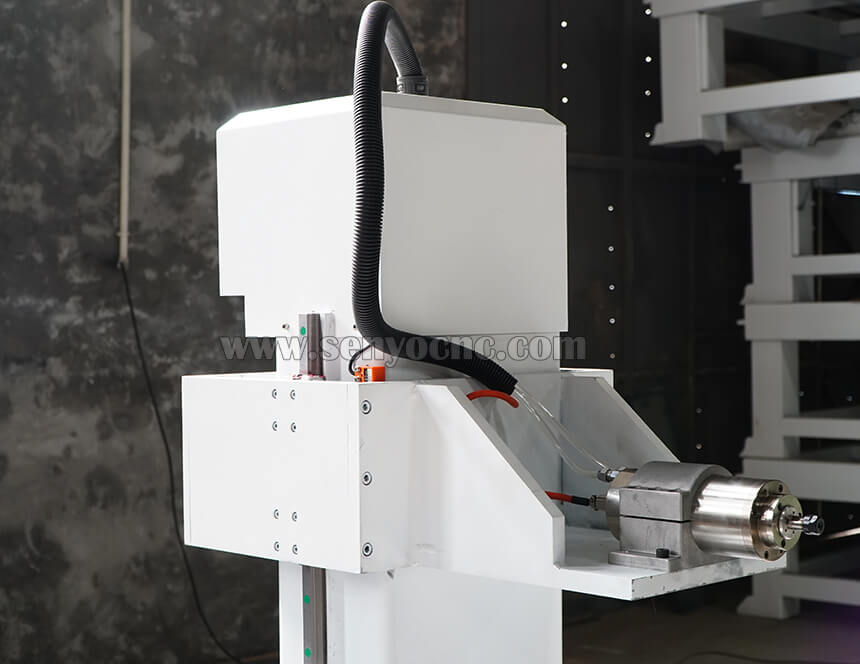

High quality CNC Router machine comes standard with 3kw high frequency spindle.
Water cooling system ,This precision spindle requires no maintenance.
Fully programmable speeds 24000RPM, more powerful and less noise.
High-power micro-step driver makes the engraving more accurate and stable.
High-frequency water-cooled spindle motor with interchangeable spindle design enables engraving, scouring and cutting.

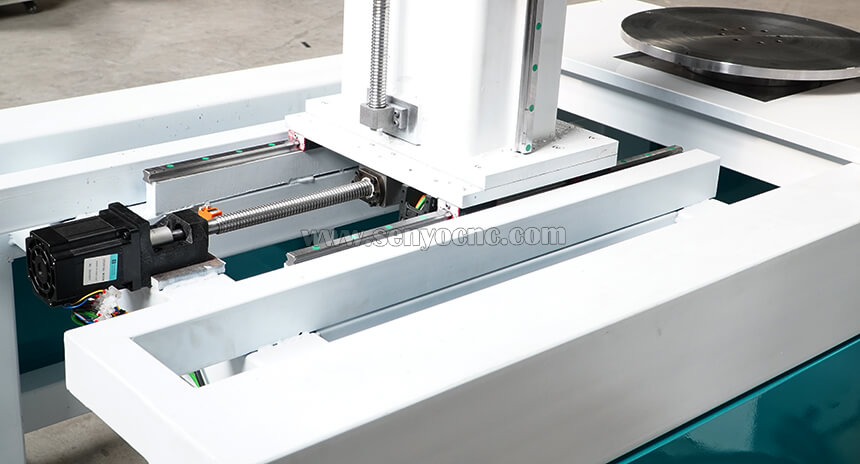

The CNC Router uses precision Ball screw on the X and Y axes.
This assures smooth motion and long term reliability.
This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.
Adopt imported square linear guide for CNC machine tools. The slider is pre-tensioned, with good rigidity and no gap.

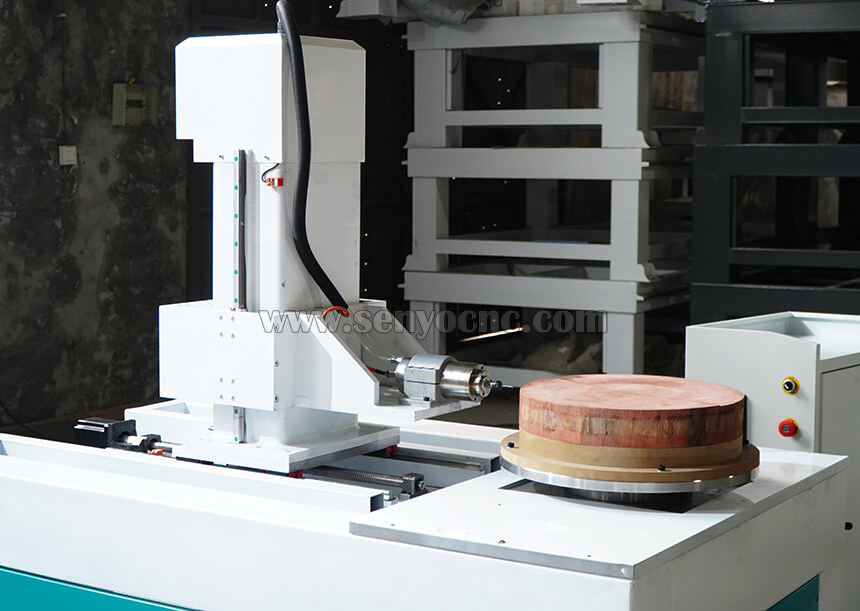

Custom Made Rotary
Application
1. Wood industry: wood furniture making, 3d wood relief carving, wooden craftwork production Speakers,game consoles cabinets, computer tables,sewing machine table etc.
2. Advertising products industry, 3D letters sign making, acrylic cutting and engraving.
3. Board processing industry ,Insulation piece, acrylic board, plastic chemical products, PCB, compact grade laminate, ABS, PP, PE and other cementitious mixtures’s milling process.
4. Decoration Industry , Folding screen, wave plates, advertising boards, sign making and logo’s processing.
5. Arts & Crafts industries Engrave on artificial stones, woods, bamboos, marbles.
6. Processing material. Engraving, milling and cutting processing for acrylic, PVC, artificial stones plastics and soft metal sheets and so on.
Samples
Package & Shipping
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests .
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements.
We will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
