Product Introduction

Buyer's Reviews
The 3 spindle cnc router is same function with 3 spindle, can cut, engraving, milling and drilling.Its main advantage is can 3 working efficiency, because can make 3 samples at one time work.More suitable for relief carving work.And the T slot table can process small and large plate woodworkin
Demonstration Video
Product Descriptions

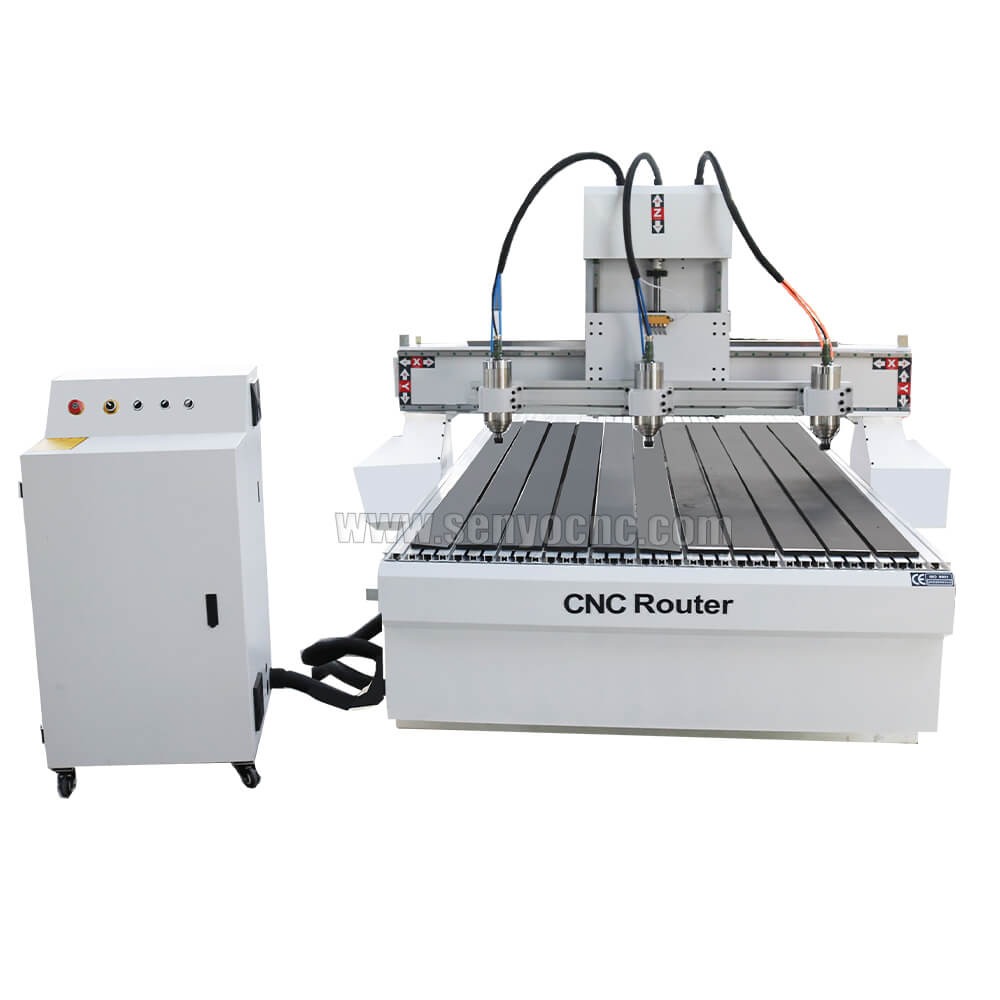

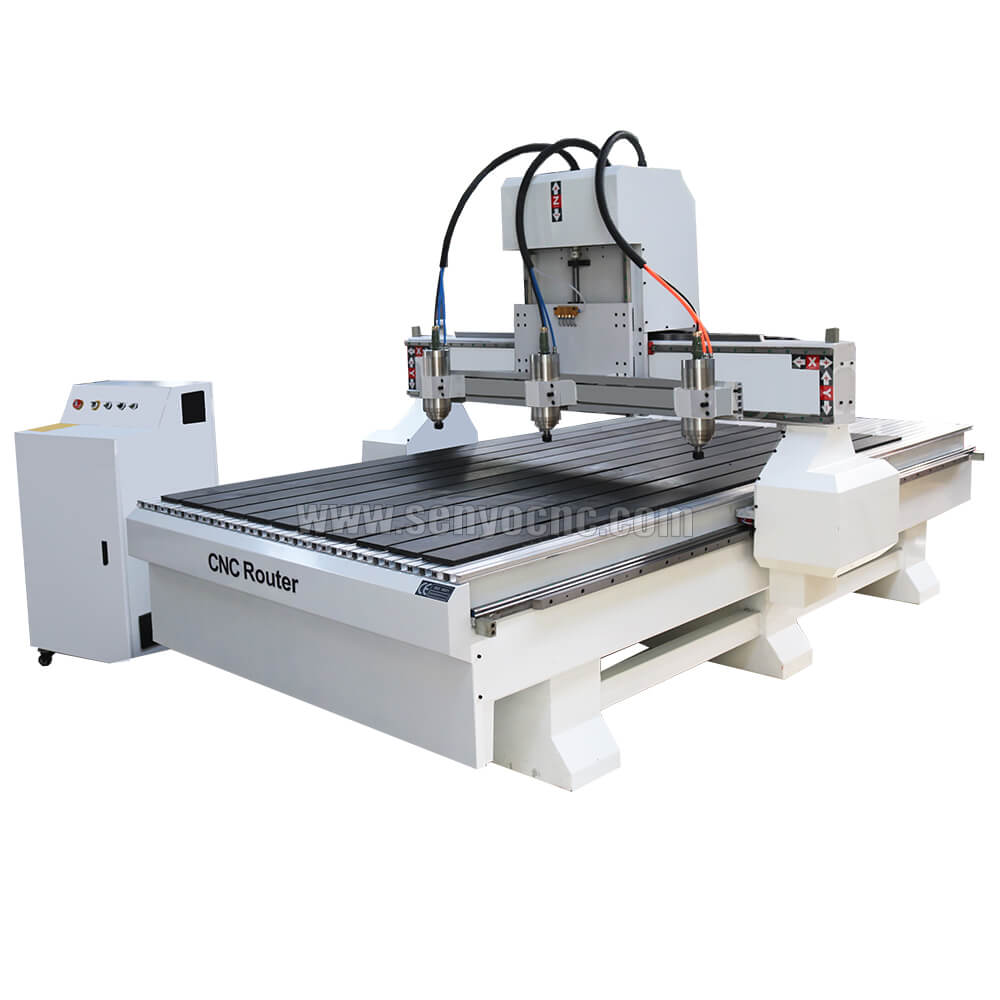

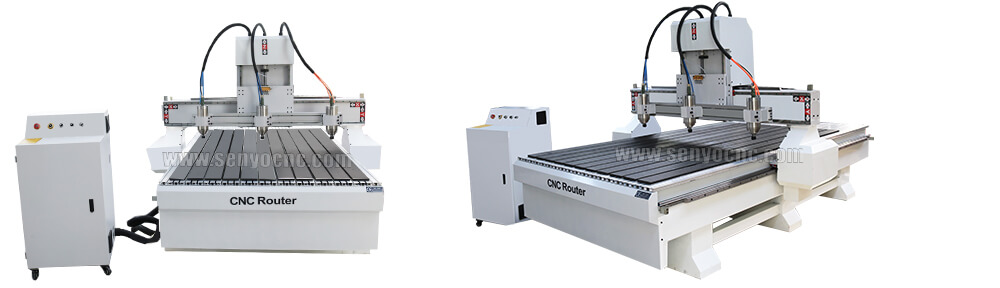

Whats the 3 heads cnc router machine with one holder ?

The 3 spindle cnc router is same function with 3 spindle, can cut, engraving, milling and drilling.

Its main advantage is can 3 working efficiency, because can make 3 samples at one time work.

More suitable for relief carving work.And the T slot table can process small and large plate woodworking.

3 heads cnc router machine  (13).jpg



This machine is designed for wood relief , wood furniture making, three spindles can works simultaneously

Quantities of spindle can be changed according to your practical need.



Advantage for machine parts

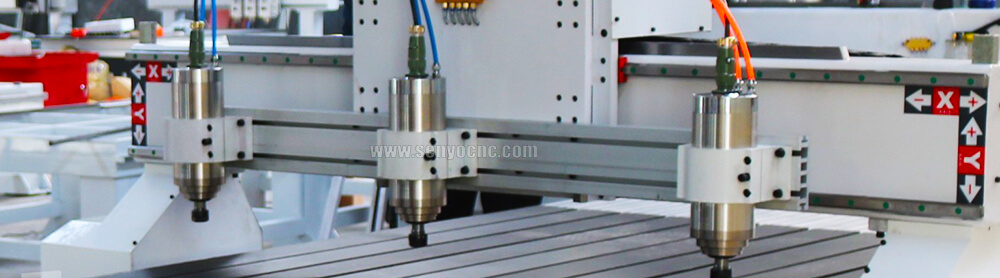

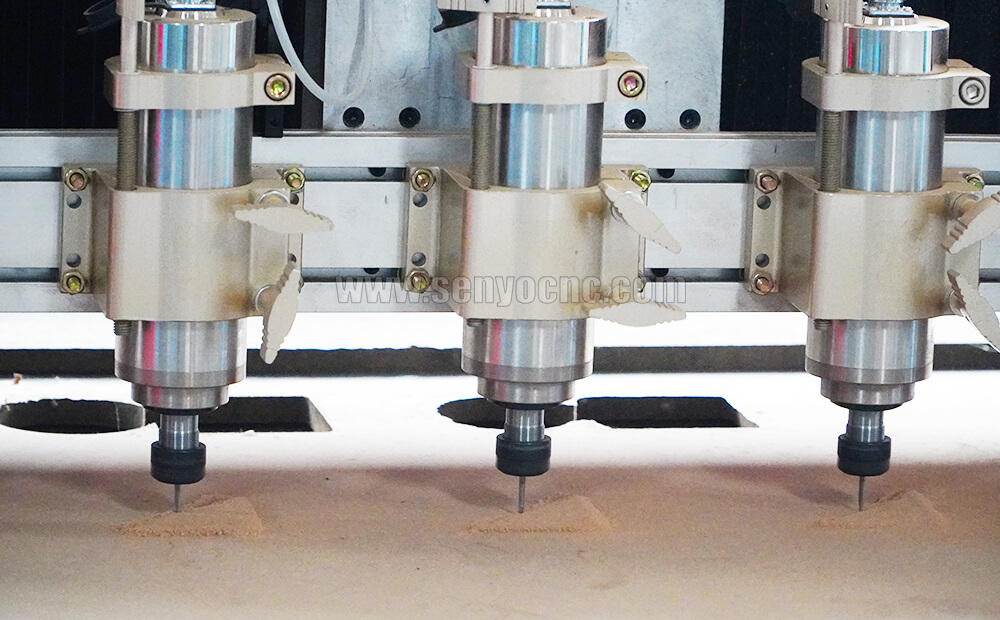

Multi-spindle simultaneous processing

Greatly improves work efficiency. Reduces production and operation costs, ensures quality and quantity,

batch processes product workpieces, and has good product consistency and high quality

3 heads cnc router machine  (6).jpg


Machine body design with high strength and double driving motors of Y axis, which have more reaso-nable design,

fast processing speed, easy-operated maintenance, and low fault rate.

3 heads cnc router machine  (7).jpg

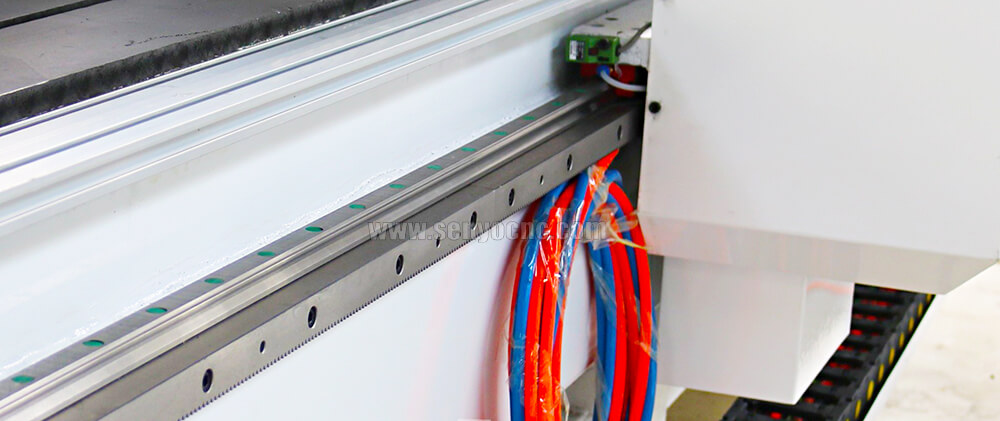

Hiwin rail guide with gear rack transmission

Imported and high precision linear guide rails have features such as stable operation, high precision, and steady support, which prolong the service life of machines.

3 heads cnc router machine  (8).jpg

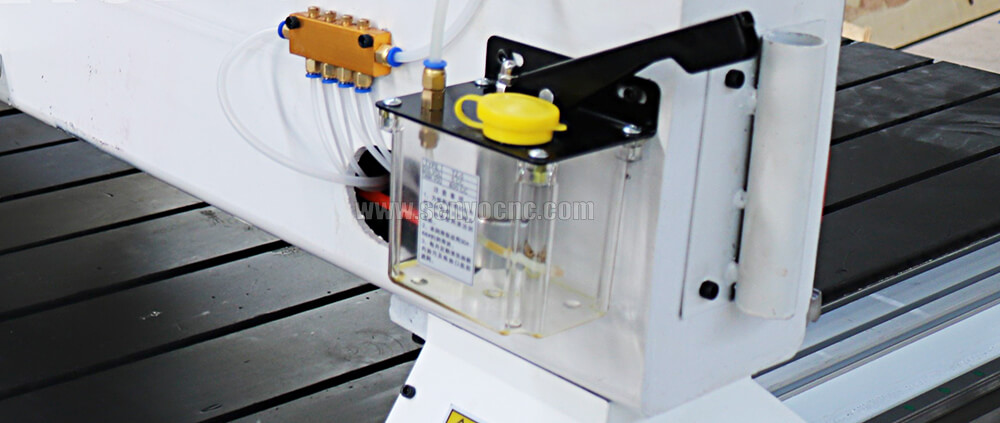

Oilling Lubrication System  Easy to operate, low price, make the whole machine work smoothly

3 heads cnc router machine  (10).jpg

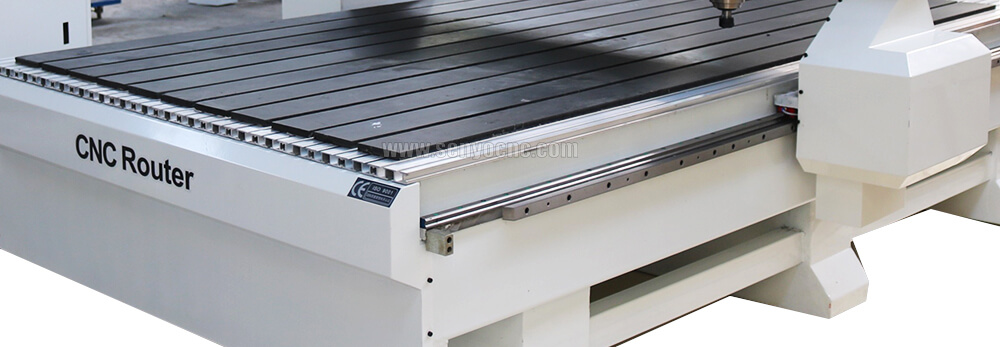

Heavy duty body structure with thick steel welded, will not be deformed when hold heavy materials.


3 heads cnc router machine  (9).jpg

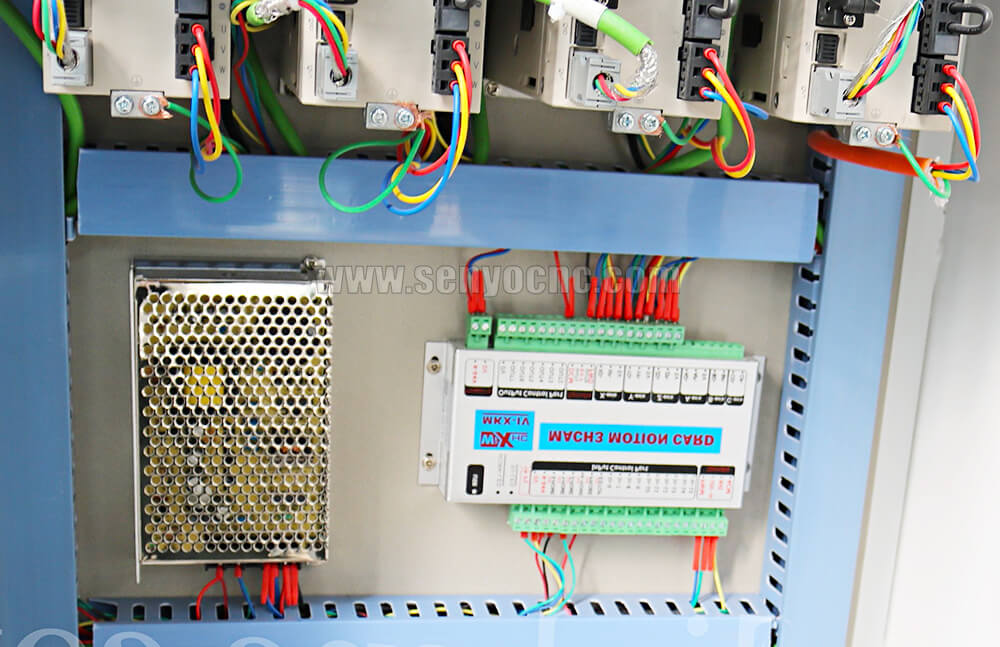

Independent control chassis

strong anti-static interference ability. Adopt international famous electrical accessories, rational layout distribution, good heat dissipation and ventilation.

3 heads cnc router machine  (5).jpg

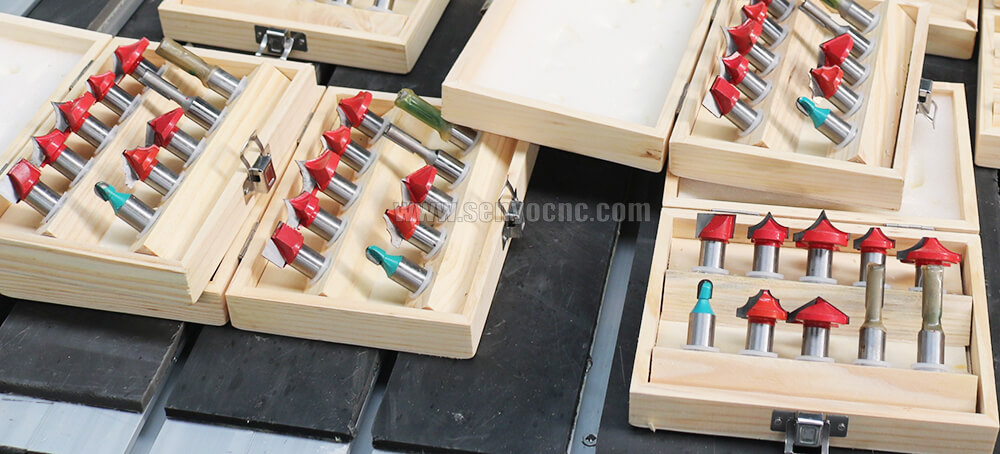

Including All tools for operation


3 heads cnc router machine  (4).jpg


Paramaters

Dimension

3100*1850*1650

Platform size

1300*2500

Work area

1300*2500*200

Travelling speed

20m/min(MAX)

Working speed

12m/min(MAX)

Working voltage

AC220V(Optional 380V)

Spindle power

Water cooled 2.2KW*3-24000RPM

Device architecture

One molding process,space saving cabinet

(380V for the normal external cabinet)high structural stability ,high precision and small
deformation

Driving system

XYZ: 86 high torque stepper drive motor and drive

Rack and pinion

The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack

Guide Rails

Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw

Operating system

Weihong

Platform structure

Aluminum profile + fixture

Electrical accessories

Omron, Chint

Inverter

Best

Power cable

Shanghai customized high-soft high-speed shielding cable,
anti-interference and anti-breakage

Lubrication system

Oil pump centralized lubrication control

Security system

Overtravel protection, electrical protection etc.

Dust collector

2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood

Fastenings

The transmission parts are fixed with high strength 12.9 class screws,
and the sheet metal is fixed with 304 stainless steel screws

Accuracy

Each axis is fixed rigidly, and the locating pin is added
to the precision part

Quality Control

Incoming material, process, delivery full control,
24 hours machine test


 What is the Benefit of cnc router cutting machine?

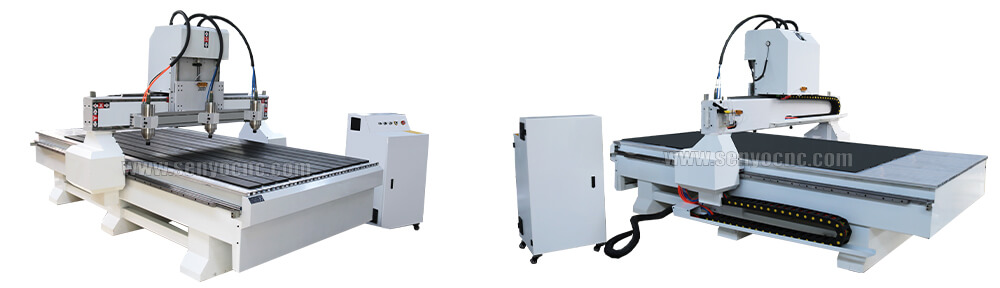

3 heads working together, 3 times work effect

3 heads cnc router machine  (3).jpg


1. Furniture industries: cabinet doors, wooden doors, solid woods,  antique furniture

2. Decoration industries: screens, wave boards, advertising boards and sign making

3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles

4. Processing material: engraving, milling and cutting processing for acrylic, PVC,artificial stonesplastics and soft metal sheets such as copper and aluminum.


Shipping detail

Shipped in 7-15 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Pipe,limit switches etc)

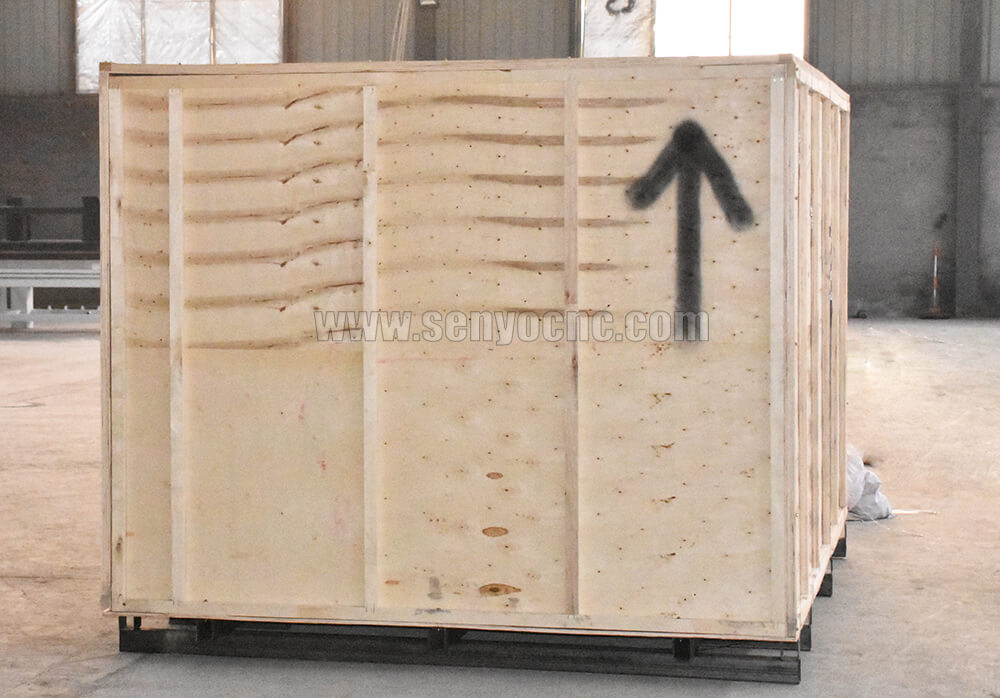

Packaging detail:

1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.


3 heads cnc router machine  (2).jpg



Quality Control

• We have a skilled and strict quality inspection team during material procurement and production.

• All finished machines we deliver are 100% strictly tested by our quality control department and engineering department.


OEM Service

• We have rich experience and welcome customized and OEM orders.

• All OEM services are free, customers only need to provide us with your logo image, functional requirements, colors, etc.

• No minimum order quantity required.

• None of your personally identifiable information (such as your name, address, email address, bank information, etc.)

   will be disclosed or shared with any third party.

• Contact: All your inquiries, questions or help will be responded within 24 hours, even on holidays,

  if you have any urgent questions, please feel free to call us.


Warranty And Service

• 24 months whole machine warranty and maintenance for a lifetime.

• Free installation and testing before shipping and free training for operators

• Advice for the best CNC solutions for customer's requirements.

• Free training and sample making.

• 7/24 free service and support.
