Co2 laser marking machine is widely applied to shoes, clothing, packaging, advertising, tobacco, food, medicine and other industries.
Can be widely used for marking on all kinds of nonmetal material,such as Paper, PVC, rubber, wood, ceramics, plastic, leather, fabric surface marking.
About work area, we have different field lenses for choice, 70*70MM, 110*110MM, 145*145MM, 175*175MM, 210*210MM and 300*300MM etc. The smaller the field lens, the stronger the beam focusing energy; the smaller the spot diameter, the finer the marking effect; the faster the marking speed, the shorter the marking time.

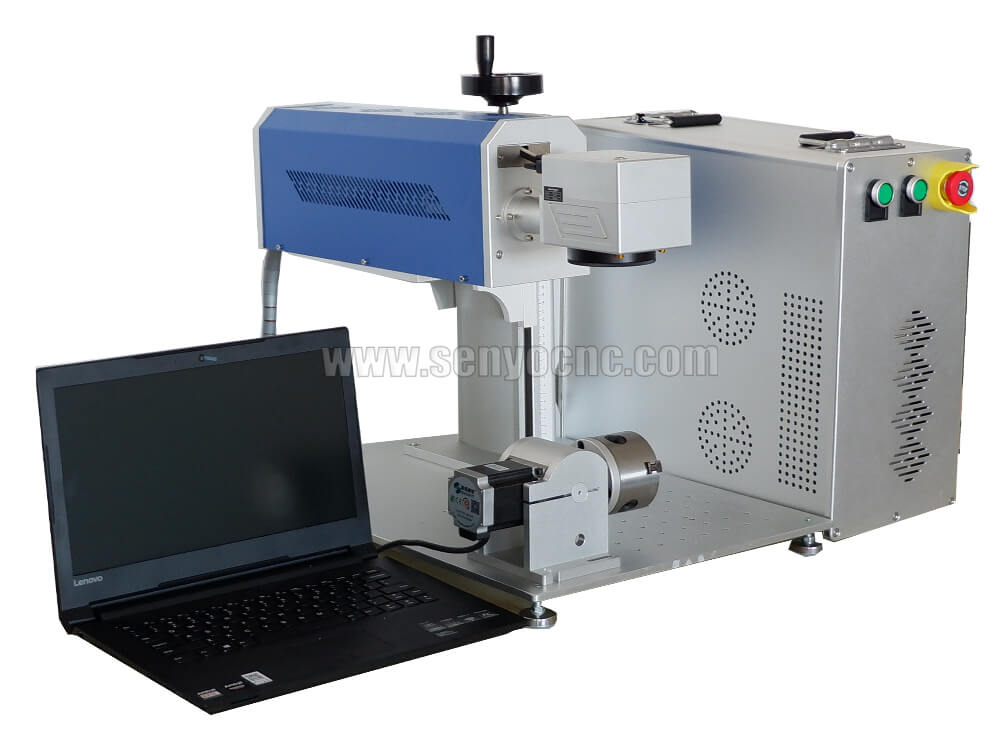

When the work area is over 150*150MM ,we would like to recommend the latest CO2 laser engraver with 6X 8X beam expander + 20mm diameter galvo head 175*175mm or 300*300mm field lens, mainly used for large format fine and fast marking, below are the machine and samples for your reference.
Features
1.Compact Design: advanced fiber laser module, air cooling way.
2.High Precision marking effect:suitable for preicsely marking on metal parts,electronic components etc. (Samples is below for reference)
3.High Marking Speed: the speed can reach 7000mm/s.
4.Long service time: for more than 100,000 hours.
5.Small size and easy moving.
6.Easy operating: no need adjust laser path, you can mark the logos,numbers,pictures etc ,directly.
7.Permanent marking effect.
Advantage
1. Sealed off CO2 laser, the laser cavity design and the unique elongated high inflation pressure, greatly shortening the rise and fall time, high-capacity laser gas cartridge ensures long working life, long term power stability is better than ordinary laser 3%.
2. 30W metal sealed-off laser is used in the air-cooled integrated laser cooling method, it can be very easily integrated in a production line, ultra-
high performance scanning galvanometer and patent marking software, so that the speed can fit more than150m / min production line, that flight marks or marking, non-stop production line .
3. More precise optic system, getting smaller spot and diameter, can meet all marking requirements of customers.
Paramaters
Laser power | 30w/55w/60w/100w |
Laser wavelength | 1064nm ±10nm |
Marking range | 110*110mm/175*175mm/200*200mm/300*300mm/other |
Minimun line width | 0.01mm |
Minimun character | 0.1mm |
Marking speed | 10000mm/s |
Marking depth | 0~0.5mm |
Engraving line speed | ≤7000mm/s |
Repeatability accuracy | ±0.001mm |
Marking format | Graphics,text,bar codes,two-dimension code, automatically marking the date, batch number,serial number,frequency,etc. |
Graphic format supported | BMP,JPG,GIF,PNG,TIF,AI,DXF,DST,PLT,etc. |
Working voltage | 220V ±10%/50Hz/4A |
Unit power | <0.5kw |
Use of the enivonment | Clean and dust free or dust less |
Parts Detials

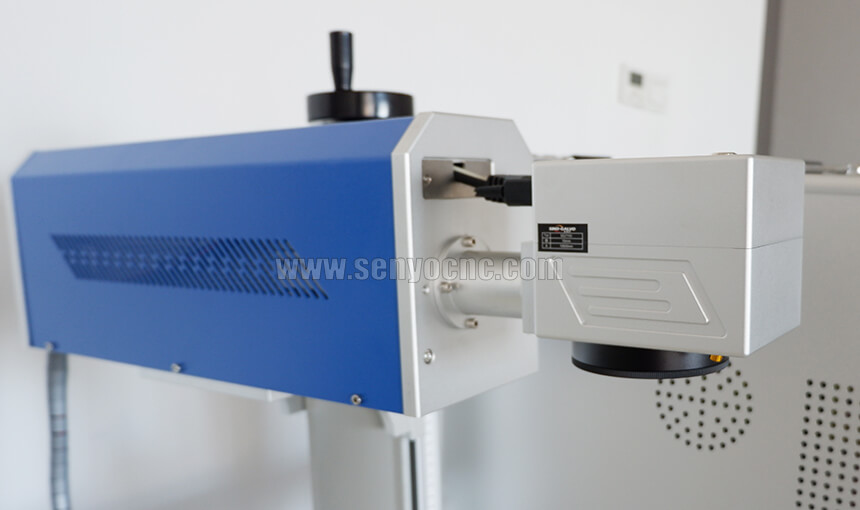

Well-known brand SINO-GALVO galvanometer scanninghead, high speed and precision marking

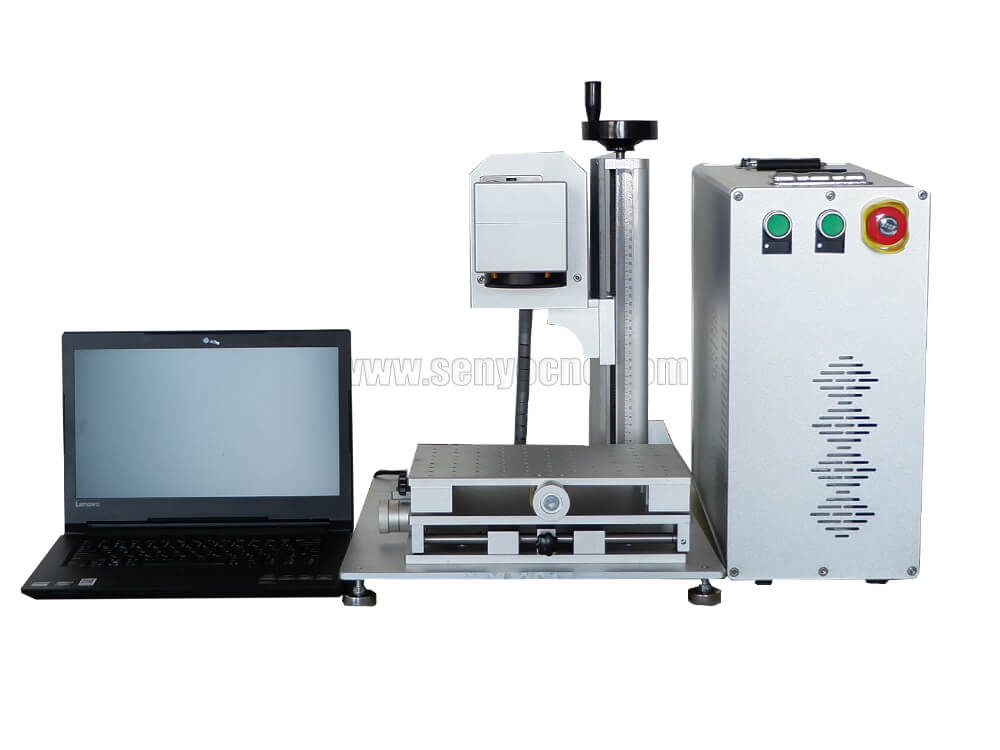

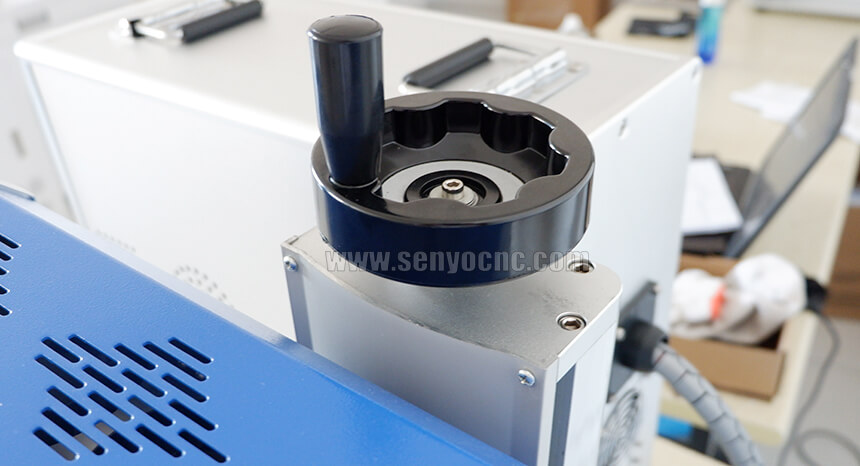

Lifting handle, High quality and table Adjust the up and down for different height material marking

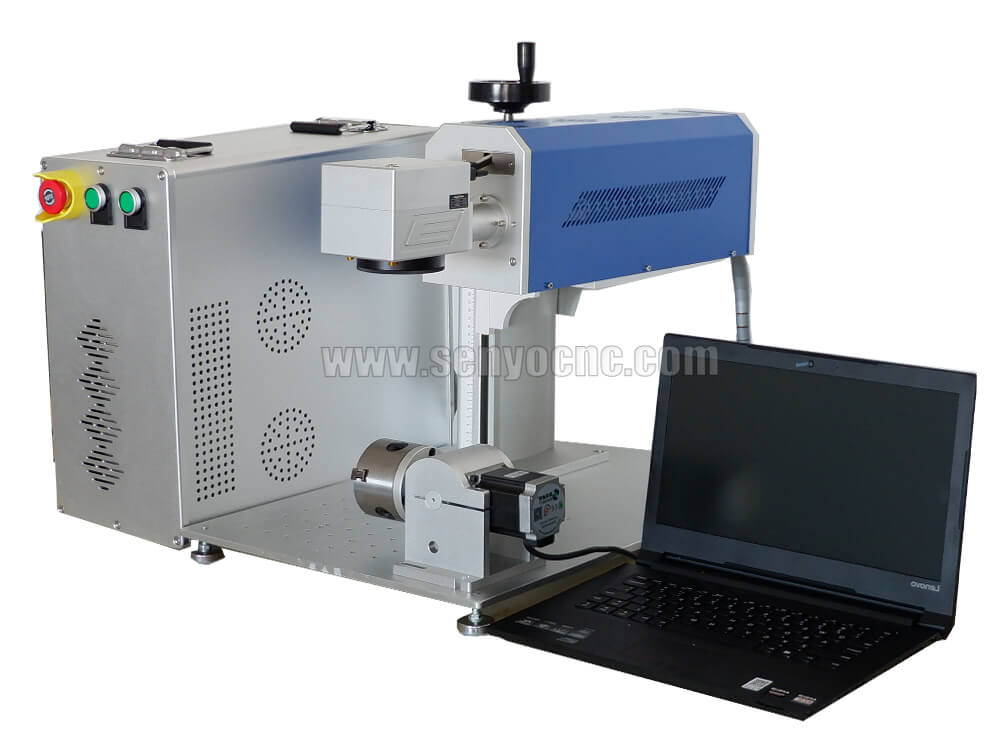

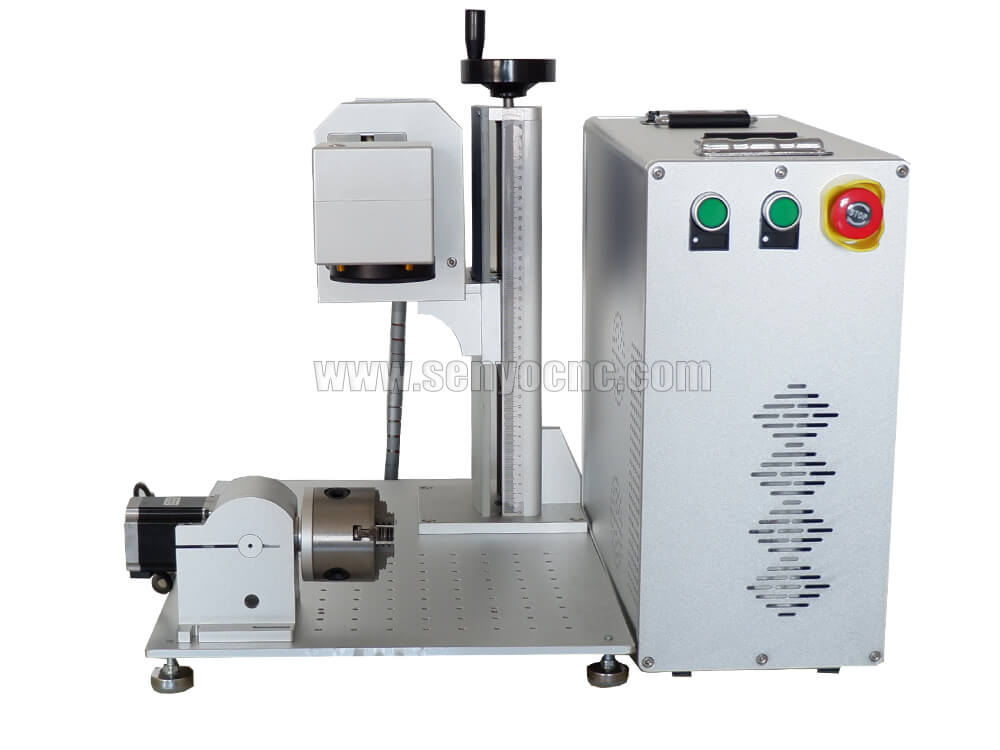

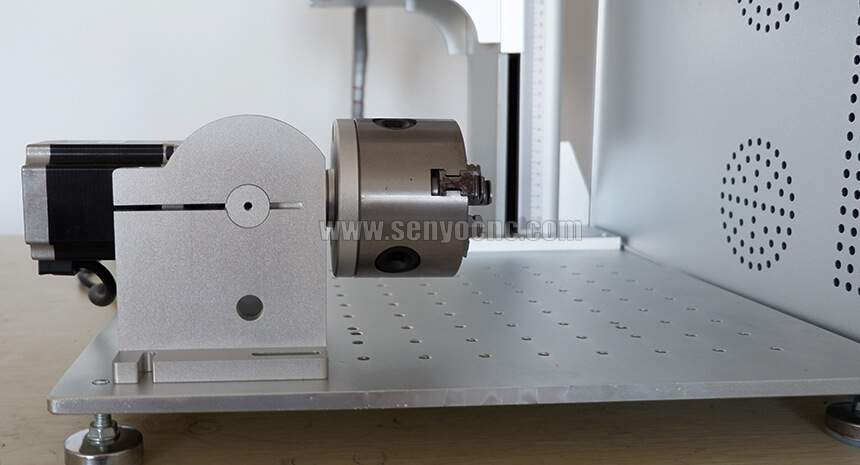

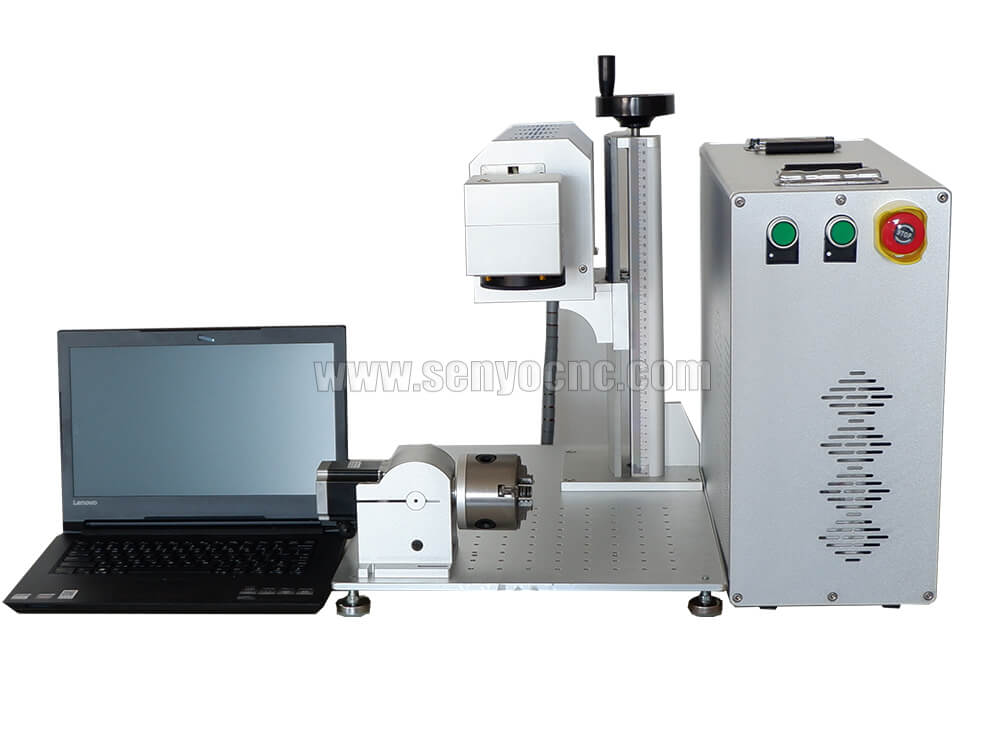

Rotary system Marking on round surface, standard rotary system is for object with diameter 80mm, other bigger diameter object we can customize the suitable rotary fixture.

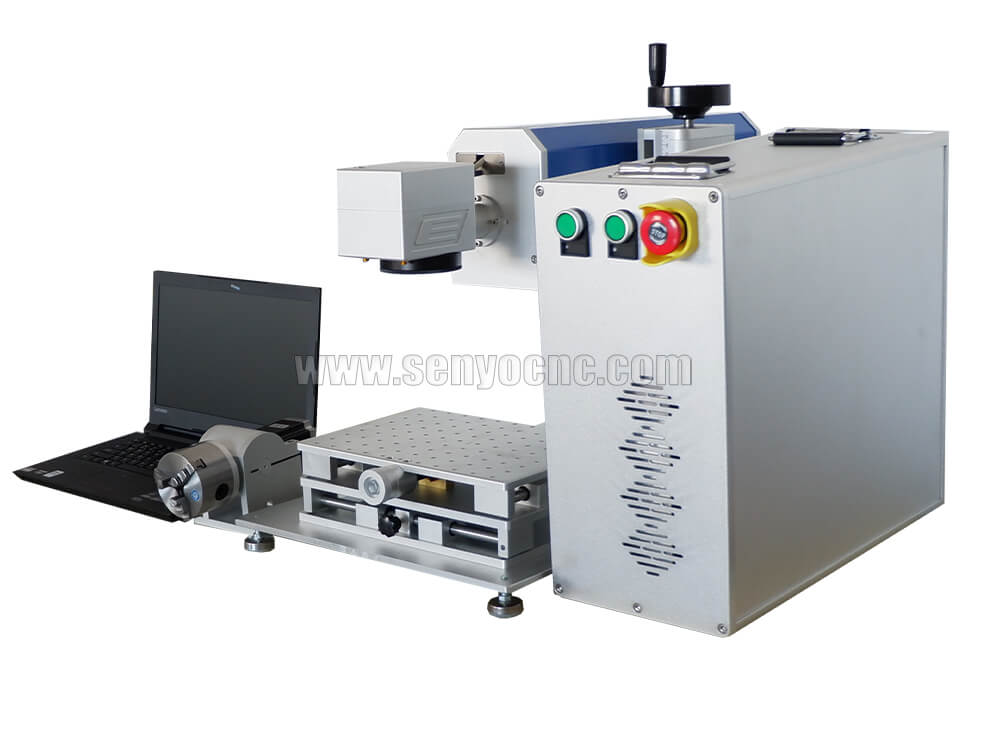

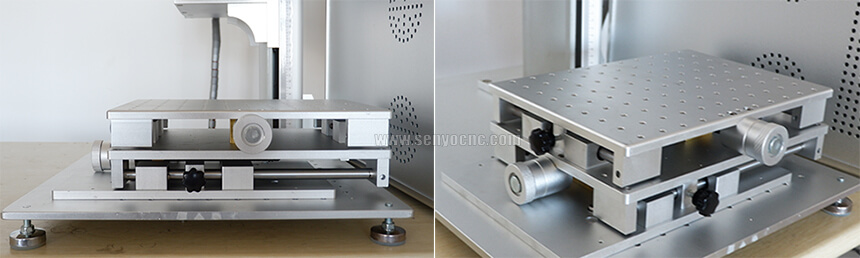

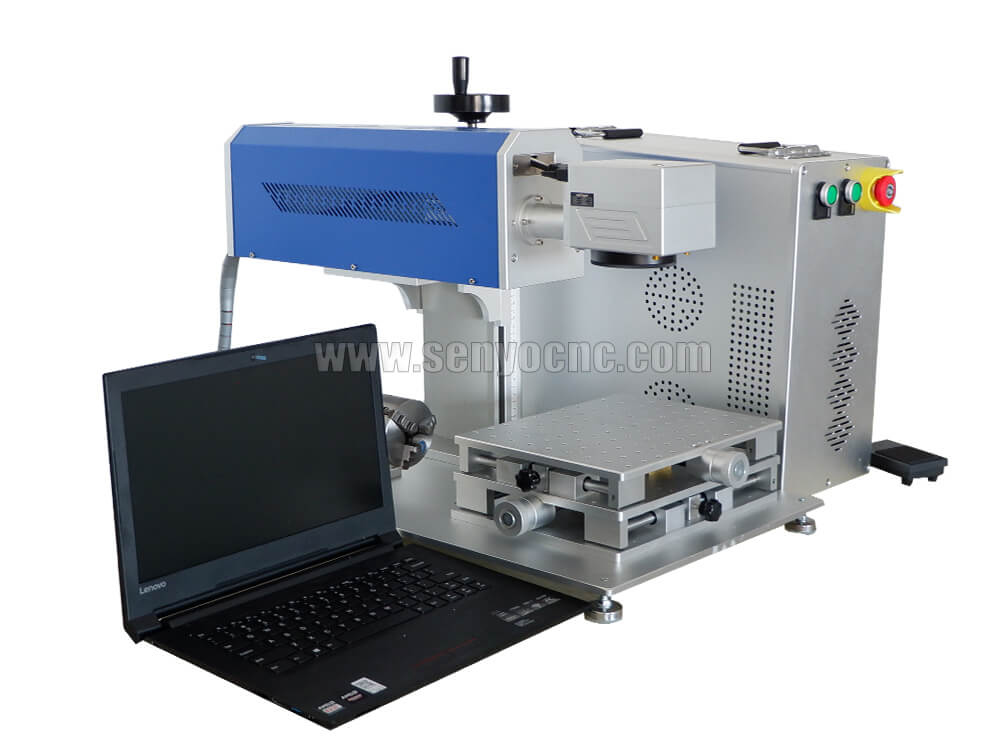

2D worktable specially used for marking and engraving function and for products that are not heavy. It`s especially good for fabric marking and engraving.
Humanized control system, easy to operate, safe and convenient, dust proof design

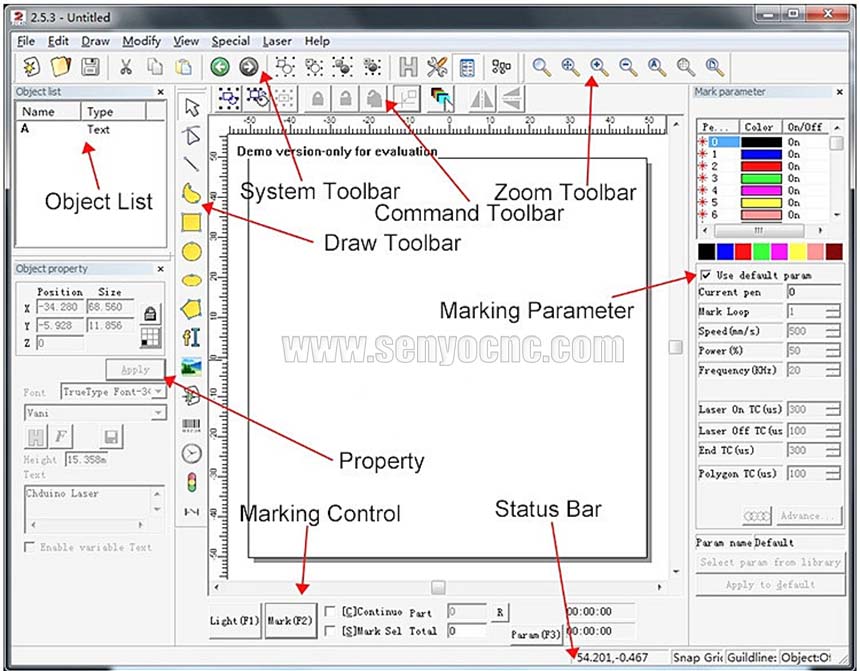

Software

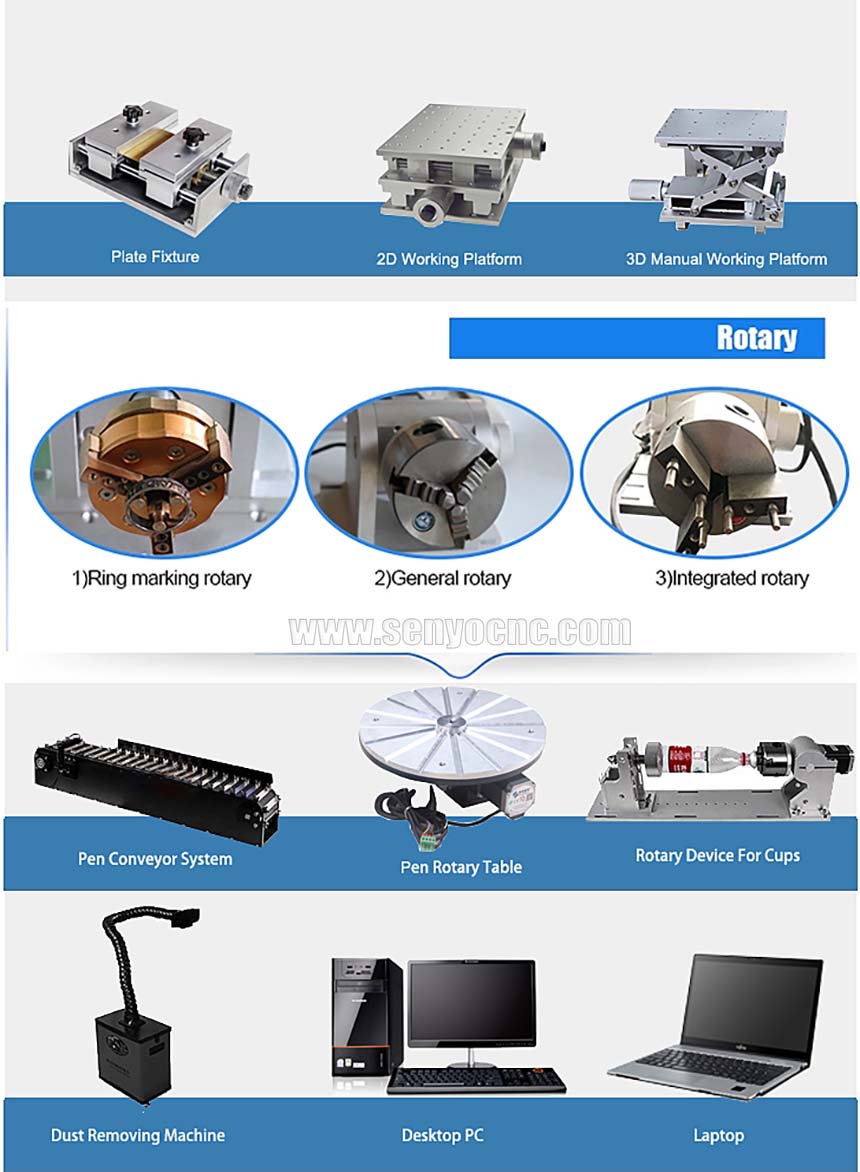

Optional Parts
Machine With Completely Parts for operation
Applied Materials
Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
Applicable Industries
Computer keyboards; precision instruments,auto parts,medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds,data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, , aerospace equipment, integrated circuit chips, computer accessories, signs molds, wire and cable , Industrial bearings, building materials
Food packaging; health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising,logo,etc
Package & Shipping
1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2. Wooden box: Our wooden box is non fumigation plywood, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template.
4. Wooden box at the bottom of a solid iron socket for easy handling.
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
