Advantage
It can process a variety of metal materials. It is especially advantageous for marking high hardness,
high melting point, and brittle materials.
It belongs to non-contact processing, no damage to products, no tool wear, and good marking quality.
The laser beam is thin, the consumption of processing materials is small, the processing heat-affected zone is small.
High processing efficiency, computer control, easy to realize automation.
Specification And Parameter
Laser Source | Raycus/JPT/Max (Optional) | Laser Power | 20W 30W 50W 60W 100W | |
Laser Head | Sino-Galvo Scanning Head | Marking Speed | 0-10000mm/s | |
Main Board | JCZ Control Card | Min Line Width | 0.012mm | |
Working area | 110*110/150*150/175*175/200*200 mm | Laser Wavelength | 1064nm | |
Software | EZCAD Software | Power Supply | AC220V/110V 50Hz/60Hz | |
Power Supply | Taiwan MeanWell | Cooling System | Air cooling | |
Packed Size | 100*90*160 cm | Marking depth | ≤0.4mm(By materials) | |
Packed Weight | 150kg |
Parts Detials

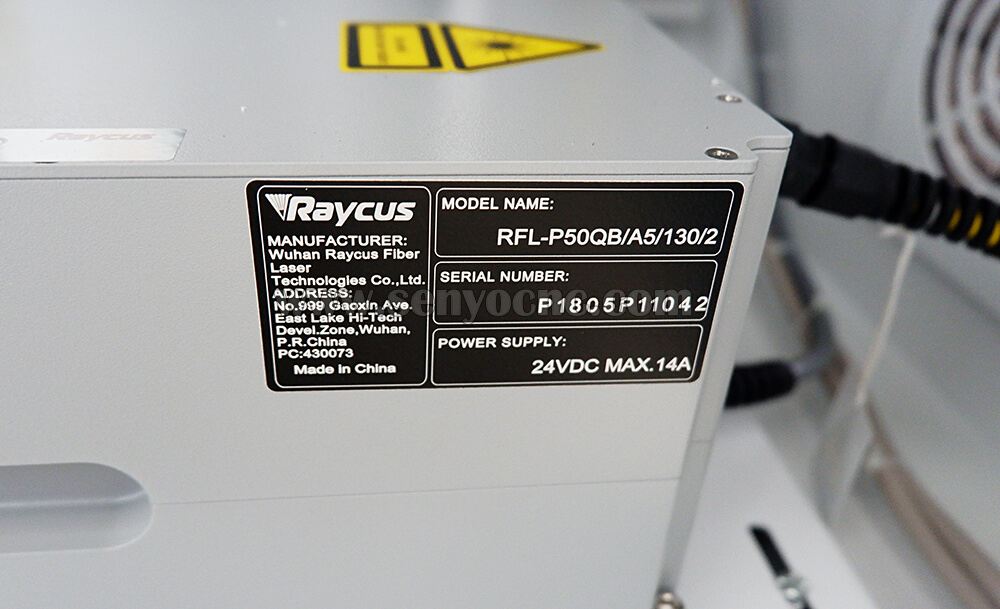

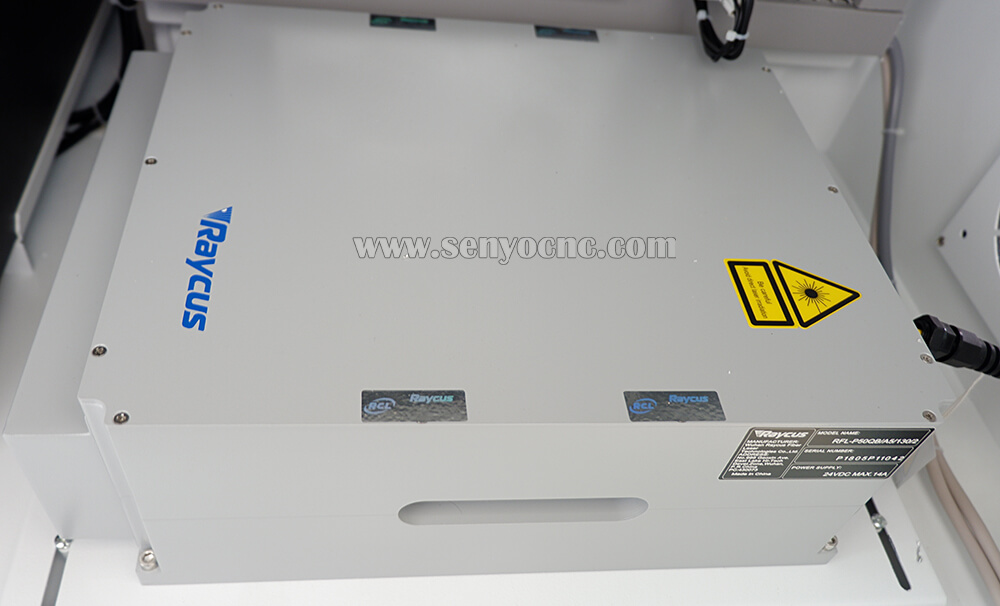

1. Fiber laser source: Raycus, MAX , IPG, JPT optional .brand lifetime over 100,000 hours,
2. Control board: Simple operation, easy for operator
3. F-lens: wavelength, sino or Huayuan optional, more stable Field 110mm, 150mm, 200mm and 300mm optional
4. Galvanometer scanning lens: Fast speed ablity <0.7ms with high precision marking.
5. Lifting shaft: Marking height can be accurately adjusted
6. Industrial grade extended optical path: Strengthen the linear optical path and stabilize the output.The laser will be more stable

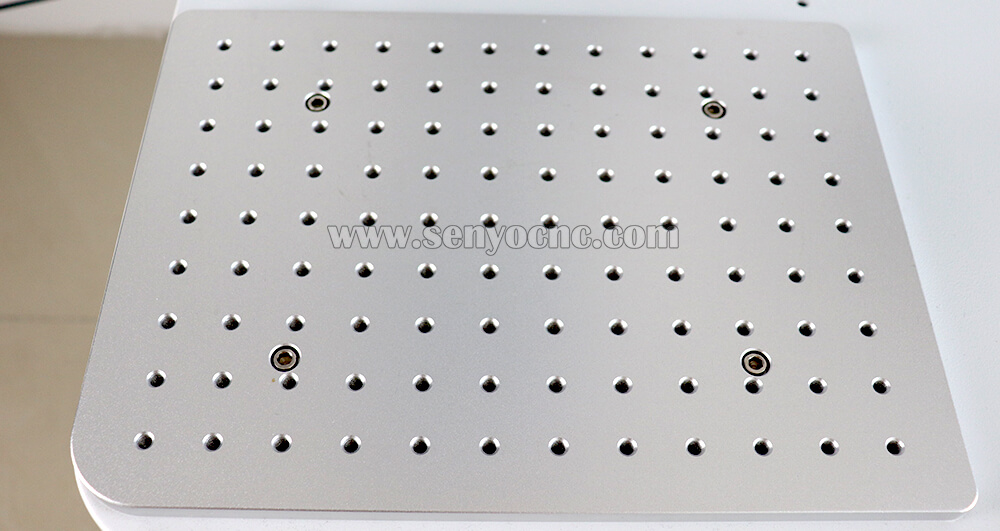

7. Aluminum table: Standard positioning holes facilitate quick positioning and are adjustable
Control system: EZCAD stable performance and high reliability shield-utilizing part of complex functions, ensuring higher stability

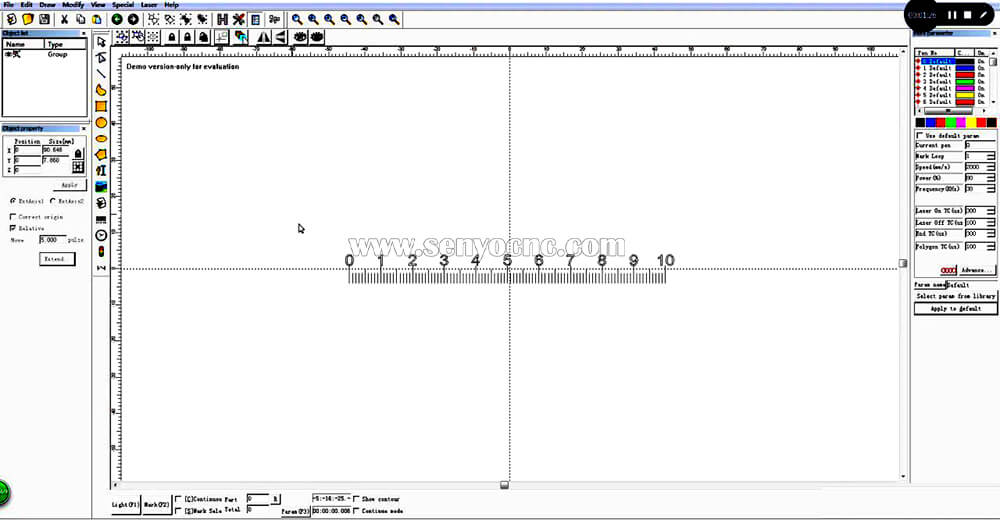

Software:
English version avaliable, if you need other language version, it is no
problem, but please contact us, we will change it for you.

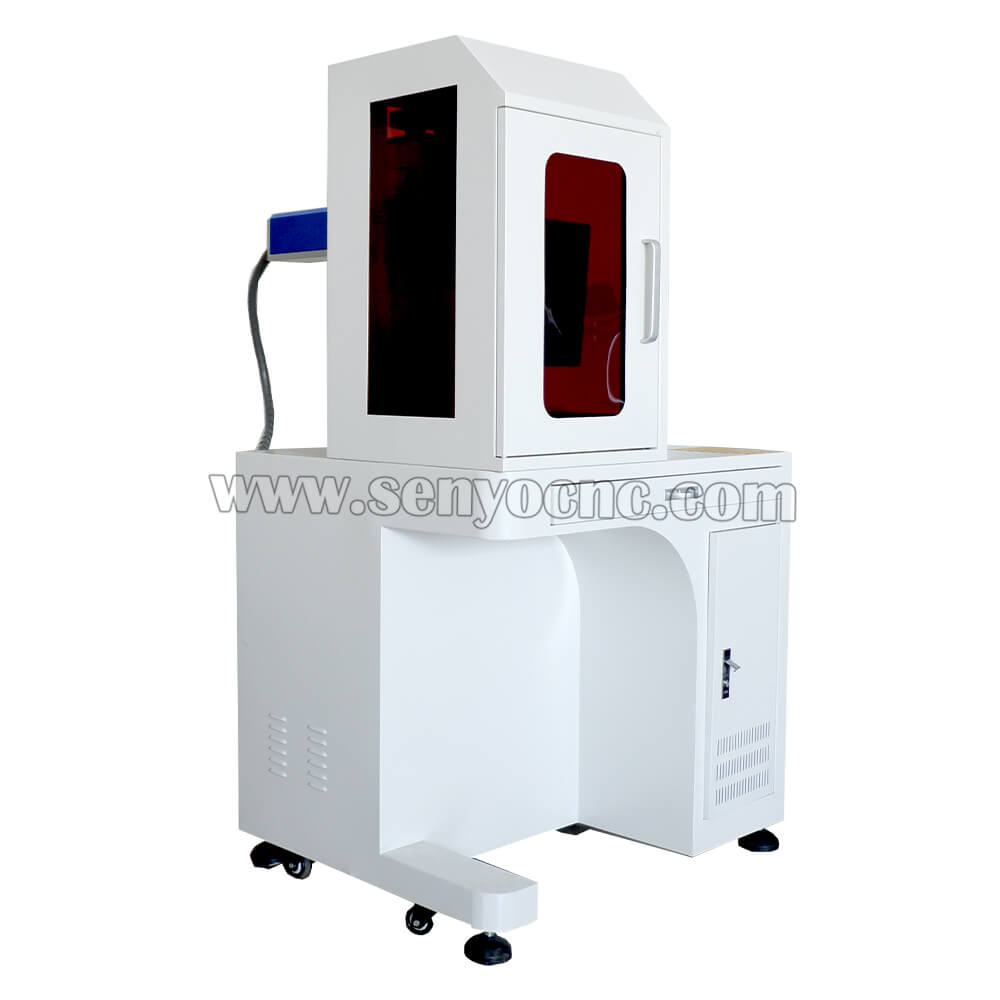

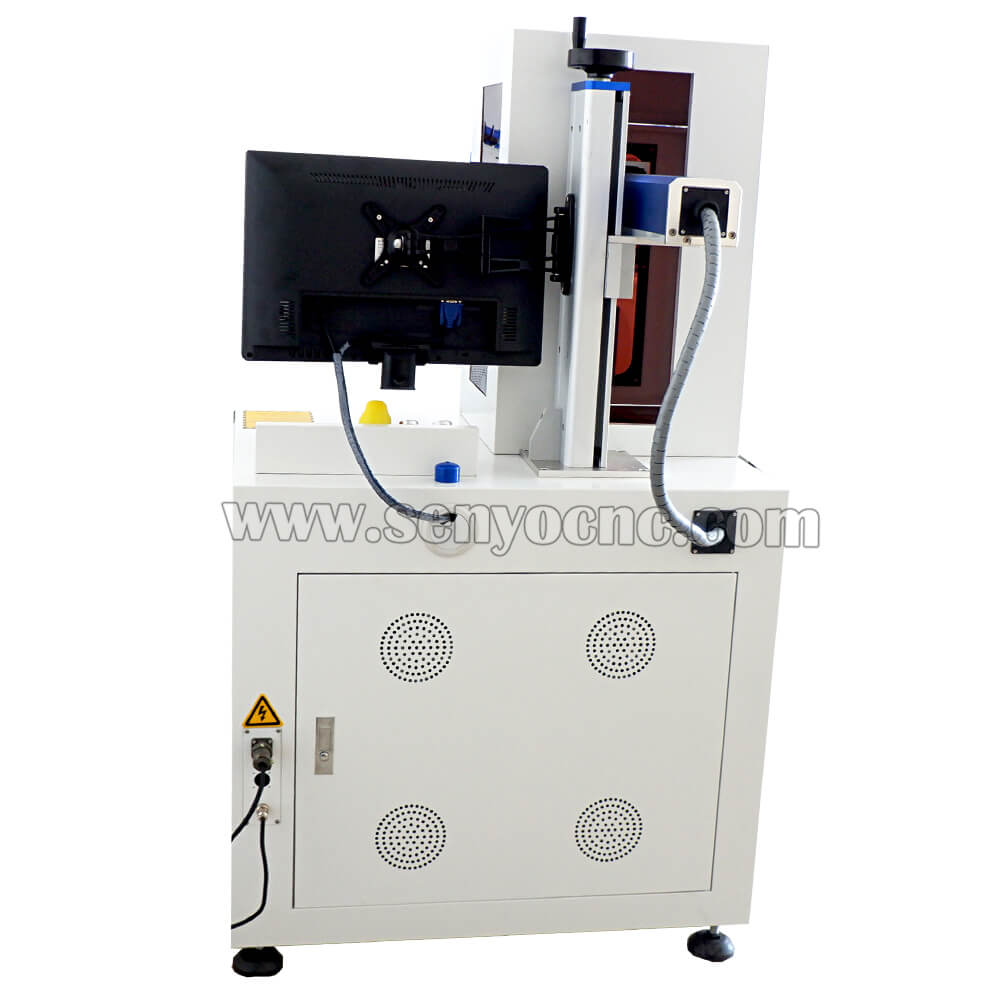

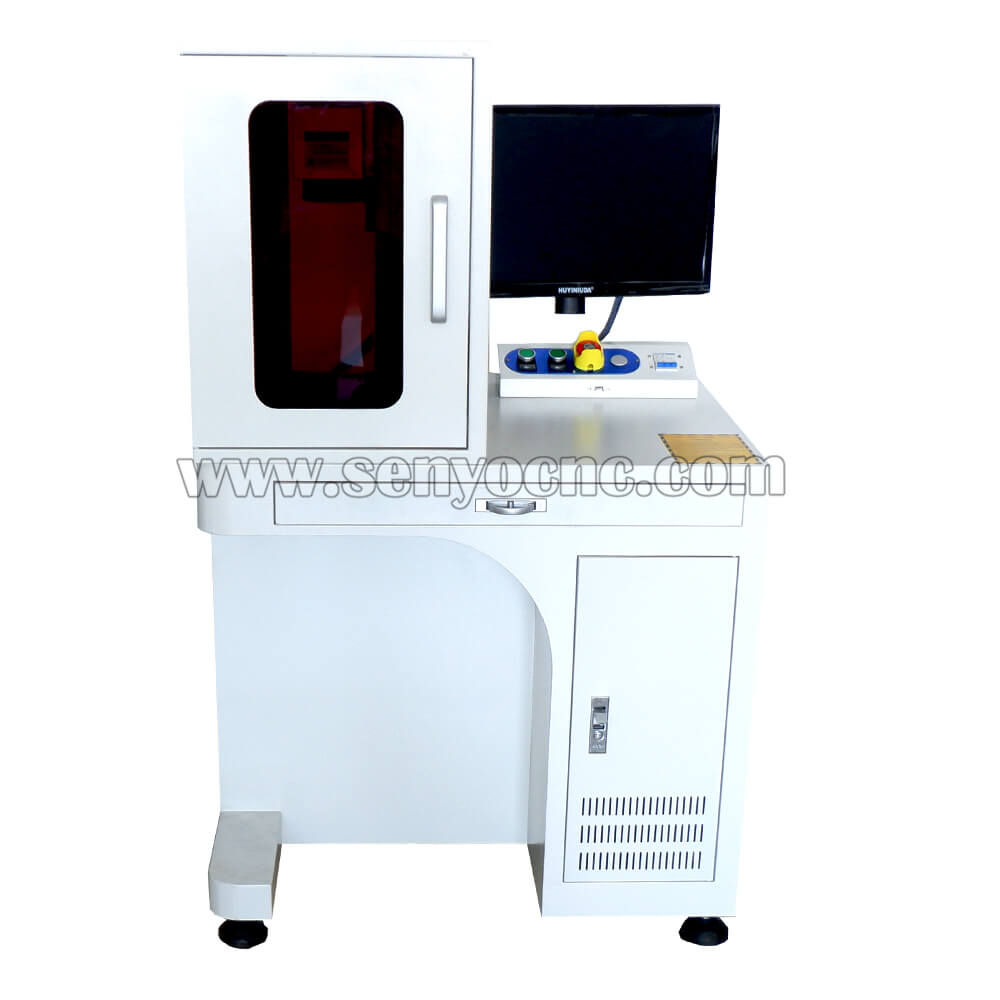

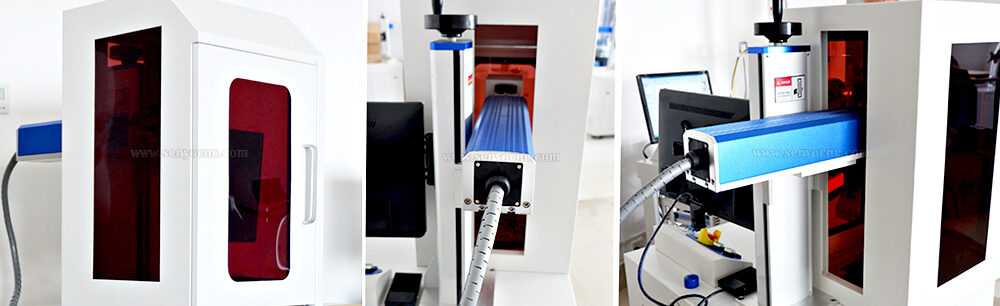

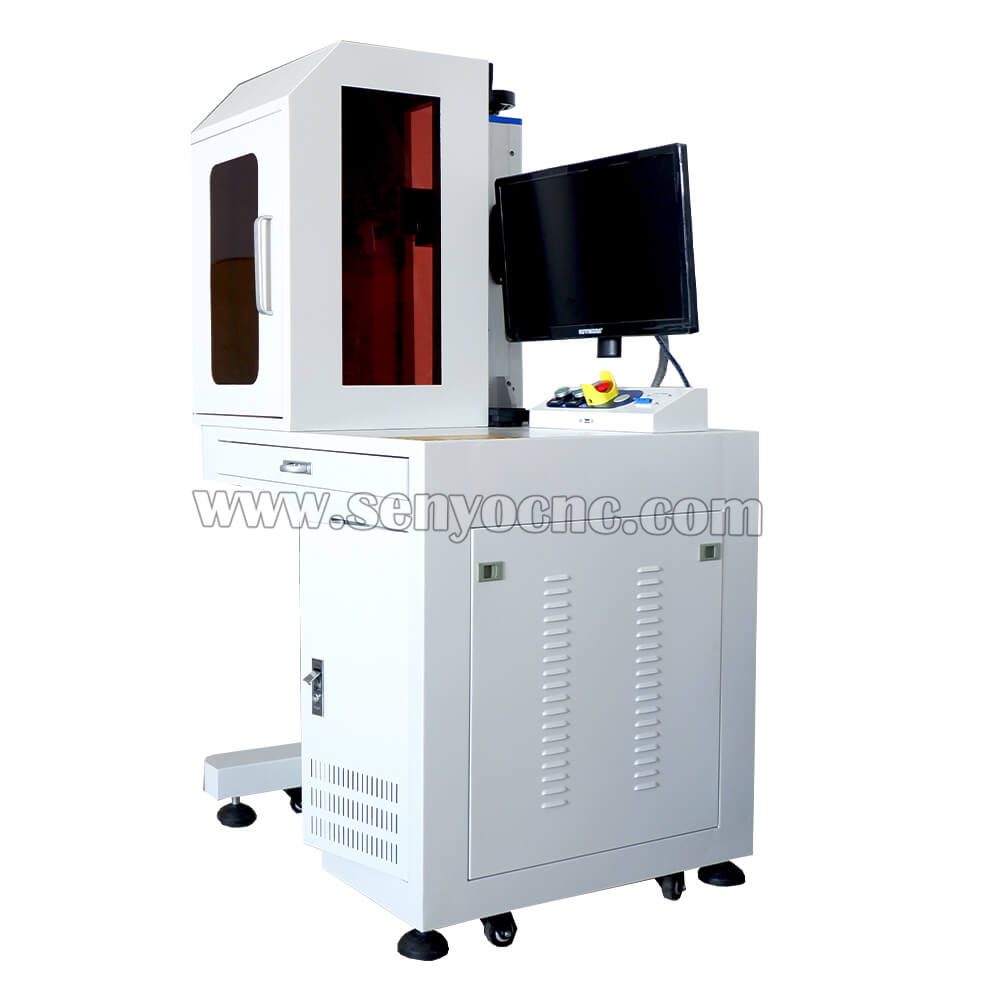

Half Enclosed Customized Semi Enclosed Tabletop Fiber Laser Marking Machine Design
Application

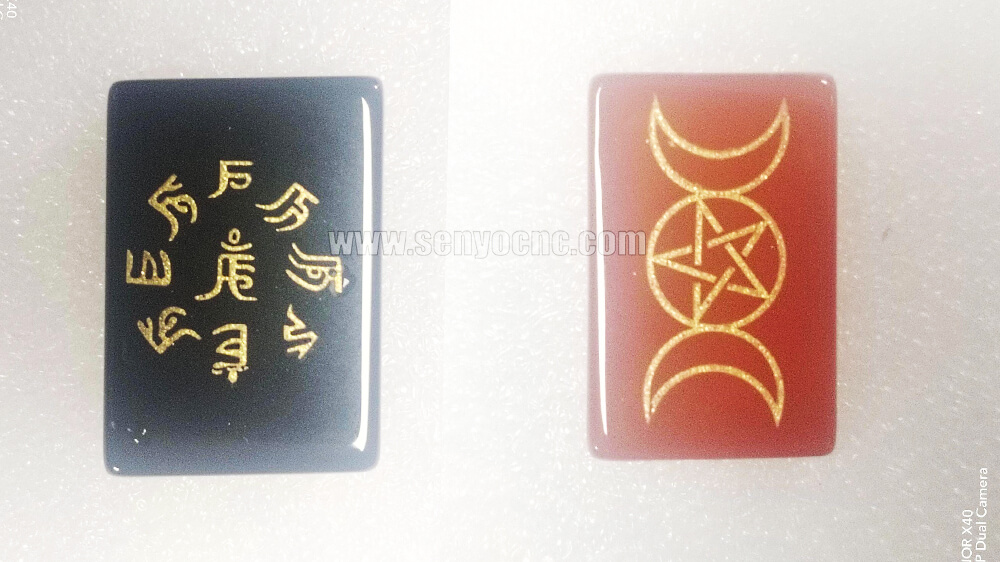

The main applicable materials of fiber laser marking machine include: common metals and alloys .
(all metals such as iron, copper, aluminum, magnesium, zinc, etc.),.
Rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are Can).
Special surface treatment (phosphating, aluminum anodizing, electroplating surface).
ABS material (electrical appliance shell, daily necessities), ink (translucent keys, printed products).
Epoxy resin (electronic component packaging, insulating layer).
Applicable Industrie
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC).
Electrical appliances,communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks.
Jewelry, auto parts, luggage buckle,cooking utensils, stainless steel products and other industries.
Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment.
Bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances.
molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives.
Cooker, stainless steel products.aerospace equipment, integrated circuit chips, computer accessories.
signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products.
Plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration.
Wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising,logo.
Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials
Coatingmaterials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel.
Carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet .
Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum .
Other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.
Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather
Clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.

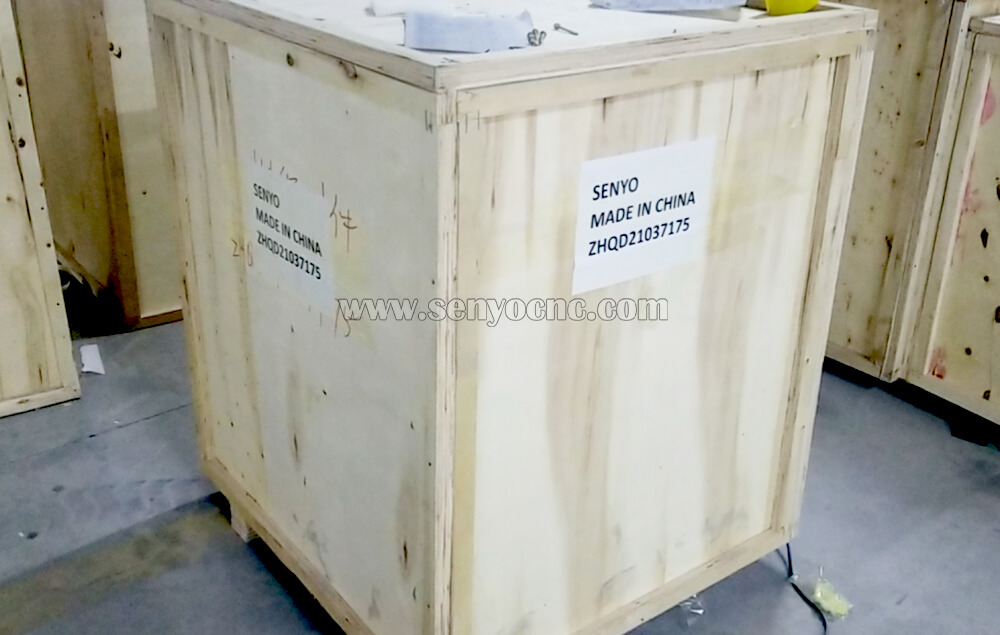

Package And Shipping

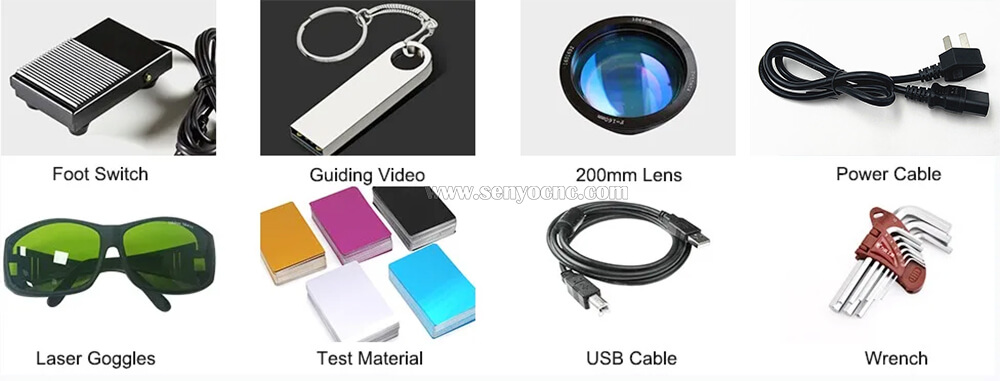

Before Shipping ,we check all accessories is in package .
1. first we will wrap it with plastic wrap to prevent dust;
2. then wrap a layer of foam to protect the corners and corners;
3. wrap the carton with another layer to fix the machine,
4. and finally use a wooden box on the outside.
The size of the wooden box is customized, so the machine will not shake and bump corners.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL. FEDEX. UPS. You are welcome to get a free guotation by fling up the form with name, email, detailed address.Product and recuirements. We will shortly contact you with the full information includina the most suitable delivery method fast secure discreet and freight.
Enclose type fiber laser marking machine, Fiber marking machine ,Laser engraving machine metal, Fiber laser marking machine
