Advantage
1.The whole machine adopts a heavy-duty steel structure with full welding +vibration aging + quenching treatment process. The side wall of the fuselage is a whole cast iron side wall. The whole machine is up to about 3.5 tons. The whole bed and steel castings have strong rigidity and high stability. The advantage of the machine is never deformed. Compared with the bed of about 2 tons on the market, it has an indisputable absolute advantage. The weight of the machine tool ensures that the machine does not shake during high-speed processing, thereby ensuring the machining accuracy;
2. Adopting high-quality and high-power stepping motor to enhance the click torque, the processing speed is faster than other brand-name motors, the stability is stronger, the accuracy is higher, and the failure rate is lower
3. High configuration + strict technical assembly process creates a high-precision and high-efficiency machine. The machining accuracy of the whole machine is up to 5 wires, that is, ±0.05mm, and the machine body is not deformed when fully welded to 1200kg, so as to ensure the accuracy of the whole machine.
4. Adopt the original imported Taiwan HIWIN linear square guide rail, with flange, strong sealing, dust-proof and chip-proof, 3000 kilometers maintenance-free, high precision, wear resistance, ensure transmission accuracy, the size of guide rail and screw rod are 30mm /32mm, strong bearing capacity.
Working wood material can choose uploading design
Paramaters
Spindle | 3.2kw, 24000 rpm, water cooling |
Table | T slot Table or vacuum suction |
Clamps | 6 pics |
Transmission | Germany Rack and pinion for x.y, ball screw for z |
Guideway | Taiwan PMI 20mm linear guideway |
Resolution | 0.01 mm |
Speed | 25 m/min |
Inverter | Fuling brand from Shenzhen |
Driver | China step &Leadshine motor |
Code | G Code, HPGL Code |
Working delicacy | 0.03mm |
Repositioning accuracy | 0.005mm |
Power Supply | 380V/3P .50Hz 220V 1 phase |
Controlling System | Shanlong Controller |
Lubrication | Manual lubrication |
Software | UcanCAM or Type3 |
Packing | Wooden Box |
Packing size | 3.2*1.9*2.22m |
Net Weight | 1000 kg |
Gross Weight | 1200 kg |
Accessories | 1.Contorl unit |
Parts Detials
China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work
HQD 3.2kw/ 4.5kw/ 6kw water/ air coolong spindle
CNC Tool Calibration(tool sensor)
Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

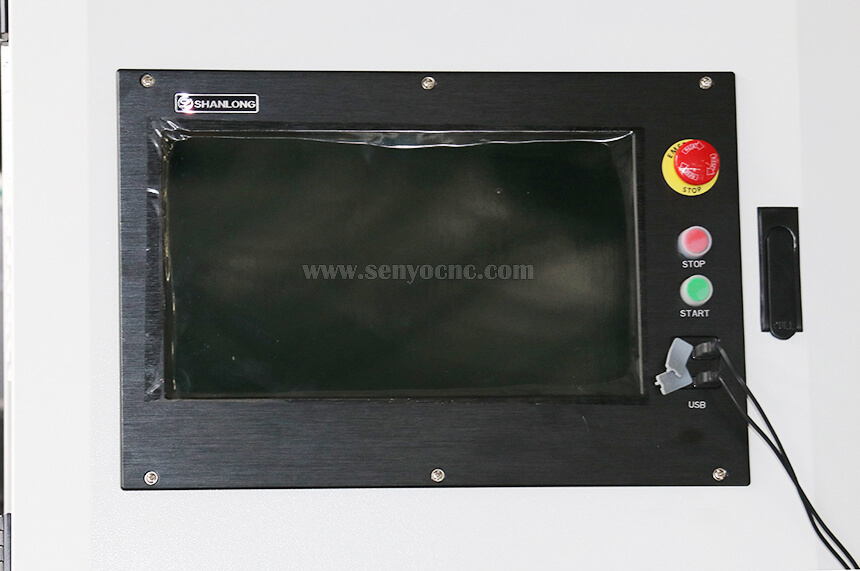

ShanLong Control system , with professional control indepent control box and wire connection.
Operate machine by computer,is easy to check each path of the work,easy to control
Adopt Taiwan intime imported linear guide rail, make sure the machine square the accuracy and can withstand large load.
Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
Strong machine body,Our machine use high weight strong body,good stability and long working life .

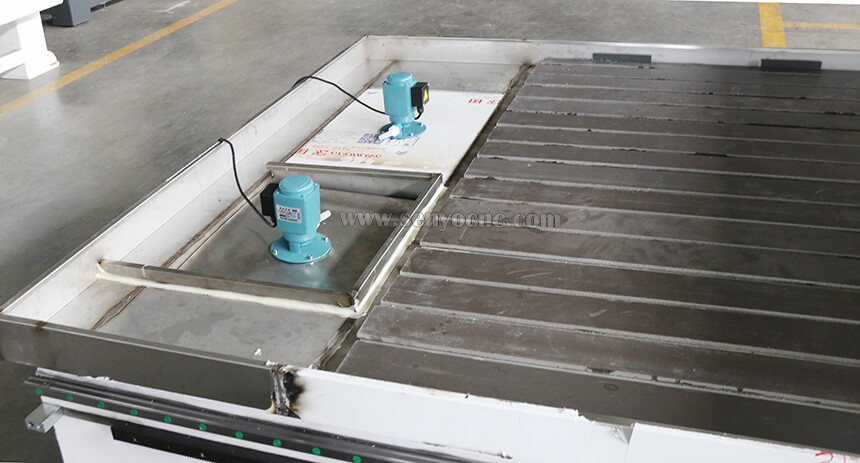

Water tank working on stone marble and aluminum
AluminumT-slot worktable, easy clamp big or small pieces stone for engraving.

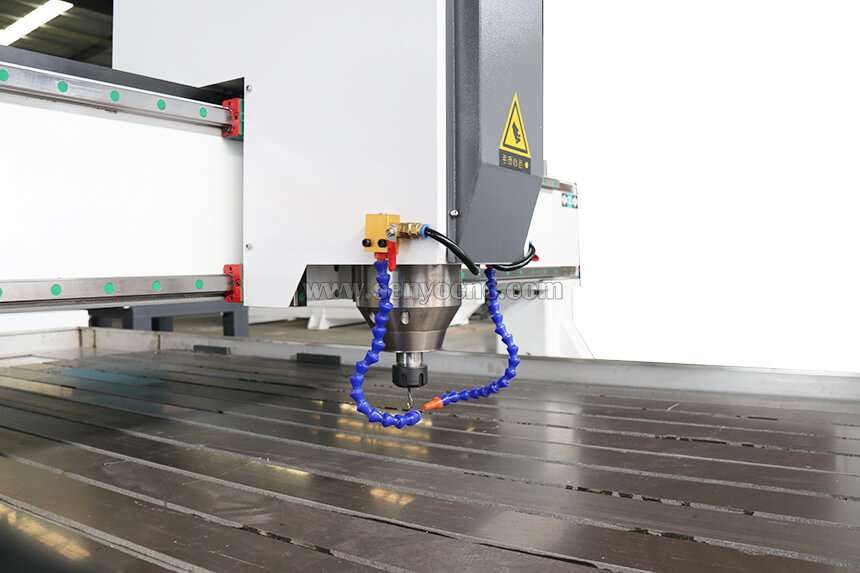

With water nozzle to cool tool bit while craving, and with water tank and water pump for cycle the water.
Working table is PVC+Alumimun which is more stable and strong for process wood,pvc,jade stone,copper and soft metal materials.

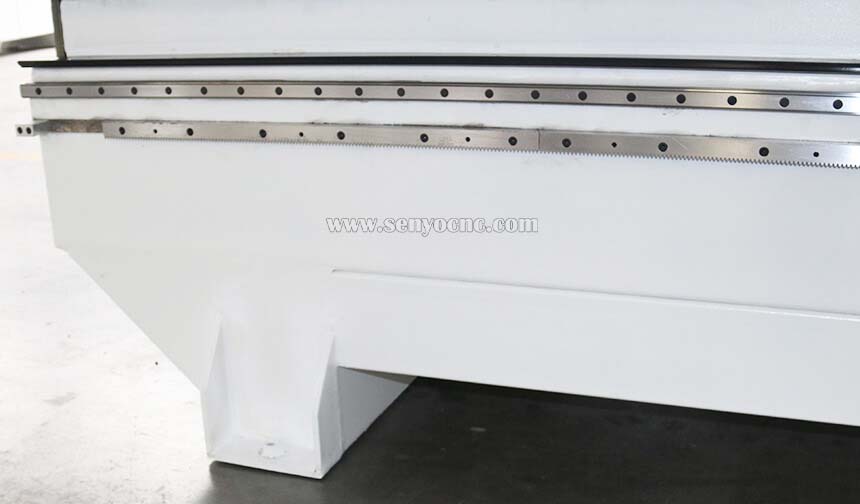

XY axis with gear and rack transmission way, Z is Taiwan ball screw and linear rail.
They are with high speed, high accuracy, and smooth linear motion, make sure machine durable and long life span.
Professional Electric parts .
Application
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cup board doors, interior doors, sofa legs, headboards ,game cabinets, computer tables, sewing machines table, instruments
2 .Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stilett Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5. Architectural models: engraving fine window, fencing and wall patterns, etc
Package & Shipping
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
