Advantage
1.Profiled steel welded lathe bed, stabilizing treated under high temperature ensures minimum distortion, excellent rigidity and vigorous strength.
2.High precision ball screw transmission ensures high accuracy, fast speed and strong power.
3.Imported square linear guide rail ensures high accuracy, maximum work load and long service time.
4.Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
5.Configured with water tank and automatic cooling water supply system.
6.Overall dust-proof and water-proof design protects all moving parts of machine.

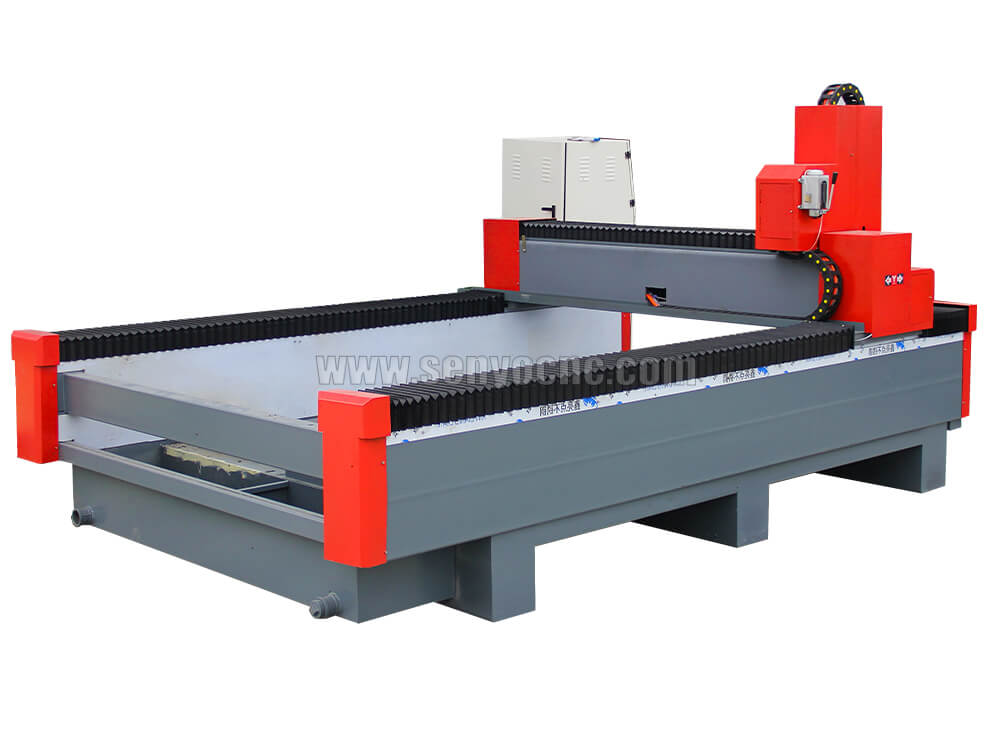

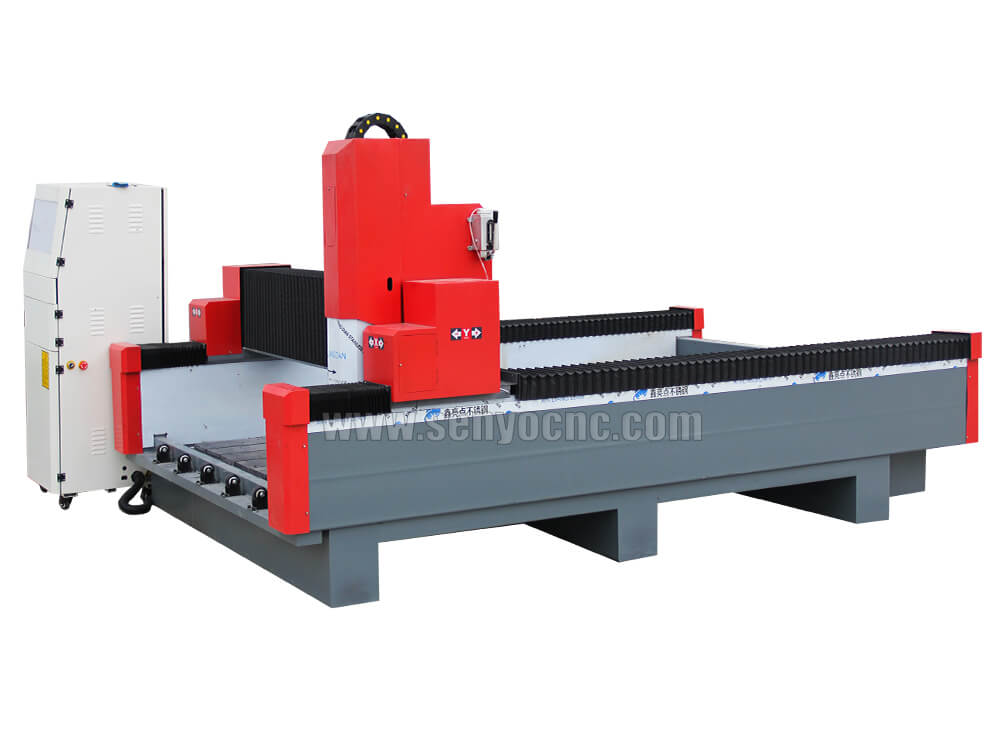

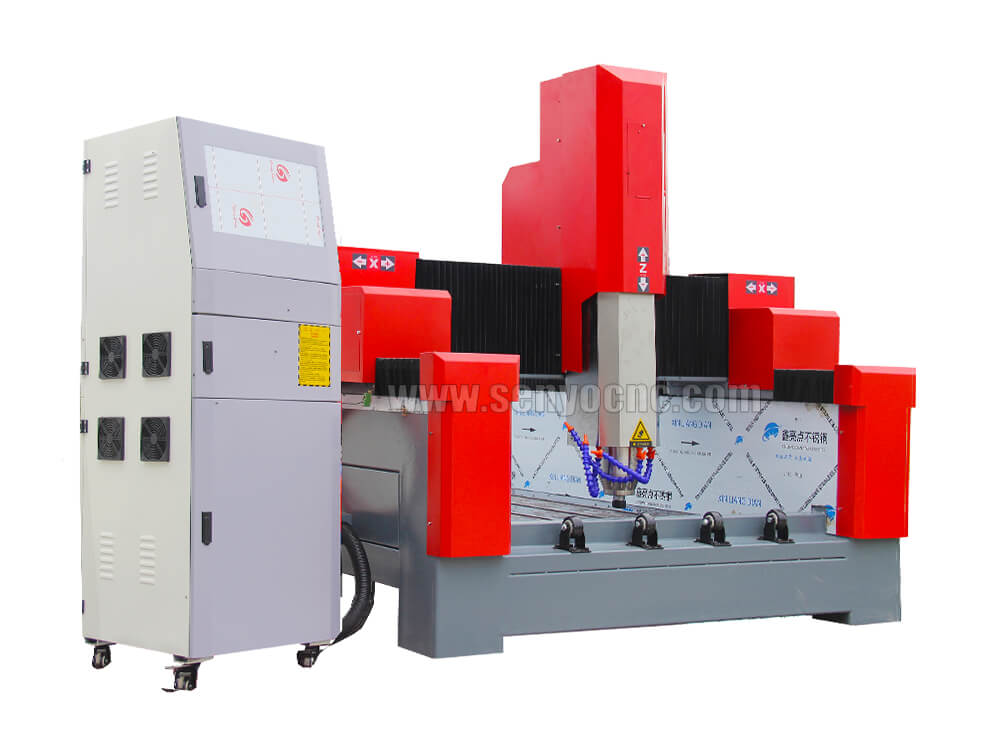

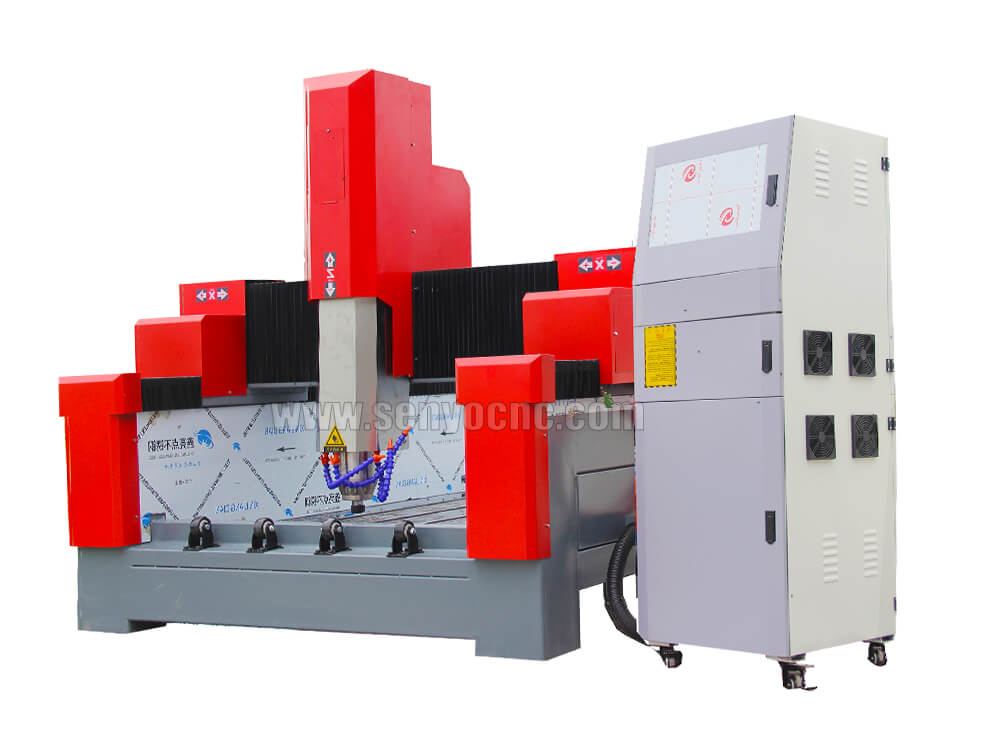

The whole machine is welded with thick seamless steel structure, by
seamless welding and hardening treatment, the stability is good, Guarantee it to be strong, reliable and durable,
with large bearing capacity and long working life.The machine adopts
gantry movement, it can process any kinds of materials freely.
What You Can Do Use This Machine?

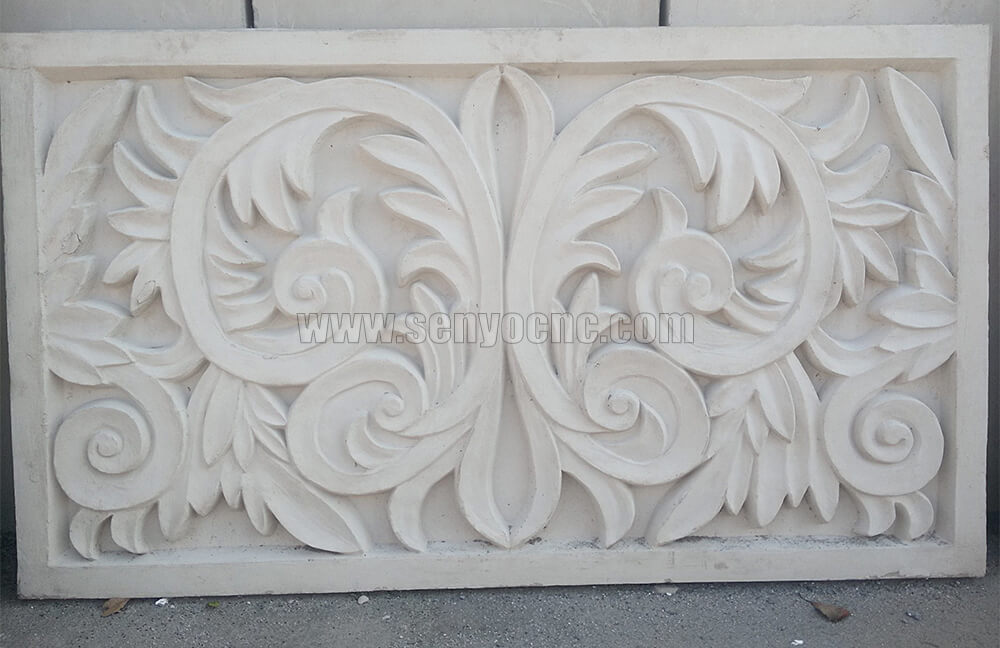

1.Stoneworks: 3D/2D stone carving, Embossment, Line engraving Cutting, Edge inversing, Drilling on Natural stones, Granites, Artifical stones, Tombstones, Milestones, Ceramic, etc.
2.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc
3. Heavy Cut Machine for Pyramid Type Stone
4. It is widely used in the gemstones production.
Paramaters
Effective working area | (X=1300mm)*(Y=2500mm) |
Max Feeding Height | 500mm |
Machine Body | Thickness welded steel tube, cast iron vertical shafts and steel gantry |
Working table | Aluminum T-slot table with PVC |
Guide rail | Hiwin linear square guide rail |
Driving method | Taiwan Gears Rack drive for X Y-axis,Ball screw drive for z-axis |
Motor and driver | Stepper motor and Leadshine driver |
Spindle Motor | 5.5KW water cooling spindle |
Inverter | Best inverter |
Spindle speed | 0-24000rpm/min |
Spindle collect size | ER25 |
Voltage | 380v/ 3phase, 50-60Hz |
Working speed | 0-12000mm/min |
Machine Accuracy | <0.05/300mm |
Control system | Ncstudio control system/DSP/ Mach3 |
Compatible software | Type3/Castmate/Coreldraw/AutoCADand other CAM/CAD software |
Optional | Rotary device working for round or square materials |
Lubrication | Automatic lubrication |
Repositioning Positioning | X,Y,Z repositioning Positioning ±0.02mm |
Traveling speed | 0-40000mm/min |
Working speed | 0-30000mm/min |
Accessoies | The tool box include all necessory accessories like wrench, collet, clamping kits, tool bits for test, etc. |
Parts Detials

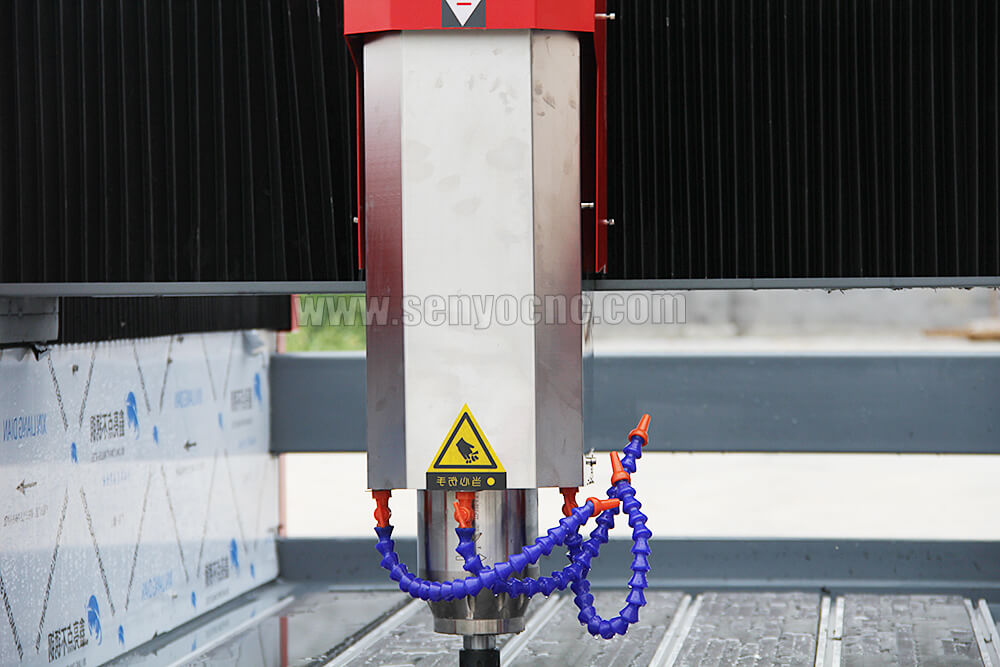

Water Cooling Spindle . This machine adopts water cooling spindle, which has the advantage of high efficiency,high speed, low noise.

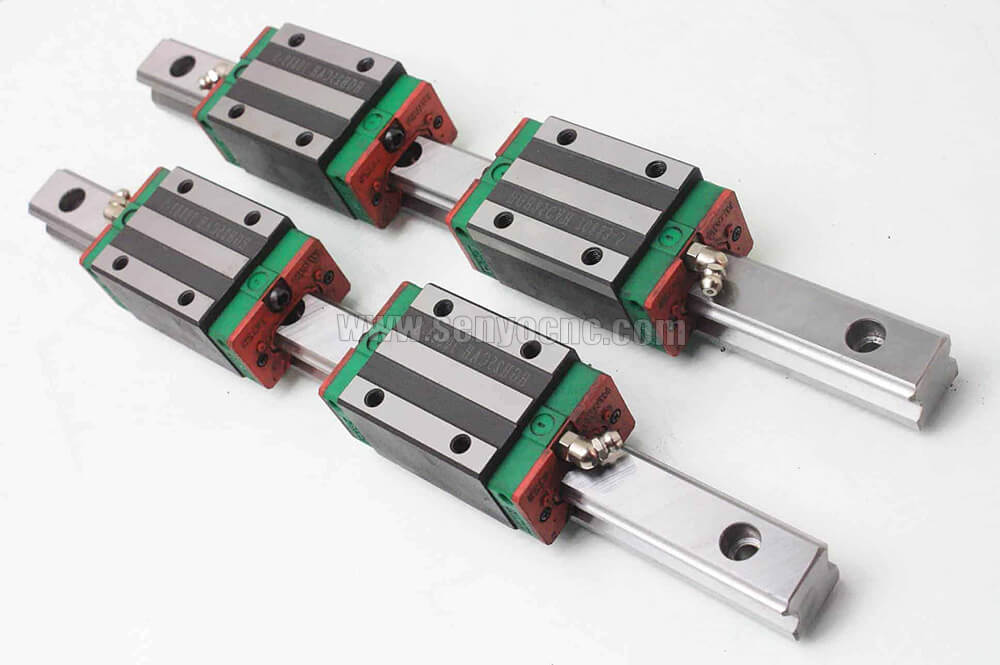

Taiwan Hiwin Square guide rail which ensure high weigh capacity, high precision, and stable performance.
High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,ensuring high speed and high precision at same time.

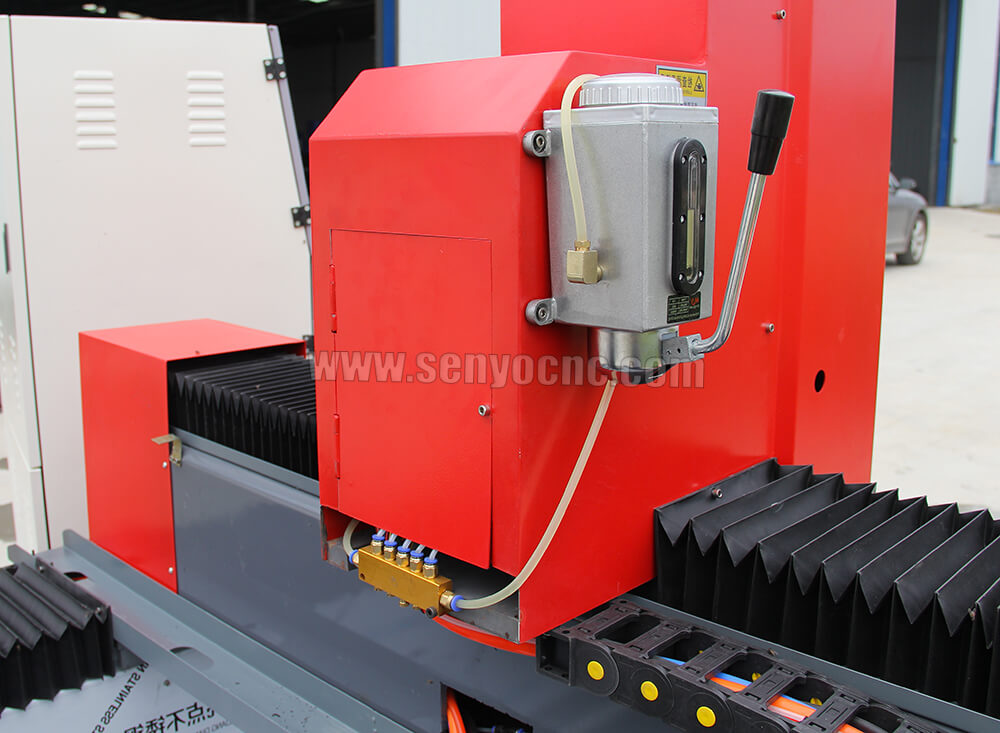

Lubrication , Automatic oil lubricating system

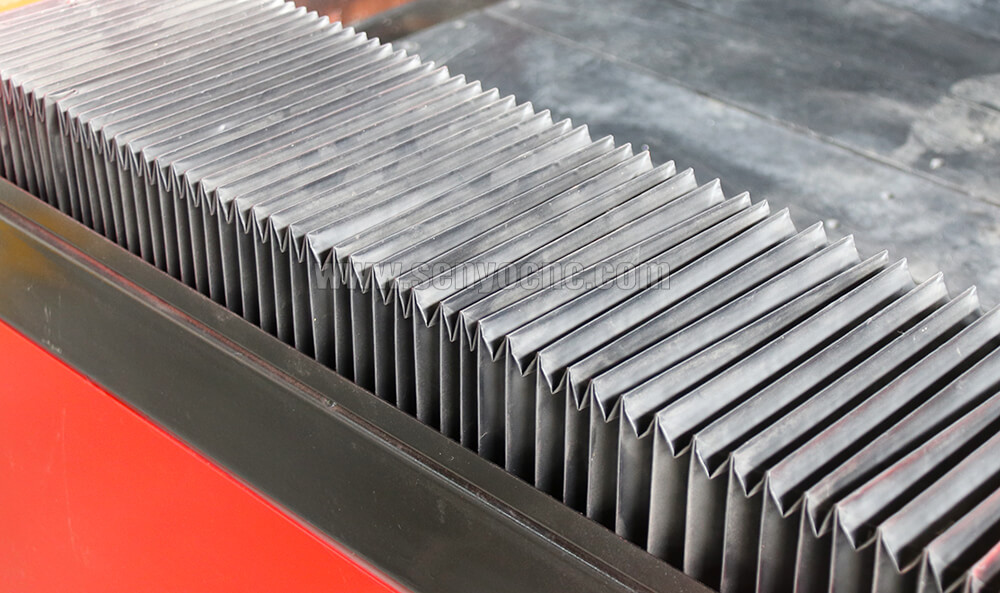

XY Axis With Dust Hood .Protect rail guide working in clear condition , Good for machine travel and work precision.
Application
This stone CNC router craving machine mainly suit for stone, granite, marble engrave cutting work.
Suitable for cabinets artificial stone, quartz stone countertops and sink
tea tray caving, European style edging, and other heterosexual stone.
Ceramics, glass and ceramic stone drilling sanding, edge down, carving.
3D and 3D application including kitchen tops, shower plates.

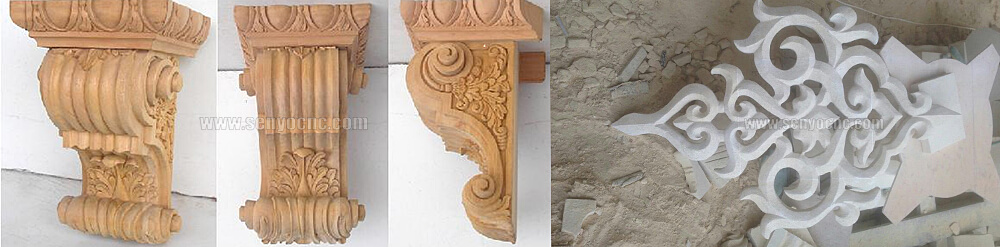

Tombstones, bas-reliefs, grooving and lettering.

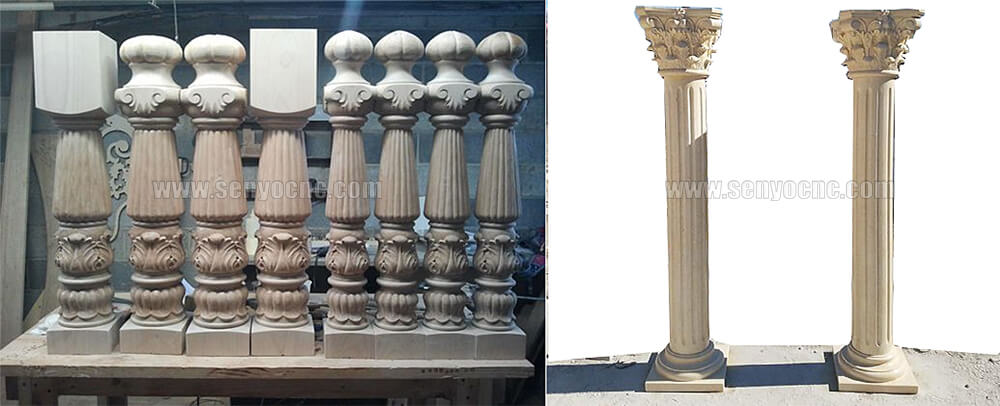

3D engraving, line engraving, cutting, edge inversing, drilling on natural marble, granite, artificial stone, tombstone, milestone, ceramic tiles, glass and so on.

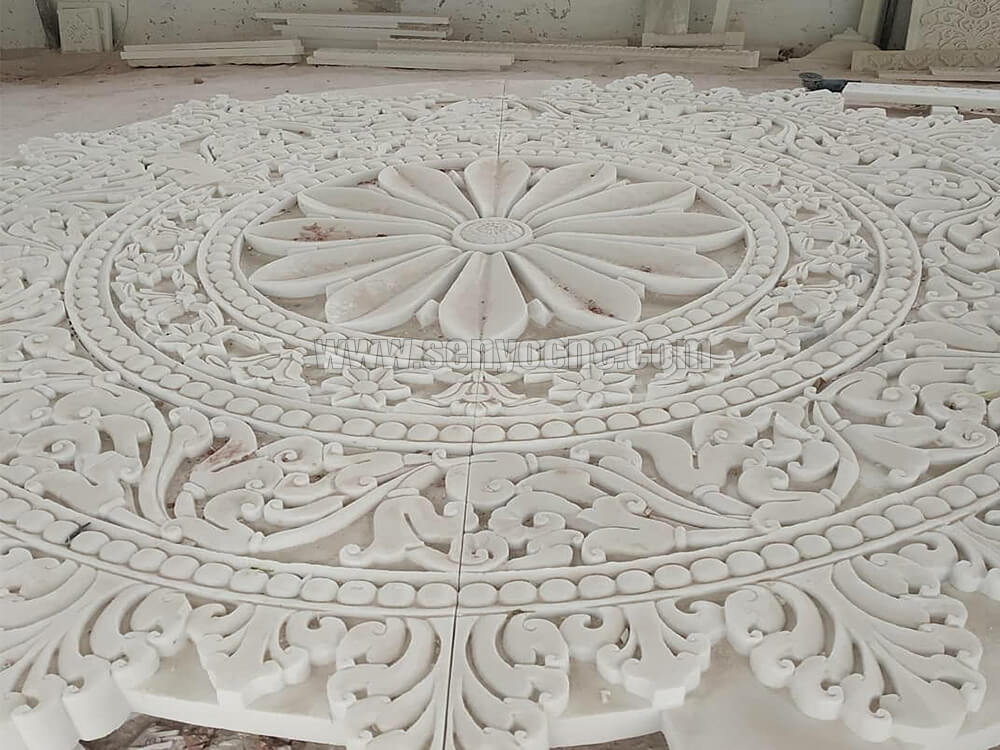

Stone working: engraving or cutting various marble, granite, bluestone, gritstone, soapstone and etc.

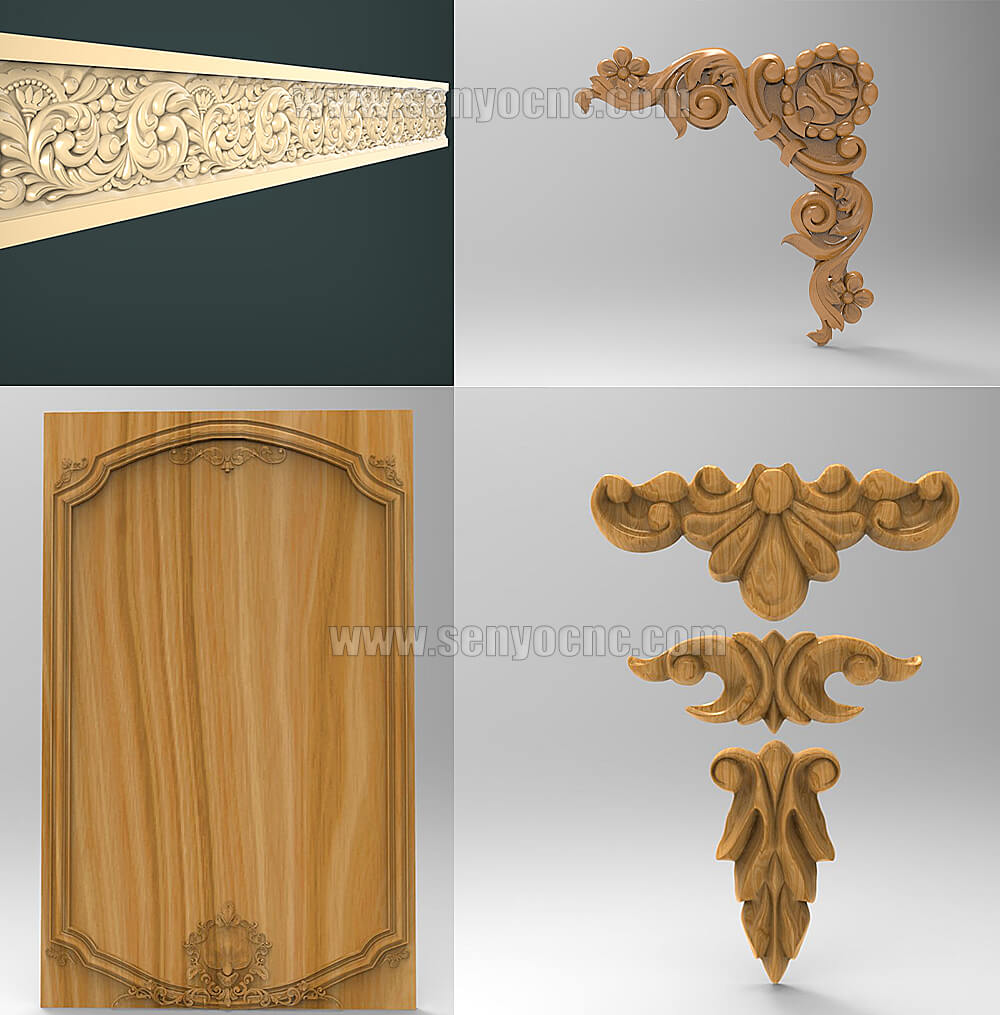

Engrave and cut on soft wood,hard wood, MDF, Aluminum and plastic composite panel
Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum sheet etc
Metal working: nonferrous metals like aluminum, brass and etc.
Glass working: various glass. Other materials: wood,acrylic,MDF etc.

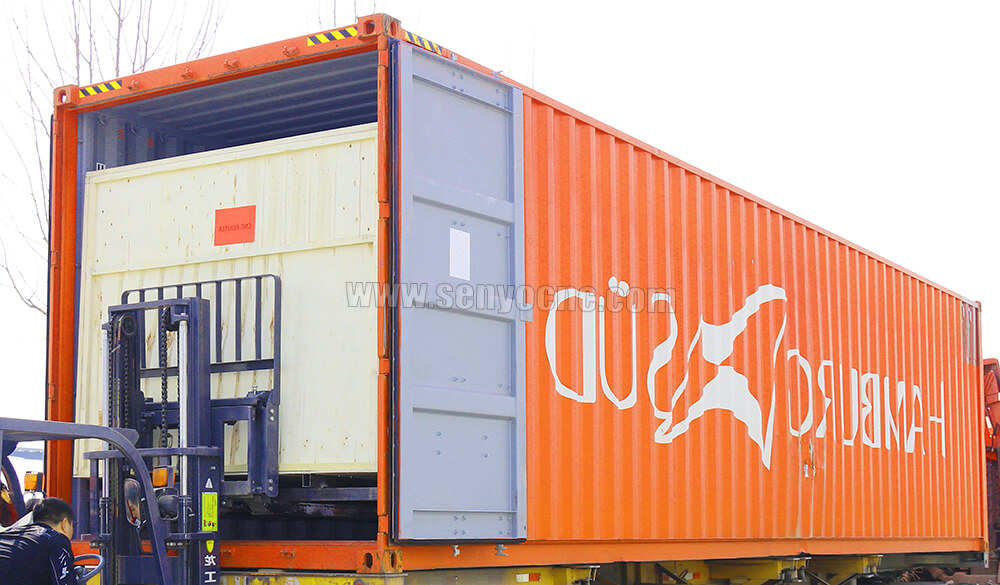

Package & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dustproof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Outside: Marked packing size, model, weight, and other information
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements.We will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
