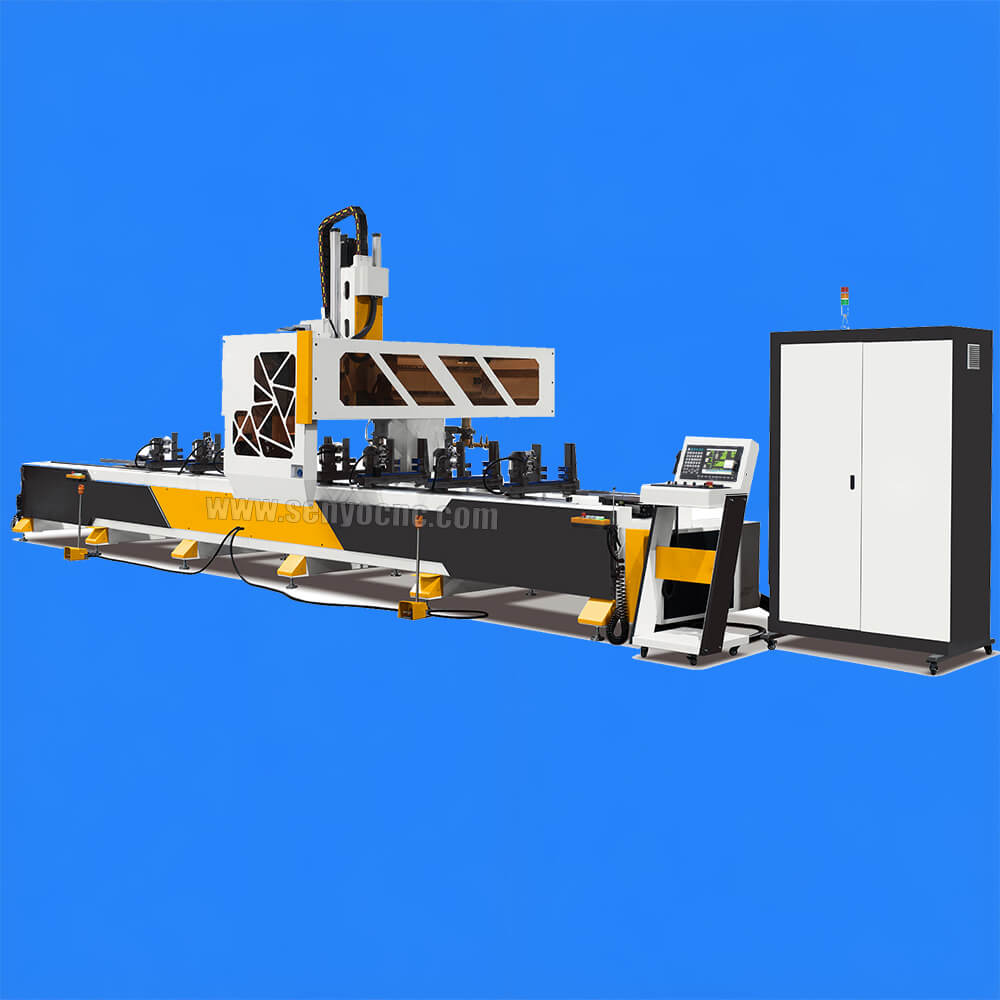

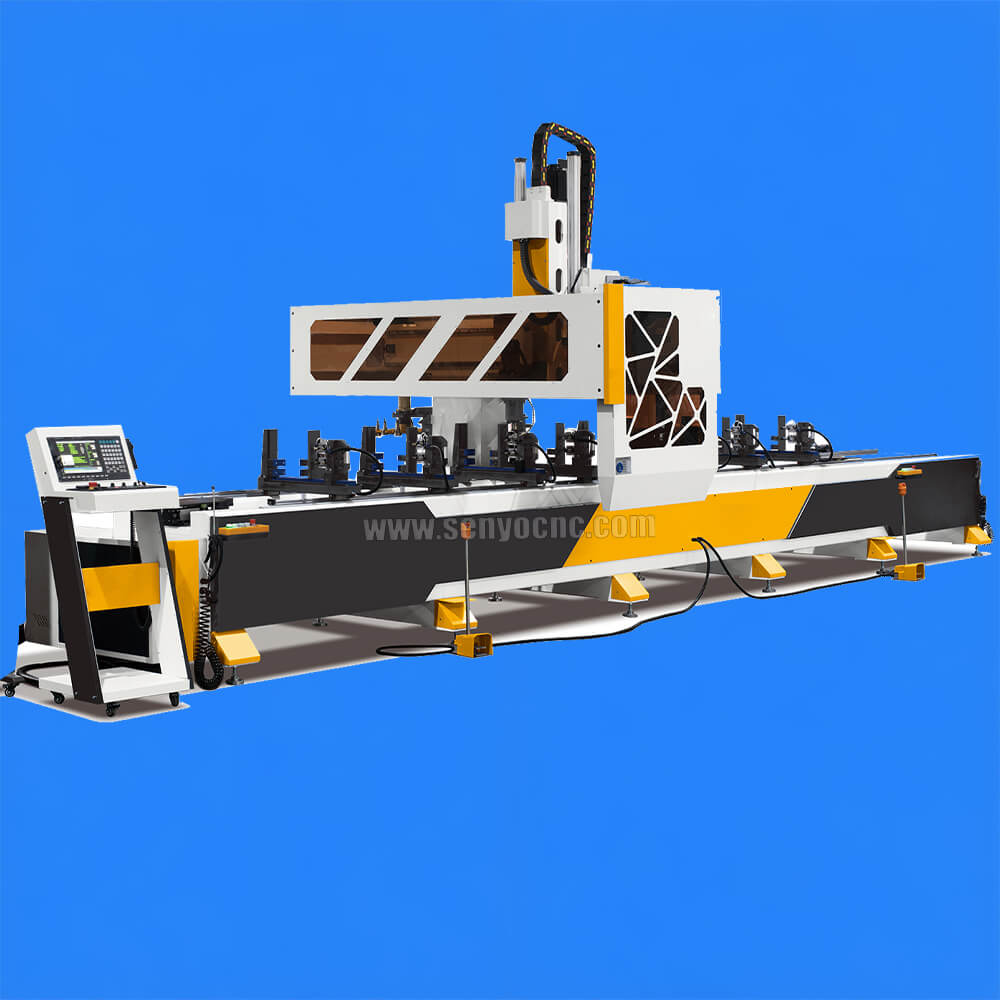

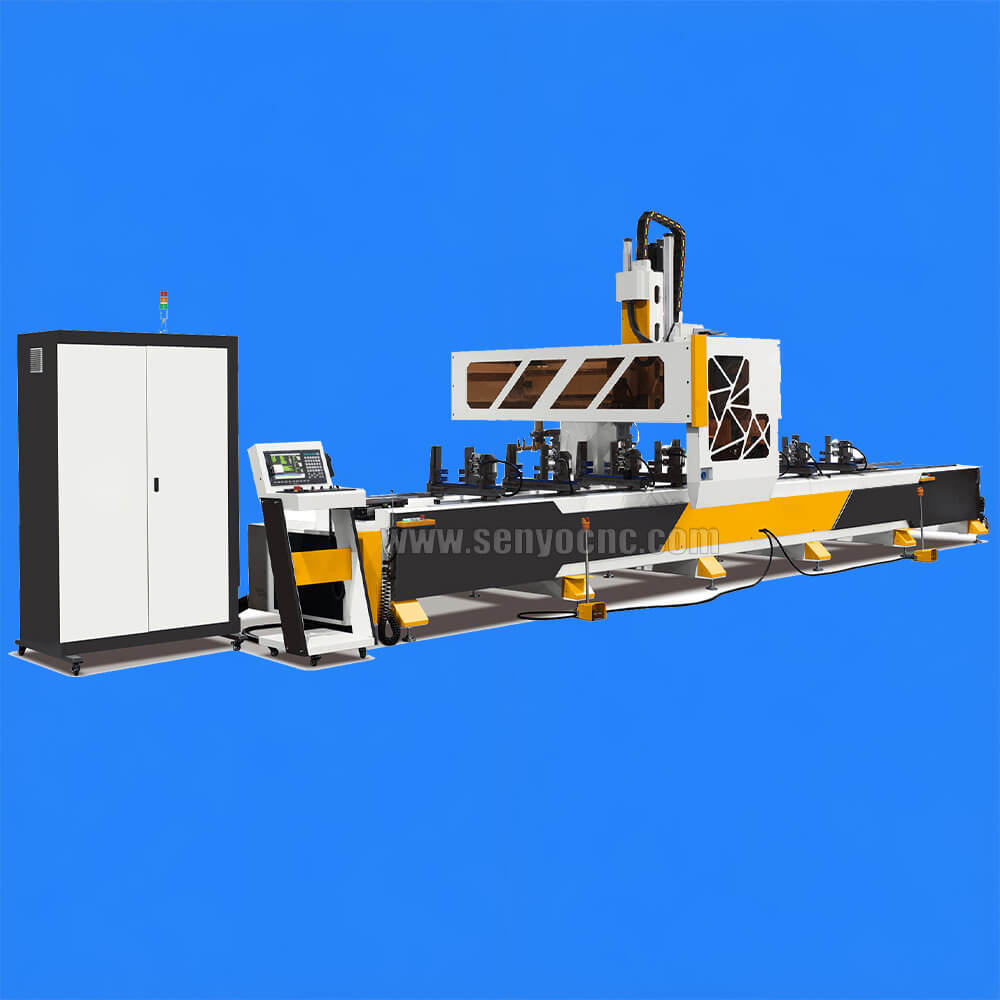

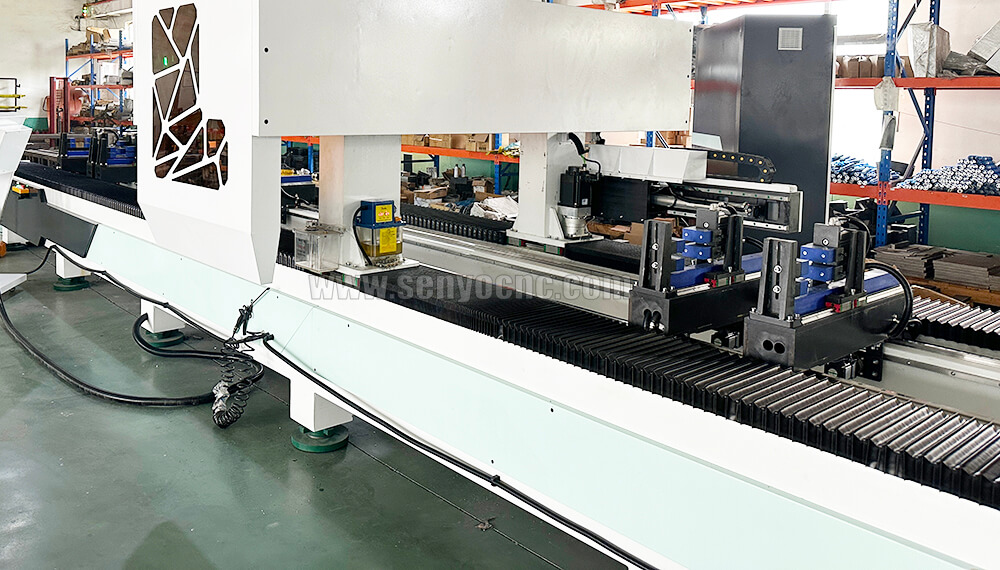

This high-speed 4-axis CNC machining center is specially designed for precision machining of aluminum curtain wall profiles, doors and windows.

Industrial aluminum extrusion profiles, and other aluminum components.

It is suitable for drilling, milling, slotting, cutting, engraving, tapping and other complex machining operations.

With a -90° to +90° rotating spindle, the machine can perform multi-angle machining on aluminum profiles without repeated manual repositioning.

Combined with professional 3D programming software, it enables efficient and accurate drilling, milling and cutting of complex aluminum components.

The machine adopts a high-rigidity heavy-duty machine structure, imported or premium-brand CNC components,

High-precision linear guides, ground racks, high-quality bearings and servo drive systems.

These components work together to provide excellent machining accuracy, stability and long-term reliability in demanding production environments.

Parts Detials

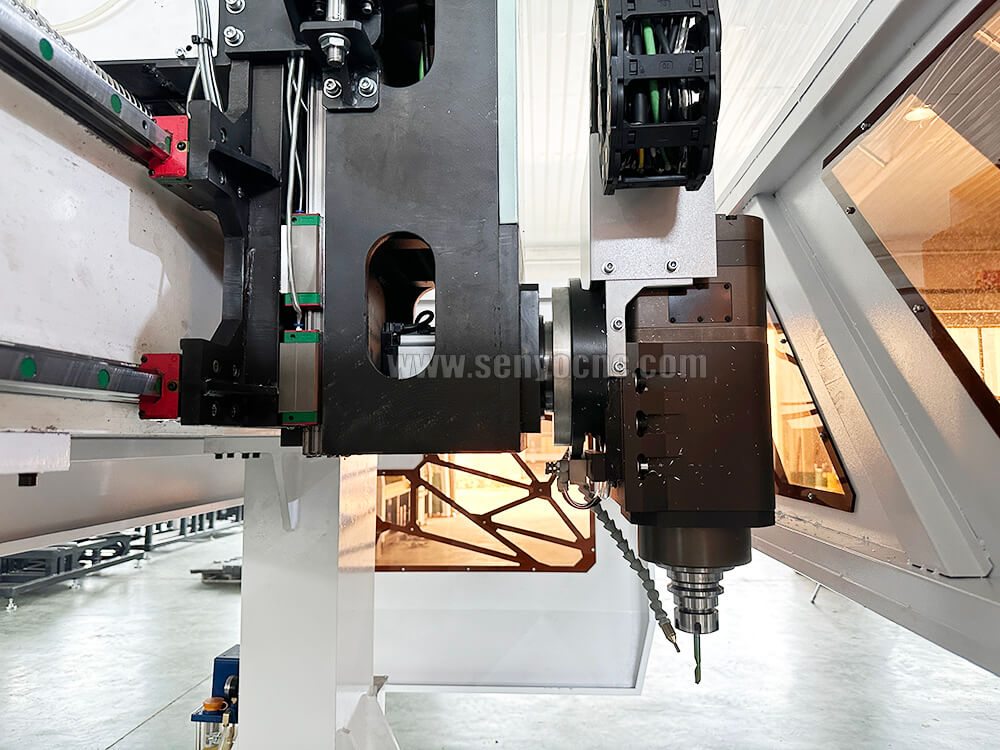

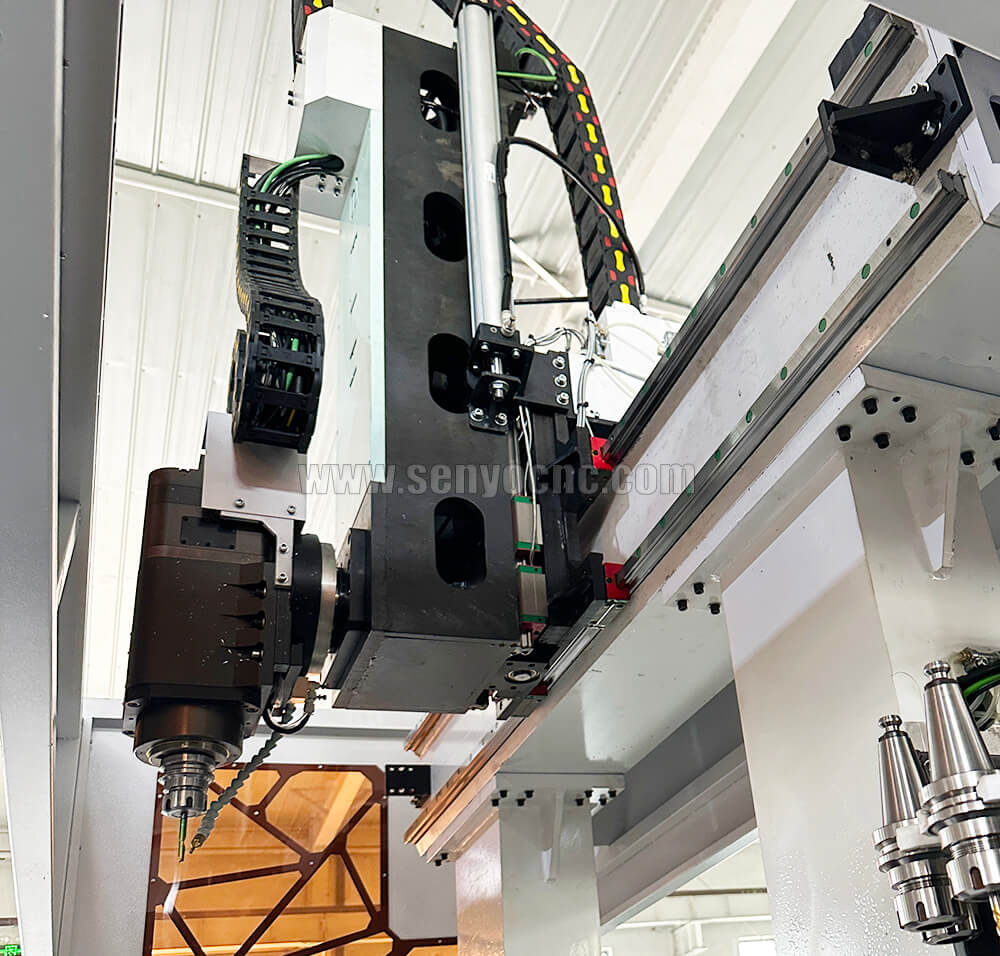

High-Speed 4-Axis Machining

The machine is equipped with a 12 kW high-speed electric spindle with a maximum speed of 24,000 rpm.

The spindle can rotate from -90° to 0° to +90°, allowing the machine to process the top and side surfaces of aluminum profiles at different angles.

The spindle is supplied by a professional machine-tool manufacturer, with spindle end runout controlled to ≤0.005 mm, helping maintain high machining precision and surface quality.

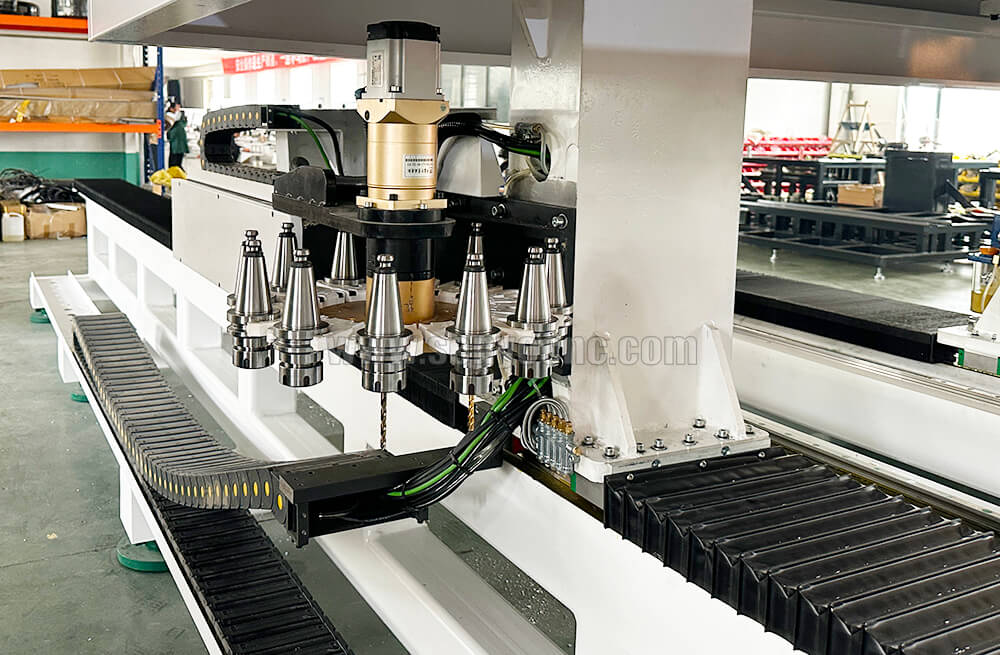

12-Position Automatic Tool Changer

The machine features a 12-position automatic tool magazine, allowing different cutting tools to be stored and automatically changed according to the machining program. One cutting saw blade is included.

Automatic tool changing significantly reduces manual intervention and improves machining efficiency, particularly when multiple drilling, milling, slotting and cutting operations are required on the same workpiece.

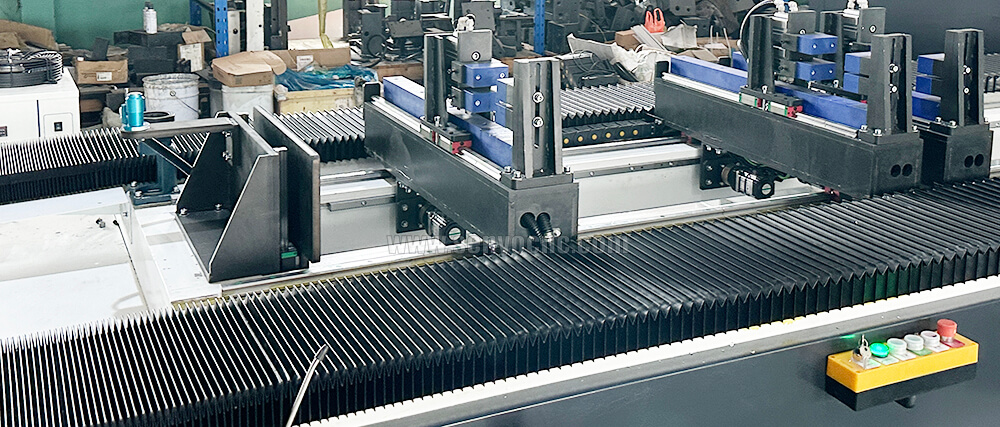

Dual Working Tables & Flexible Production

The dual working table design allows two workpieces or two different aluminum profiles to be processed alternately.

While one workpiece is being machined, the operator can load or unload the other side, creating an interactive loading and machining workflow.

The two working areas operate independently without interfering with each other, helping reduce idle time and improve overall production efficiency.

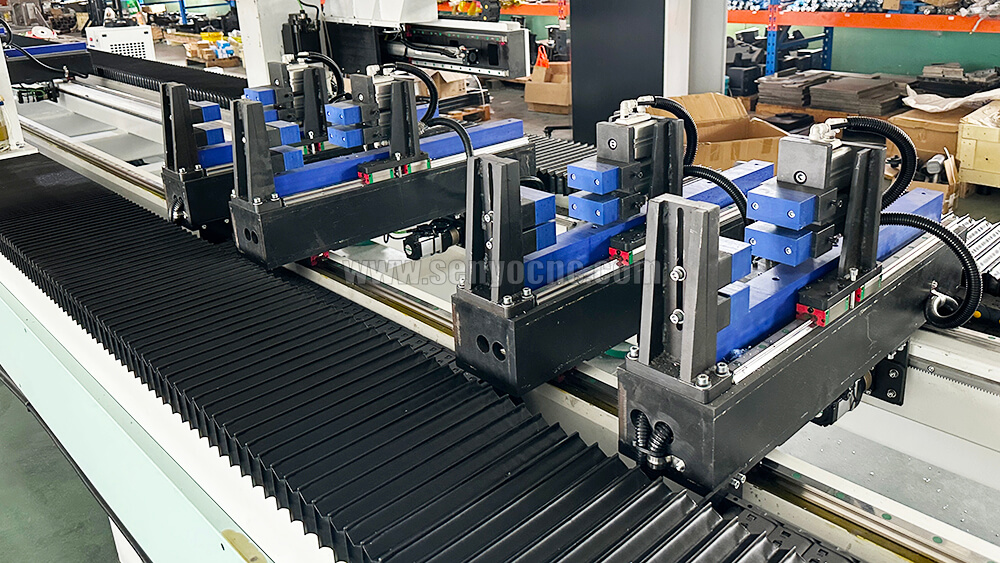

Automatic Fixture Positioning

The machine is equipped with 8 fixture stations.

The fixture positions can be automatically positioned and adjusted to avoid the machining area according to the programmed machining requirements.

This design helps accommodate different aluminum profile sizes and reduces the need for repeated manual fixture adjustment.

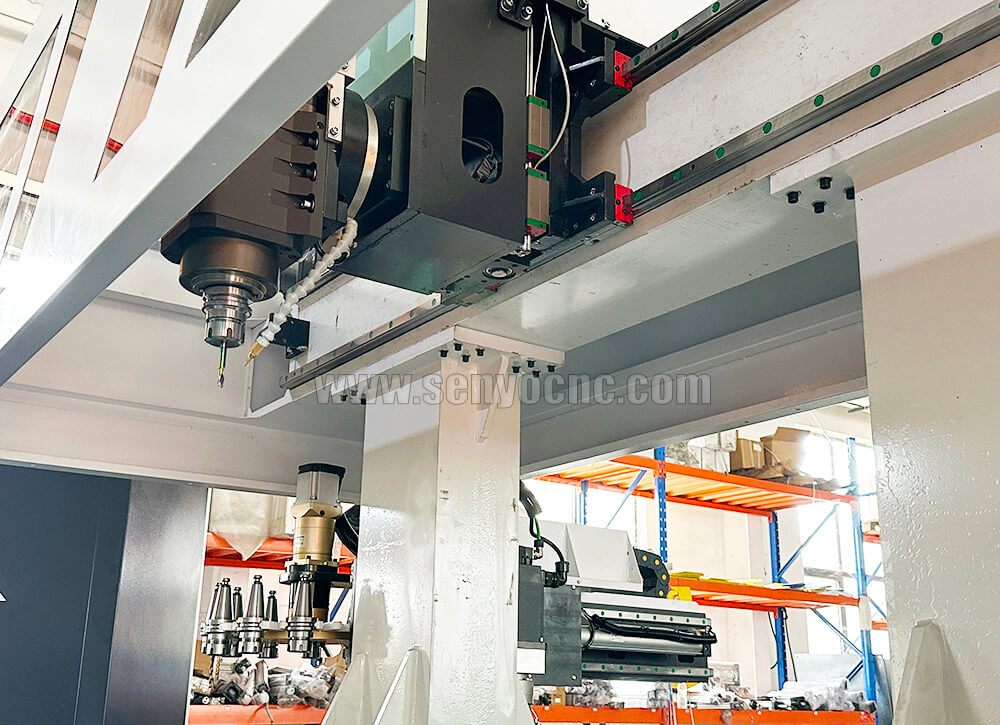

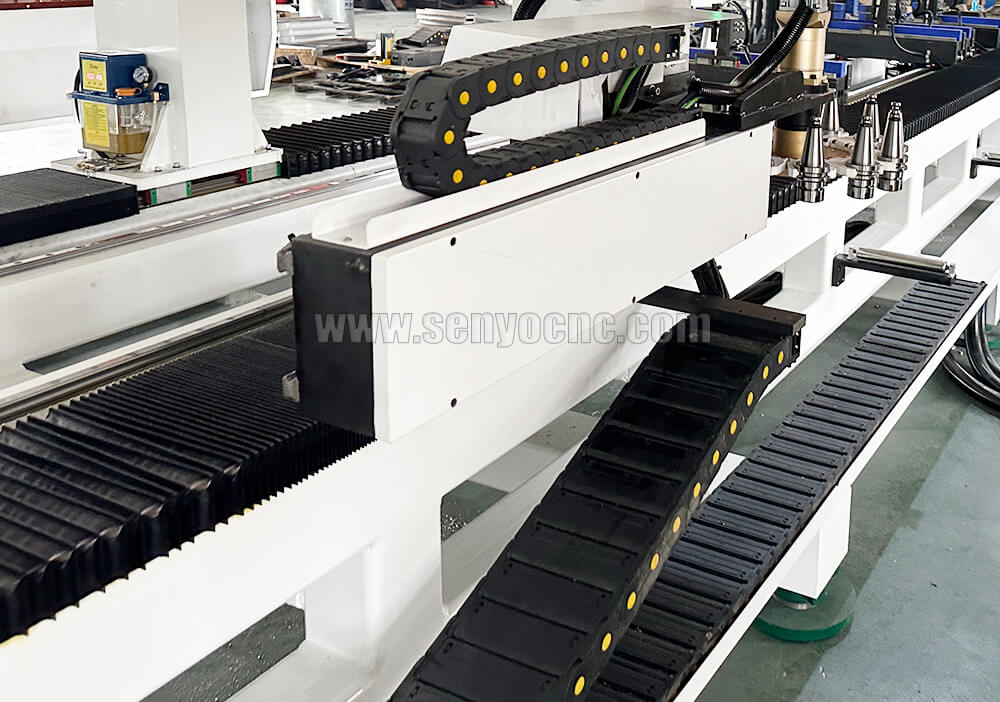

High-Speed Servo Drive System

The machine uses a Syntec CNC control system, Syntec servo motors and servo drives, combined with high-quality linear guideways, precision racks and transmission components.

The X-axis can reach a maximum rapid speed of 80 m/min, while the Y-axis and Z-axis can reach 30 m/min and 20 m/min, respectively.

The high-speed motion system provides fast positioning and efficient cycle times for mass production.

European-Standard Manufacturing Concept

The equipment is manufactured according to a high-level production standard covering mechanical component machining accuracy, surface treatment, assembly quality, electrical installation and machine painting.

Major electrical and pneumatic components are selected from internationally recognized brands or leading domestic manufacturers to improve system reliability, operational stability and service life.

The heavy-duty machine frame provides excellent structural rigidity and vibration resistance.

This not only helps maintain machining accuracy during high-speed operation but also gives the machine a professional industrial appearance suitable for modern aluminum processing factories.

Main Technical Parameters

Features

It is suitable for milling, cutting, rigid tapping and carving of various holes and grooves of aluminum curtain walls and industrial aluminum profiles,

and cooperates with three-dimensional programming software to perfectly realize drilling, cutting and milling.

Applications
Aluminum window and door frames, curtain wall profiles, aluminum furniture, industrial aluminum profiles, and other architectural aluminum components.

Working Project

For Our Work Steps

1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.

Packing & Shipping

1. Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements.

For standard machines, 7-15 working days after payment.

Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
