Wide range of applications
Machine Printer can be printed on Backlit Pet Film, Roll Photo Paper, Car Sticker Vinyl,Display PVC Banner, Opaque PVC Banner,
Sublimation Fabric, light box cloth, used in the advertising industry, home decoration industry, if you have other materials with large posters that need to be printed, you can contact us.
full aluminum beam
Corrosion resistant full aluminum beam, which is able to endure high temperature, pre-heating, intermediate heating and post heating

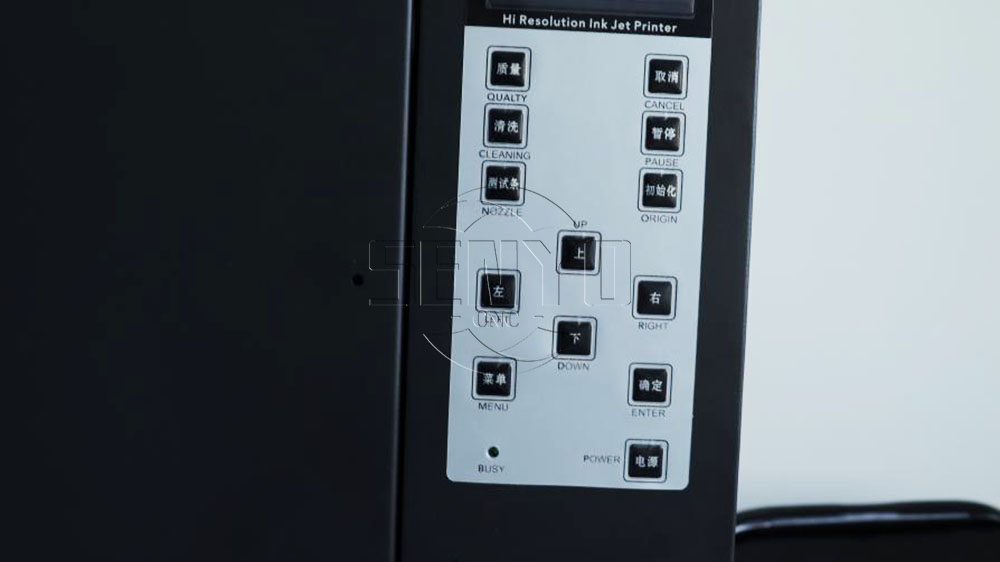

Intelligent Control Panel
Intelligent Control Panel.This is a humanized and intelligent design, which makes it easier for users to operate. Users can operate directly on the panel, which is more convenient and fast.

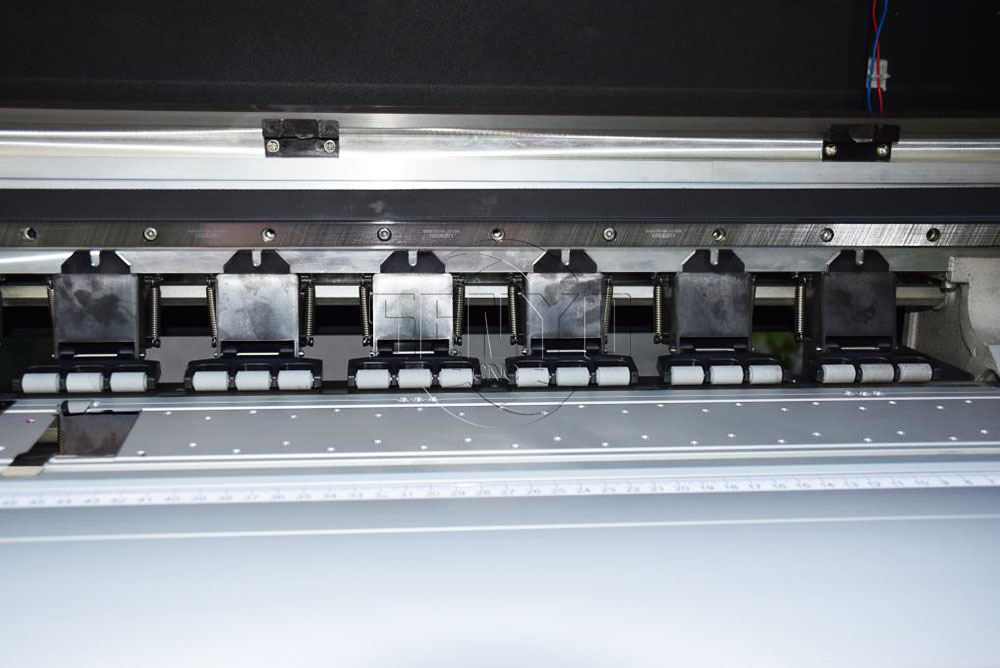

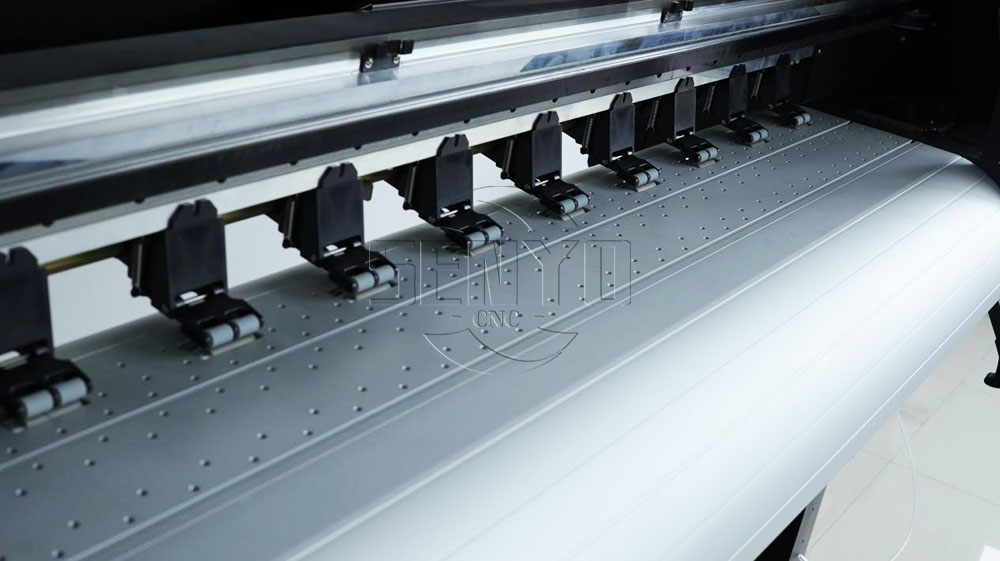

Refined platform
Anti-static platform design ensures that the paper feeding is straight and smooth.

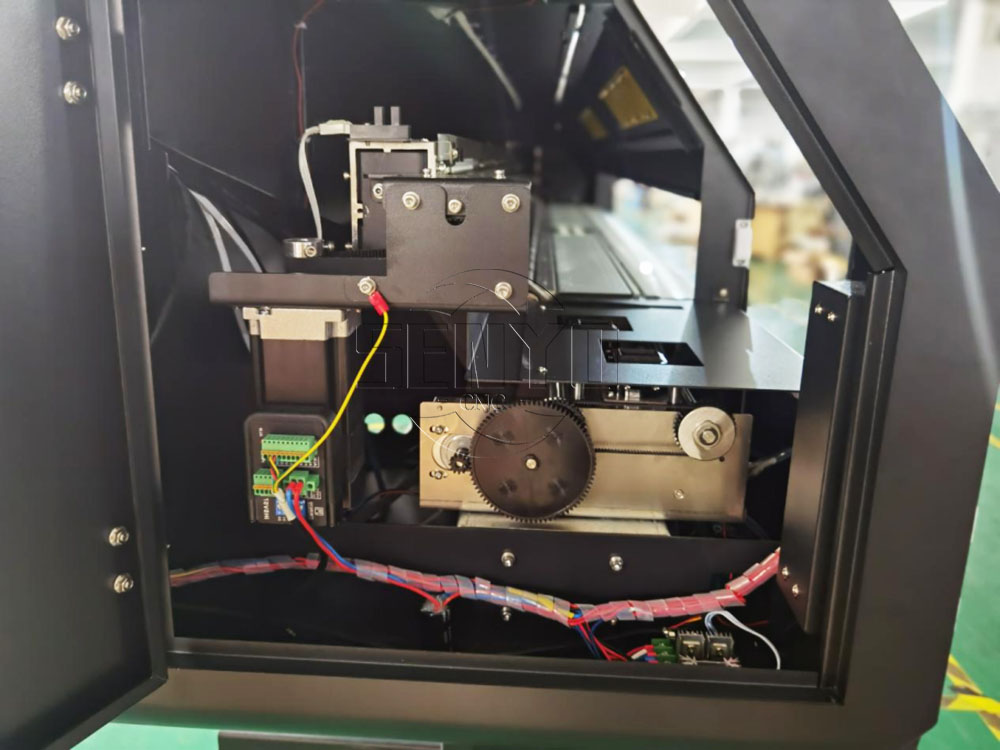

High-power motor
High-power motor to drive the machine in X axis, which ensures the stability of the printing process.

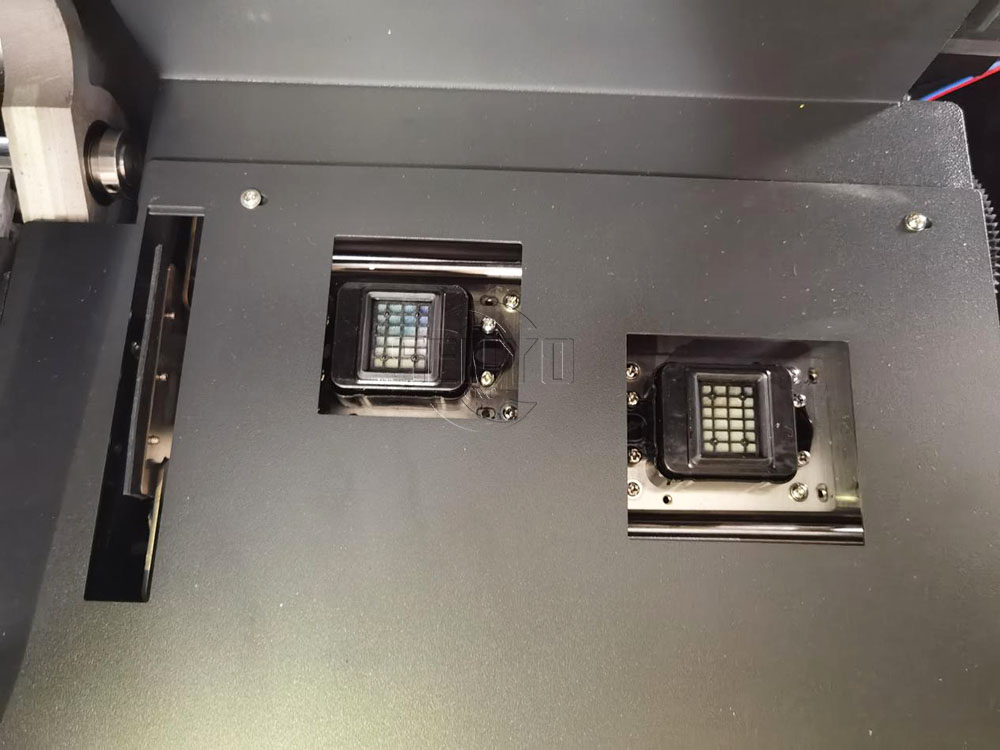

Durable stainless steel capping station
Durable stainless steel capping station, which is able to resist UV ink corrosion thus prolong the service life. Automatic lifting and cleaning function available, user-friendly design.

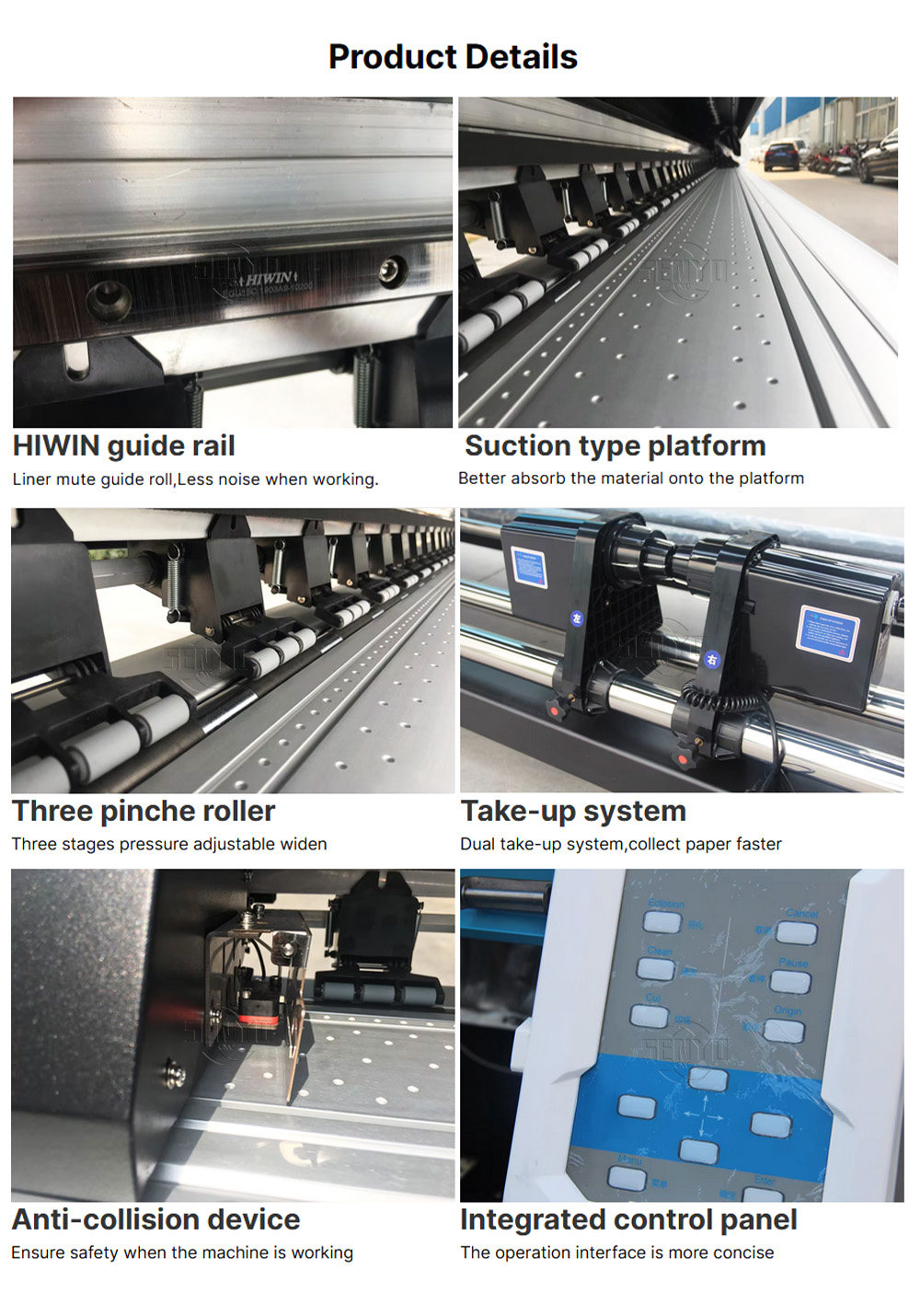

6.Taiwan Hiwin Rails and Full Aluminum Structure to ensure the precision and used in testing parallelism.

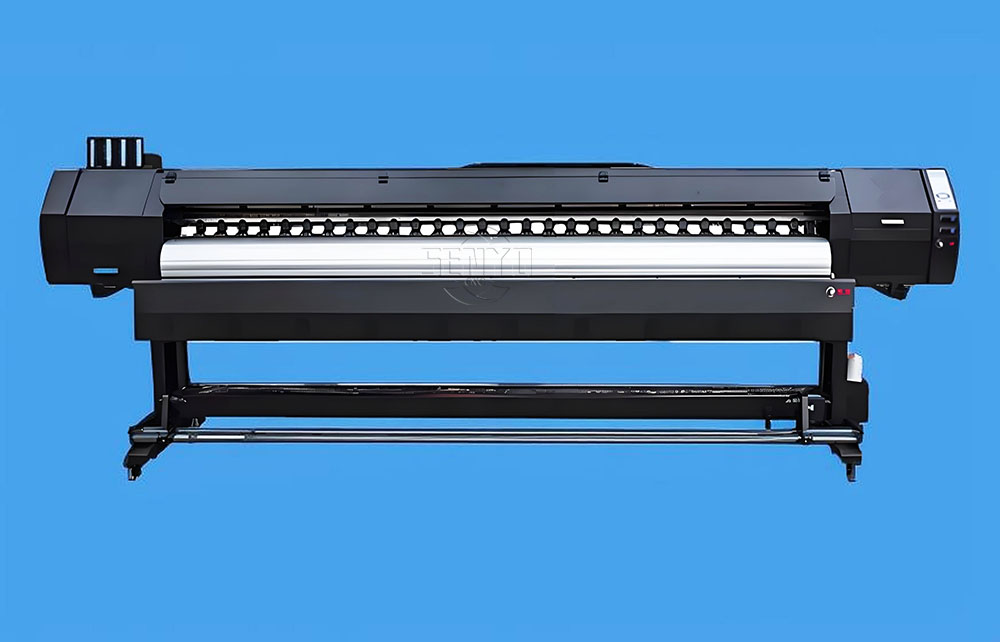

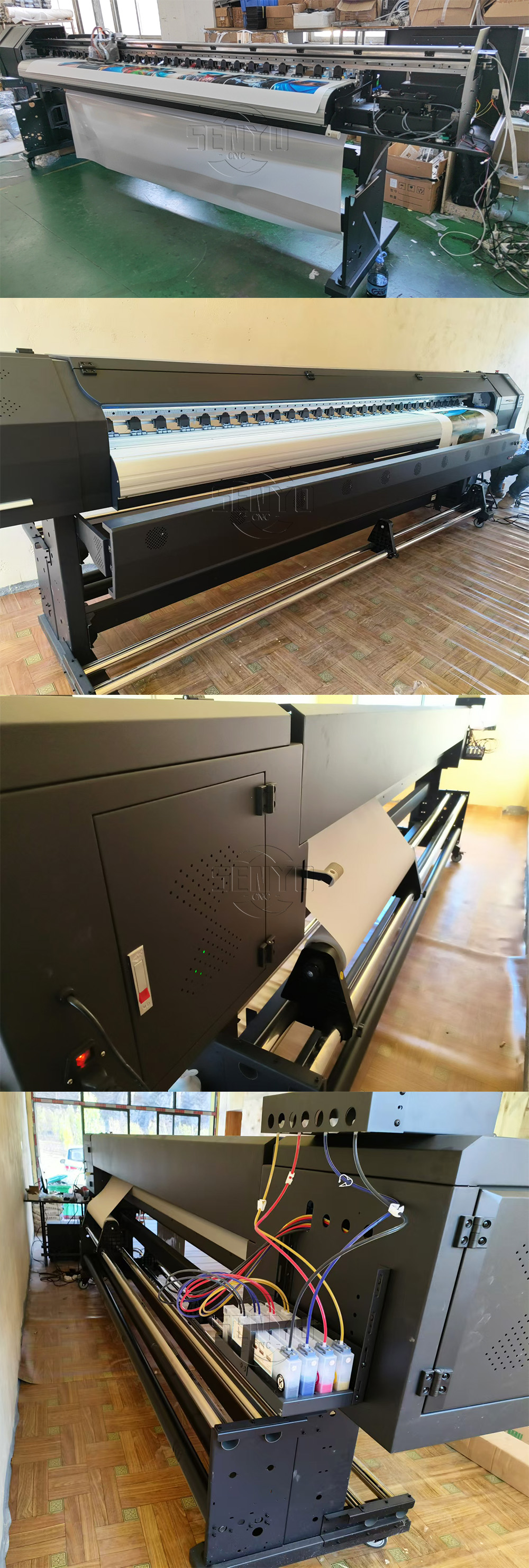

Machine In Test
Technical Parameter | ||||
Model | SYP-ECO 3.2M | |||
Print Head | Micro piezo printhead DX5 / i3200 | |||
Max Print Width | Maximum 3200mm | |||
Print Speed (sqm /h) | Print Head | DX5 * 1pcs / DX5 * 2pcs | i3200 * 2pcs | i3200 * 3pcs |
Production mode | 4 pass 30.6 | 4 pass 37 | 4 pass 56.5 | |
Standar mode | 6 pass 24 | 6 pass 25.5 | 6 pass 38 | |
Quality mode | 8 pass 15.4 | 8 pass 18.5 | 8 pass 28 | |
Ink | Type | Eco-Solvent ink / Sublimation ink | ||
Color | Cayn , Magenta , Yellow , Black (Lc / Lm Optional) | |||
Media Type | Eco-Sovlent : Viny sticker ,fex banner,tarpauli ,wall paper ,Cavnas ... Inkjet cloth, photo paper, canvas, adhesive, canvas, PP, car stickers, reflective materials, etc. Sublimation : Sublimation paper , T-shirt , cloths,tower,home textile... | |||
Ink Supply | Auto Ink Supply system | |||
Maintenance Of The Printhead | One button cleaning printhead by solvent | |||
Rip Software | MainTop ; PhotoPRINT | |||
Data Interface | USB 2.0 / USB 3.0 | |||
Assistant Option | Feeding&Take up | Auto Feeding And Take Up System | ||
Heating System | Stage heating system include back, front heating | |||
Carriage Height | 1 - 5 mm Distance to the printing platform , adjustable | |||
Othere Functions | Light for carriage position | |||
Printer Info | Operating voltage | AC 220V 50Hz/60Hz ( 110V Optional ) | ||
Power | Print system:0.5kw ; Front 0.5kw ; Rear 0.5kw ; Back 1kw | |||
Working Enviroment | Temperature: 22 - 28 Humi dity:40% - 70% | |||
Printer Dimension | 4567mm(L)x970mm(W) x1500mm(H) | |||
Shipping Dimension | 4800mm(L) x1100mm(w) ×1700mm(H) | |||
For Our Work Steps
1.Before-sale,we will try to know your requirement what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.

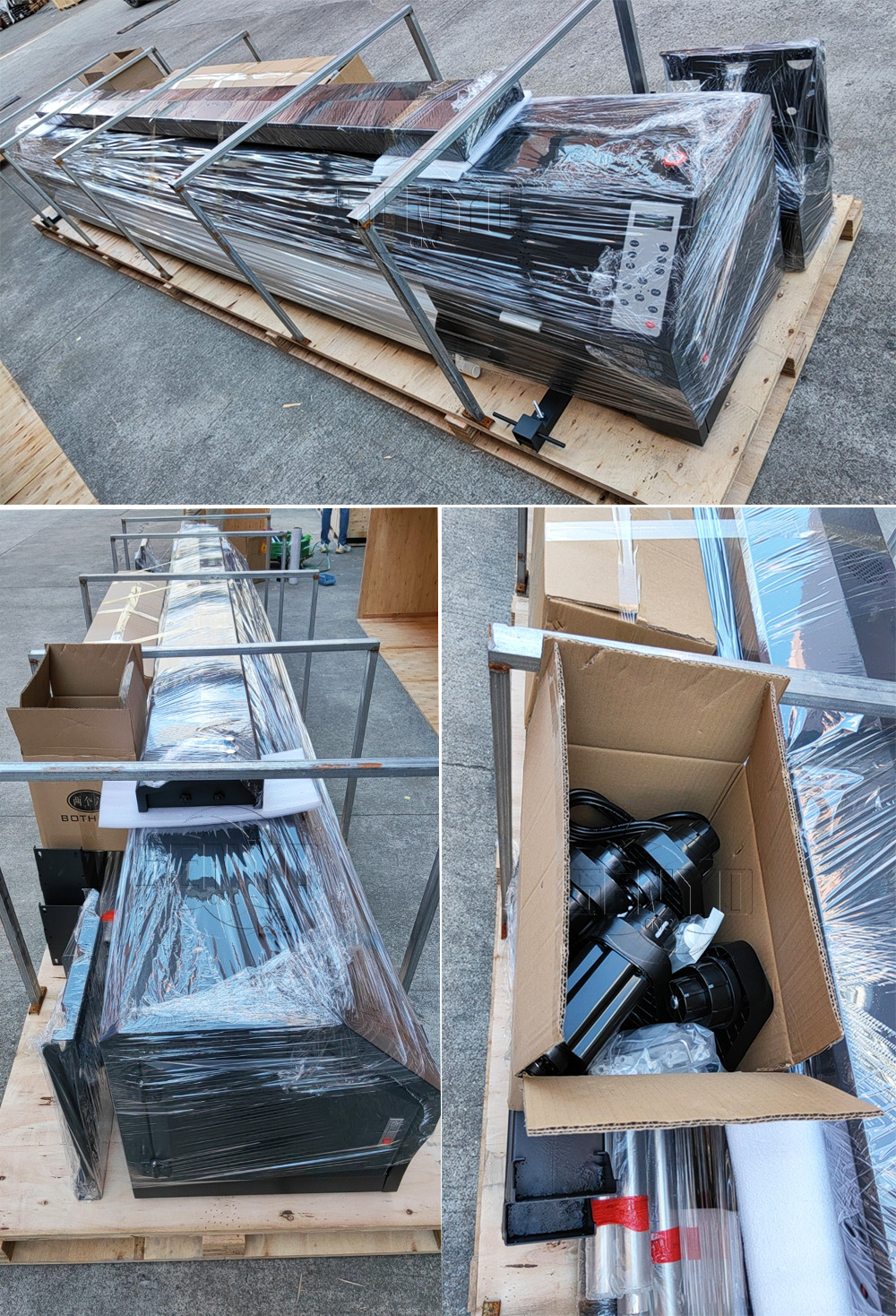

Packing & Shipping
1.Outside:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity. And we can package according to you requests
Service & Support
1. Our engineers available to service machinery overseas.Technologist instant online support service.
2. One years guarantee for the whole machine.life-long after-sales service.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. If you need any component of the machine, we will provide most affordable price for you.
5. Friendly English version manual and operation video CD disk.
6.One to one professional technical free training. We can send engineers to install the machine overseas.
