Features1. Use the DB25 socket connector, Can be directly connected pulsed fiber laser.2. The galvanometer control signal is digital and can be directly connected to a universal digital galvanometer.3. Extended axis (stepper motor/servo motor) output: It can output the direction/pulse signal o
Demonstration Video

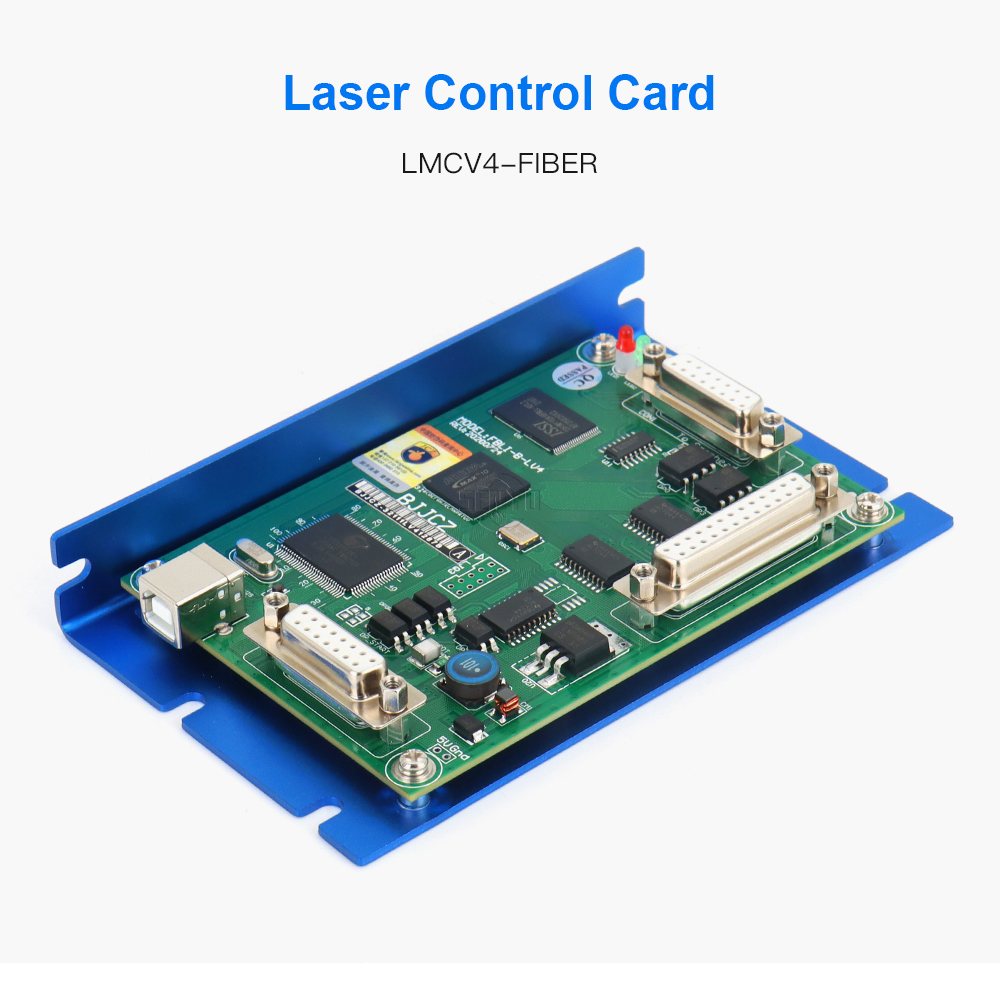

Product Descriptions

Features
1. Use the DB25 socket connector, Can be directly connected pulsed fiber laser.
2. The galvanometer control signal is digital and can be directly connected to a universal digital galvanometer.

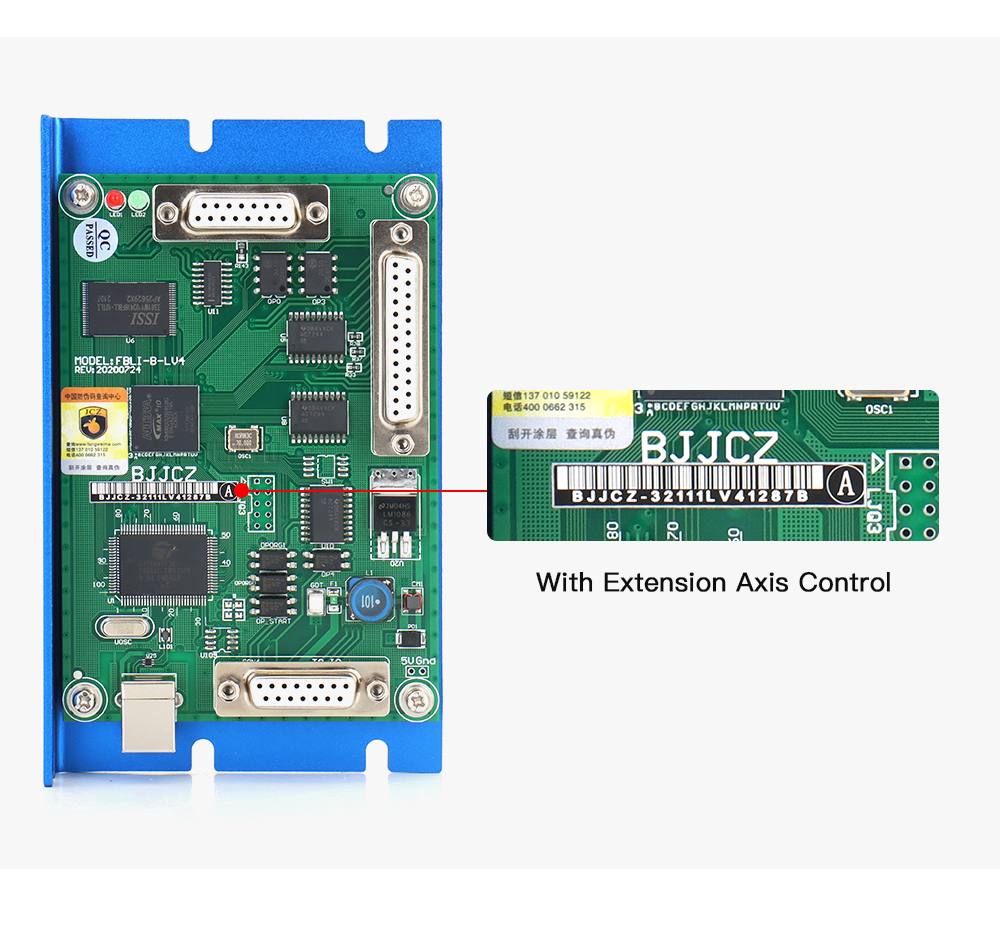

3. Extended axis (stepper motor/servo motor) output: It can output the direction/pulse signal of two channels to control the stepper motor (or servo motor), which can be used for shaft rotation or splicing.
4. 6 universal input digital signals (TTL compatible). XORG0 (IN14) (IN15) where IN0~IN3 are designated as laser state input signals are quoted by CON2 (Laser ST0~Laser ST3).
5. 2 general purpose output digital signals (TTL compatible). OUT4, OUT5 are TTL outputs;
6. ReMark (cache content repeated marking) Signal: used for marking the same content, requiring high-speed marking.
7. Compatible with USB2.0.

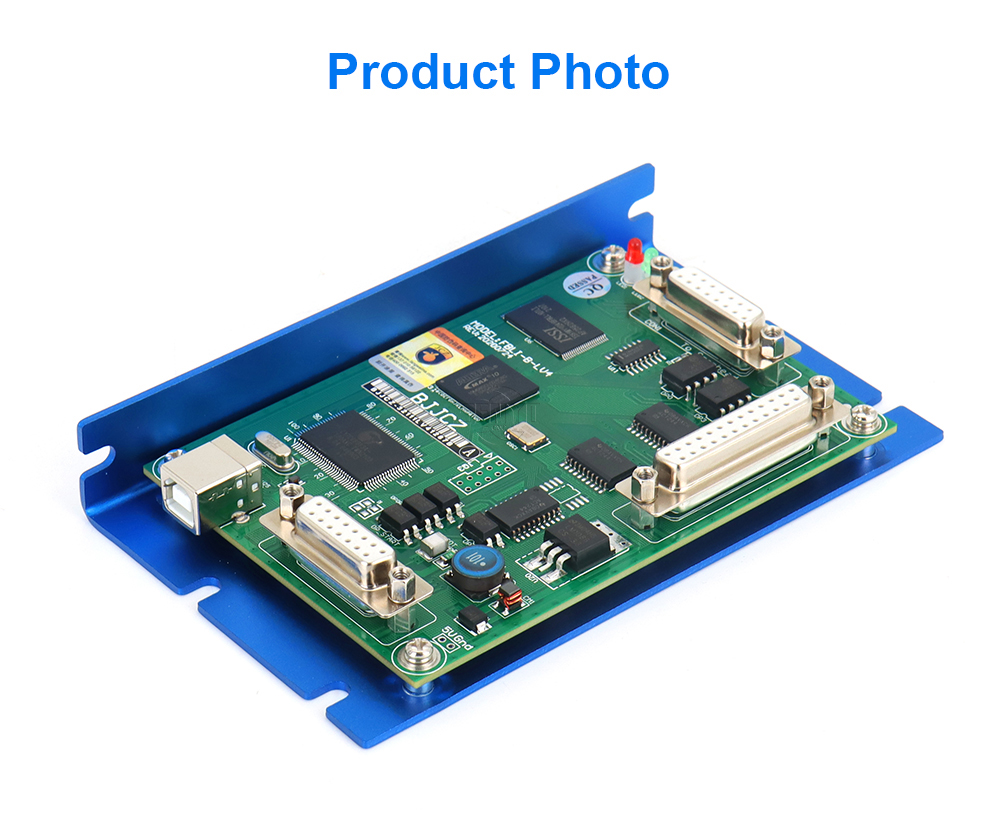

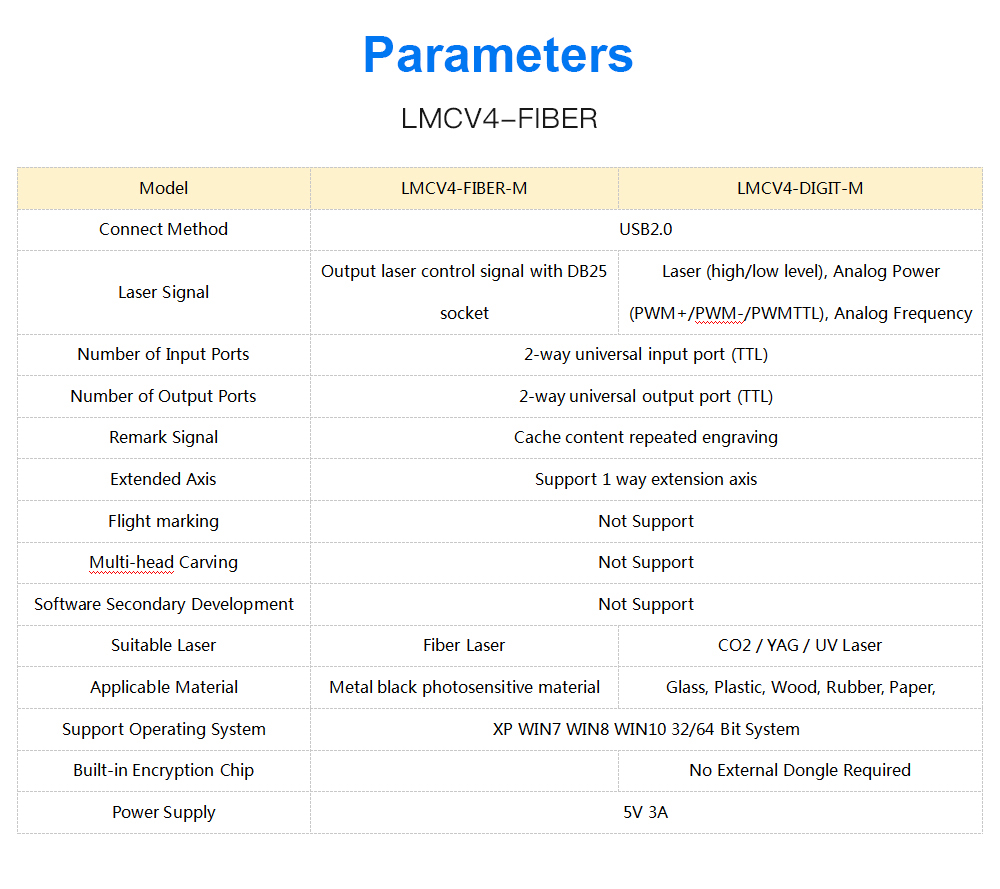

Model
LMCV4-FIBER-M
LMCV4-DIGIT-M
Connect Method
USB2.0
Number of Input Ports
2-way universal input port (TTL)
Number of Output Ports
2-way universal output port (TTL)
Remark Signal
Cache content repeated engraving
Extended Axis
Support 1 way extension axis
Flight marking
Not Support
Multi-head Carving
Not Support
Software Secondary Development
Not Support
Suitable Laser
Fiber Laser
CO2 / YAG / UV Laser
Applicable Material
Metal black photosensitive material
Glass, Plastic, Wood, Rubber, Paper
Support Operating System
XP WIN7 WIN8 WIN10 32/64 Bit System
Built-in Encryption Chip

No External Dongle Required
Power Supply
5V 3A

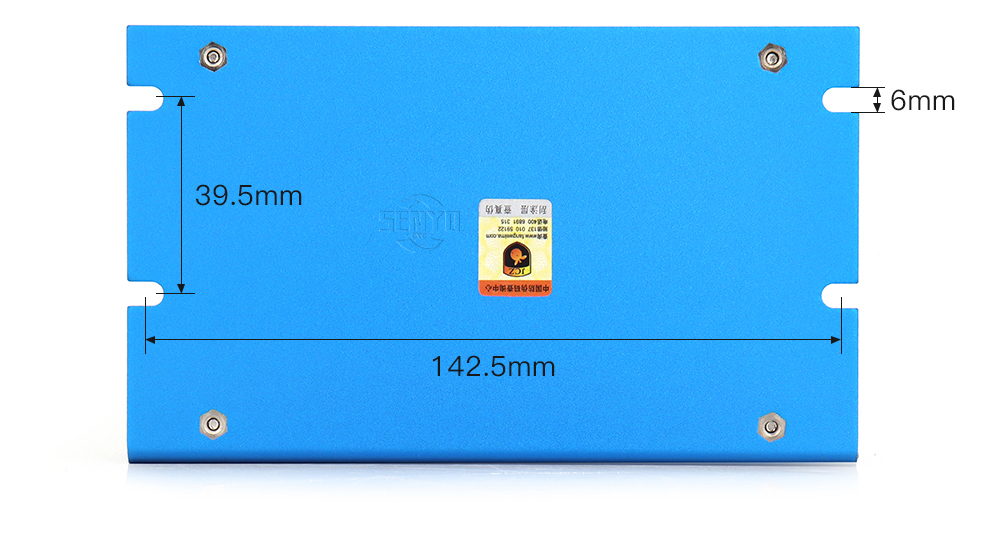

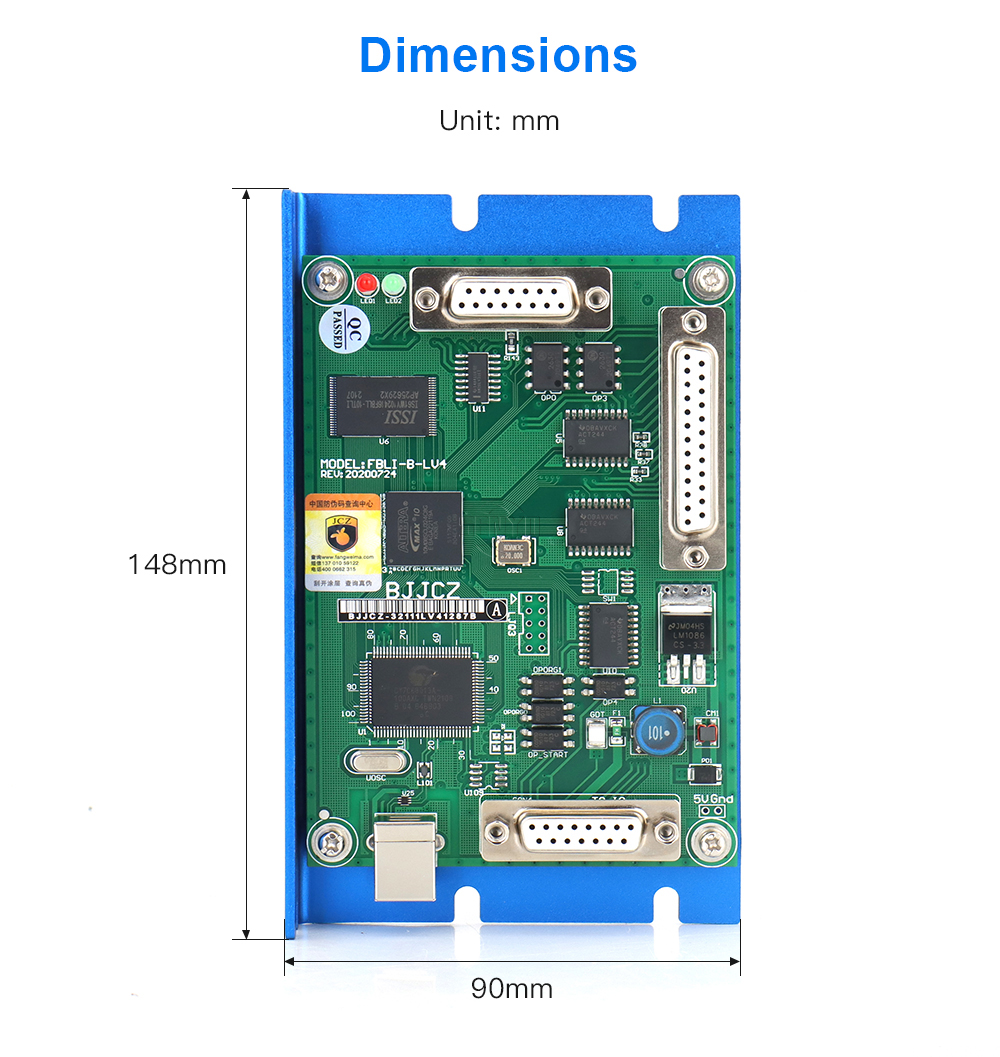

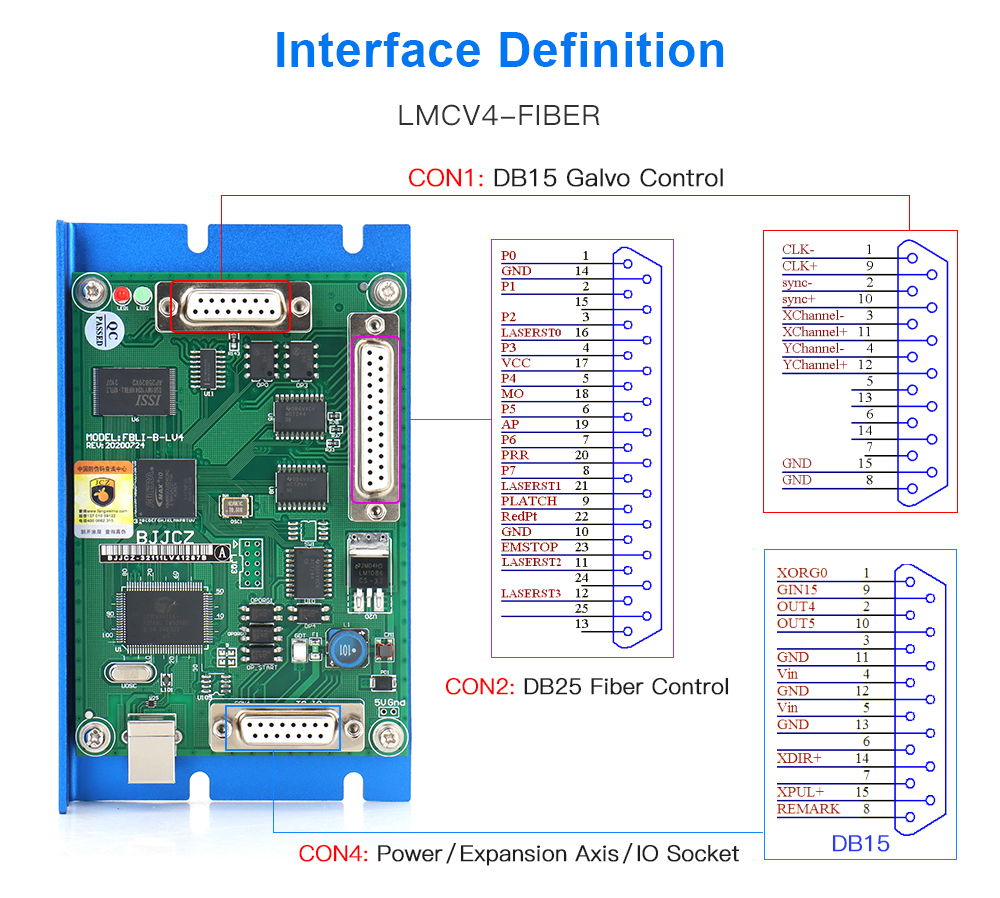

CON1: DB15 Galvanometer Control
Pin NO.
Name
Description
1, 9
CLK- / CLK+
Clock signal ±
2, 10
SYNC- / SYNC+
Sync signal ±
3, 11
X Channel- / X Channel+
Galvanometer X signal ±
4, 12
Y Channel- / Y Channel+
Galvanometer Y signal ±
5, 13
NULL
Reserved
6, 14
NULL
Reserved
7
NULL
Reserved
8, 15
GND
Ground
CON2: DB25 Fiber Control
Pin NO.
Name
Description
1 - 8
P0 - P7
           Laser power. TTL output
9
PLATCH
Power latch signal. TTL output
10, 14
GND
Control card reference ground
11,12,16,21
LASERST0~3
Laser status input
17
VCC
Control card 5V power output
18
MO
Main oscillator switch signal. TTL output
19
AP
Power amplifier switching signal. TTL output
20
PRR
Repeat the pulse frequency signal. TTL output
22
RedPt
The red light of the laser indicates the signal. TTL output
23
EMSTOP
Emergency stop switch signal. TTL output
13,24,25

This foot is floating, not connected
