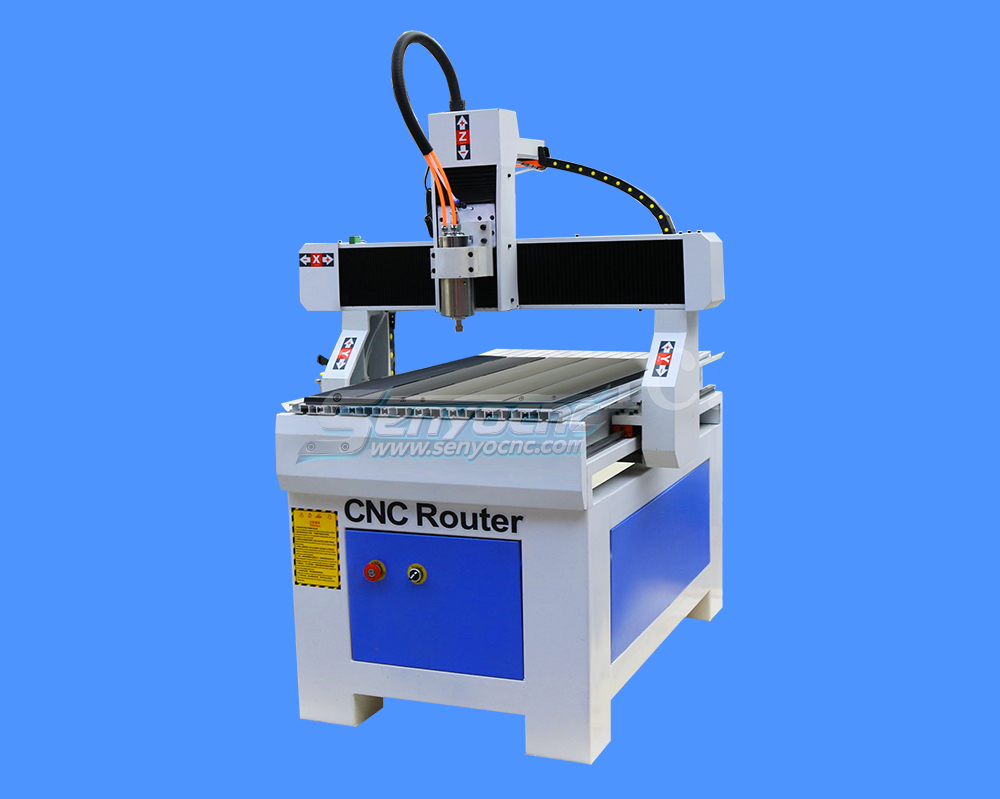

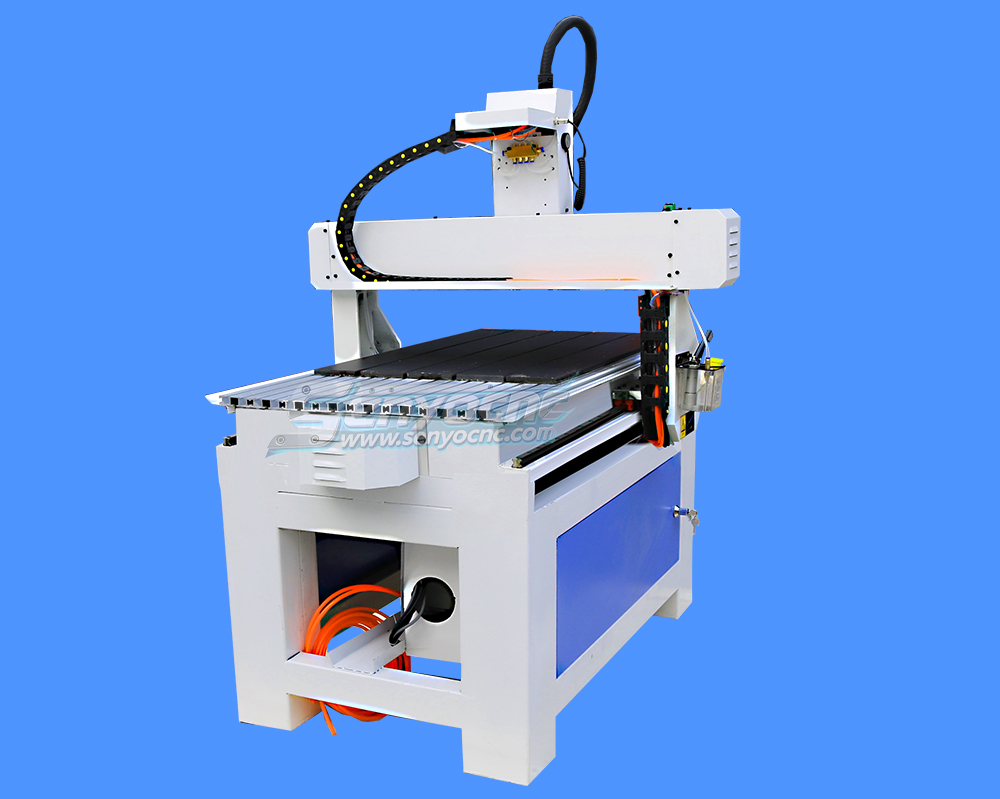

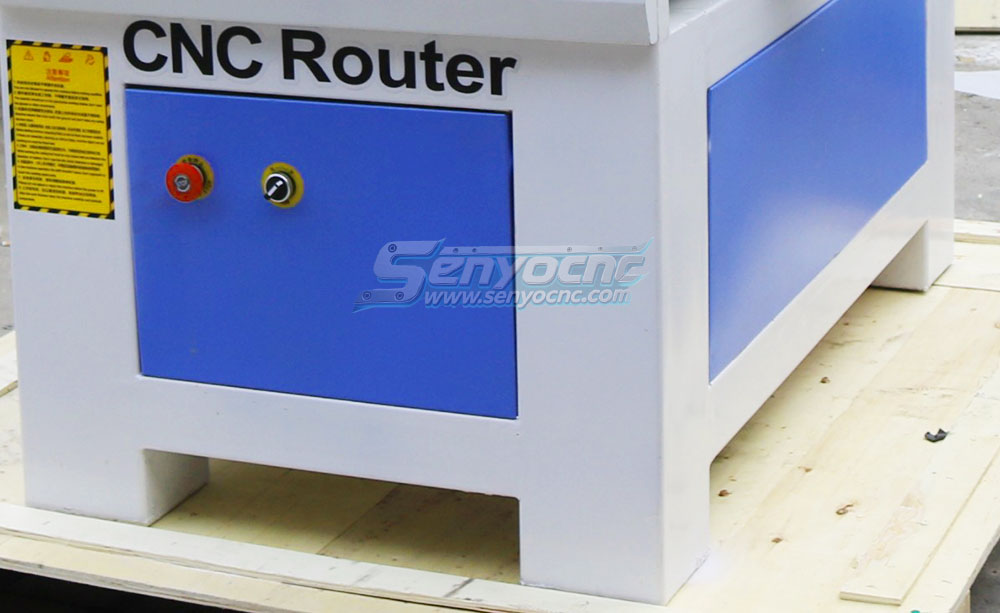

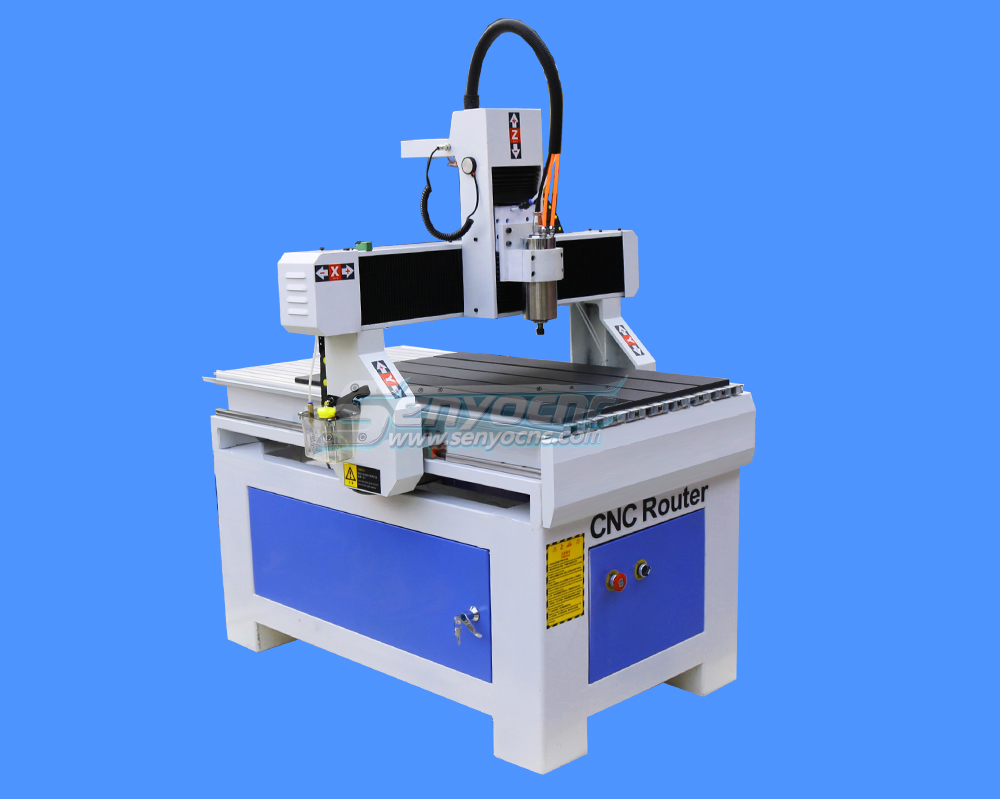

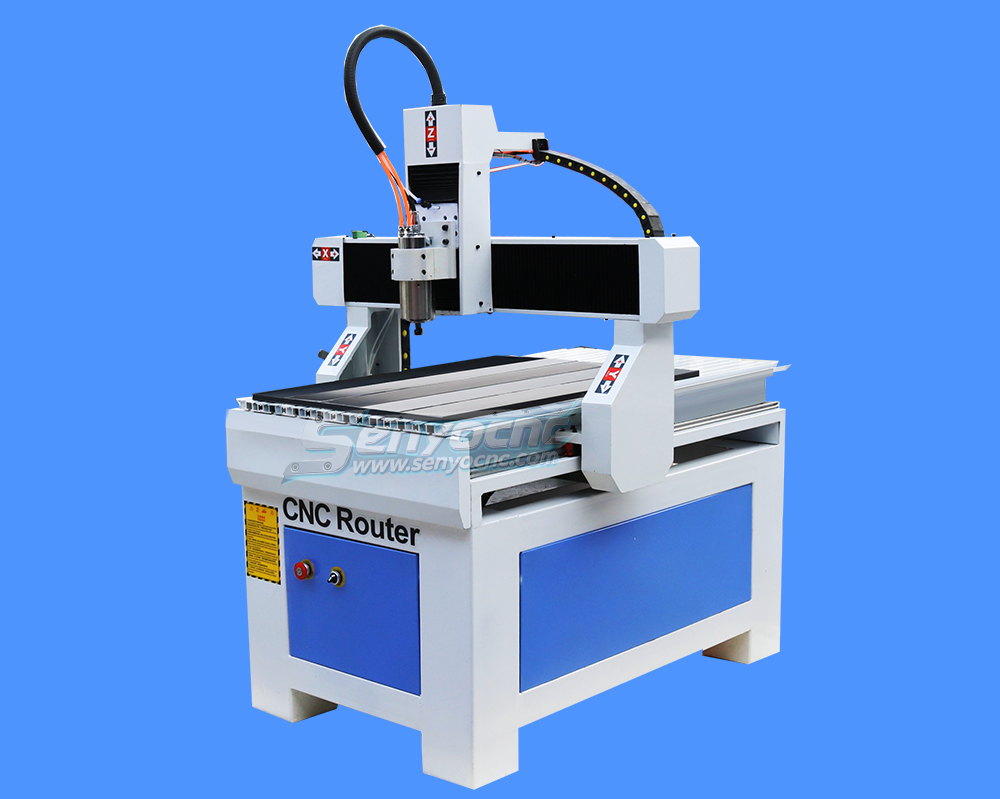

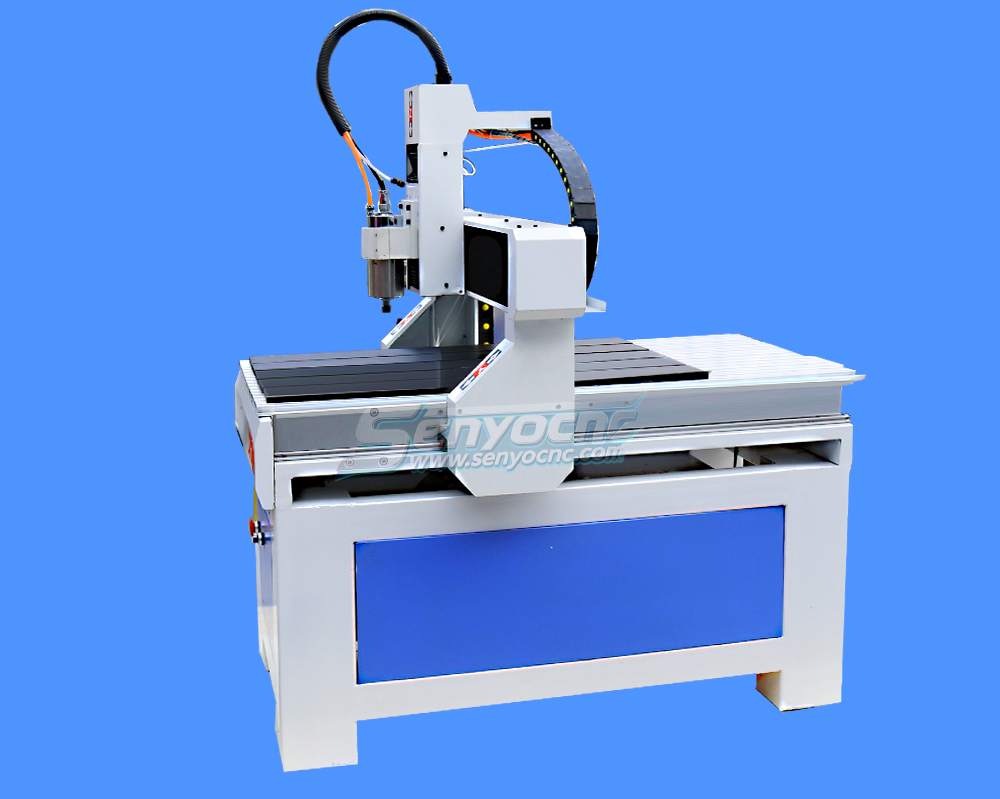

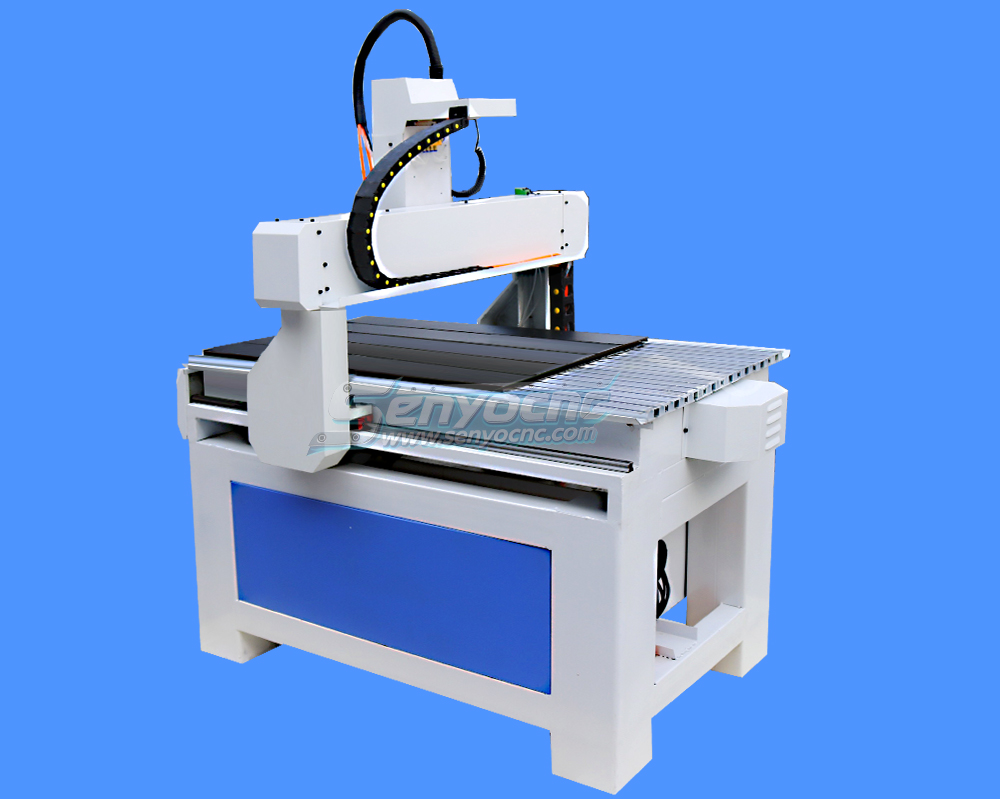

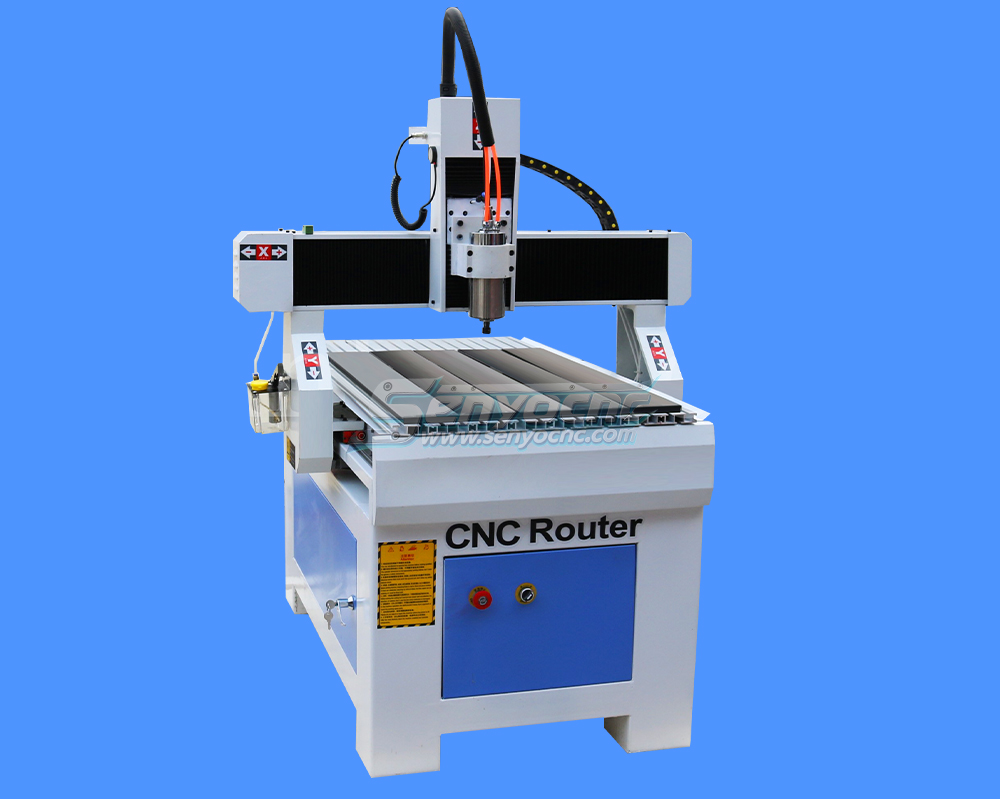

Machine Feature
1. Small body, takes just little space.
2.Popular in art and crafts industry.
3.Taiwan TBI ball screw for X, Y, Z axis
4.Option Parts water tank and cutter cooling system, this machine can process machine material such as stone, wood, acrylic, plastic, metal, and so on.
Configuration
* CE standard
* 2.2KW HQD/GDZ Air cooling spindle, ER20

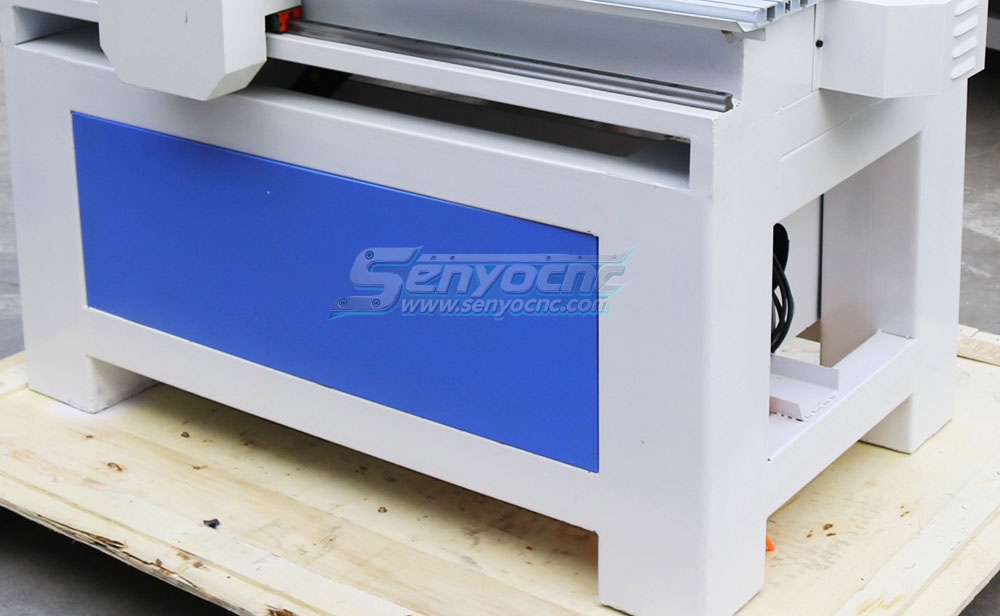

* Heavy cast iron body
*X and Y axis, Z axis Taiwan TBI ball screw transmission
* 20mm Heavy-duty Taiwan TBI Series linear bearing

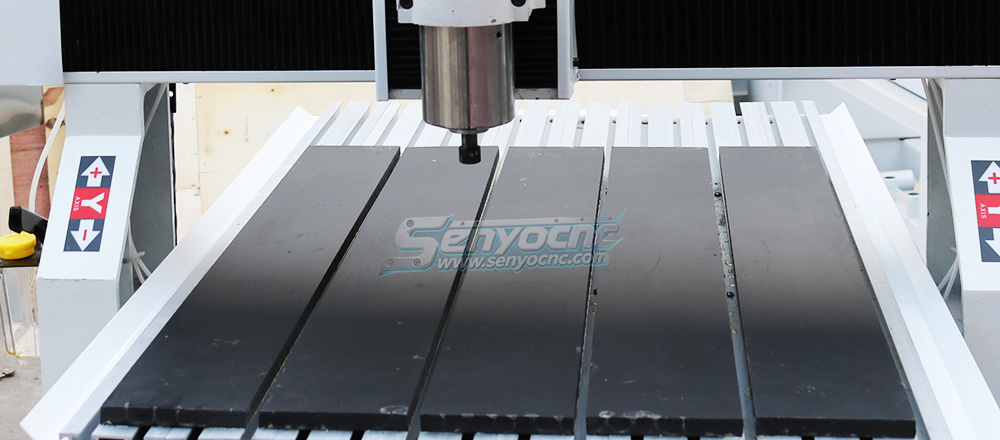

* Aluminum table+T-solts
* 3axis ncstudio control system
* Stepper motor and drivers system
* BEST 2.2KW frenquency drive
* Solid State limit switches
Functional Characteristics
1) Imported ballscrew from Taiwan and imported linear square orbit.
2) Performance in continuing engraving after point and blade breaks.
3) Special saving mode of different points.
4) The cutting with large power spindle does not only increase the fineness of engraving but also cut into 2 cm freely.
5) It is mainly used for the funiture making, sign making, crafts
making, architecture mould, identity industry, school, enterprise and
government.
Applications and materials
It
is widely used in processing wood, acrylic, dual color board, plastic,
stone, glass, metal (aluminum, brass, stainless steel), wood, acrylic,
dual color board, plastic, stone, glass as well as many other nonmetal materials, and can do perfect 2D/3D carving or cutting.
Applications Industry
1. Wood furniture industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry:advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds.
as well as artificial marble, sand, plastic sheeting, PVC, wooden planks and other non-metal materials.
4. Relief sculpture and 3D carving
5. Cylindrical objects.
Technical Parameters
Machine Model | SYM6090-3Axis CNC Router |
X Y Z Traveling Area | 600*900*200mm |
Table Structure | Aluminum T-slot worktable |
X Y Z Transmission | Taiwan TBI Ball Screws |
X Y Z Guide Rail | Square Rail |
Spindle Power | 2.2kw(1.5kw or 3.2kw for option) |
Max Spindle Speed | 24000r/mm |
Max Traveling Speed | 7200mm/min |
Max Working Speed | 5000mm/min |
Processing Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Driving System | Stepper Motor(Servo Motor for option) |
Command Language | HPGL, G Code |
Operation System | Mach3/DSP/ Ncstudio |
Working Voltage | AC220V 50Hz or custom made |
Net Weight /Gross Weight | 300KGS /350KGS |
Working Sample Projects

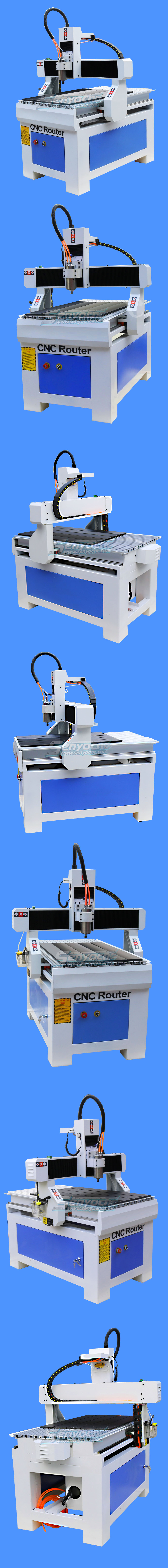

CNC Router Machine Package
Packaging Details:
• Outside package: Standard marine export plywood case.
• Inner package: Stretch film and plastic film for humidity.
We can package according to your requests.
Troubleshooting
Error 1: After opening the software, the computer prompts "Cannot open the card, query card prompt".
1. Check whether the driver of the board is installed properly, or change the board to a PCI slot.
2. Reinstall the two data cables and check if there is any broken needle.
3. Replace the board.
Error 2: Open the software prompt: Three-axis alarm, initialization error signal.
1. Check whether the two data cables of the computer and the machine are connected properly.
2. Check whether the fuse of the adapter board in the control box is burned out, and replace the fuse.
3. Check whether the power supply is normal.
Mistake 3: The routing is misplaced or the size is wrong.
1. Check whether the path of the routing software is correct or not.
2. Check the gap size of the screw rod and whether the fastening screw of the polished rod is loose.
3. Check whether the software parameters are set correctly.
Error 4: The spindle motor does not rotate or reverse.
1. Check the inverter parameter settings.
2. Check whether the signal wire of the inverter is connected reversely.
Error 5: The phenomenon of smashing the bit occurred.
1. The power of the Z-axis motor is not enough, and the coupling is loose.
2. The current of the Z-axis driver is too small, or the signal wire is connected incorrectly.
Buying Considerations
The right CNC machine for your project is going to provide a higher margin on ROI and is a valuable investment for the future. So, a versatile CNC router is always going to support you financially. Some key factors can assist you in finding the best CNC router model for your business. Have a look at them.
• CNC routers are available for various industries. Therefore, assess your needs according to the type of your projects and materials.
• Keep in mind the volume of your projects as well.
• Balance between cost and features. Consider the long-term value of investment while choosing your model.
• A promising warranty assures a better quality of the machine.
• Look for brands providing training resources and community support.
Warranty And Service
• 24 months whole machine warranty and maintenance for a lifetime.
• Free installation and testing before shipping and free training for operators
• Advice for the best CNC solutions for customer's requirements.
• Free training and sample making.
• 7/24 free service and support.
