Advantage

1.Professional design for cutting metal materials, such as Stainless Steel, Aluminum, Brass, etc.

2.High configuration, high cutting speed and precision.

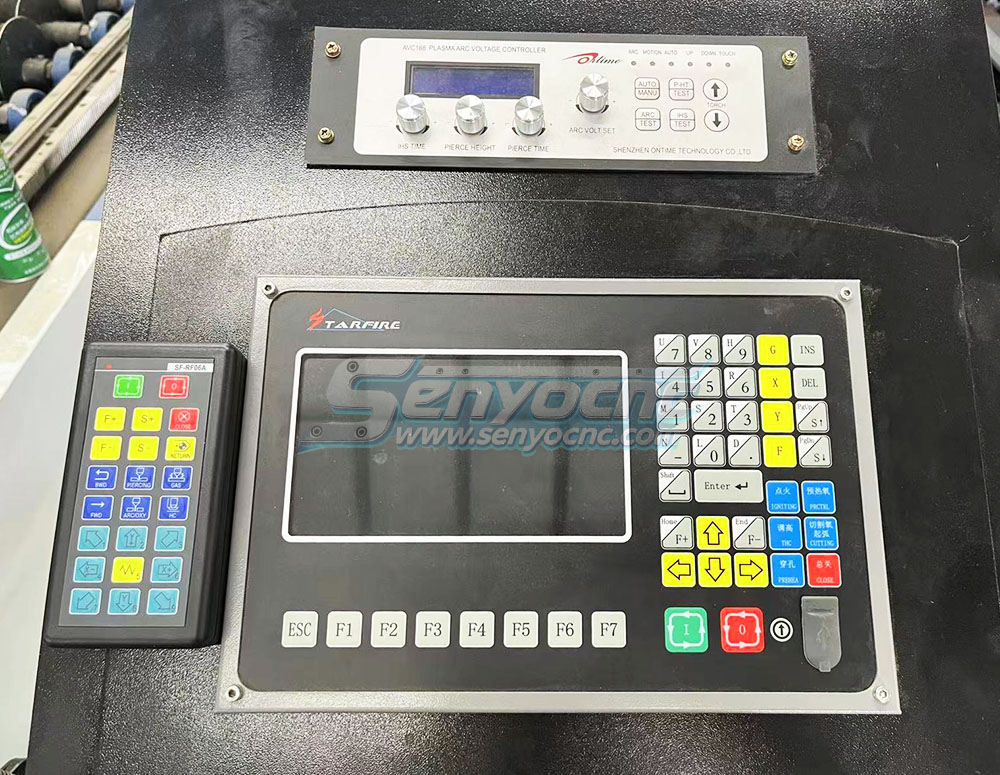

3.Control system: DSP handset / Starfire control, with USB interface.

4.Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.

5.File format: G-code.

6.Suitable Software: Fastcam, Type3, ArtCAM.

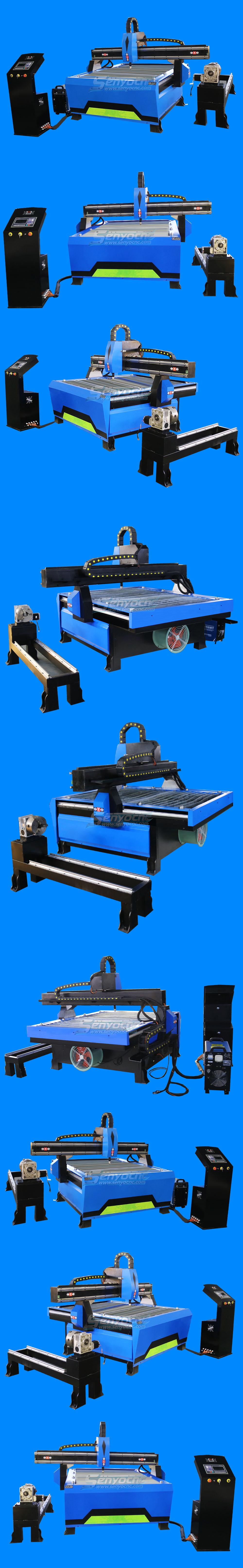

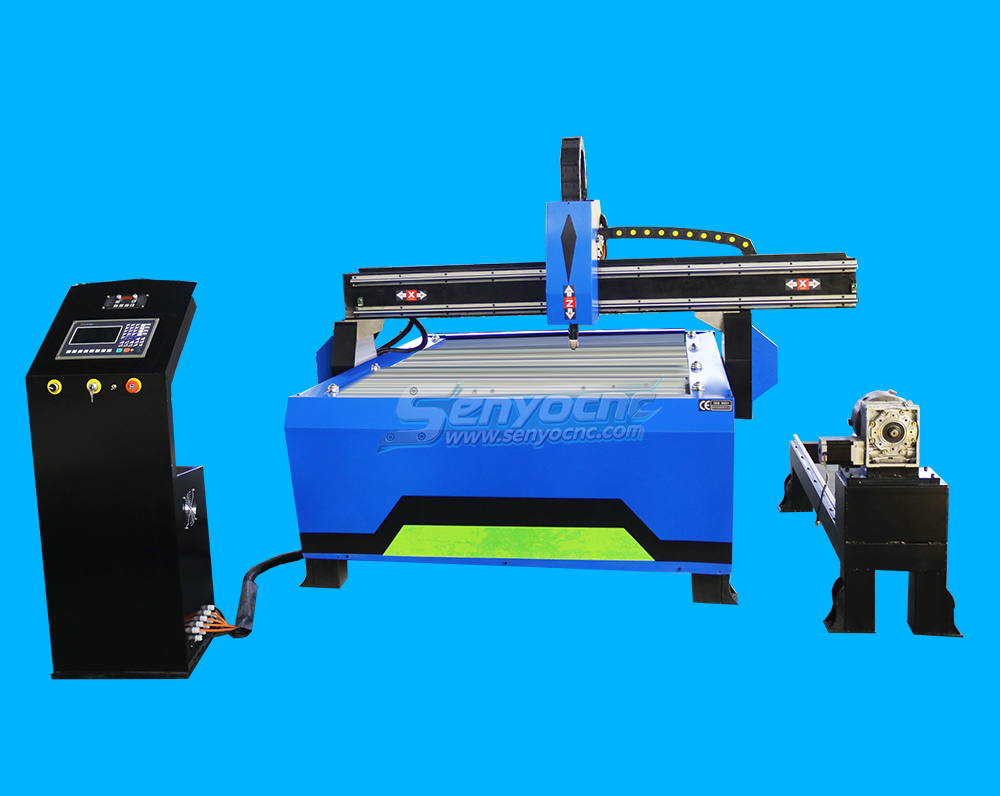

More Models For choice

Machine Features

1. Welded lathe bed of thick-wall profiled steel, more solid and stable.
2. Reasonable lathe table design, thicker steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.
3. The level difference of whole double-deck platform remains in 0-1.5mm.
4. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.

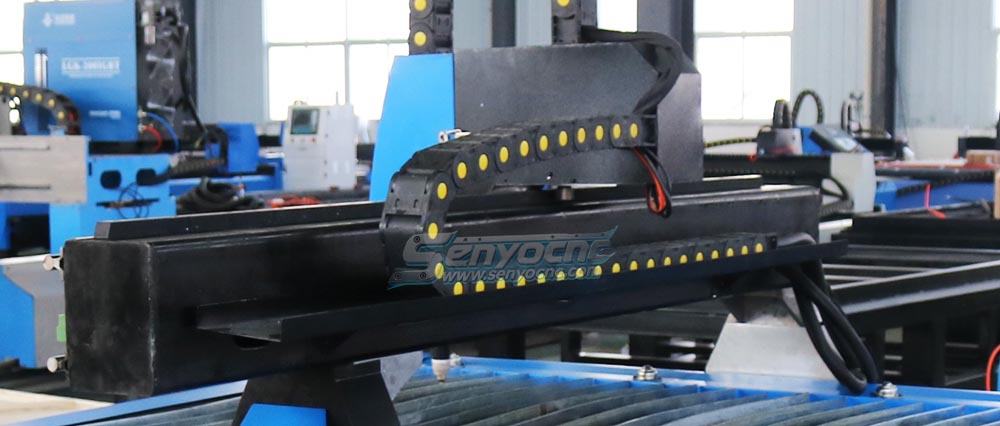

5. High accuracy and speed rack transmission.
6. Lower noise, stable and accurate coordinates movement.
7. Fastcam software professional for metal sheet tube cutting.

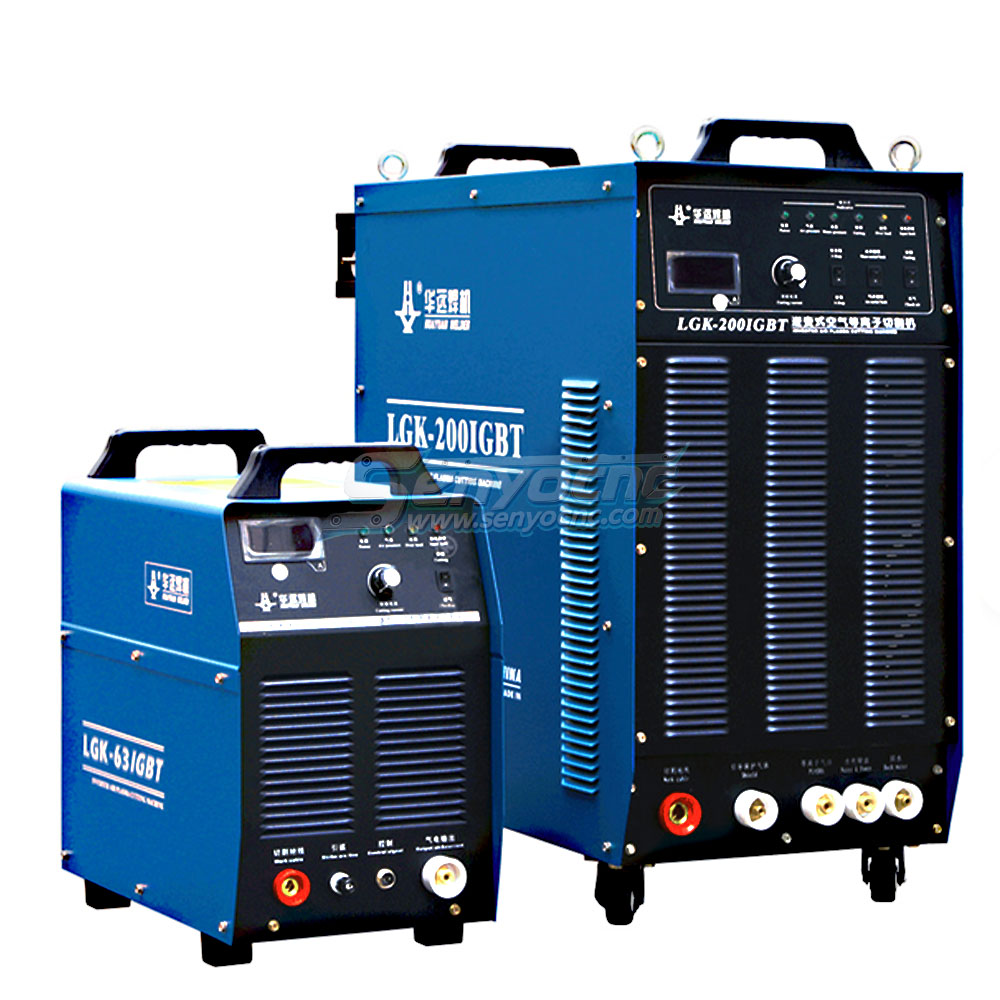

8. power supply together with high sensitive Touch Height Controller. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
9. Best choice for all kind of different thickness material and heterotypic sheet cutting.

CNC Plasma Cutter Applications & Projects

Compared with mechanical cutting, plasma cutting is much faster and easier to cut metal. Its unique features of high speed, high efficiency, high kerf finish, and wide applicable cutting range make it easy to fast-cut carbon steel, mild steel, tool steel, stainless steel, silicon steel, aluminum, titanium, copper, brass, alloy, pickled sheet, galvanized sheet, iron, and more metal materials.

It is used in sheet metal & tube processing, aviation, electronics, shipbuilding, aerospace, elevators, subway parts & accessories, auto parts, machinery manufacturing, precision accessories, metallurgical equipment, tool making, household appliances, arts, crafts, gifts, advertising and decorations, and is gradually replacing the dominant position of flame cutting in some fields.

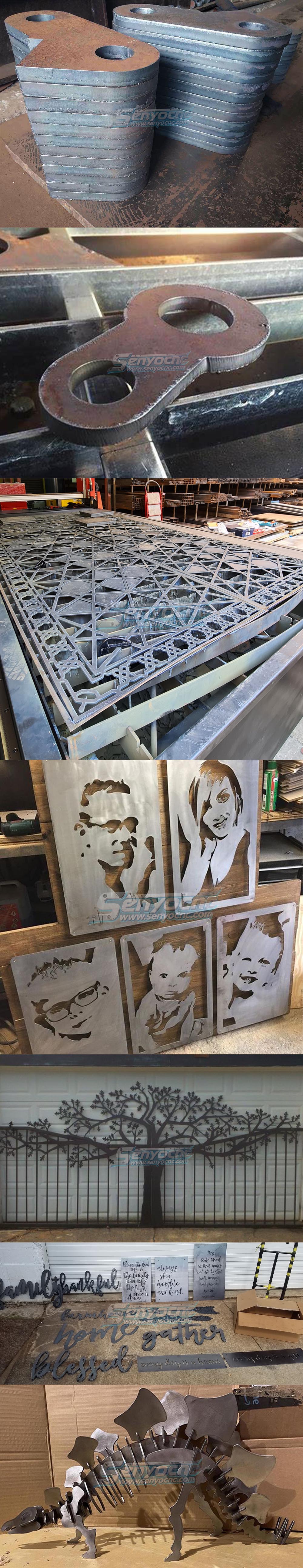

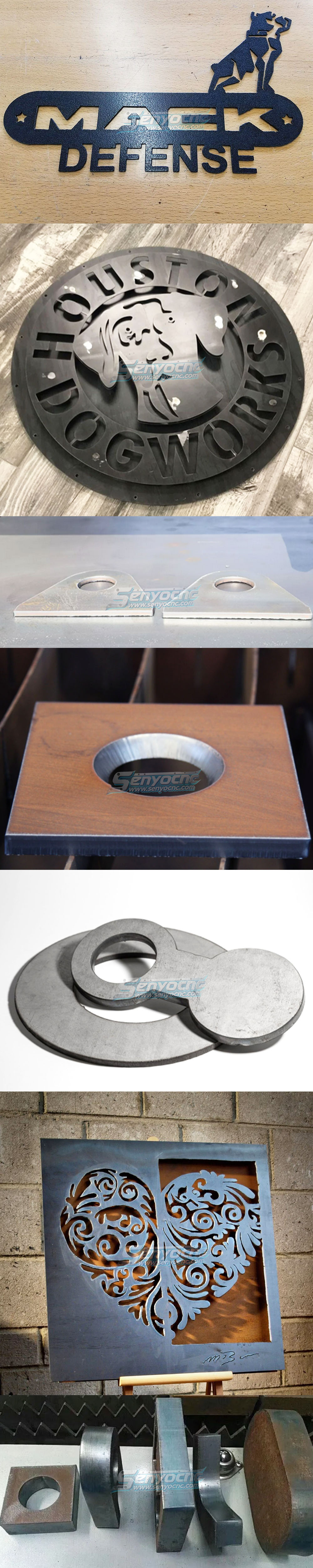

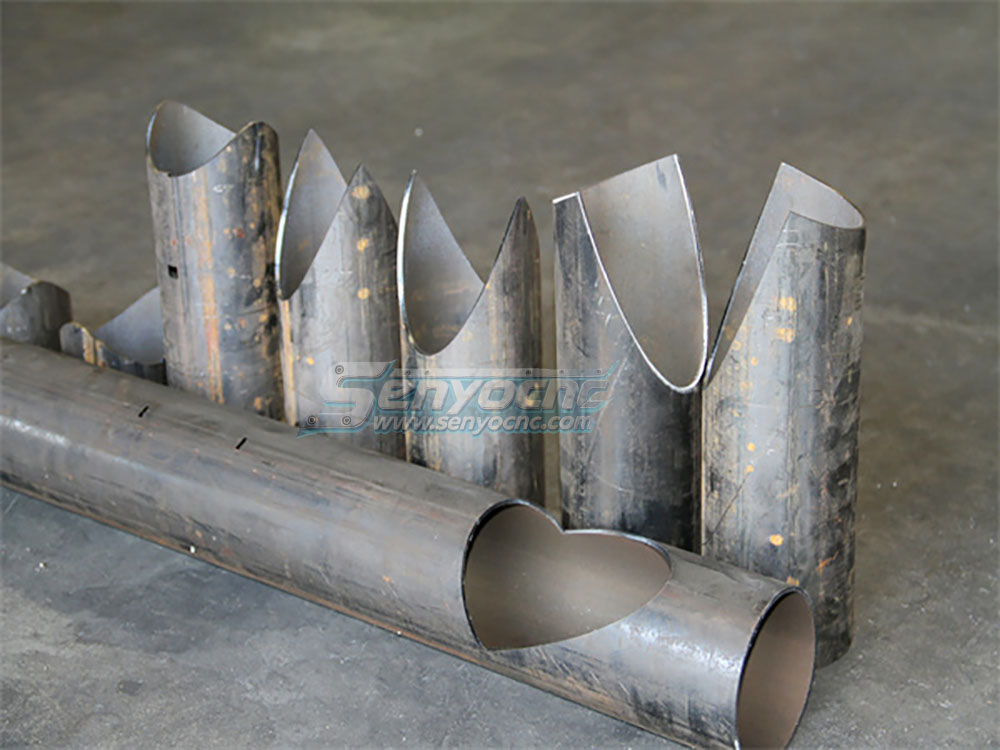

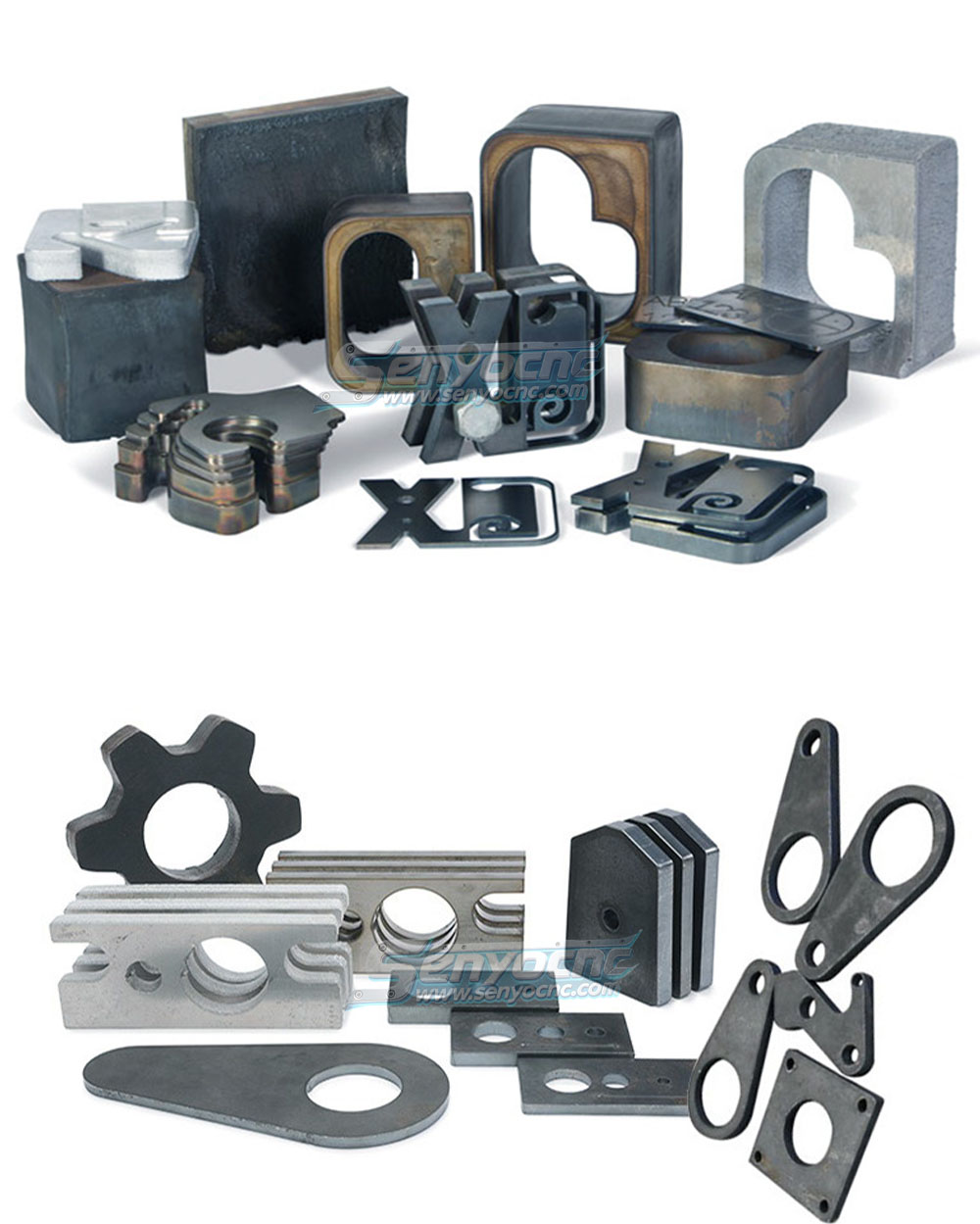

Working Samples Projects

Pros & Advantages

✔ Consumable parts have the longest life in the industry.

✔ Pilot arc circuit increases pilot arc current precisely when needed, significantly reducing nozzle wear.

✔ The Hypertherm quick-disconnect torch assembly provides easy switching between hand torch and machine torch, and it also features a stress-relief design for durability.

✔ Ease of Use - Easy and convenient gas regulation and current regulation.

✔ Very safe to use When the wearing parts are removed, the interlock device will prevent the machine from starting.

✔ With a special voltage fluctuation compensation device, there is no need to worry about the impact of voltage fluctuations on the machine.

✔ All equipment is equipped with a standard CNC/automatic machine interface, enabling automatic control and quick transfer to machine operation.

✔ New "fan on demand" function minimizes dust inhalation.

✔ Torch lead sheath made of AC chemistry resists jet and cut-through capabilities of molten metal.

✔ Accurate fault alarm indicator light makes it easier for you to operate and maintain.

✔ Auto-voltage™ automatic voltage regulation capability, which can automatically adapt to various input power sources of 200V-600V and three-phase.

✔ Coaxial-assist™ technology increases cutting speed.

✔ The Boost Conditioner™ input voltage compensation circuit compensates for fluctuations in the input voltage, which improves the performance of low-voltage lines, motor generators, and input power (fluctuations).

✔ Design for reliability improves downtime and greatly reduces investment.

✔ CNC interface and Easy Torch Removal (ETR™) are versatile for both handheld and machine use.

Cons

✔ Higher price than ordinary plasma power supply.

✔ Compared with the fiber laser cutting machine, the plasma cutting gap is larger, the cutting end surface is rougher and not smooth enough, and the cutting precision is lower.

Safety Considerations

Safety measurements are very important steps while working with plasma cutters. Plasma cutting involves high-temperature electrical currents which come with significant safety hazards. Proper safety measures are a must to avoid any unwanted exploration.

A few probable hazards that can occur due to the lack of safety considerations are,

⇲ Risk of high voltage electric shock

⇲ A densely heated plasma arc can cause fire and eventually potential to burn

⇲ Hazardous gases and fumes can cause severe health issues

⇲ Risk of eye injury from UV radiation

Now the 5x10 Hypertherm Plasma Cutter is equipped with various safety features. To minimize risk and ensure safe operation several features are added. Such as,

⇲ Thermal overload protection

⇲ Emergency stop button

⇲ Machine Guarding

⇲ Voltage monitoring system and

⇲ Safety interlocks

Proper training and availability of safety equipment including PPI and Glasses are recommended before start using the plasma cutter.

Environmental Impact

Like any industrial process plasma cutting can impact the environment to a great extent. It is necessary to consider the environmental impact of plasma cutting to minimize the chances of affecting our environment badly.

Plasma cutting can result in several environmental changes including,

⇲ Air pollution due to excessive fume, smoke, and bi-product

⇲ Uncontrolled usage will affect excessive power consumption

⇲ Off-cuts and scrap materials can be responsible for polluting the environment directly

⇲ Additional water usage as coolant and the chemical bots mixed within water particles can contaminate it to a greater extent

It is a matter of hope that the advanced technology of the Hypertherm plasma cutter utilizes electricity consumption. Implementing strategies to minimize wastage and emissions can help save the environment from pollution. Optimizing the machine parameters will also make a helpful impact on overall environmental detoxification.

Packaging Details

• Outside package: Standard marine export plywood case.

• Inner package: Stretch film and plastic film for humidity.

We can package according to your requests.

Warranty And Service

• 24 months whole machine warranty and maintenance for a lifetime.

• Free installation and testing before shipping and free training for operators

• Advice for the best CNC solutions for customer's requirements.

• Free training and sample making.

• 7/24 free service and support.
