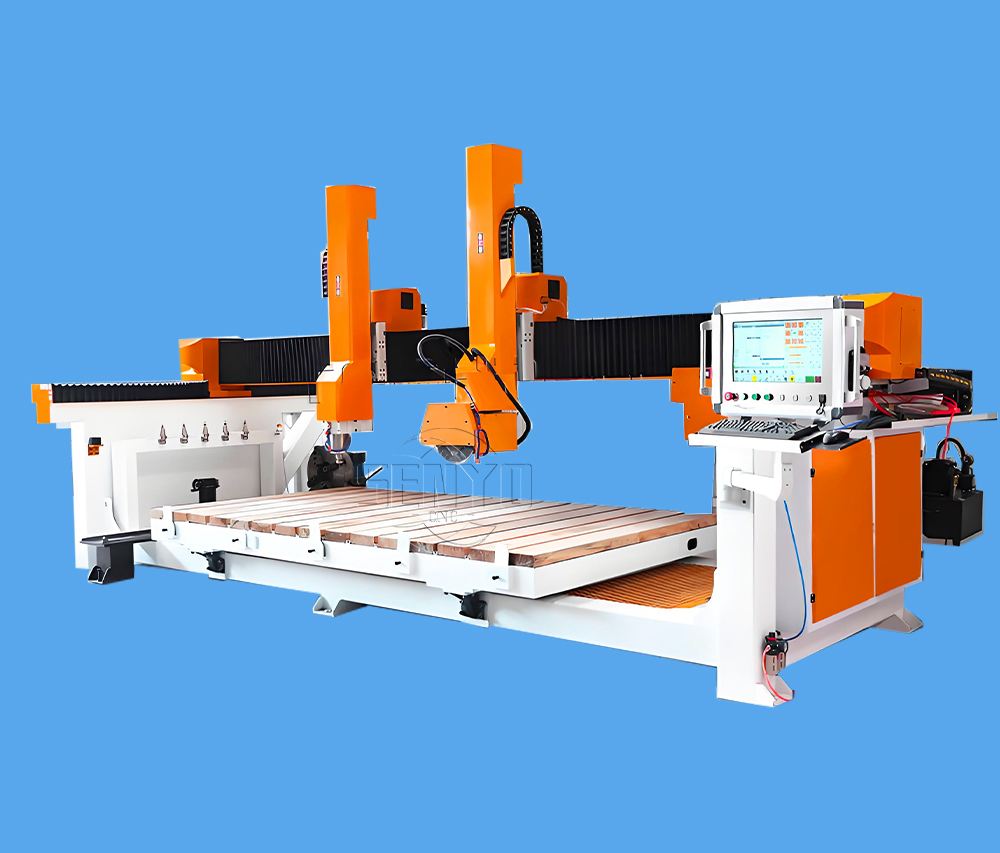

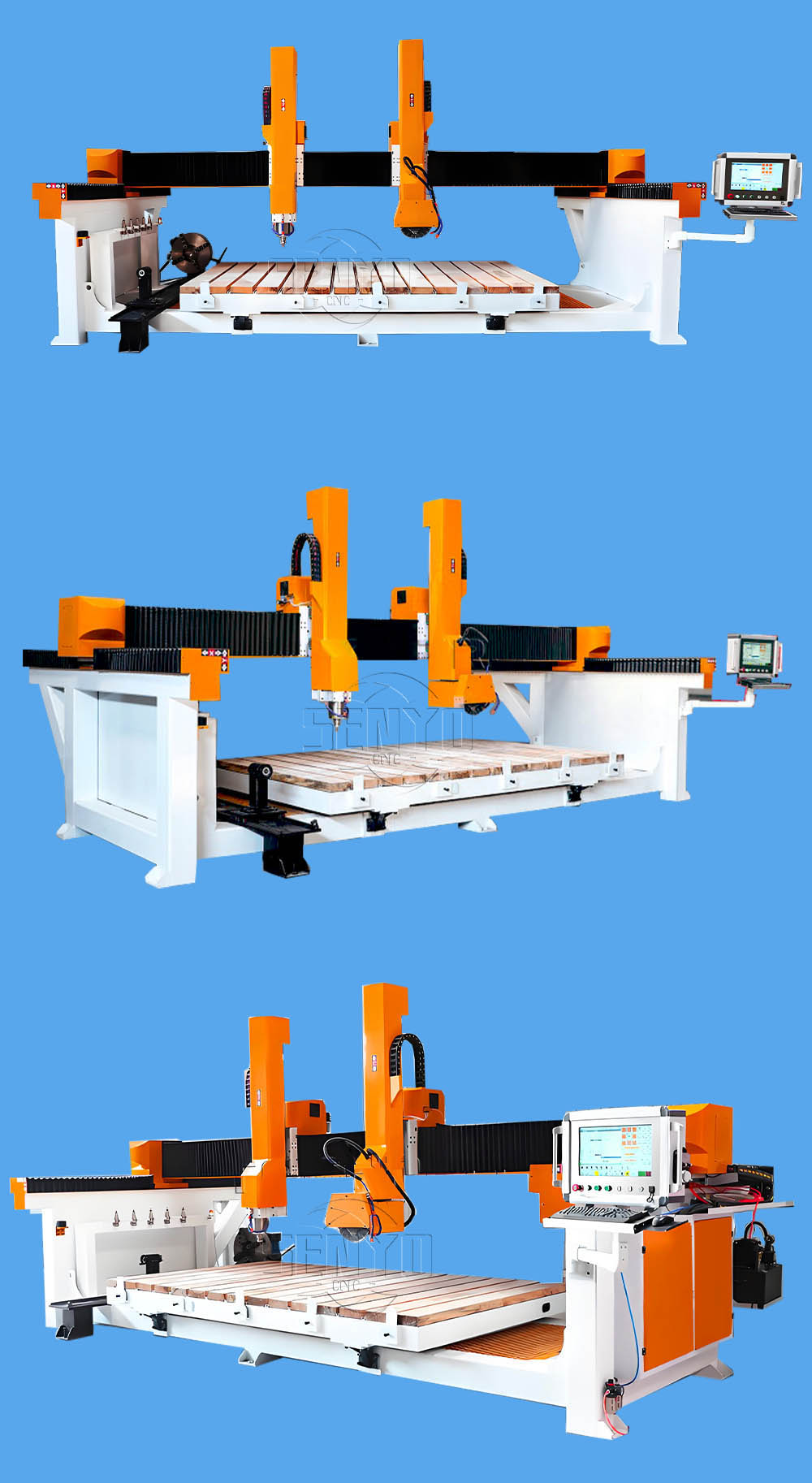

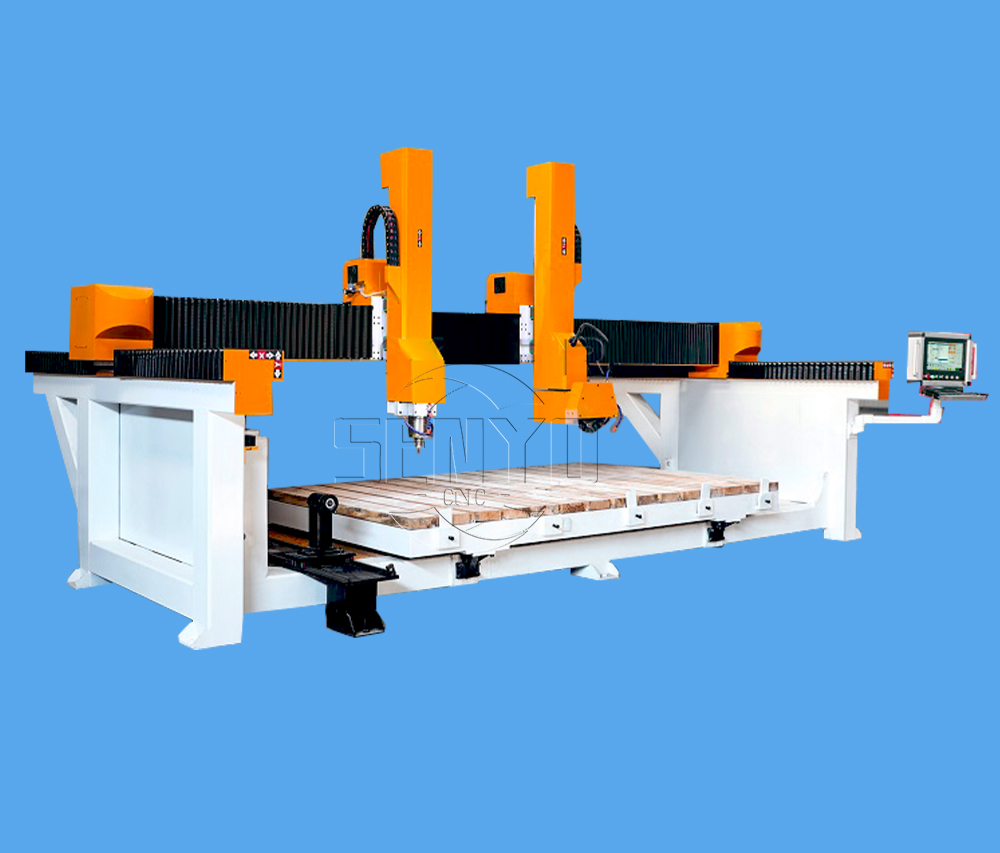

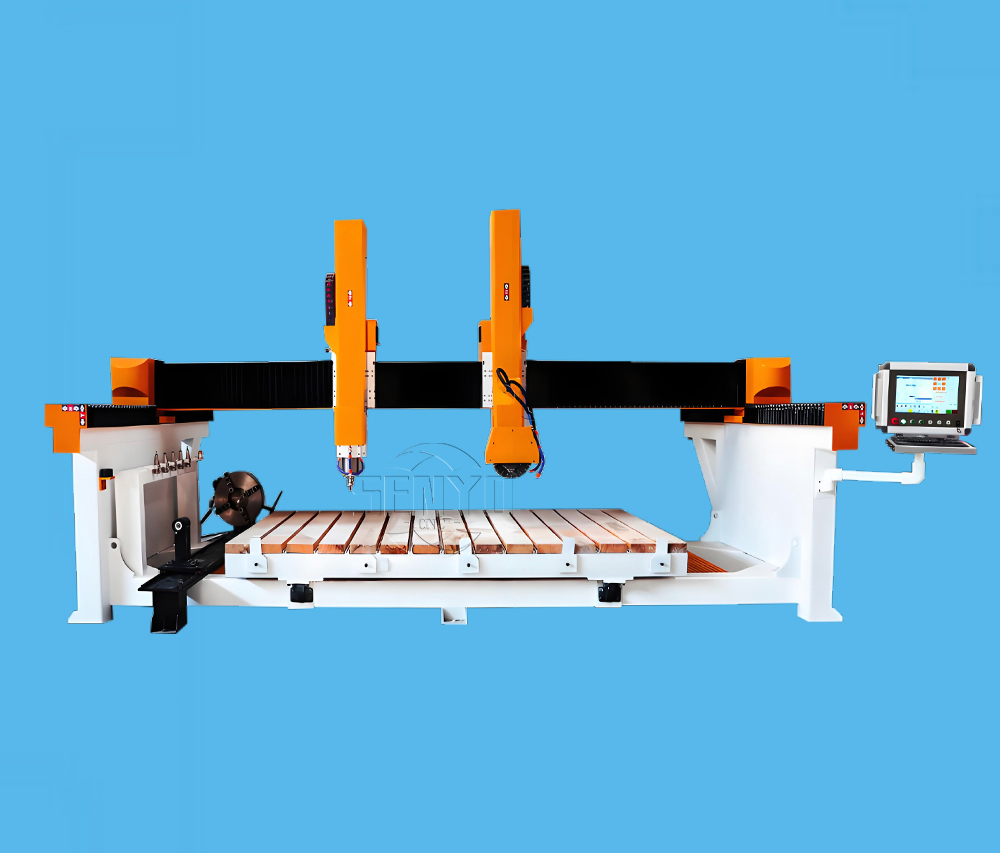

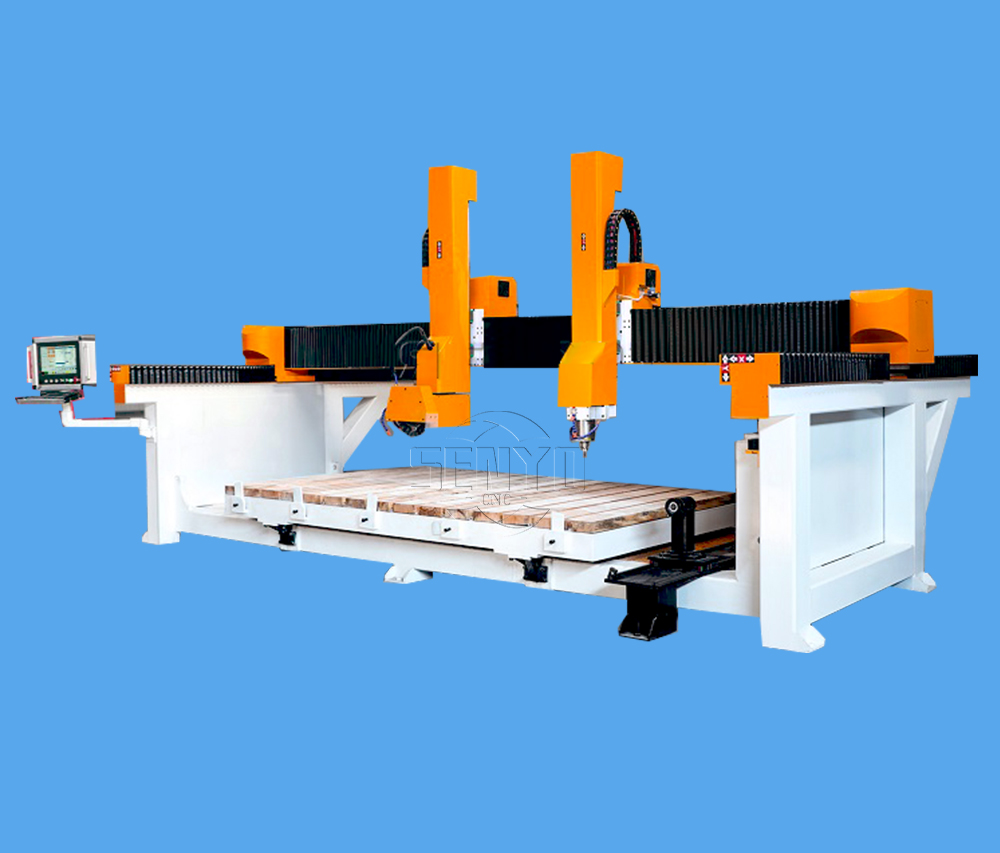

4 Axis Saw Stone CNC Router Features
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
Techology Paramaters
Model | SYS2032-2 Saw Spindle |
Working area | 3200*2000*1200mm (Optional 3000*1500*1200) |
Control system | 5 axis control system |
Spindle 1 | China HQD 12kw water cooling spindle ( 0-24000rpm ) |
Spindle 2 | China HQD 12.8kw saw blade head (Can rotate 0-180 degrees) |
4 Axis Processing | X Y Z C A axis |
Motor and Driver | Japan Yaskawa AC servo motor and driver 850W |
Inverter | Taiwan Delta inverter |
Table surface | Slide wood Lifting Table |
Structure | Heavy Duty 10mm steel machine bed; 18mm Moving Steel Gantry |
Lubrication system | Manual lubrication system |
Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI 3205 ball screw X,Y axis: Taiwan Hiwin square guide rails with 30mm |
Electric Parts | Schneider brand |
Software | Artcam/Ucancam / Aspire /Fushion360 etc |
Working Voltage | 380V or 220V /3phase/1 Phase |
Extra Functions | Double head type design |
8Pcs Linear Automatic tool changer | |
Automatic table turning | |
4 Axis rotary device diameter 300* length 2000mm |
Parts Detials

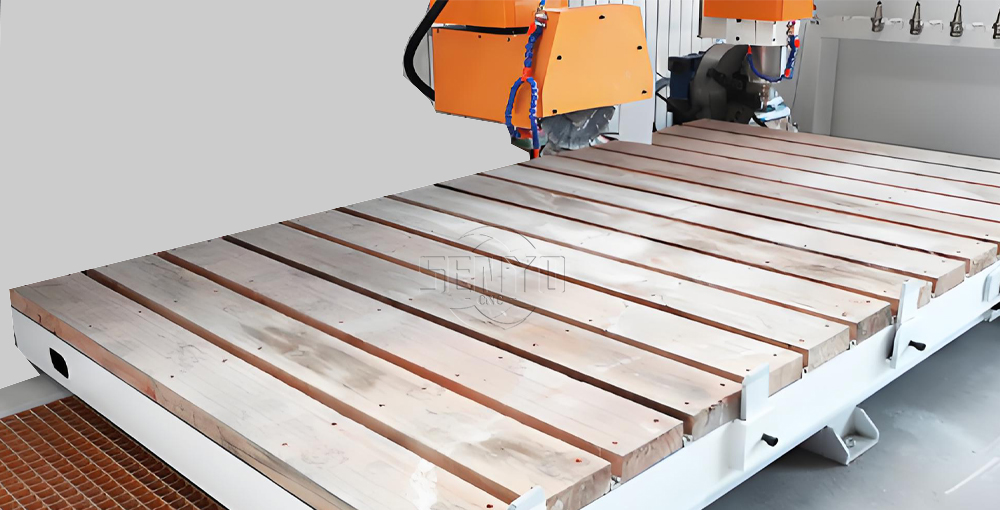

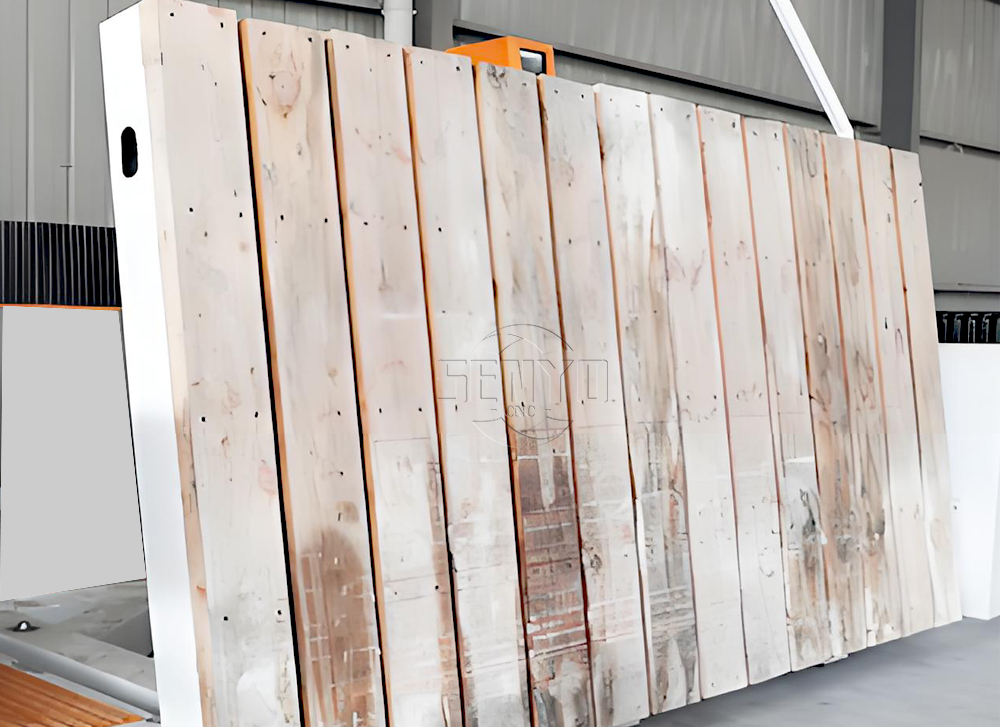

Solid wood Lift Table

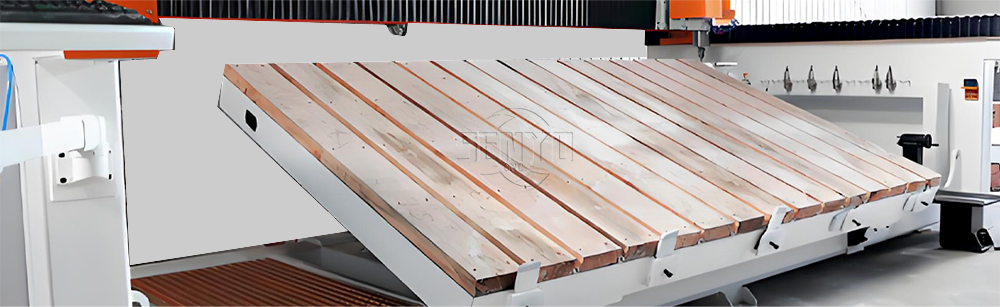

Table can be Flipped 0-85 degrees
3200x2000mm working area

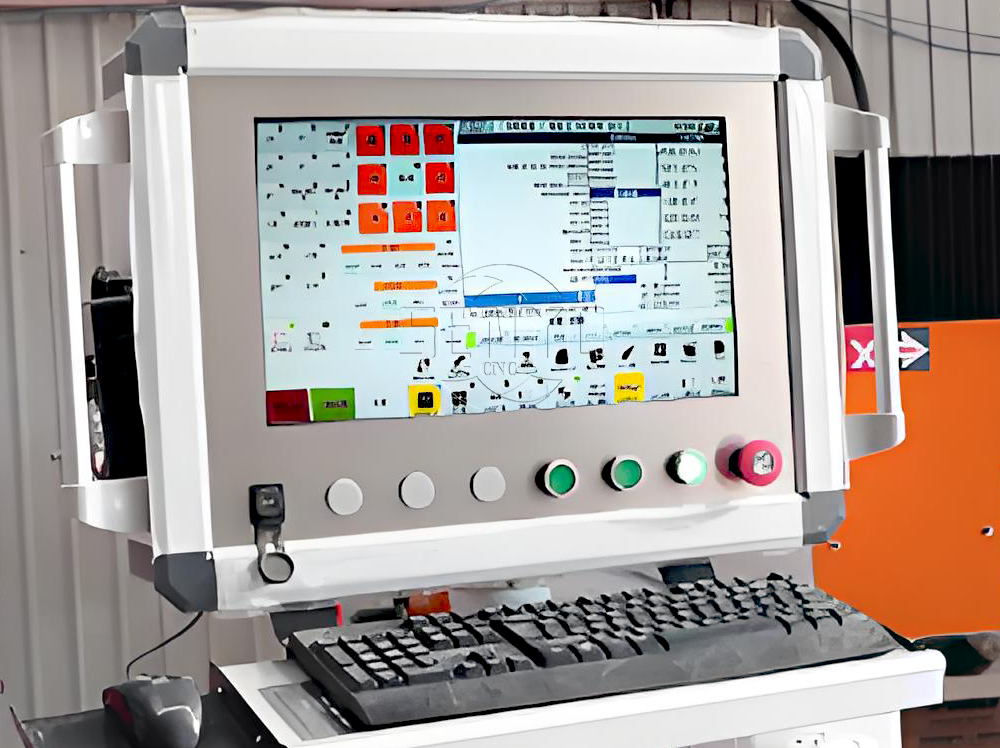

Taiwan LNC 6 Axis Controller
Automatic Lifting By controller

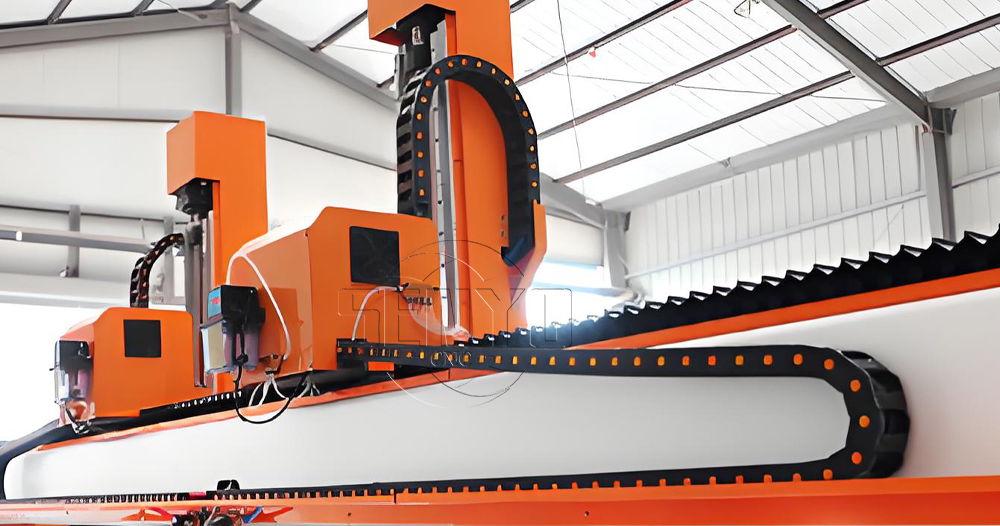

Heavy machine frame wuth Quenched Gantry

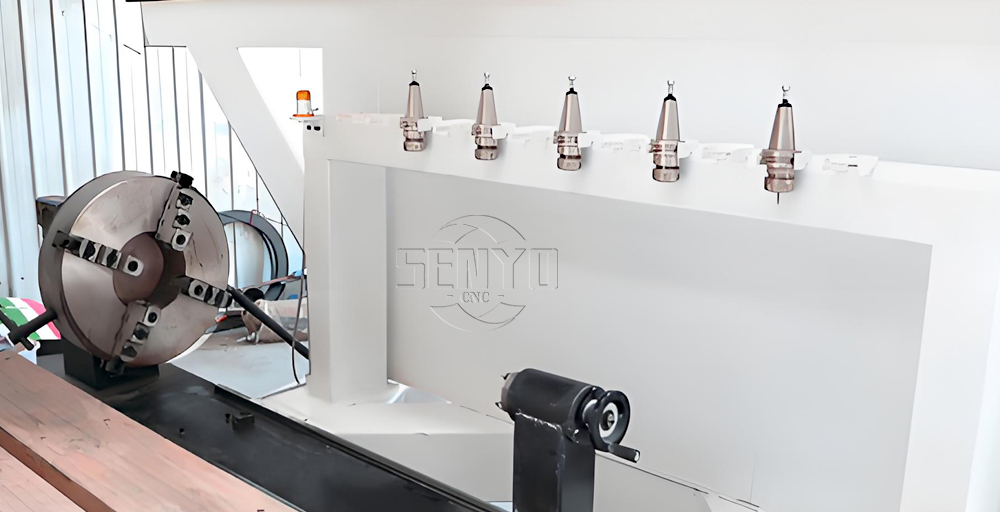

4Axis Rotary Device , Linear Tool changer 8PCS Holder

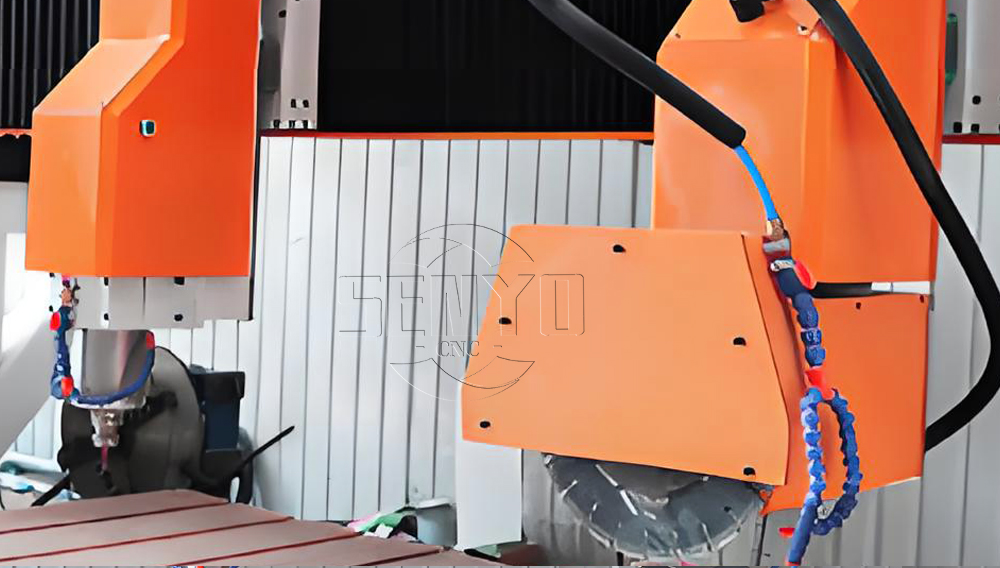

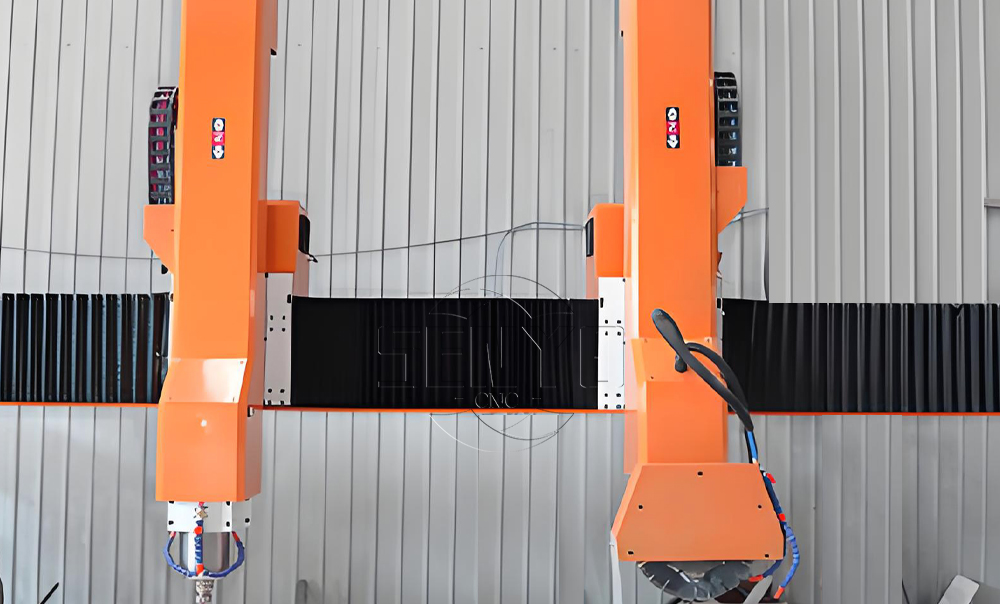

Double heads design , Double Process
HQD 12KW ATC Water cooling spindle , 12.8kw Saw Blade for Stone
The stone engraving machine is suitable for three-dimensional relief, pointed bottom engraving, flat bottom engraving, line engraving, chamfering, drilling, etc.
of various stones such as marble, granite, jade, bluestone, black stone, etc.
It is specifically used for stone
engraving, stone relief, stone positive engraving, stone negative
engraving, stone line engraving, stone cutting, stone hollowing.
It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.

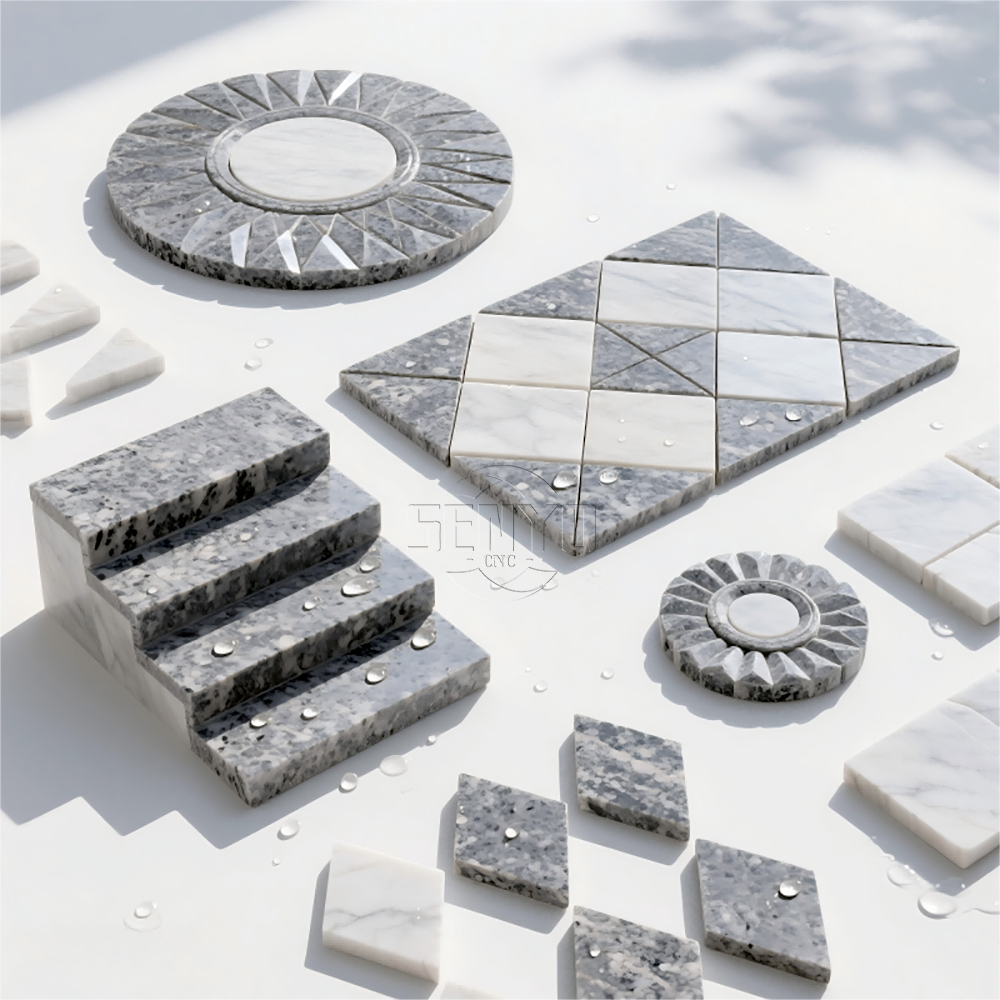

Working Project
For Our Work Steps
1.Before-sale,we will try to know your requirement what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.
Packing & Shipping
The machine is packed with great care and tough material.
The machine is packed with cling films first and then film bags.
The machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.
With this kind of package, all our laser machine can protect well during long trip by sea or by train.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. If you need any component of the machine, we will provide most affordable price for you.
5. Friendly English version manual and operation video CD disk.
