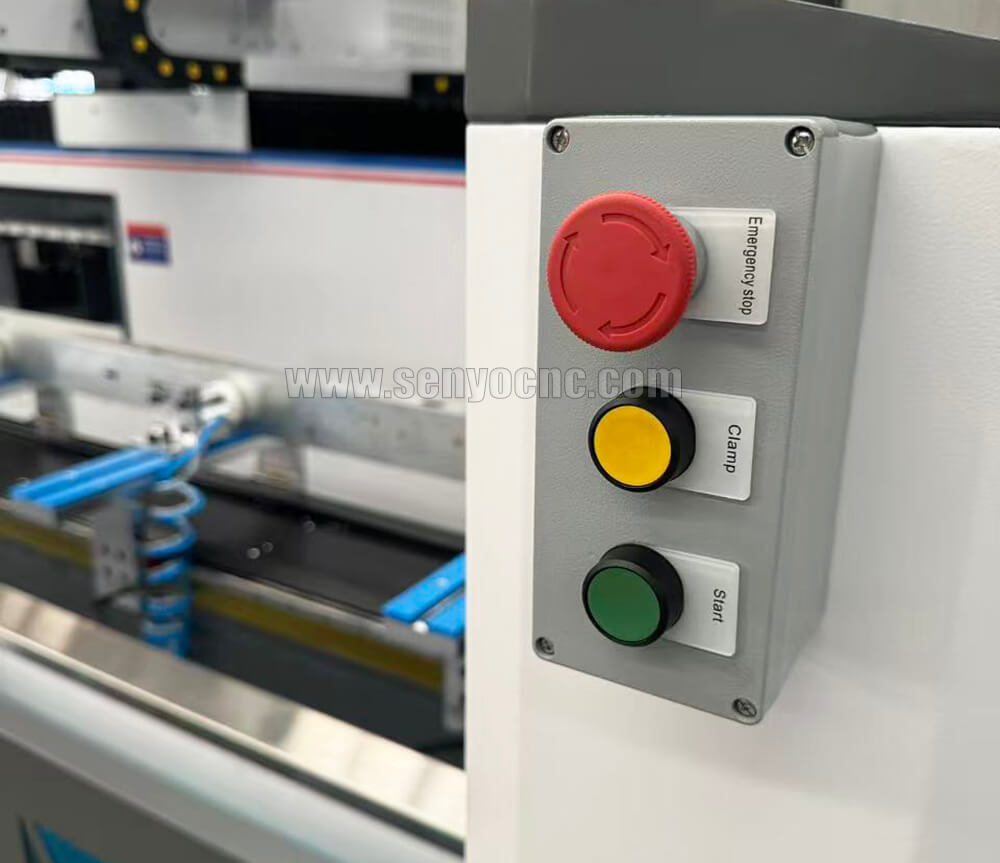

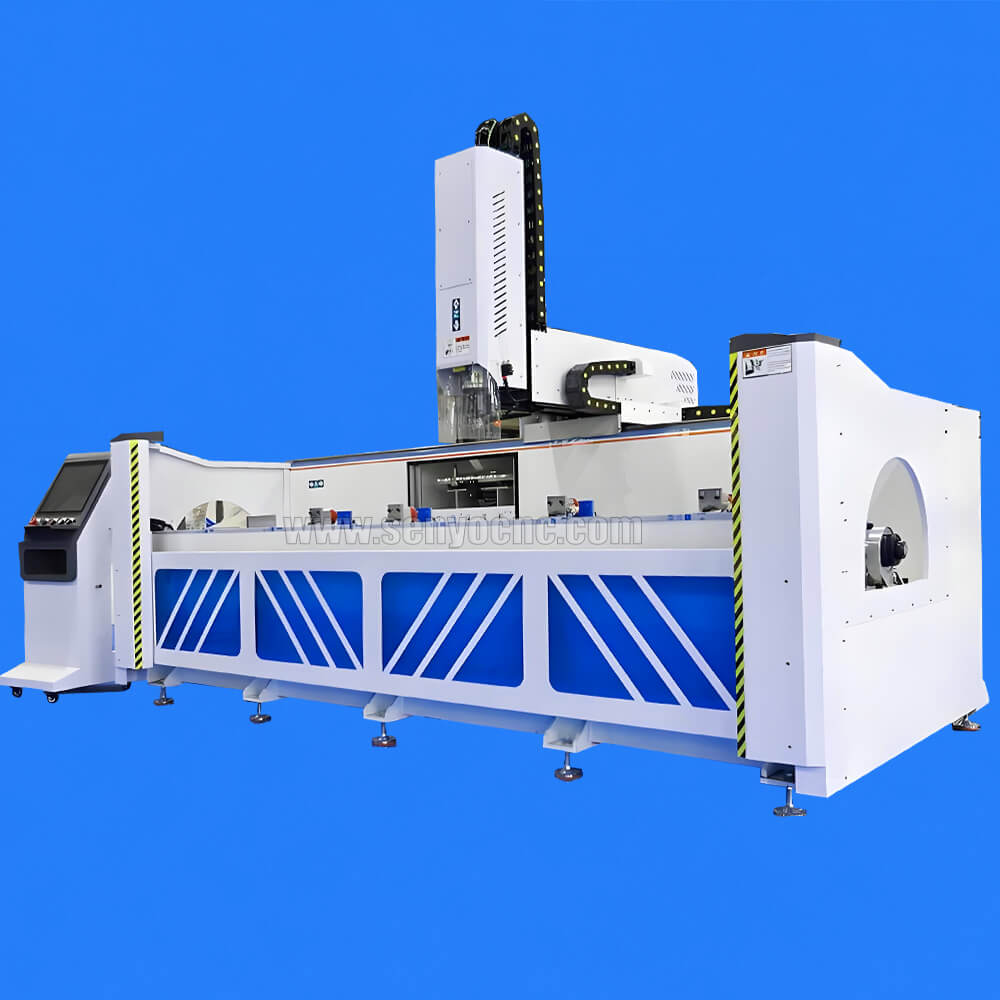

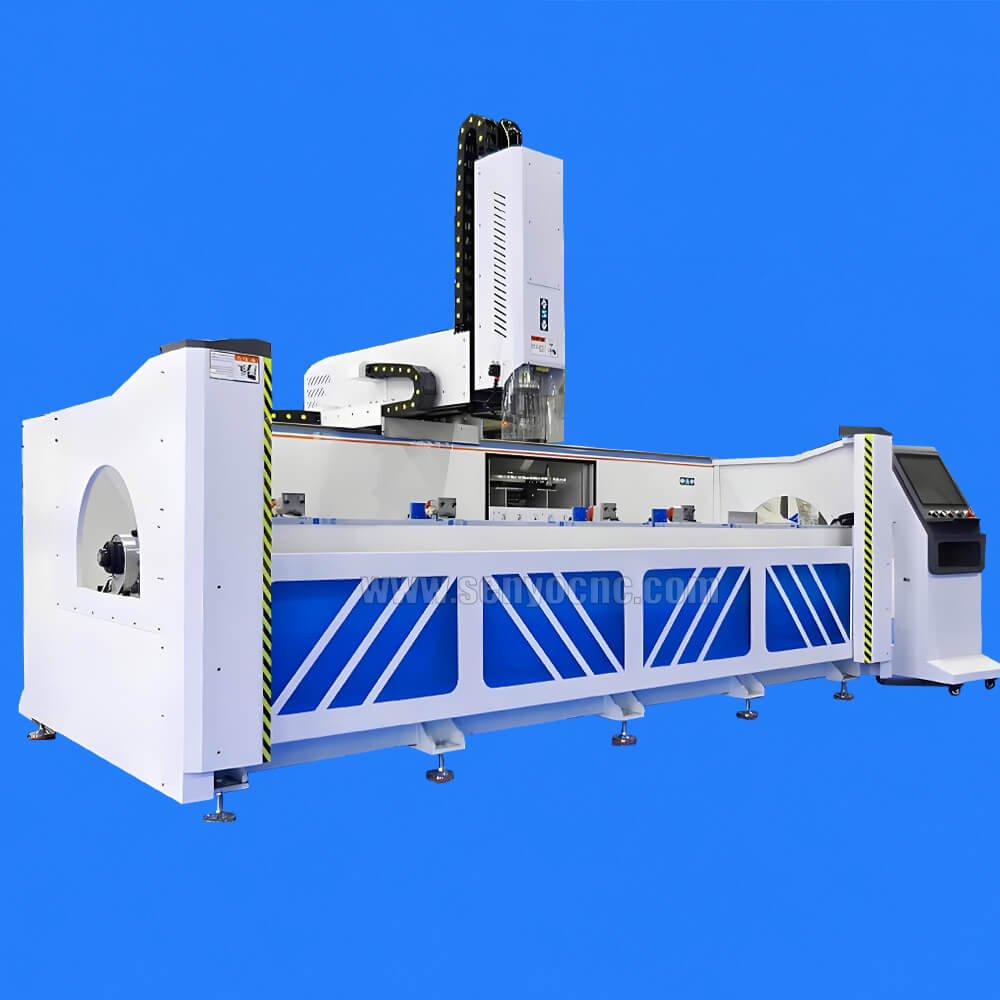

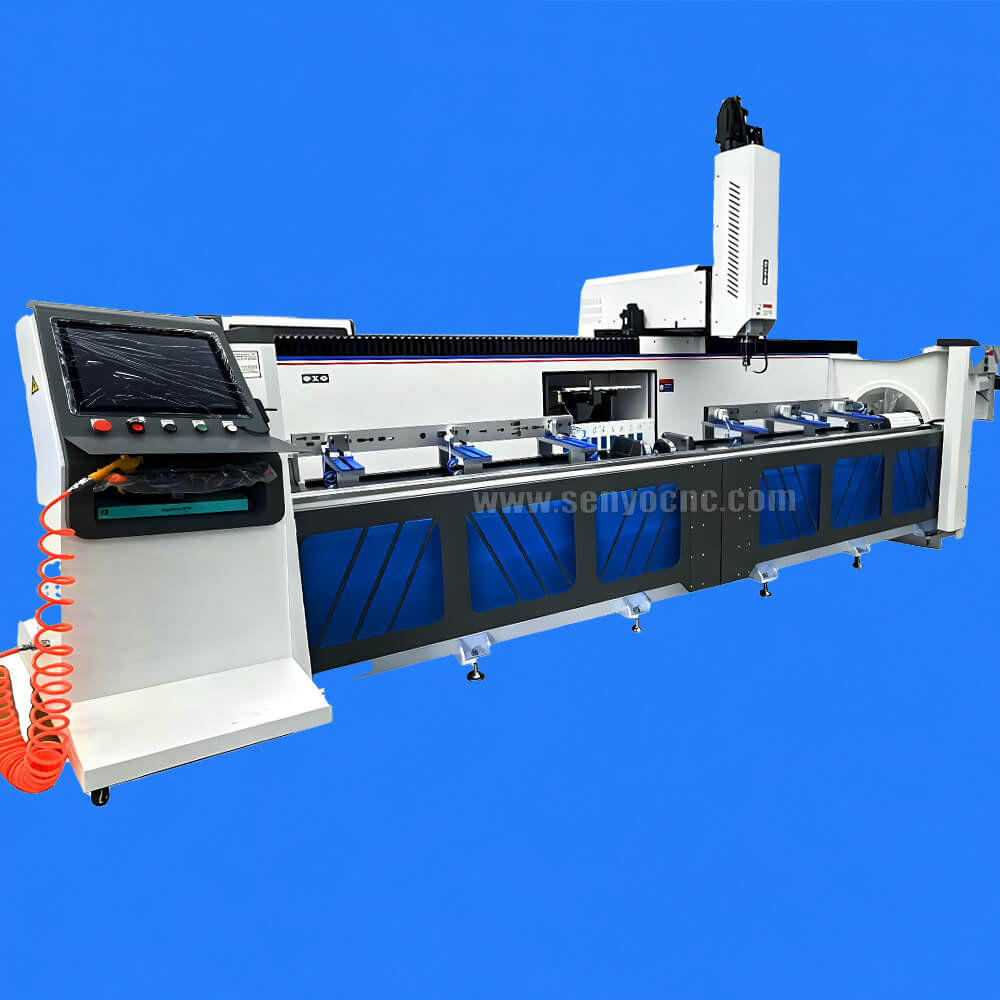

The 4 Axis CNC Machining Center is designed for high-precision machining of aluminum profiles used in windows, doors, curtain walls, and other architectural aluminum applications. With 4-axis interpolation, the machine can perform multiple machining operations including cutting, drilling, tapping, milling, slotting, and end-face processing in a single setup.

The CNC system provides accurate positioning and smooth multi-axis movement, helping improve machining efficiency and reduce manual operations. It is suitable for processing long aluminum profiles and complex window and door components with consistent accuracy.

Color Design Option and 6.5M option

Product Overview

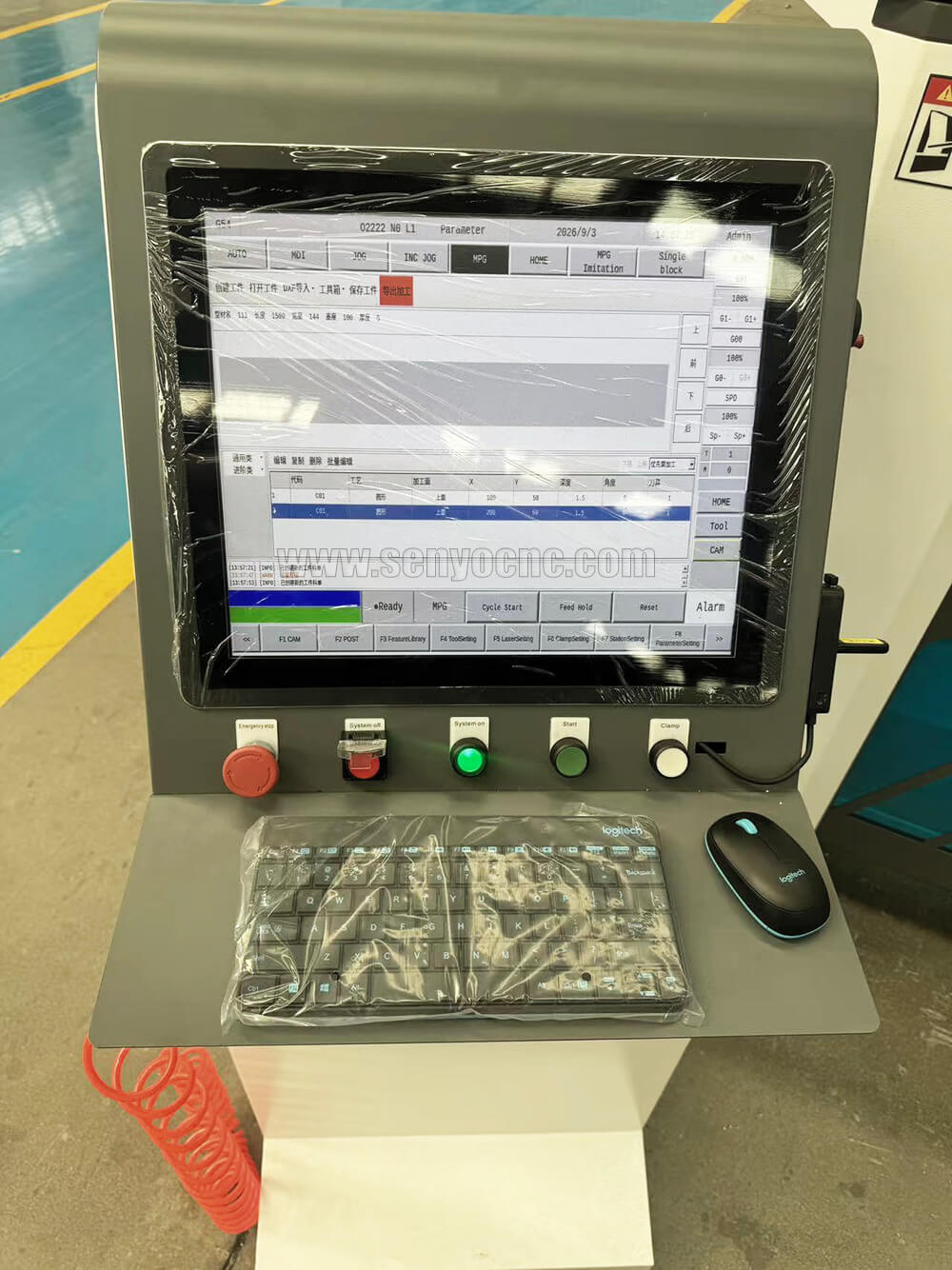

Equipped with an advanced industrial CNC system and a user-friendly human-machine interface, the equipment features simple operation and reliable performance;

Suitable for the processing of lightweight alloys such as industrial aluminum profiles and copper profiles, as well as U-PVC profiles;

A single-clamping setup enables comprehensive, multi-functional precision machining—including milling, drilling, and chamfering of profiles.

The bed features a high-strength welded structure; after undergoing thermal aging annealing treatment, it ensures the entire machine possesses high rigidity and high stability;

The system utilizes imported high-precision linear guide pairs, ball screws, gear-rack mechanisms, and servo motors to ensure smooth motion and high positioning and machining accuracy;

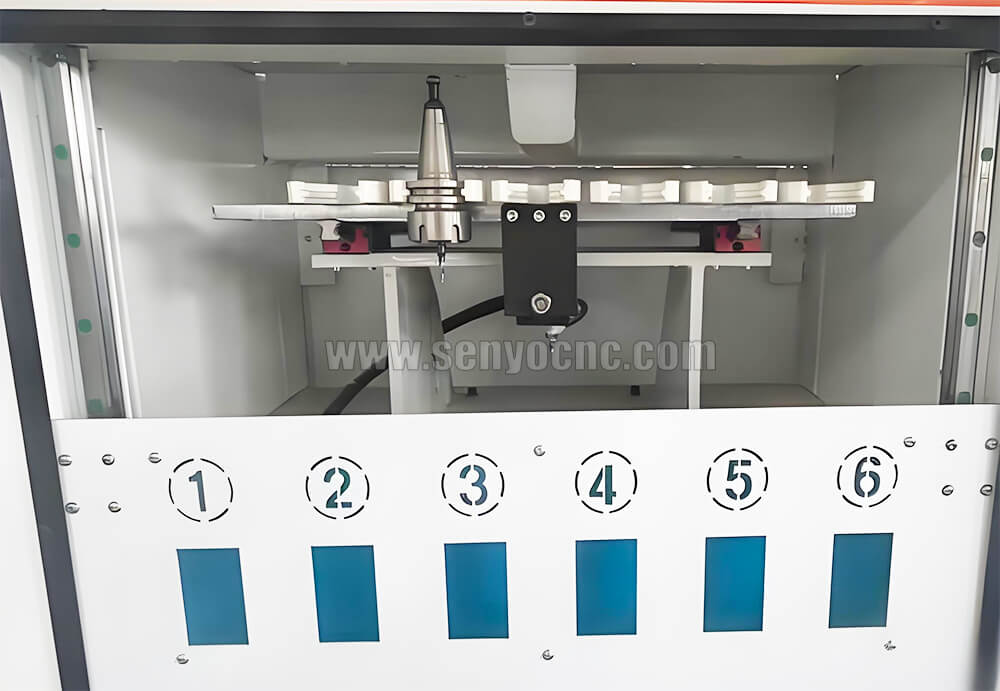

Equipped with an 8-tool-change capacity rapid tool changer, enhancing machining efficiency;

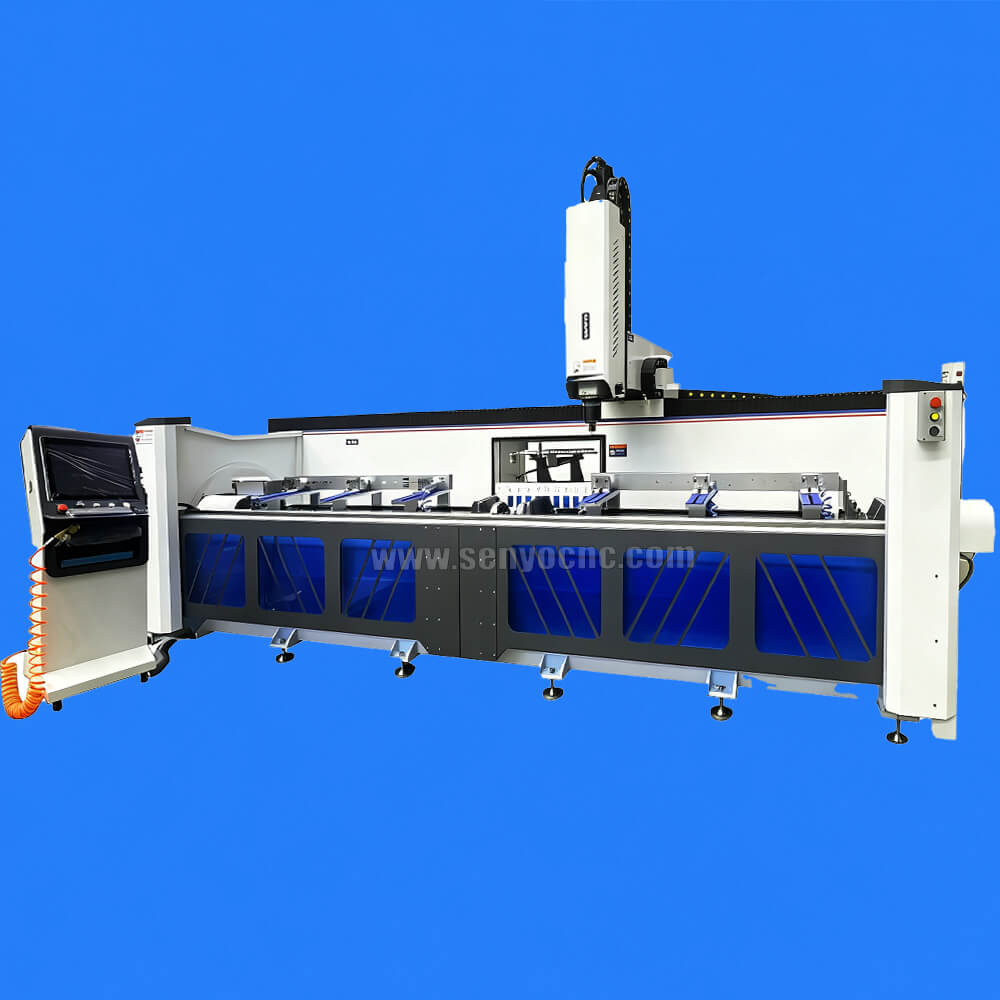

The machine can process two short profiles at once, or process a single long profile up to 4.5 meters in length.

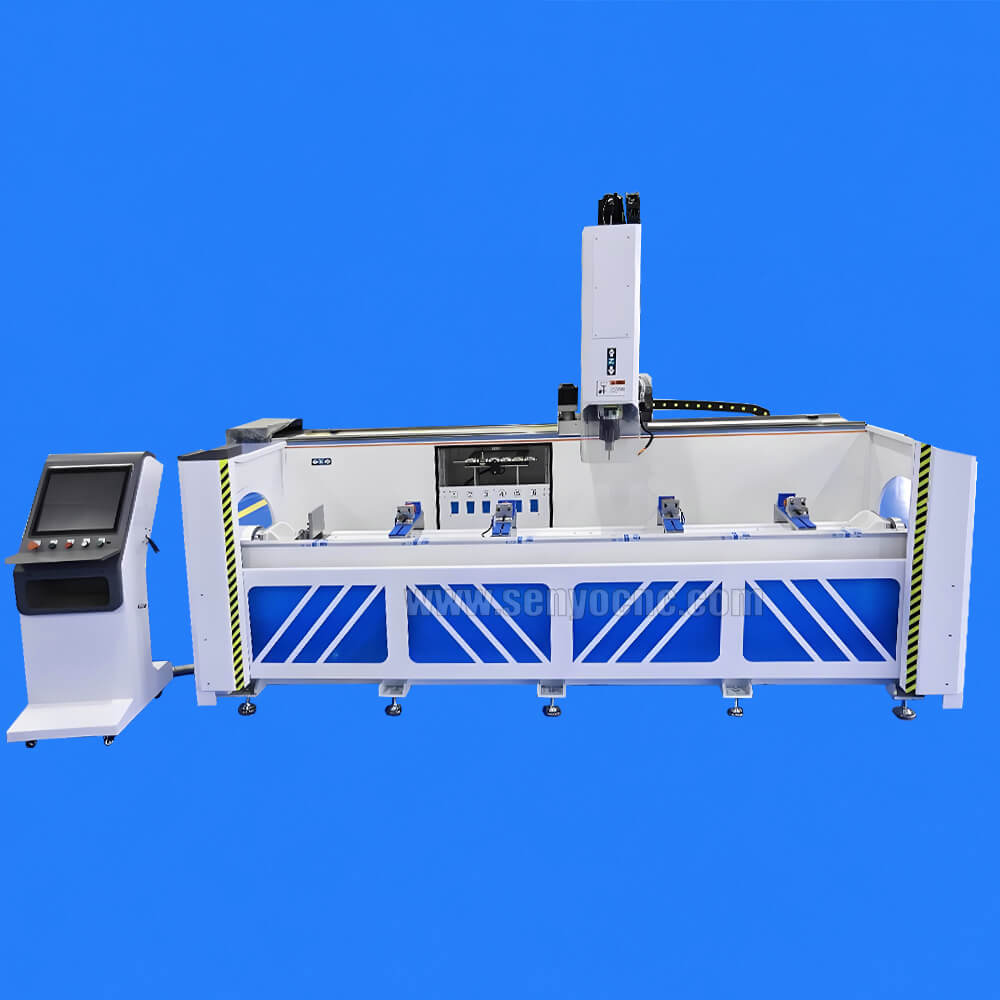

The dual workbenches can be operated independently, enabling simultaneous material loading on both sides.

The workbench flipping function enables arbitrary angle machining of profiles ranging from-90° to +90°.

The high-quality, high-speed electric spindle ensures machining stability, smooth rotation with low noise, and powerful cutting capability.

Key Features

* 4-axis CNC interpolation for complex aluminum profile machining
* Suitable for aluminum windows, doors and curtain wall profiles
* Integrated cutting, drilling, milling, tapping and slotting operations
* High-precision linear guide and transmission system
* Suitable for processing long aluminum profiles
* Reduces repositioning and manual measurement
* Efficient solution for customized and batch production
* Ideal for aluminum fabrication factories and window & door manufacturers

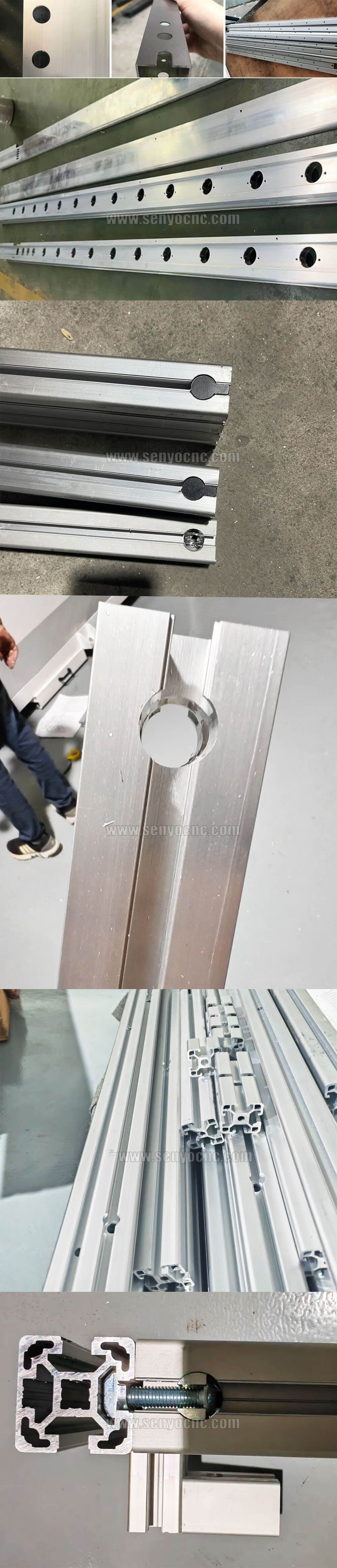

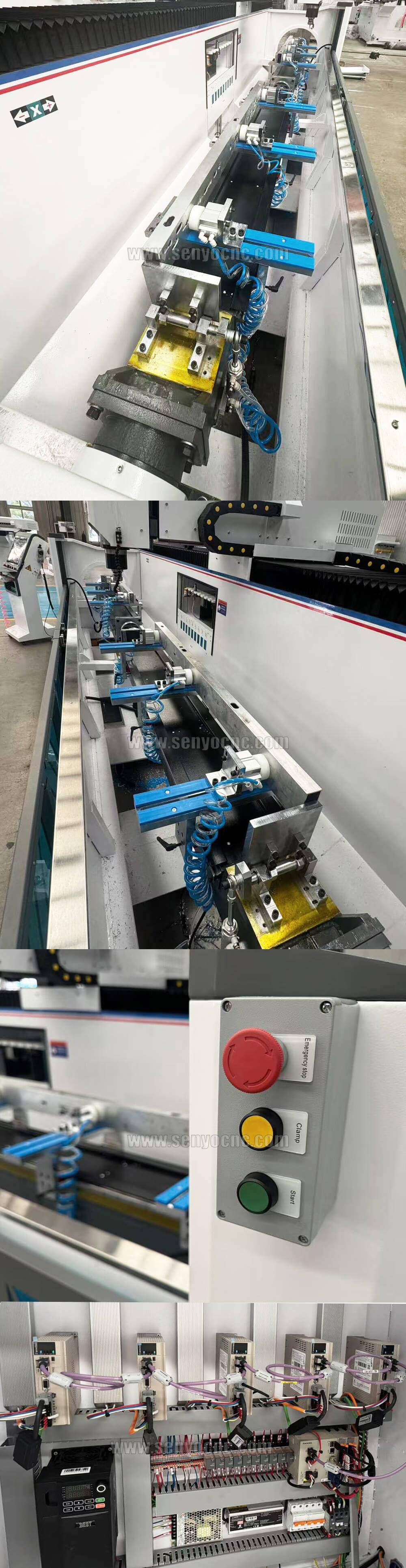

Parts Detials

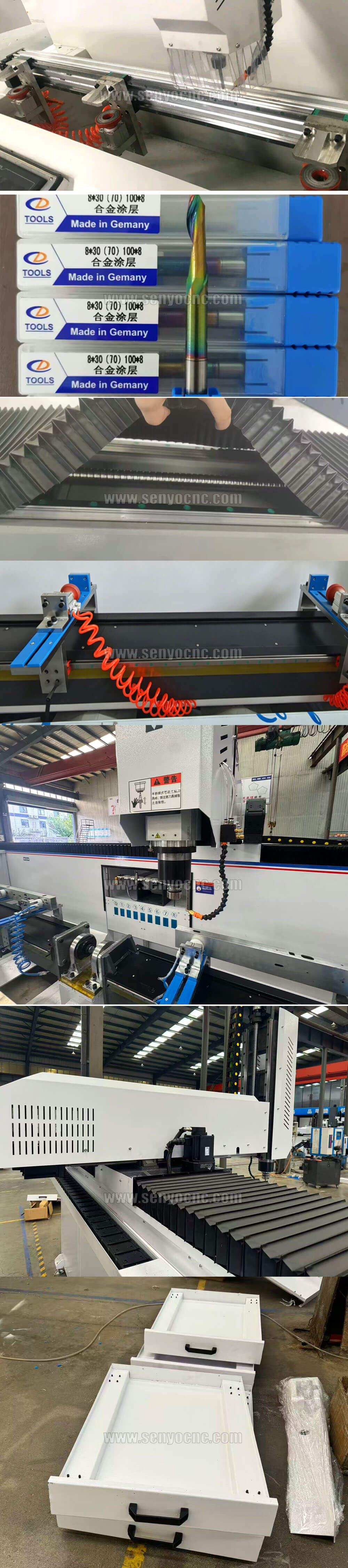

Milling Drilling Bits Import milling blade long life service

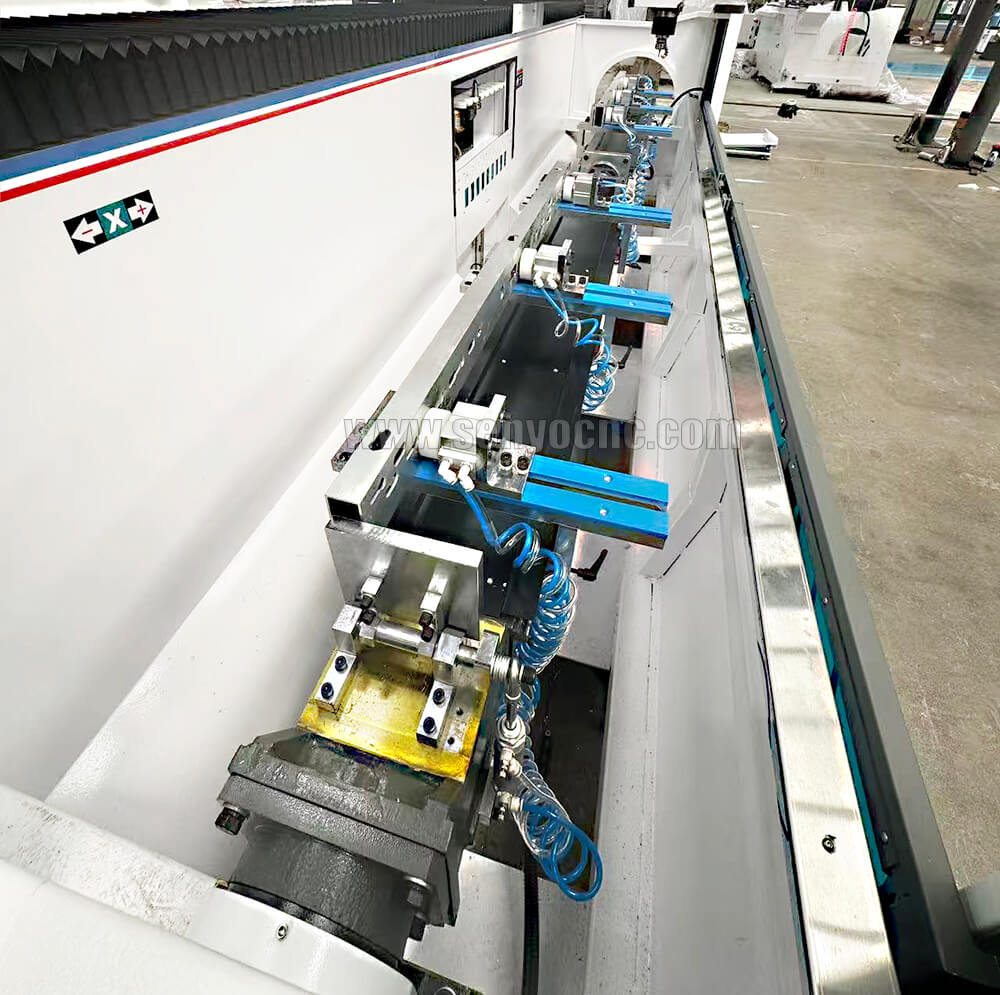

Worktable

The worktable can turn around -90°,~0° ~+90°. which can realize aluminum profile three sides processing by one-time clamping.
Transmission part

Transmission parts adopt the high-precision ball screw and guide rail with very high work accuracy.

Technical Specifications

Equipment Configuration

1) Spindle motor: High-speed electric spindle;

2) Guide rails: All X, Y, and Z axes utilize high-precision linear guide rails;

3) X-axis drive: All units utilize imported high-precision gear-rack drives;

4) Z and Y-axis drive: Utilizes imported high-precision ball screw drives;

5) Work fixture: 6 sets of pneumatic clamping and positioning fixtures;

6) Drive system: Equipped with an imported fully digital brushless AC servo drive system;

7) Spray cooling system: Can be used in conjunction with machining programs;

8) Hand-cranked pulse generator – facilitates alignment and measurement of the machining origin;

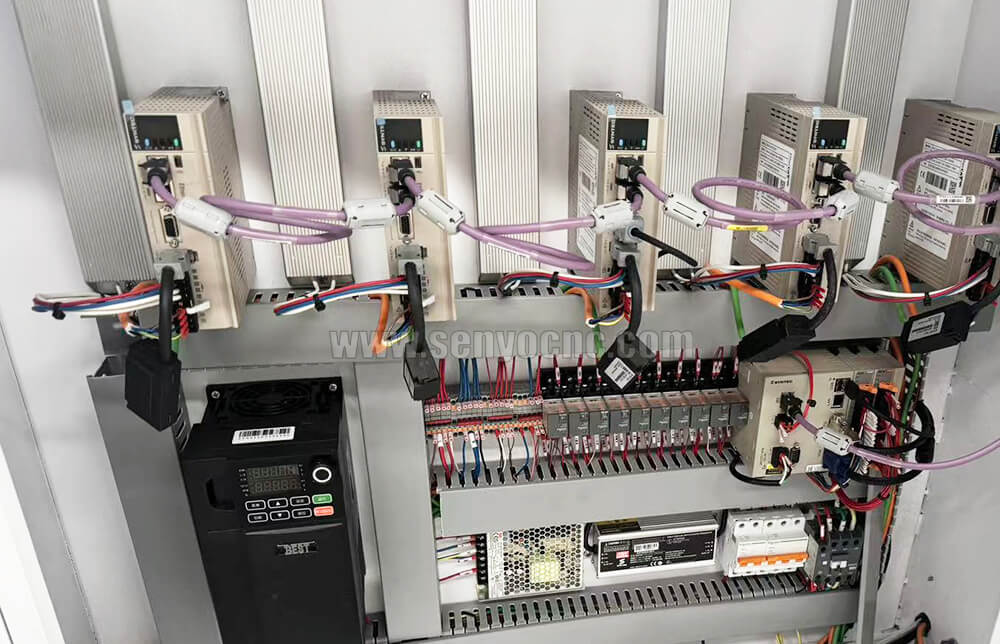

9) Control Box: All primary electrical components, industrial PC, and control system are imported;

10) Programmability: Supports both online and offline programming;

11) The equipment milling cutter handle diameter ranges from 2 to 16 mm (an optional ER32 cylindrical holder is available with a milling cutter handle diameter ranging from 2 to 20 mm.

Component Brand

Applications
Aluminum window and door frames, curtain wall profiles, aluminum furniture, industrial aluminum profiles, and other architectural aluminum components.

Working Project

For Our Work Steps

1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.

Packing & Shipping

1. Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements.

For standard machines, 7-15 working days after payment.

Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
