Product Characteristics

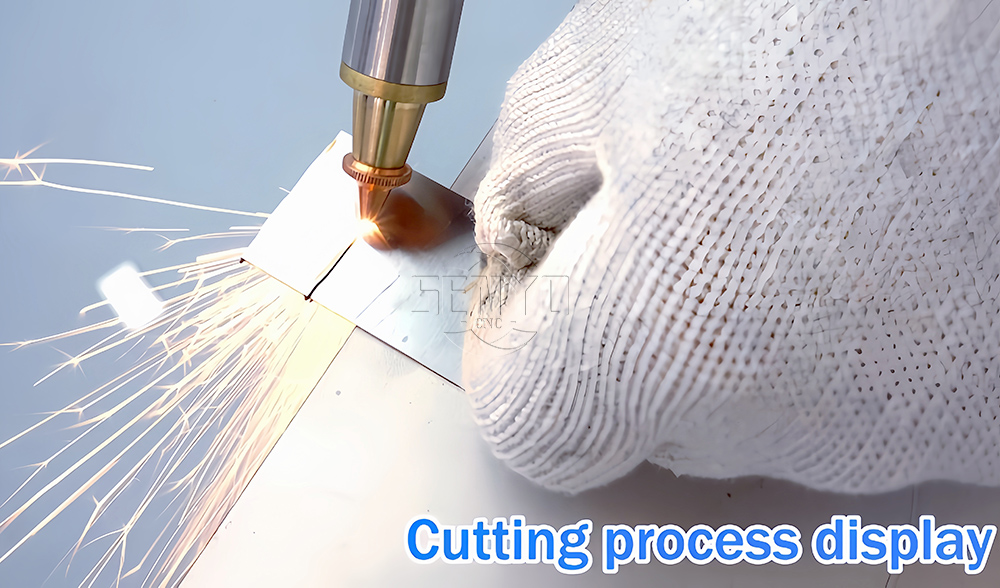

① Weld Metals → Silky-Smooth Seams ② Cut Metal → Precision-Edged ③ Clean Surfaces → Rust/Dirt Removed ④ Switch Attachments → Handle Any Job in Seconds

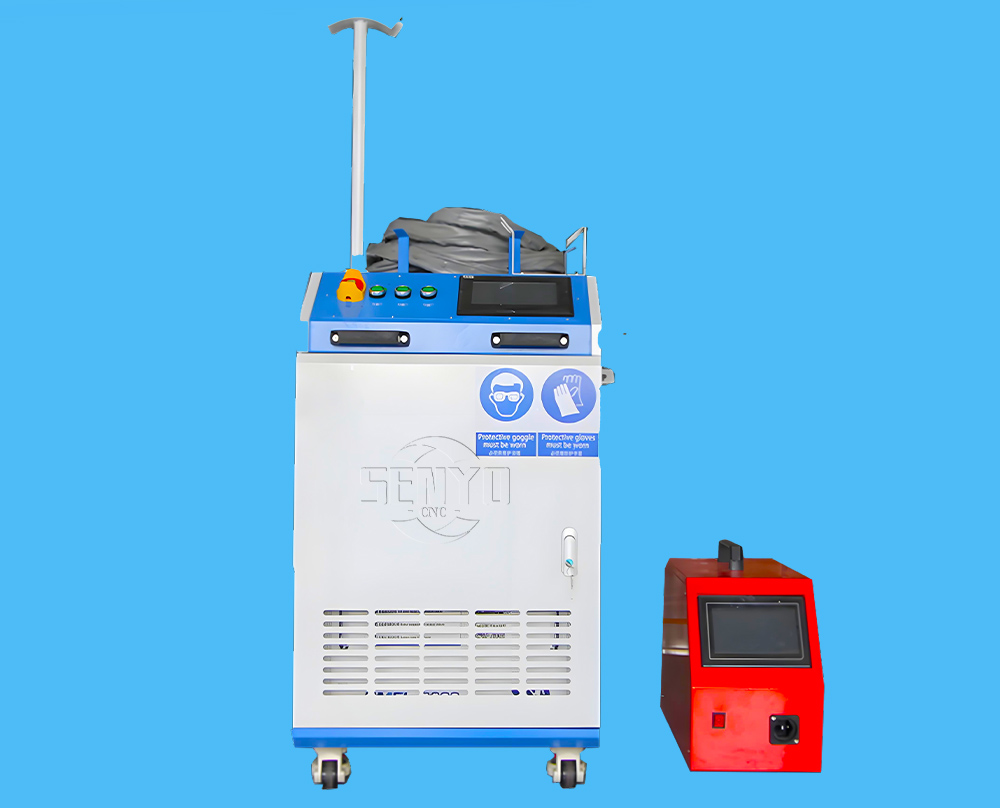

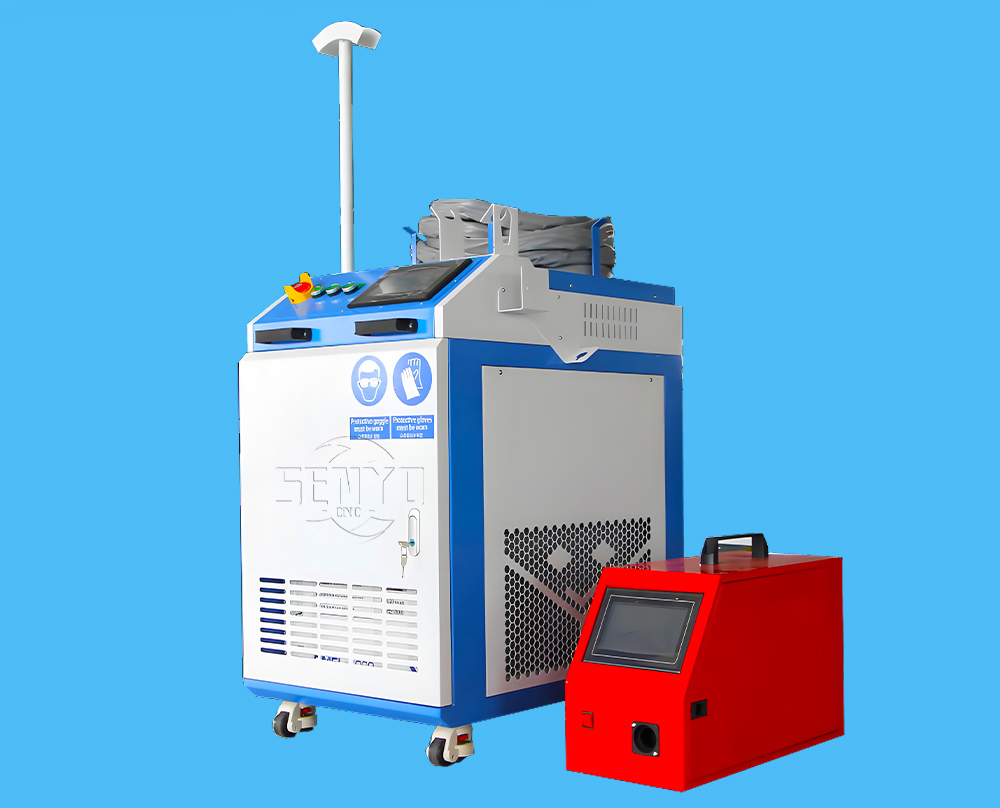

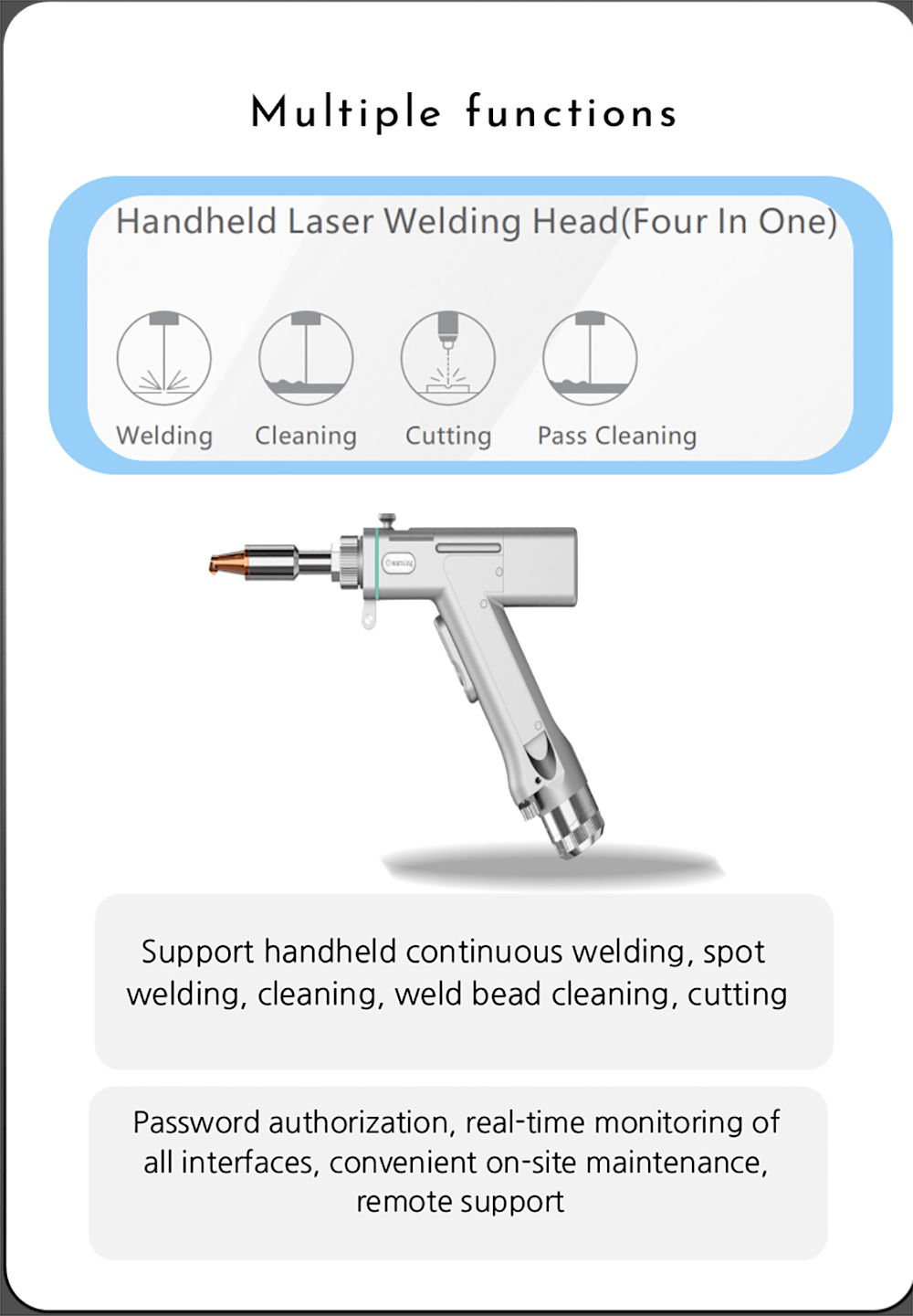

Fiber Laser Welding Machine (4 In 1 Optional) – Precision, Efficiency, and Durability
Upgrade your welding experience with our 4-in-1 Fiber Laser Welding
Machine, designed to deliver smooth and aesthetically pleasing welds
with minimal post-processing. Say goodbye to excessive grinding—this
advanced laser welding technology ensures clean, seamless joints, saving
you both time and labor costs.

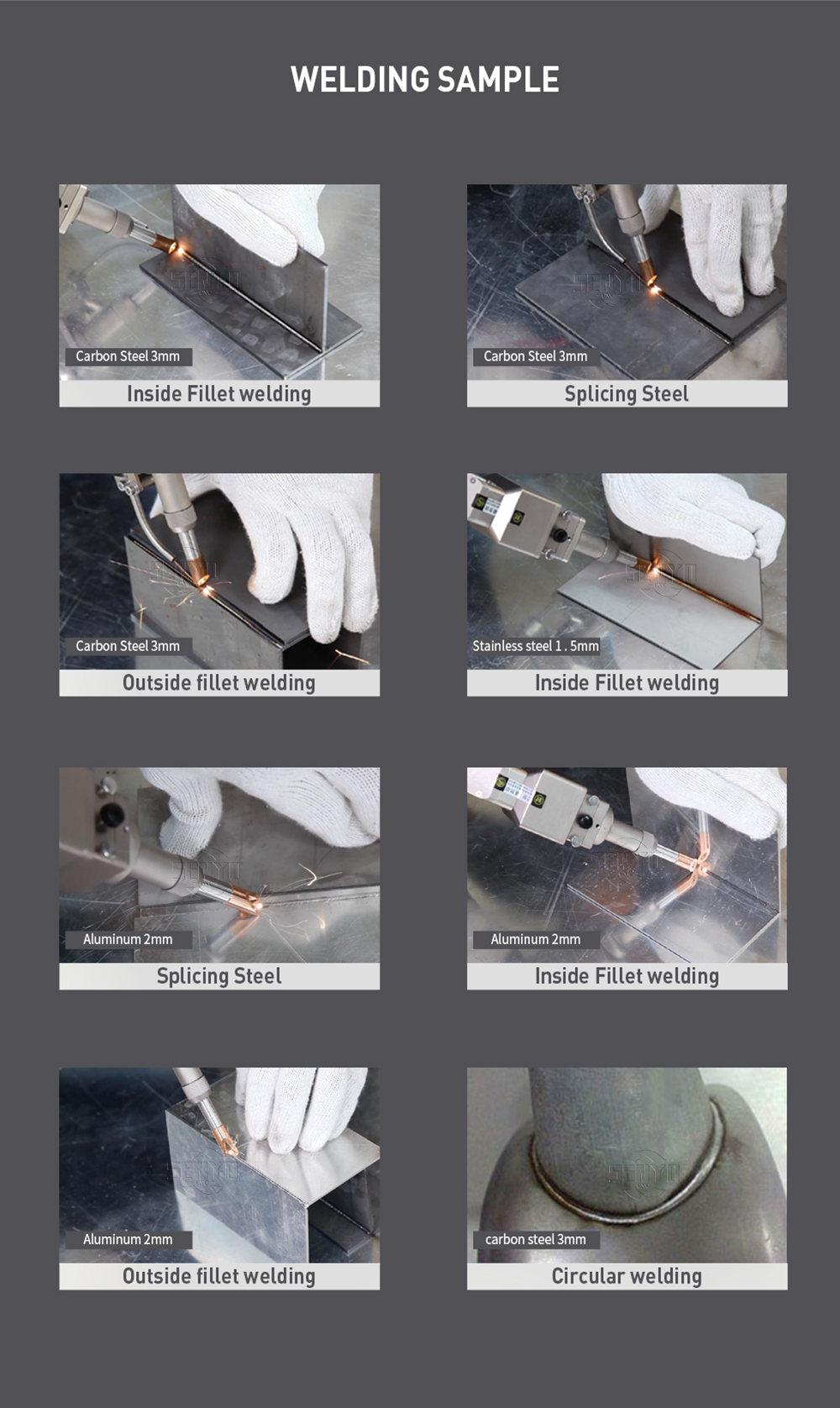

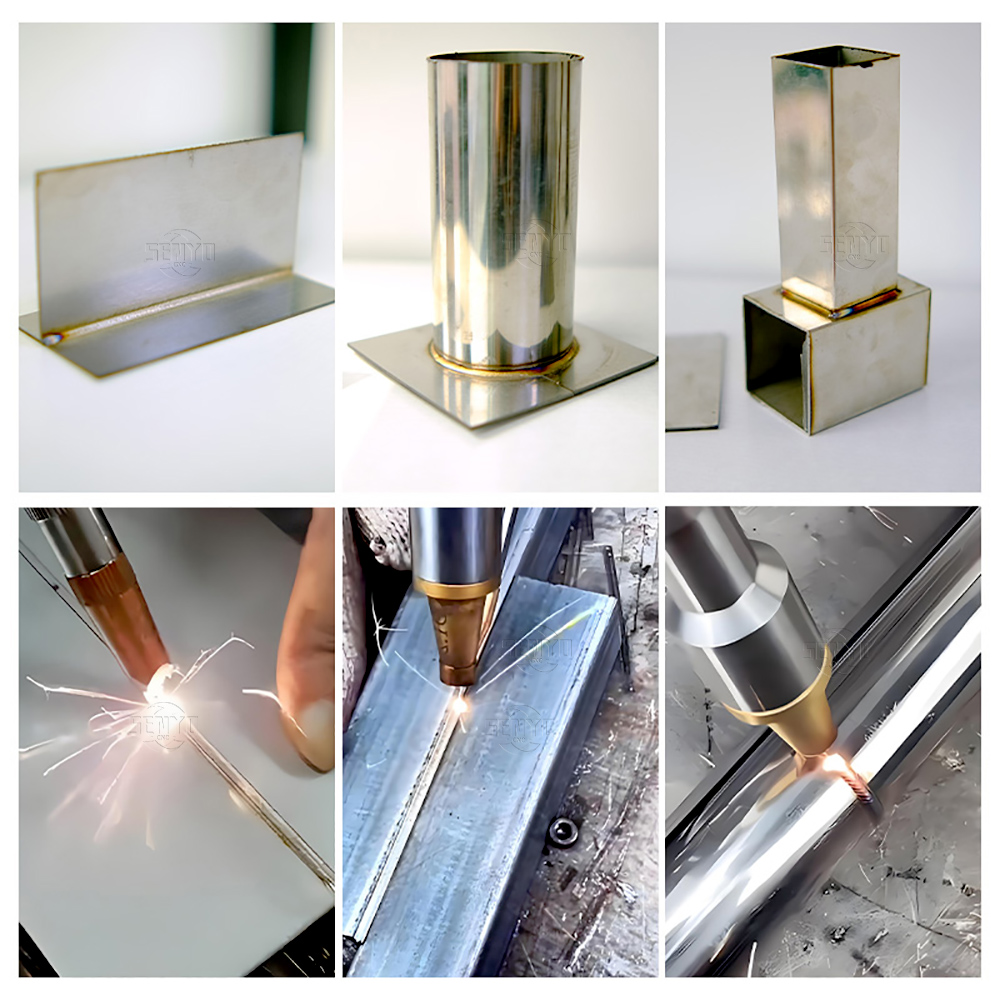

can weld stainless steel, carbon
steel, aluminum and some other metals. It can realize splicing welding,
pipe welding, spot welding, internal fillet welding, external fillet
welding, etc.
Handheld laser welding machine with power ratings of 1000W, 1500W, 2000W, and 3000W represents a range of versatile tools for various welding applications across different industries.handheld laser welding machines are designed to be portable, allowing operators to maneuver them easily for various welding tasks.Precision and Control: All these machines offer precise control over the welding process, minimizing distortion and heat-affected zones compared to traditional welding methods.Versatility: They can weld a wide range of materials including stainless steel, carbon steel, aluminum, and alloys, depending on the specific laser source and machine configuration.

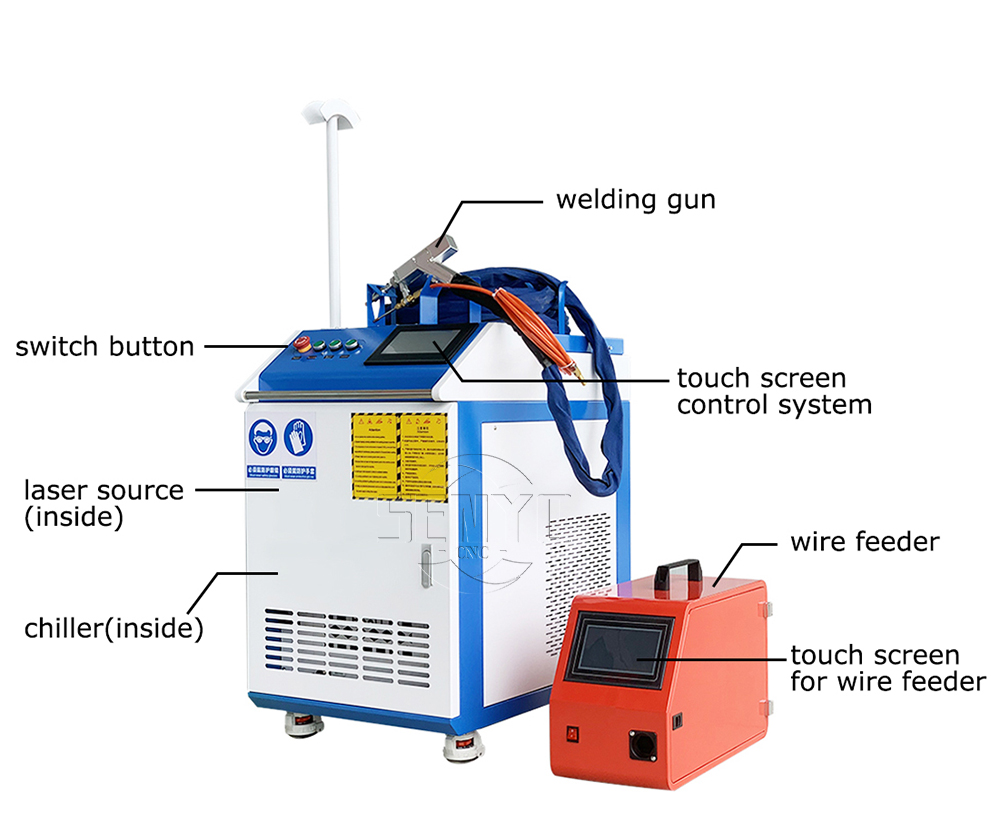

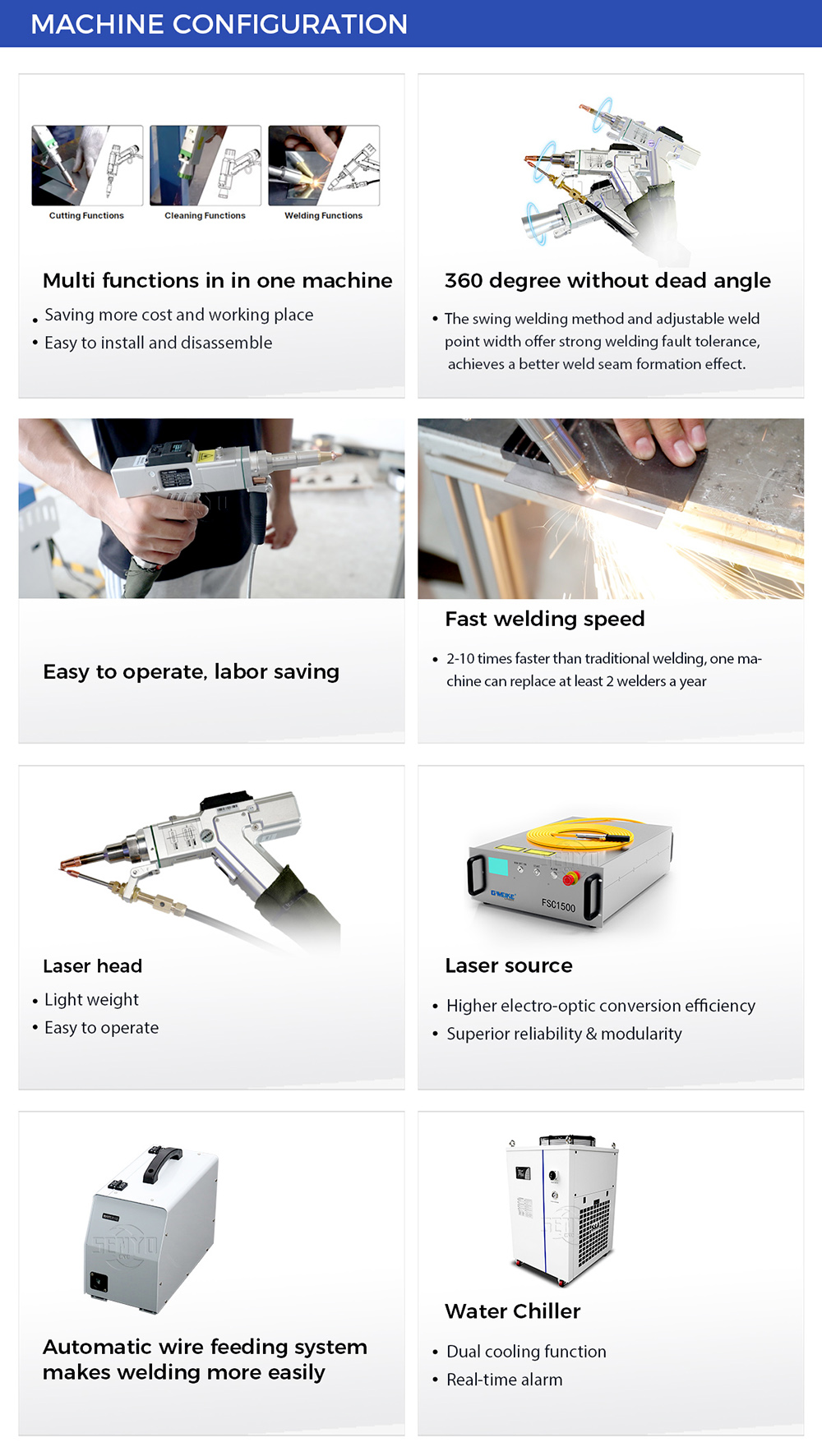

Machine Features
1. Flawless Welds – No deformation, no welding scars, just strong and durable joints.
2. High Efficiency – Reduces the need for post-weld finishing, improving overall productivity.
3. Minimal Consumables – Laser welding requires fewer materials, ensuring long-term cost savings.
4. Extended Lifespan – Built for longevity, providing consistent performance over time.

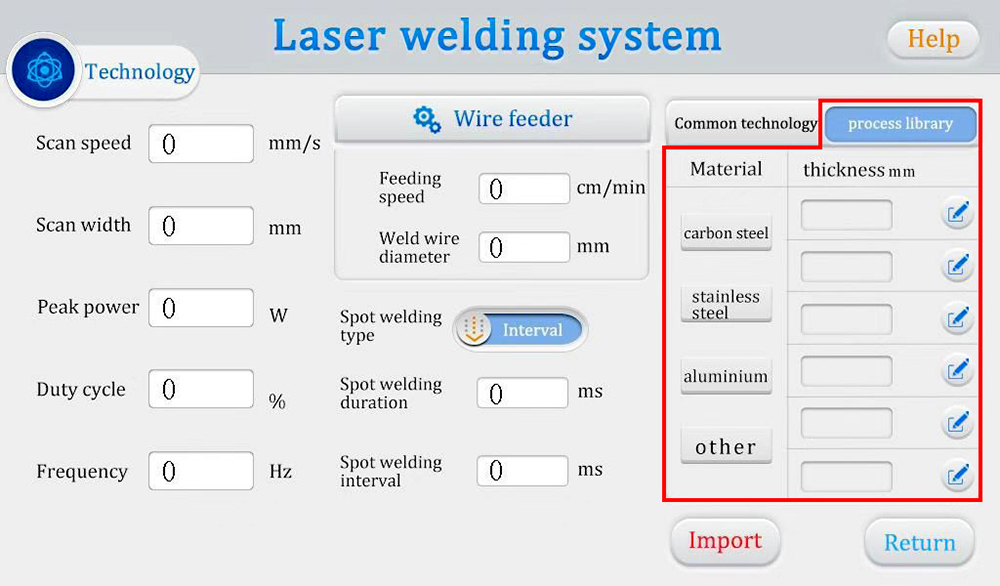

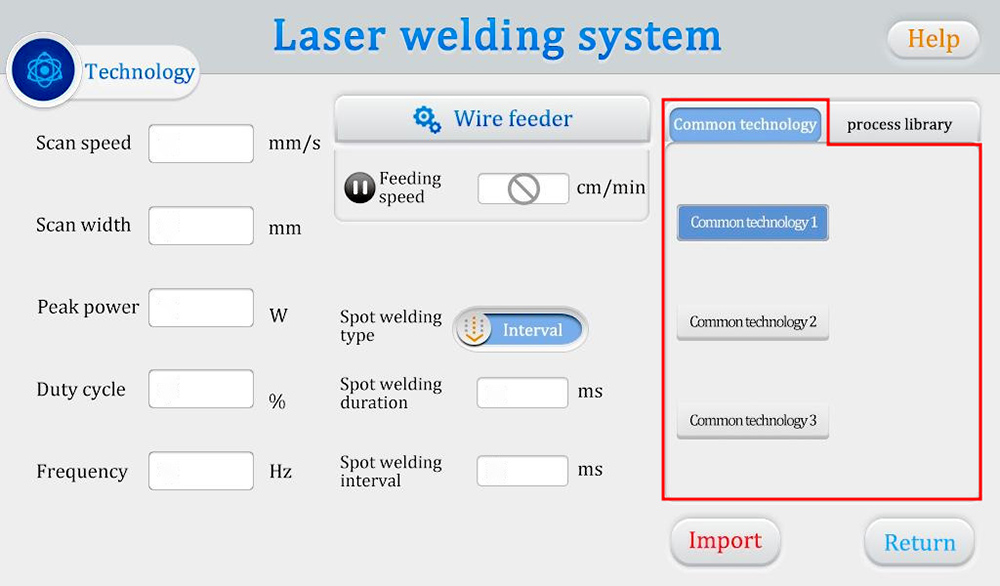

You can set and store 3 most commonly used parameters here, and switch them directly through the button on the gun during work, making operation more convenient.
Supports storing machine parameters according to material type and thickness. When you change welding requirements, you only need to select the material and thickness, making the machine easier to use.
Chiller
▶Constant temperature mode and intelligent temperature control mode can meet the cooling needs in different environments.

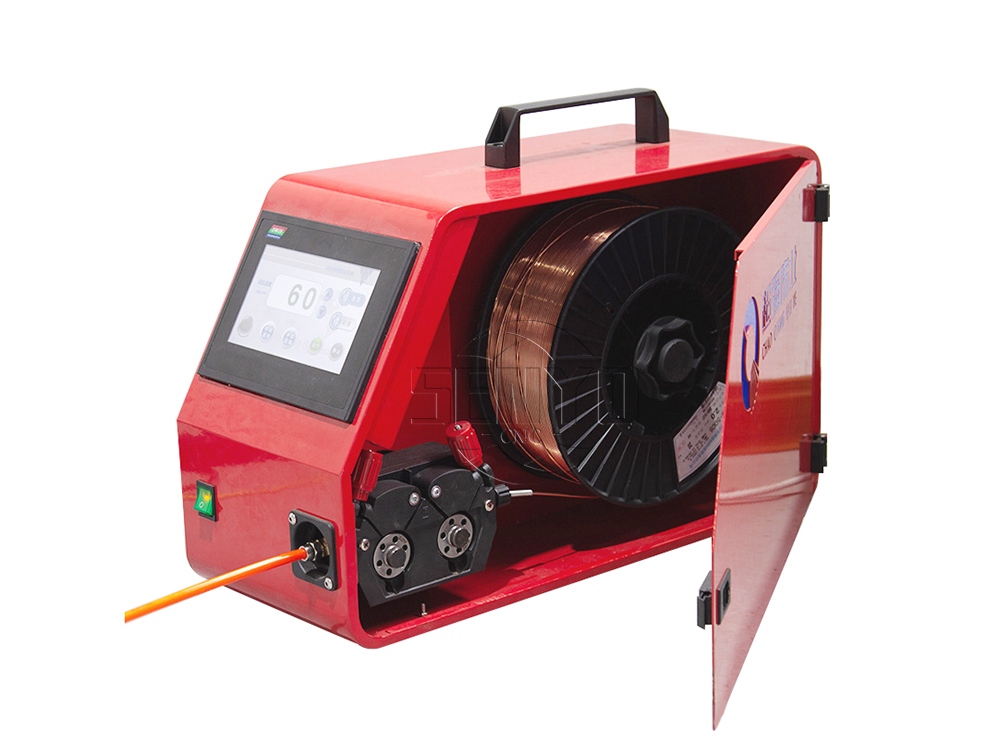

▶Adopt high-precision motor, wire feeding is smoother and wire will not get stuck.
▶Support wire diameter 0.8/1.0/1.2/1.6/2.0mm.

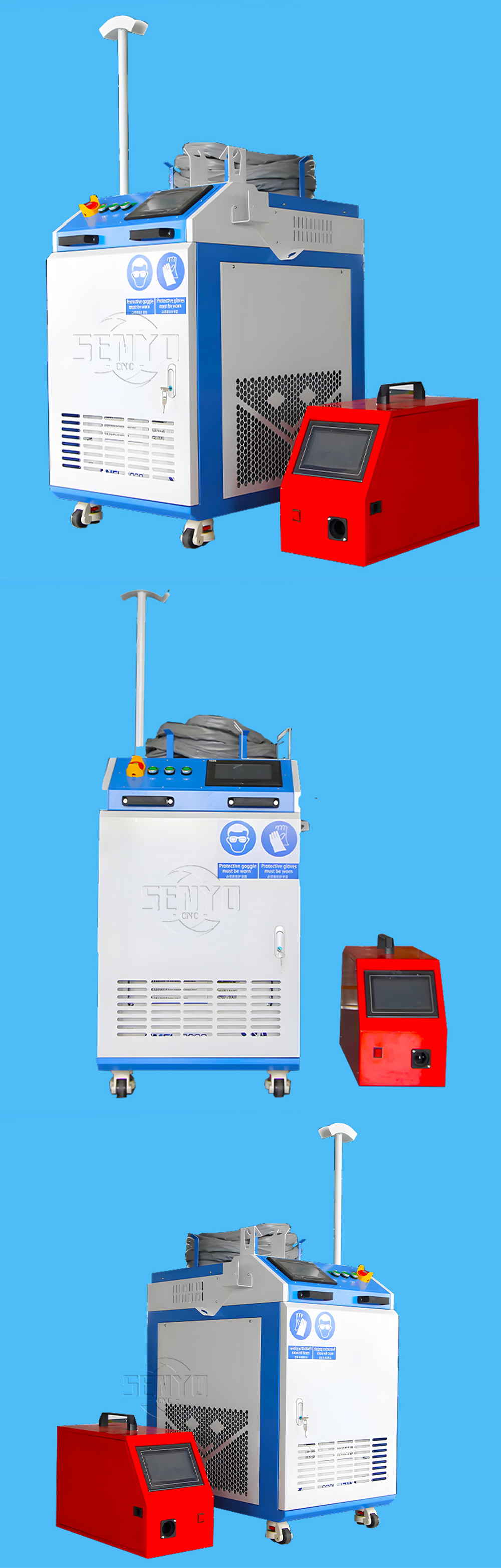

▶Red and blue color to choose
Laser Power | 1200W/1500W/2000W/3000W |
Power Output Range | 10-100% |
Cable Length | 10m, or Customized 15/20m |
Swing Mode | Single Swing |
Wobble Width | 0-6mm |
Welding Mode | straight line, fish scale, spot |

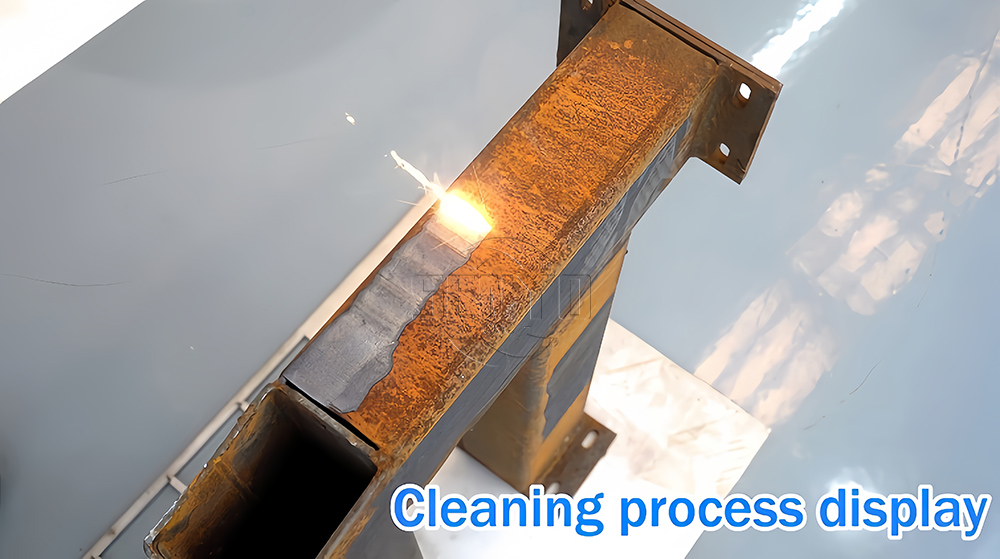

Cleaning Width | 120mm |
Auxiliary Gas | Nitrogen/Argon |
Cooling Method | Water-cooling |
Voltage | 1200-2000W: 220V±10% 3000W: 380V±10% |
Frequency | Customized 50/60HZ |
Working Environment Requirements | 0~40℃, humidity﹤85% |
The function of the welding machine is to weld two materials together firmly. It does not necessarily require full penetration.
Maybe the material thickness is 10mm, but a penetration thickness of 5mm is sufficient for you.
The following table shows the thickness that can be fully penetrated at different powers.
Material | 1200W | 1500W | 2000W | 3000W |
Stainless Steel | ≤3mm | ≤4.5mm | ≤6mm | ≤8mm |
Carbon Steel | ≤3mm | ≤4.5mm | ≤6mm | ≤8mm |
Aluminum | ≤2mm | ≤3mm | ≤4.5mm | ≤6mm |
Material | Aluminium | Stainless steel | Carbon steel | Galvanized sheet |
1000W | 1.0mm | 1.5mm | 1.5mm | 1.2mm |
1500W | 1.5mm | 2.0mm | 3.0mm | 2.5mm |
2000W | 2.0mm | 2.5mm | 4.0mm | 3.0mm |
3000W | 3.0mm | 3.5mm | 5.5mm | 4.5mm |
For Our Work Steps
1.Before-sale,we will try to know your requirement what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.

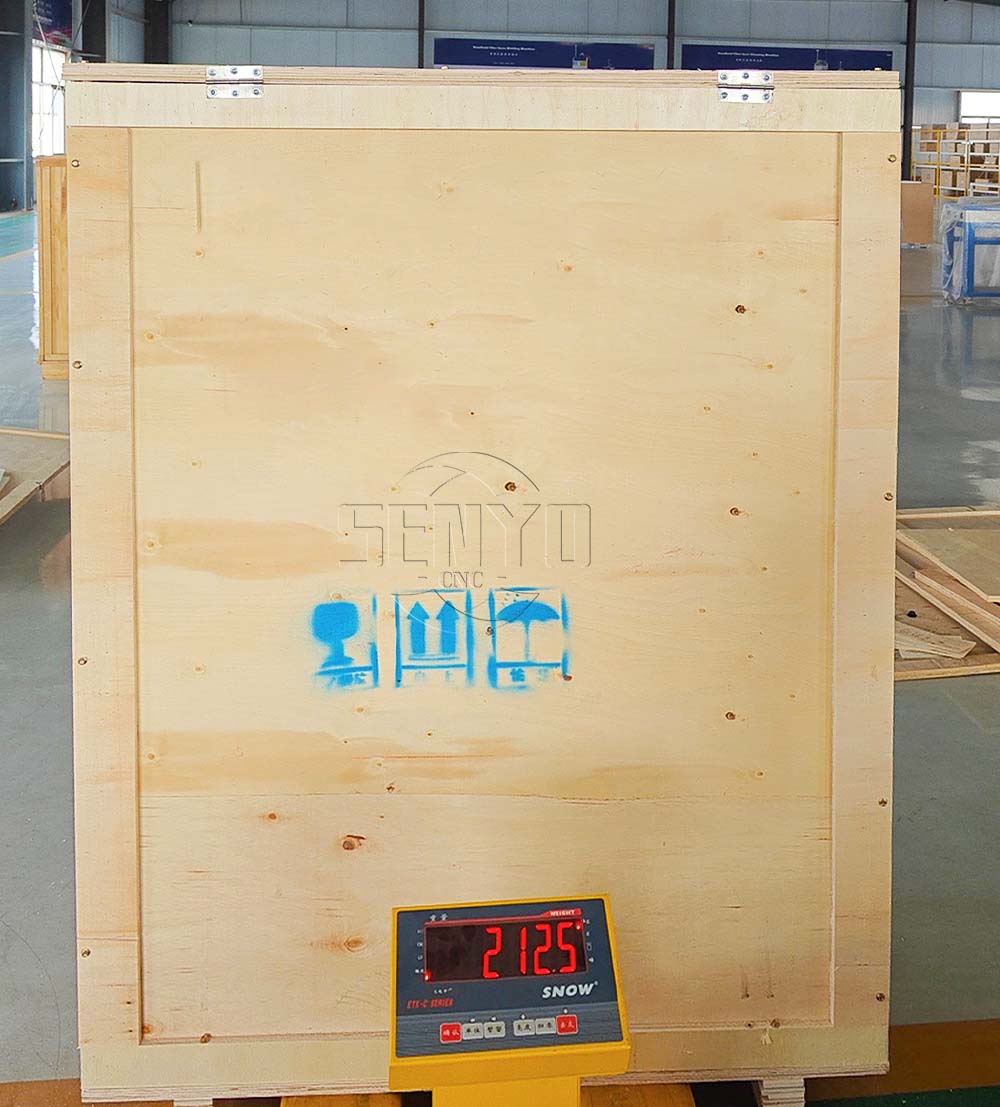

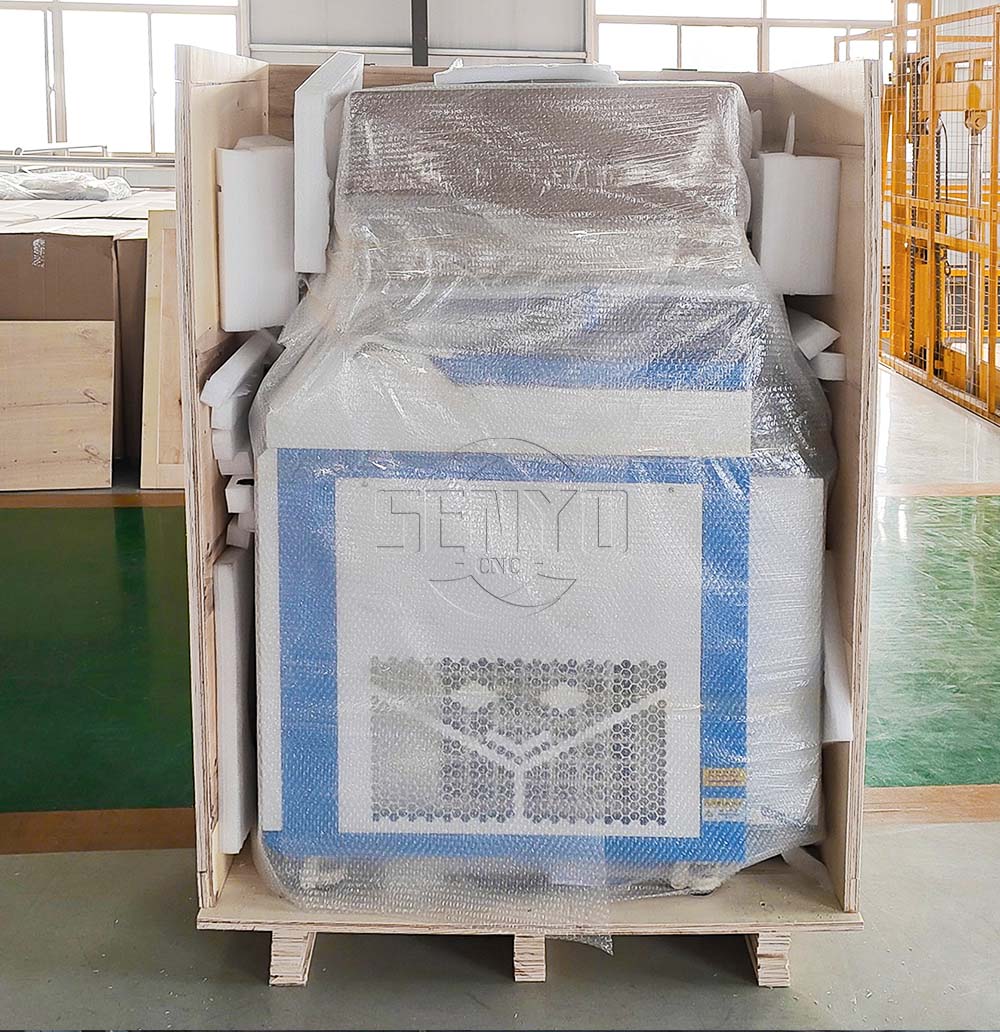

Packing & Shipping
The machine is packed with great care and tough material.
The machine is packed with cling films first and then film bags.
The machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.
With this kind of package, all our laser machine can protect well during long trip by sea or by train.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. If you need any component of the machine, we will provide most affordable price for you.
5. Friendly English version manual and operation video CD disk.
